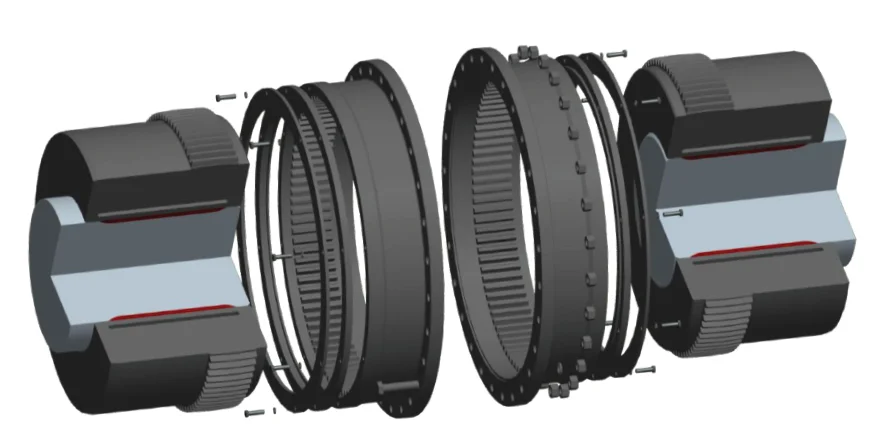

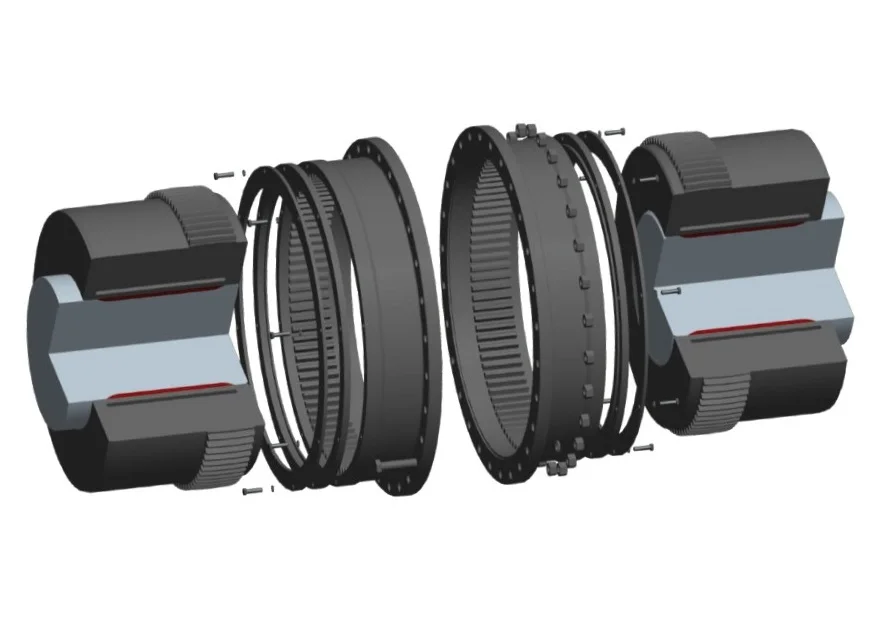

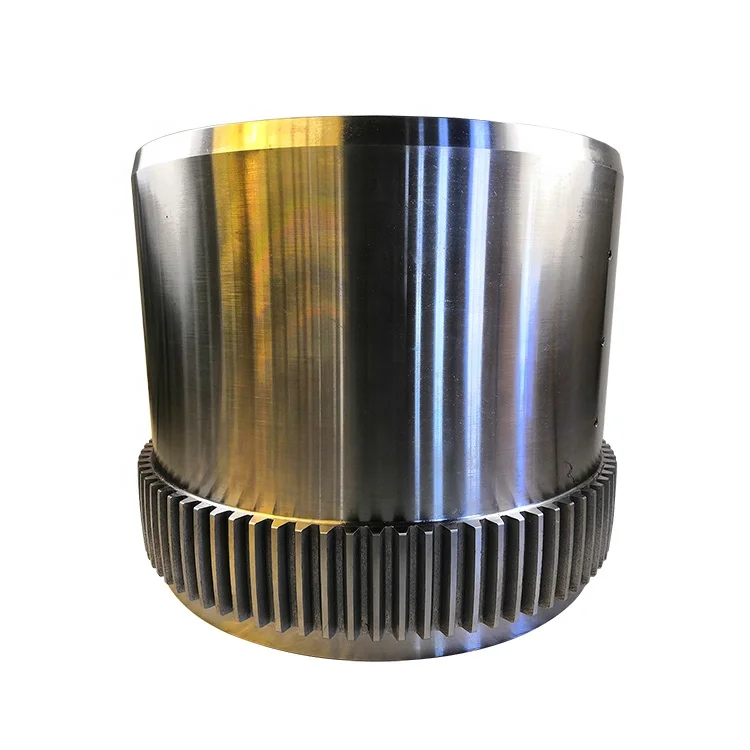

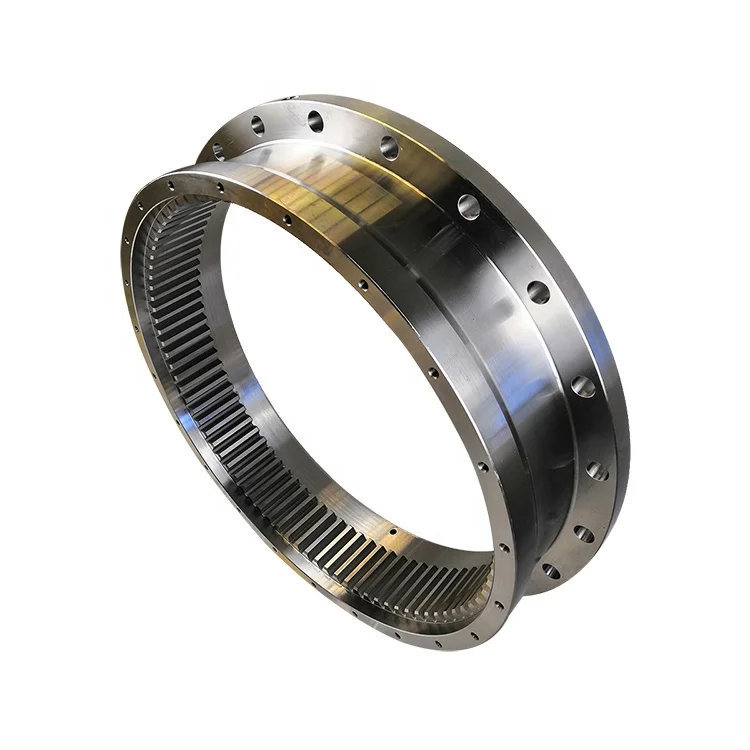

Rapid assembly hydraulic clamping gear coupling for power transmission
- Category: >>>
- Supplier: Beijing Baska Technology Co. Ltd.
Share on (60367329035):
Product Overview
Description
Products Description

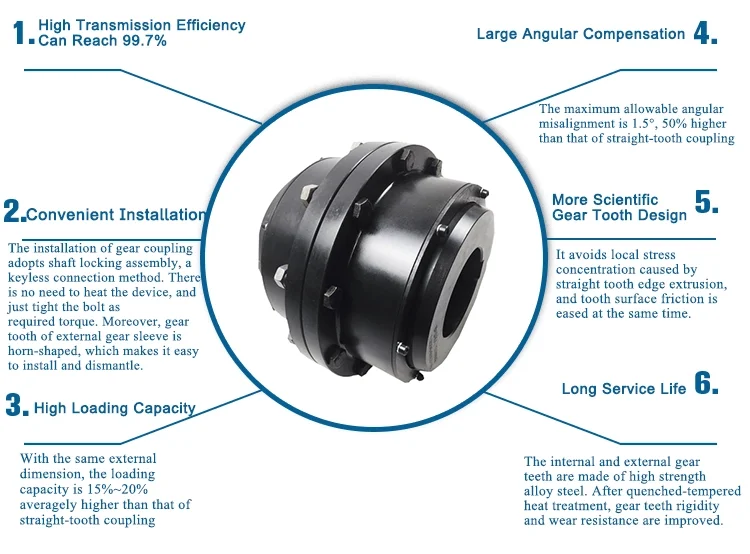

Baska hydraulic coupling are featured by compact design, quick installation, easy positioning, small vibration, high transmission efficiency, no joint surface damage and quick removal. These characteristics will help clients to save more time and cost, creating more value.

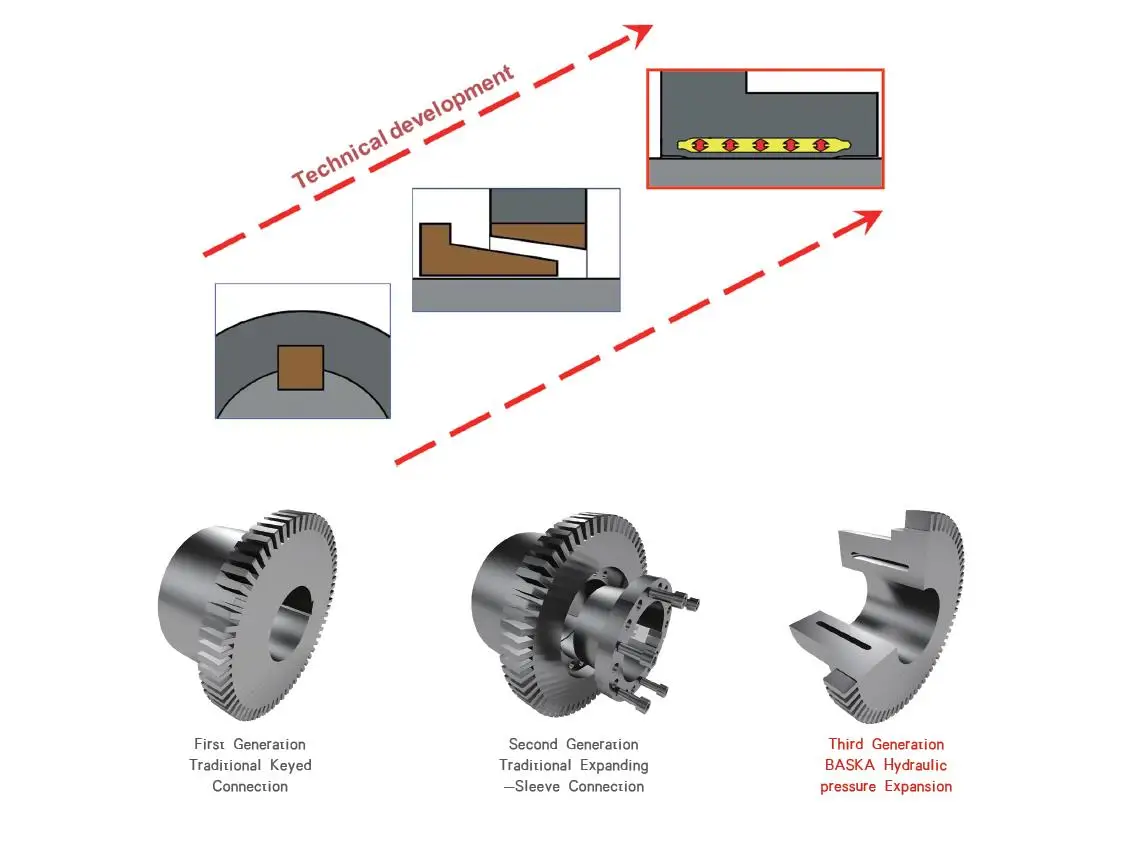

Inject a certain amount of hydraulic medium into a bushing who has interlayer, and with the help of screw and piston or an external working pump, pressure will be evenly delivered to the contact surface of shaft and hub. With the influence of pressure, the bushing will expand evenly around the contact surface to generate an evenly distributed contact pressure.

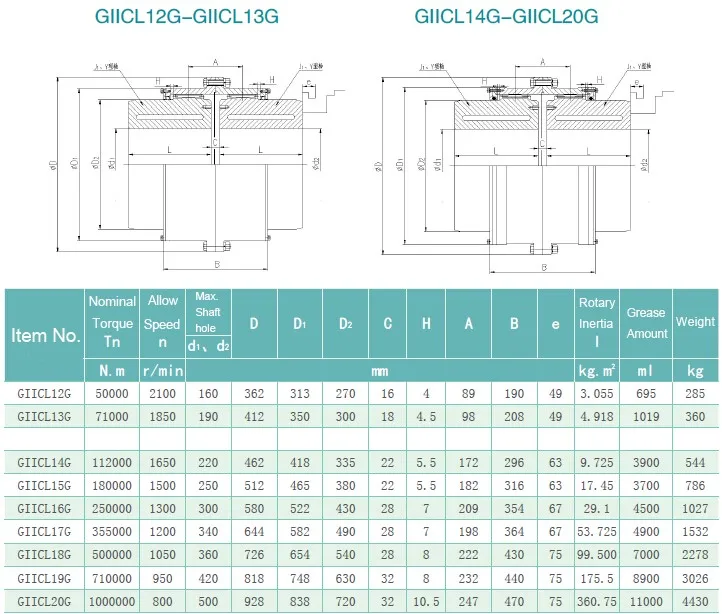

Specifications
Technical Agreement
1. Application to: (e.g. conveyor, crusher, compressor, etc.)
2. Driving end related parameters:
Motor power(KW):
Motor rotation speed(rpm):
Reducer speed ratio:
2. Driving end related parameters:
Motor power(KW):
Motor rotation speed(rpm):
Reducer speed ratio:
For cylindrical shaft, please provide:
Shaft end gap length B(mm): Center height H(mm):
High speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;
Low speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;
Shaft end gap length B(mm): Center height H(mm):
High speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;
Low speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;
Notice:
1. If you do not provide B or H, it is defaulted to enough space for installation based on parameters in catalog.
2. If your requirement is different from this drawing, please provide your technical drawing.
2. If your requirement is different from this drawing, please provide your technical drawing.
Packing & Delivery
All Baska packing cases along with pallet are made of fumigation-free composite material for export.
Product is packaged with plastic cloth before being put in a case
Product is packaged with plastic cloth before being put in a case
