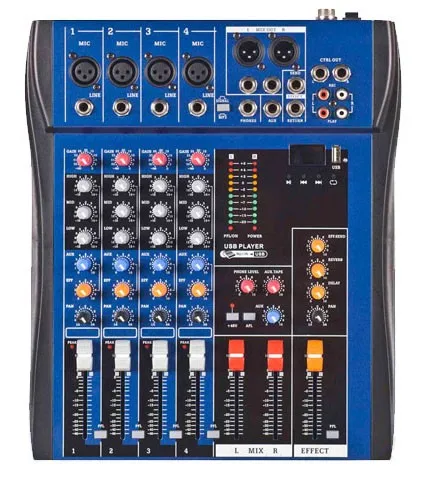

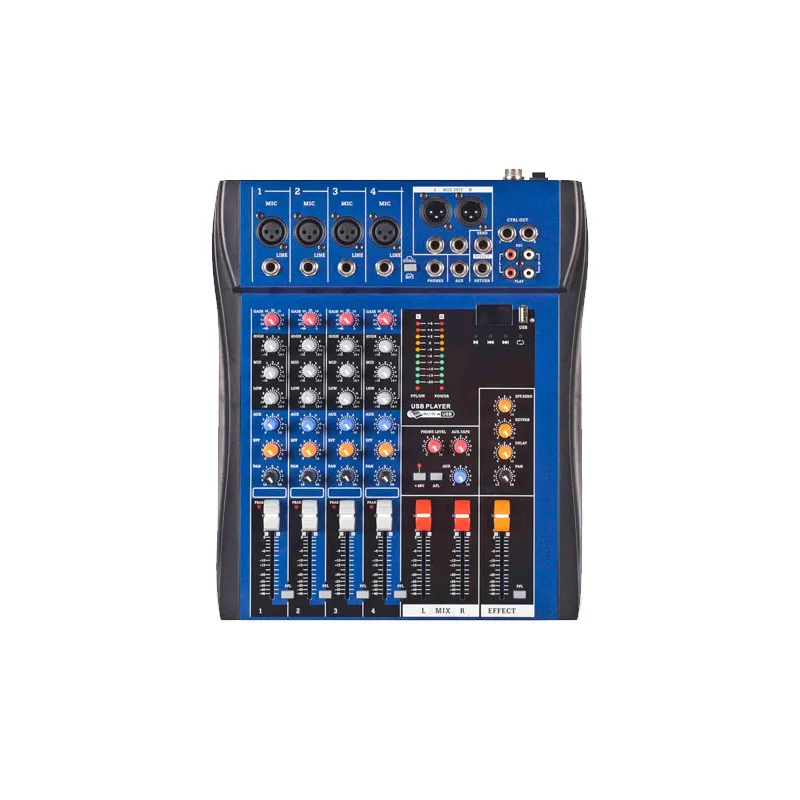

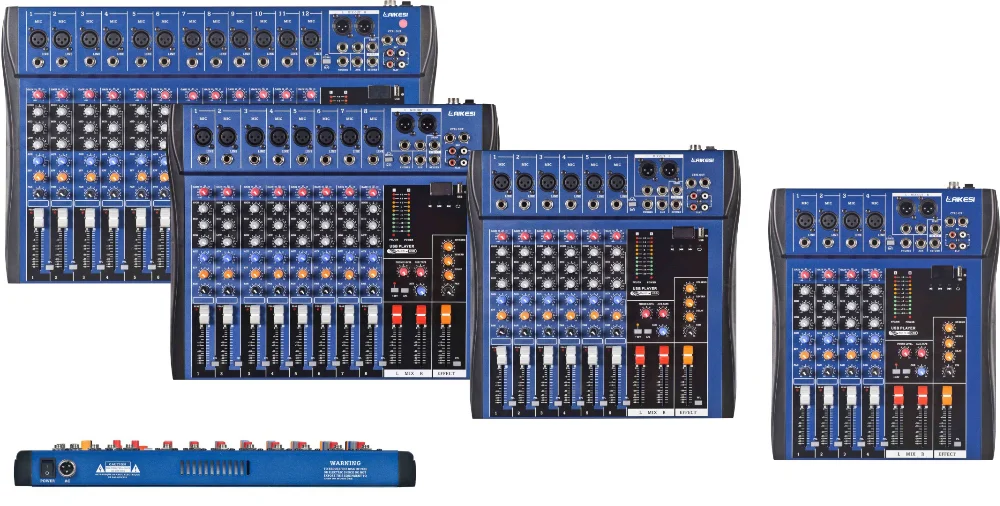

4 channel CT 40S professional audio mixer

Product Overview

Description





4/6/8/12/16-group mono track input, high-quality microphone amplifier

3-band frequency input

High-precision & dual color level LED, control output level correctly

60mm high-precision & long-life handspike attenuator

Internal professional digital effect processor

MIC monitor output

Record output

Buit-in MP3 music player









MODEL	CT-40S
Maximum Output Level	19dBm(1KHz, THD=0.5%)
Residual Noise	-105dB
S/N	≥80dB
Equivalent Input Noise	-115dBm
Headphone Power	100mW(1KHz, THD=0.5%,200 ohm)
Equalization: Low	80Hz+/-15dB
Mid	2.5KHz+/-15dB
High	12KHz+-/15dB
Gain Control: Mono	-60dB ~ -40dB
STEREO	-8 ~ O dB
Frequency Response	20Hz~20KHz(+-/3dB)
THD+N	≤0.03%(1KHz, 0.775V)
