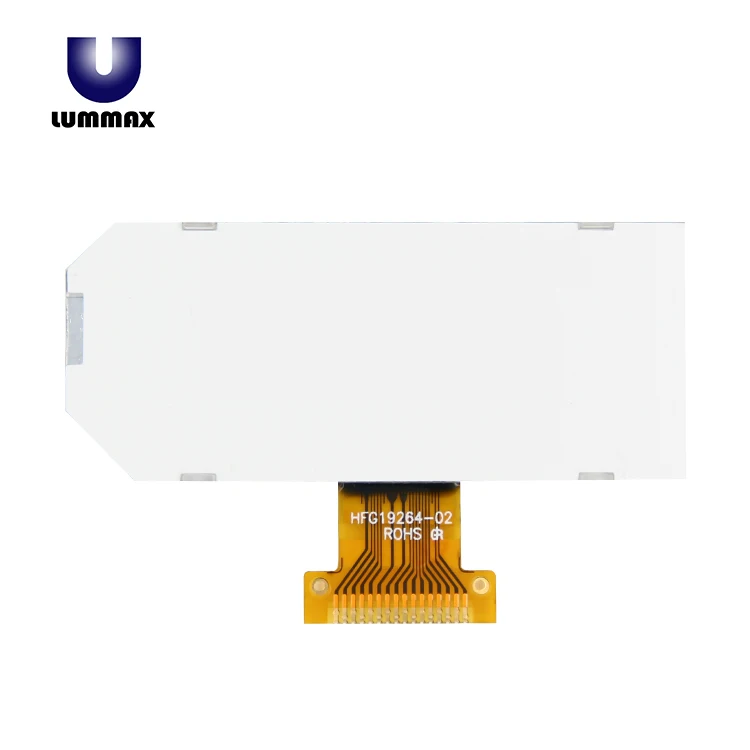

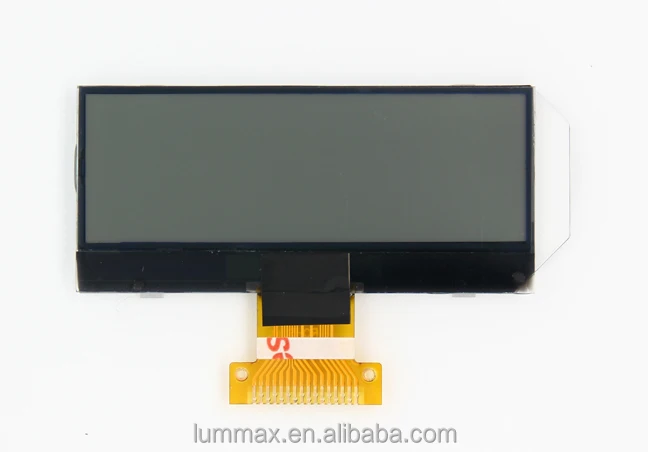

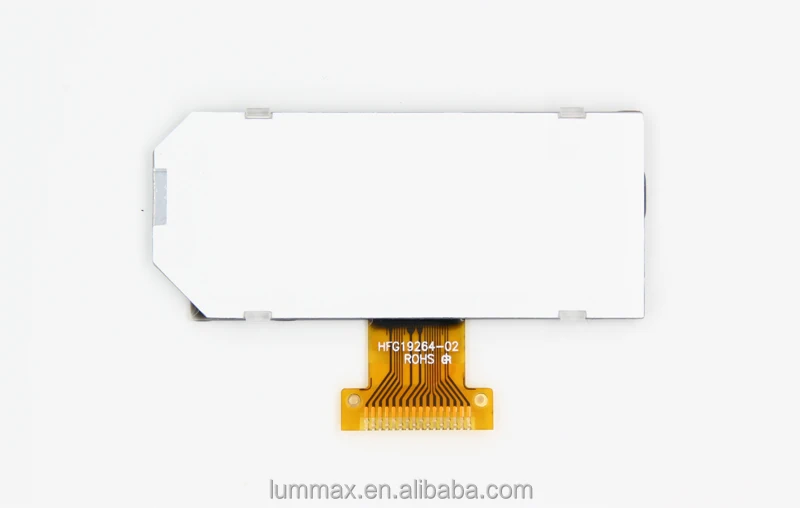

2 inch Monochrome Graphic LCD Display 192x64
- Category: >>>
- Supplier: Shenzhen Lummax Electronics Co. Limited [Guangdong China]Shenzhen
Share on (60367460271):
Product Overview
Description
2 inch Monochrome Graphic LCD Display 192x64
Product Description
Product description for 2 inch Monochrome Graphic LCD Display 192x64

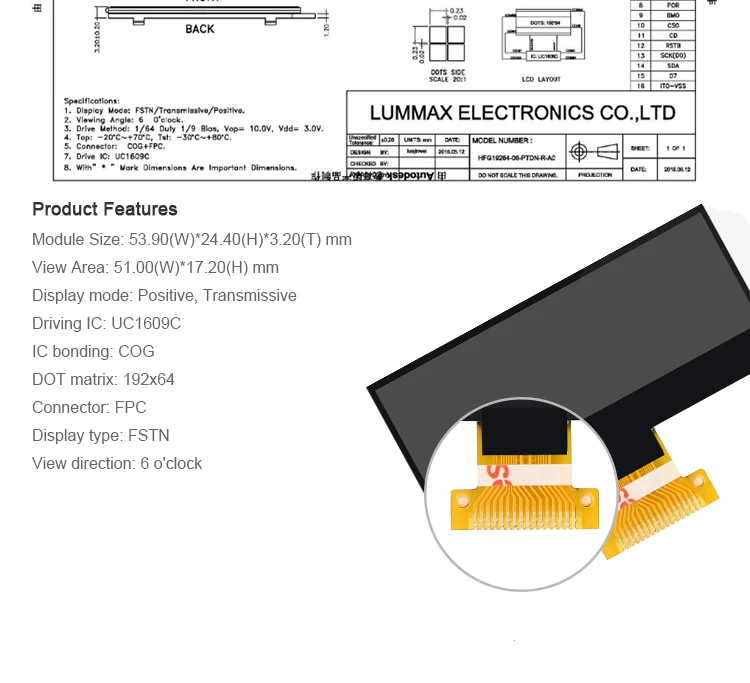

Features

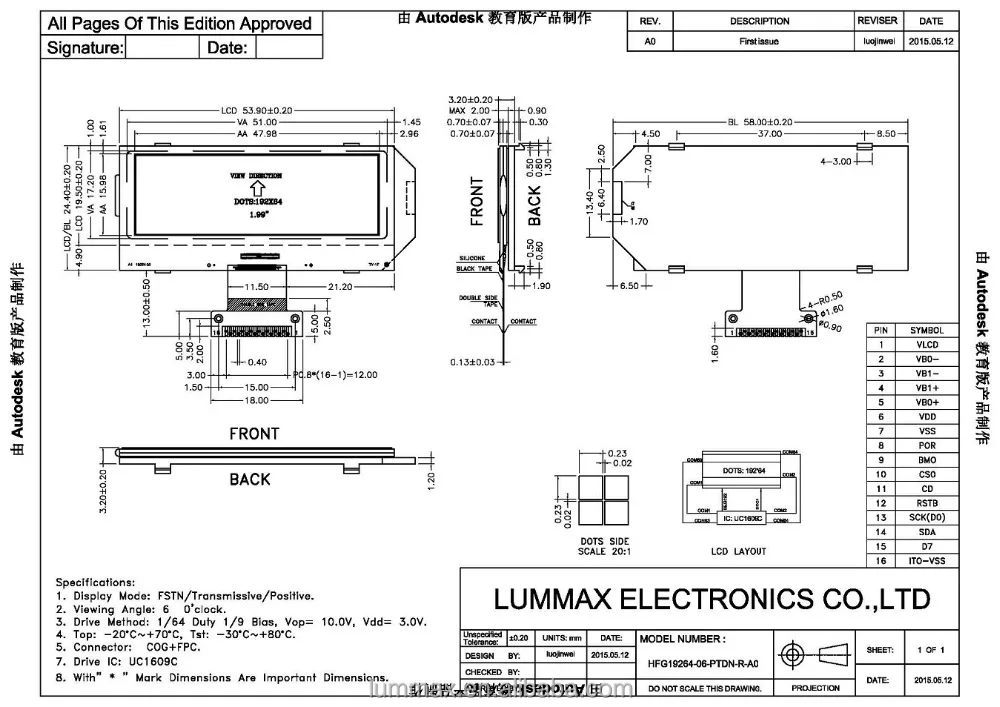

Module Size: 53.90(W)*24.40(H)*3.20(T) mm
View Area: 51.00(W)*17.20(H) mm
Display mode: Positive, Transmissive
Driving IC: UC1609C
IC bonding: COG
DOT matrix: 192x64
Connector: FPC
Display type: FSTN
View direction: 6 o'clock
| NO | ITEM | SPECIFICATION | UNIT |
| 1 | Dot Marrix | 192(W) x 64(H) | dot |
| 2 | Module Size | 53.90(W)*24.40(H)*3.20(T) | mm |
| 3 | View Area | 51.00(W)*17.20(H) | mm |
| 4 | Active Area | 47.98(W)*15.98(H) | mm |
| 5 | Dot Size | 0.23(W) x 0.23(H) | mm |
| 6 | Module Thickness | 3.20 | mm |
Packaging & Shipping
Why chose LUMMAX
1. AN ISO 9001:2008 Certified company
2. 14 years’ experience of LCD display R&D and production.
3. Highly trained and experienced LCD and LCM engineers
4. Professional sales team who can efficiently provide the optimum display solution. Cost and time saving.
5. Quick drawing creation: LCD panel 2 days, LCD module 3 days
6. Quick sample delivery: LCD panel 12 days, LCD module 20 days
7. We have our own LCD glass production line which can guarantee high quality and low cost
8. Warranty period: 100,000 hours for LCD panel. 50,000 hours for LED backlight
