GYXTW G625 G 627 Fiber Armour Single Core Fiber Optic Cable
- Category: >>>
- Supplier: Ningbo Haishu Efon Communication Equipment Limited
Share on (60367613137):
Product Overview
Description

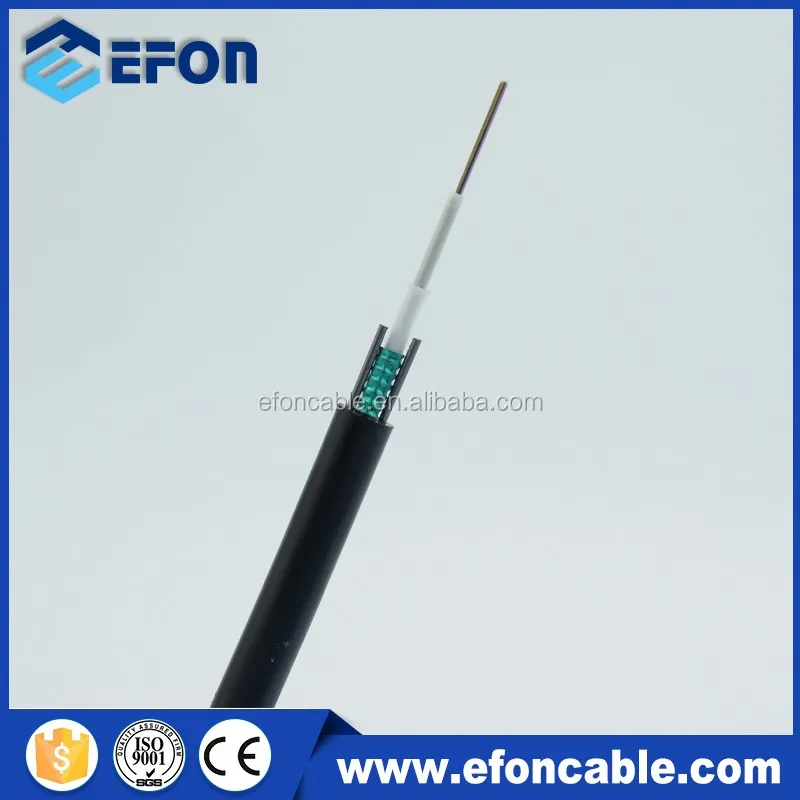

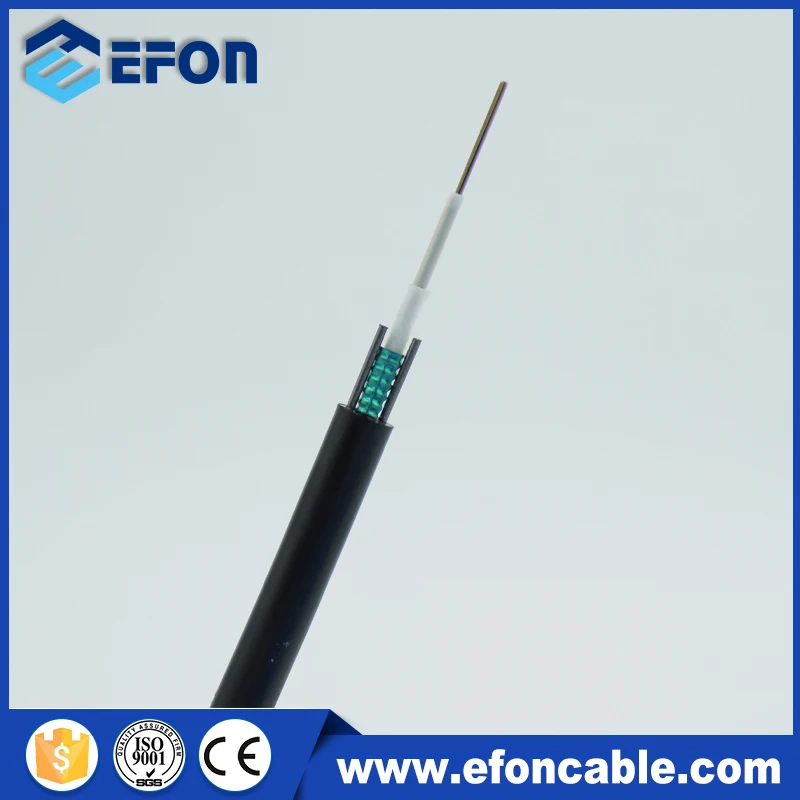

GYXTW G625 G 627 Fiber Armour Single Core Fiber Optic Cable
Product Description
GYXTW Armored Uni-Tube Single Jacket/Single Armored cable is designed with the flexibility and versatility
required for today's most demanding installations, including direct buried. The metallic armor is used when
mechanical protection is desired.
unitube single core armoured fiber optic cable

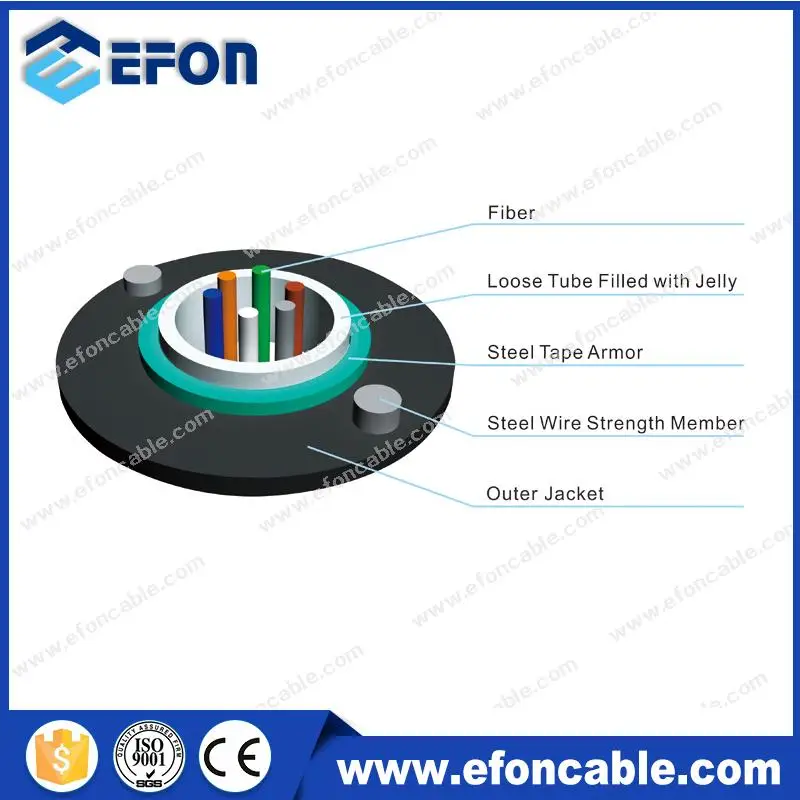

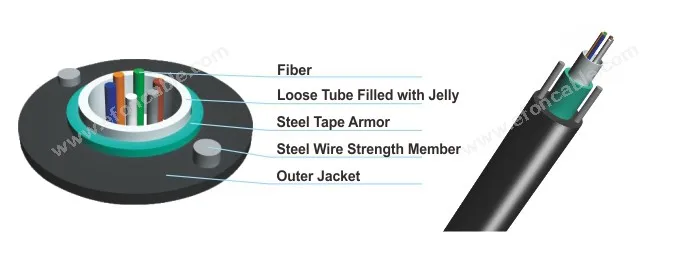

Product Construction:
Fiber:
2-24 fiber
Uni-loose tube gel-filled
Strength Member:
Steel Wire
Armor:
Corrugated steel tape
Outer Jacket:
Black UV Polyethylene(PE)
Features:
- Uni-tube gel-filled construction for superior fiber protection.
- Metallic armor to protect cable from rodent attack and mechanical damage.
- Embedded steel wire provide desirable tensile strength and crush resistance.
- Compact, easy to install.
- UV and waterproof design.
Application:
- Interbuilding voice or data communication.
- Installed in duct, underground conduit.
- FTTx.
Optical Characteristics:
Structure and Technical Specifications
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance | ||
Short Term | Long Term | Short Term | Long Term | |||
2~12 | 8.6 | 95 | 1500 | 600 | 1000 | 300 |
14~24 | 9.0 | 110 | 1500 | 600 | 1000 | 300 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for
more detailed information.
We produce and test cable comply with following standard:
Mechanical Performance | |
Max Tension Performance | IEC 60794–1-2-E |
Max. Operation Tension | IEC 60794–1-2-E1 |
Crush Test | IEC 6079 –1-2-E3 |
Impact Test | IEC 60794–1-2-E4 |
Repeated Bending | IEC 60794–1-2-E6 |
Torsion Test | IEC 60794–1-2-E7 |
Cable bend | IEC 60794–1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance | |
Temperature Cycling | IEC 60794–1-2-F1 |
Water Penetration | IEC 60794–1–2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
