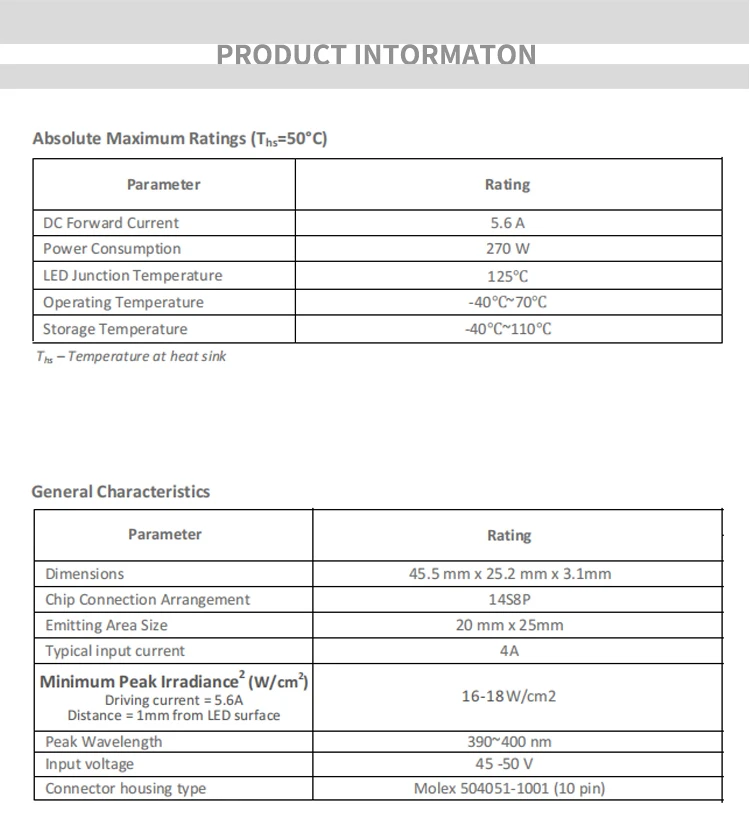

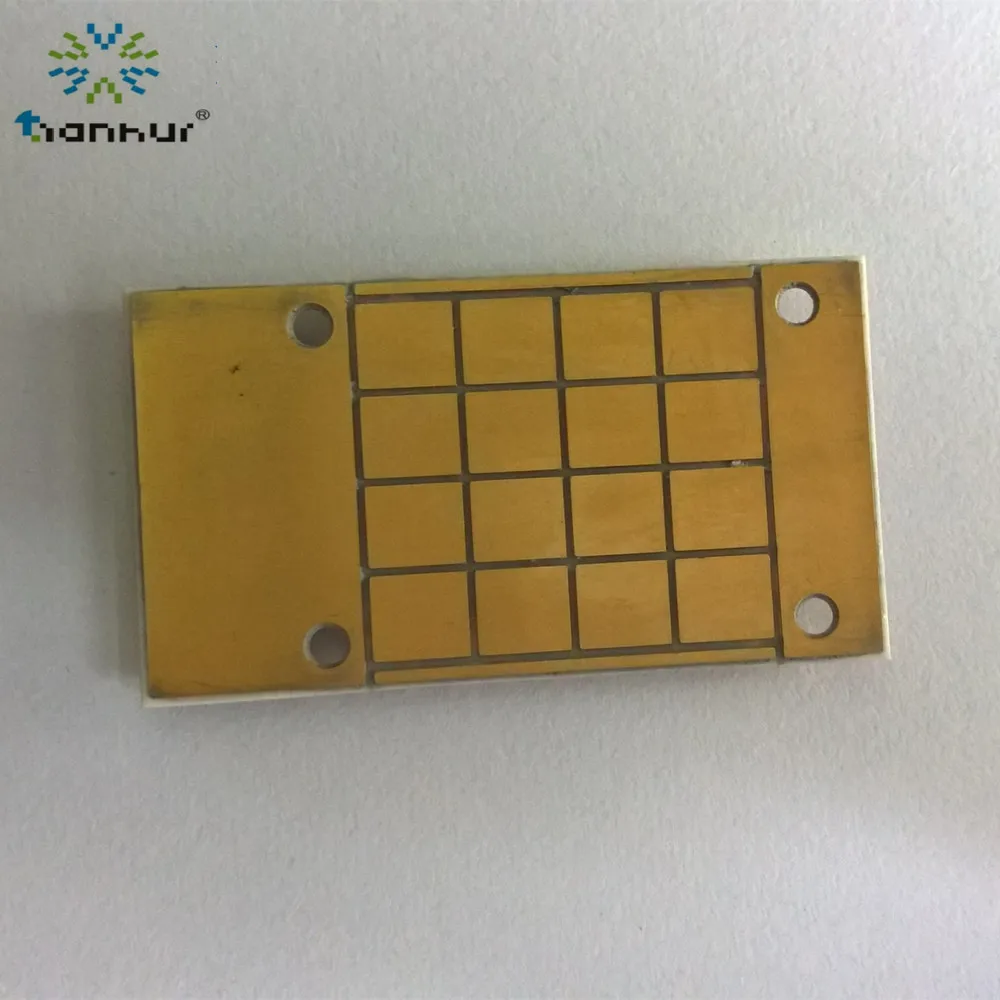

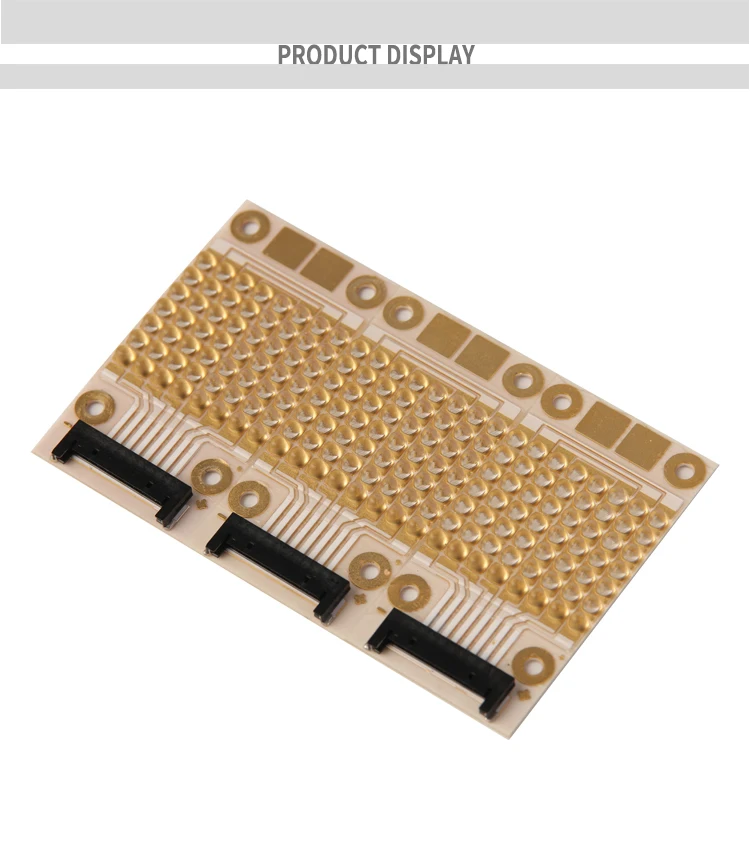

High Power UV LED COB Module 270W 395nm UV Lamp for Printer

High Power UV LED COB Module 270W 395nm UV Lamp for Printer

Category: >>>
Supplier: Zhuhai Tianhui Electronic Co. Ltd.Zhuhai Ltd.

Price:

Quantity:

Product Overview

Description

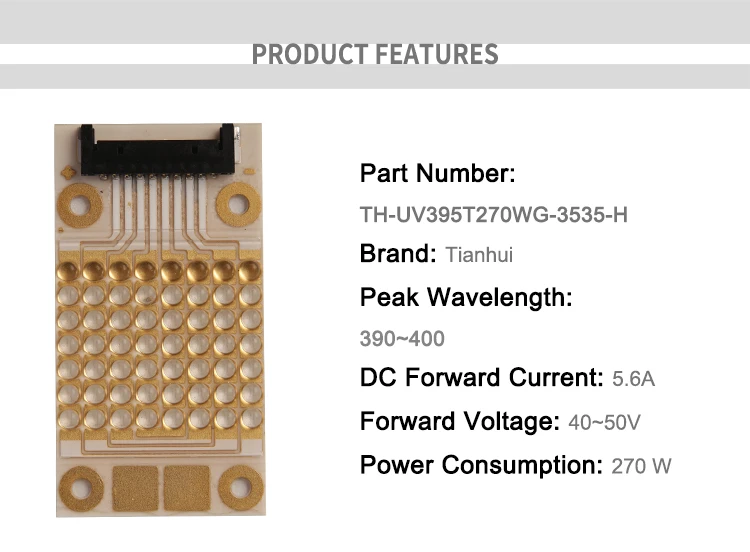

High Power UV LED COB Module 270W 395nm UV Lamp for Printer

340nm

340nm Deep UV LED Products

Part Number

Product Image

Product Packaging

Peak Wavelength

Output optical Power

Application

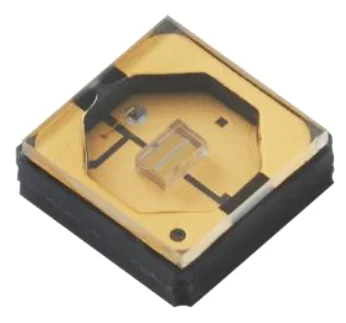

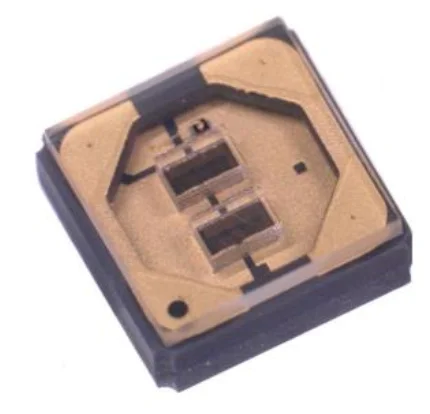

CUN4GF1B

SMD3535, Quartz glass lens,

250mA, 3.8~4.8V

Viewing angle: 115°

Aluminium Nitride Ceramics

340~347nm

30~70mW@250mA

Medical detection, Biochemical detection, Blood detection and analysis, Reagent detection, Molecular diagnosis, Viarus analysis, Analysis instrument

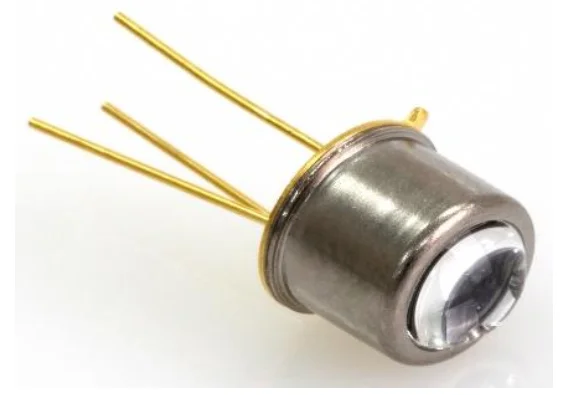

CUD49H1A

Metal DIP TO39, Quartz glass lens,

20mA, 3.5~4.5V

Viewing angle: 5.1°

340~347nm

1.0~2.0mW@20mA

Medical detection, Biochemical detection, Blood detection and analysis, Reagent detection, Molecular diagnosis, Viarus analysis, Analysis instrument

275nm/310nm

275nm/310nm Deep UV LED Products

Part Number	Product Image	Product Packaging	Peak Wavelength	Output optical Power	Application

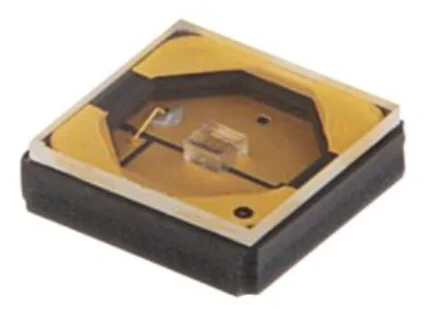

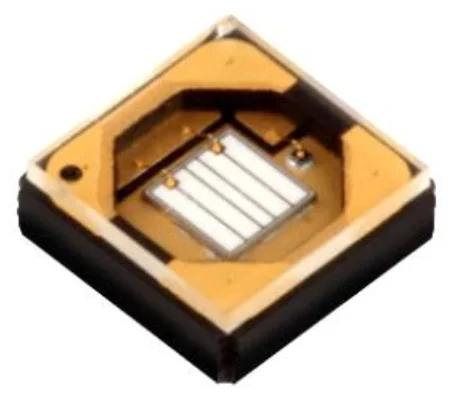

CUD7GF1A		SMD3535, Quartz glass lens, 40~60mA, 5.0~7.5V Viewing angle: 120°	270~278nm	3.0~6.0mW@40mA 4.0~8.0mW@50mA 5.0~9.0mW@60mA	Sterilization/disinfection medical products, Water and air purification, Medical inspection analysis, DNA detection and identification
CUD7GF1B 1W		SMD3535, Quartz glass lens, 100~150mA,5.0-7.5V Viewing angle: 125°	270~278nm	10.0~18.0mW@100mA 14.0~22.0mW@150mA 18.0~26.0mW@200mA	Sterilization/disinfection medical products, Water and air purification, Medical inspection analysis, DNA detection and identification
CUD7GF2B 3W		SMD3535, Quartz glass lens, 350mA, 7.3V Viewing angle: 120°	270~278nm	30mW@350mA	Sterilization/disinfection medical products, Water and air purification, Medical inspection analysis, DNA detection and identification
CUD73F4A 5W		SMD5050, Quartz glass lens, 300mA, 10.0~15.0V Viewing angle: 120°	270~278nm	50~100mW@300mA	Sterilization/disinfection medical products, Water and air purification, Medical inspection analysis, DNA detection and identification
CUD1GF1A		SMD3535, Quartz glass lens, 20~40mA, 5.0~7.5V Viewing angle: 120°	310±5nm	1.0-2.5mW@20mA 1.5-3.5mW@30mA 2.0-4.5mW@40mA	Skin treatment(Vitiligo&Psoriasis), DNA detection, analysis and identification, Genetic engineering, Fluoroscopy detection, Physiotherapy instrument(Vitamin D supplement), Plant growth, Pet lamp
CUD1GF1B		SMD3535, Quartz glass lens, 100mA, 5.0~7.0V Viewing angle: 120°	310±5nm	4.0~12.0mW@100mA	Skin treatment(Vitiligo&Psoriasis), DNA detection, analysis and identification, Genetic engineering, Fluoroscopy detection, Physiotherapy instrument(Vitamin D supplement), Plant growth, Pet lamp
