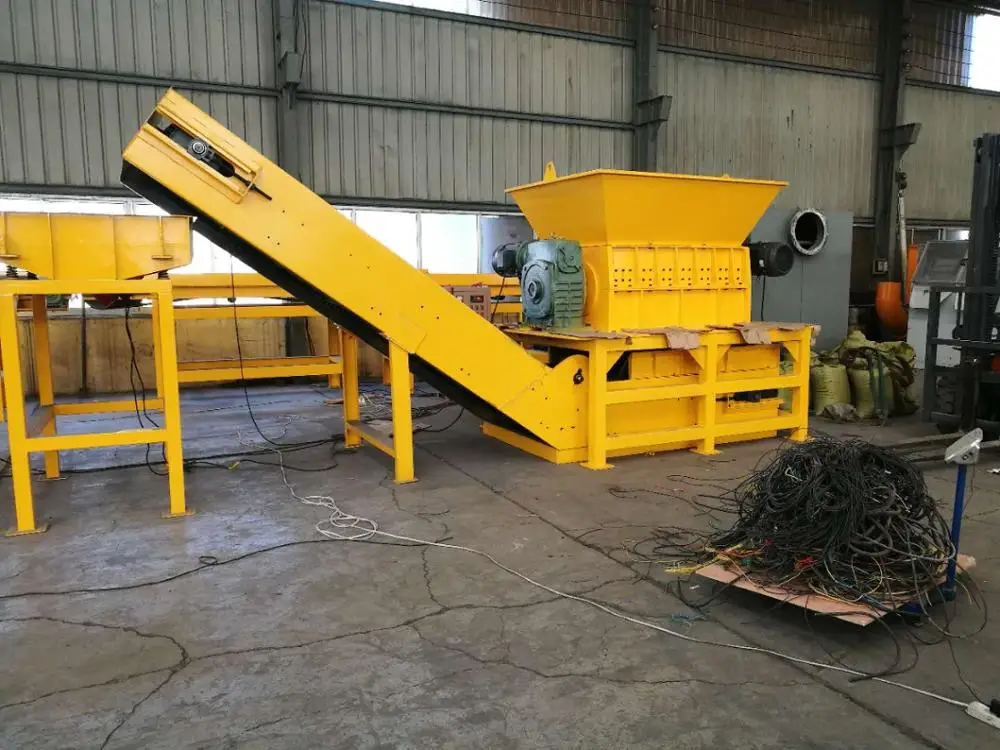

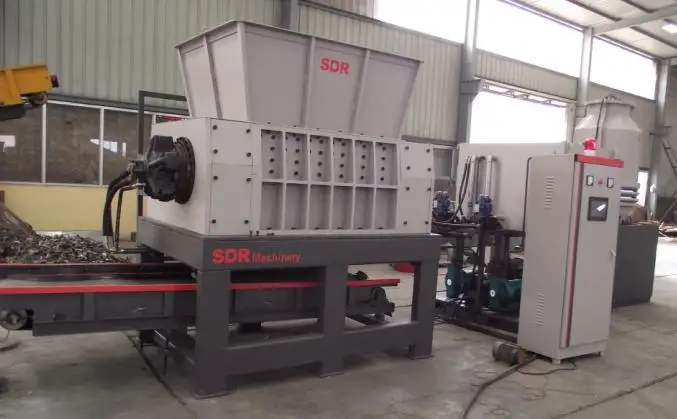

Heavy Duty two shaft shredder/ whole car crusher

Product Overview

Description





Heavy Duty two shaft shredder/ whole car crusher





Characteristic



Automatic control by micrcomputer (PC),with function of start, stop, reverse, overload automatic revese, featurn return and overloading returns automatism, with characteristics of big torque in low speed, low noise. Suitble for crushing the solid material like waste iron bucket and waste iron sheet.







Working Principle



Material should be put in from the Hopper . It then will be torn apart by the two rotors set in the cutting chamber. Shredded material will drop out under the machine frame. It can be collected in a discharging bin or shipped by conveyor belt for further procession.





1.technical Parameters

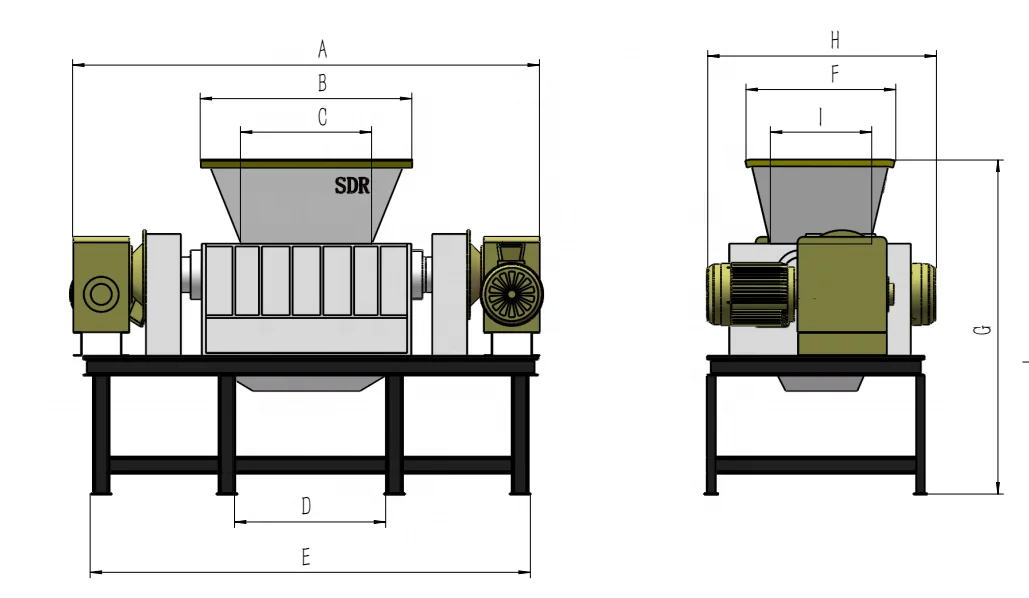

MODEL DATA		SDR-80	SDR-100	SDR-130	SDR-200
A (mm)		3000	3446	4388	5000
B (mm)		1300	1520	1630	1800
C (mm)		804	1004	1284	2000
D (mm)		830	1160	1422	2100
E (mm)		3100	3546	4488	5100
F (mm)		1260	1360	1610	1600
G (mm)		2000	2100	2200	2200
H (mm)		1870	1992	2210	2000
I (mm)		686	858	1100	1250
Capacity (tons per hour)	Metal material	1	1.5-2	2.2-2.5	2.5-3
	Nonmetal material	0.8	1	1.2	2
Rotor Diameter (mm)		284	430	500	514
Rotating speed (rpm)		15	15	15	10-30
Quantity of blades (pcs)		25	25	24	38
Blades thickness (mm)		20	40	50	50
Main Power (kw)		15+15	22+22	30+30	45+45
Weight (kg)		2400	3000	4000	7000

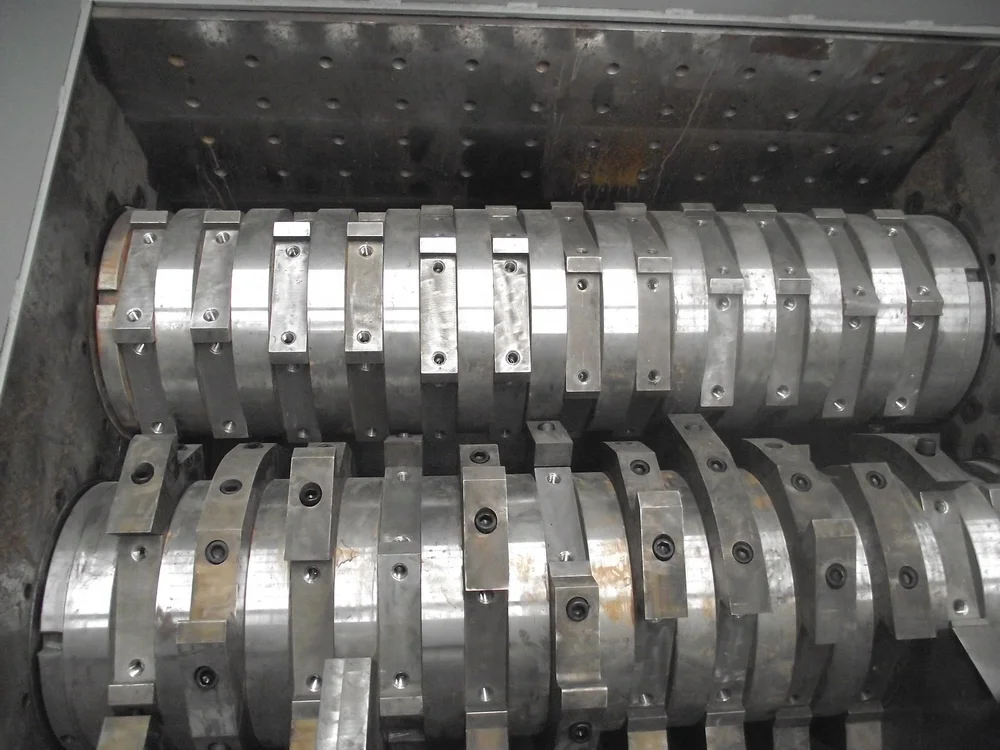

 Details of twin shaft shredder
