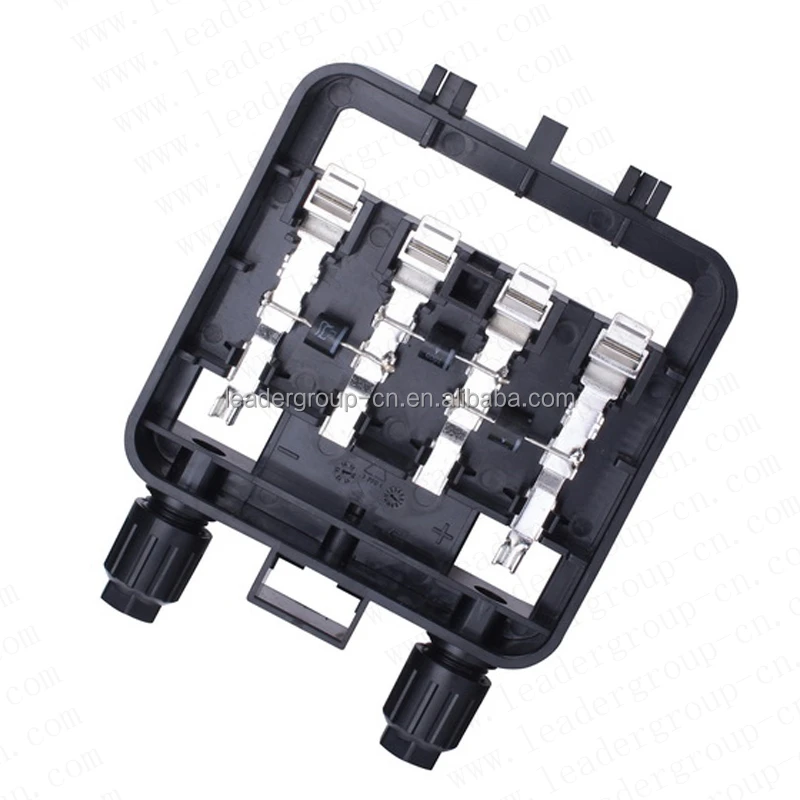

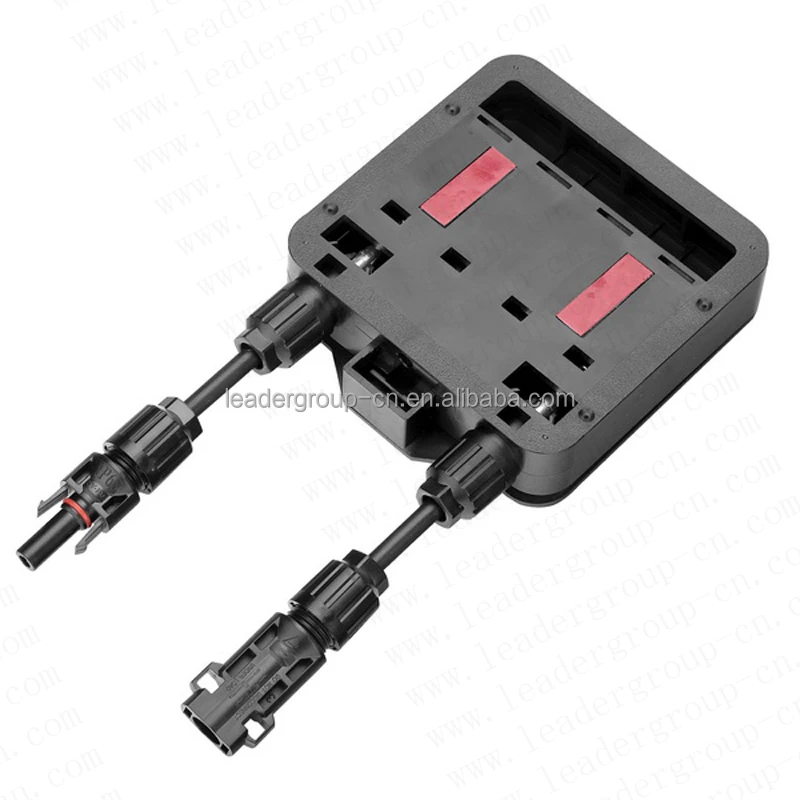

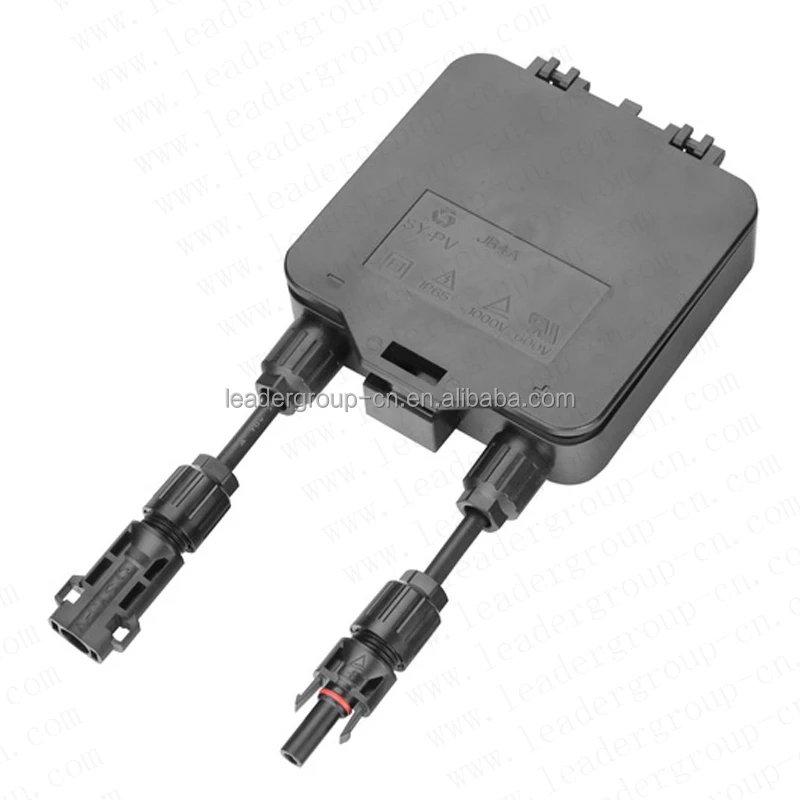

5 pec/lot PV Junction Box for PV mould 4 rails 3 diode solar junction box
- Category: >>>
- Supplier: Dongguan Lude Photovoltaic Co. Ltd.
Share on (60367923569):
Product Overview
Description
Solar junction box(Crimpping type )
A LOT = 5 PCS
Diode Current: 15A - 4 Rails
Product Description
Solar junction box(Crimpping type )
Max Voltage:1000V
J Current:3-15A
Temperature Rane:-40℃~+85℃
Protection:ClassⅡ
Waterproof:IP67
Cable size: 4.0mm²
Function:
Box material:PPO
Joining of ribbon:Soldering
| Product No. | SM-JB4 |
| Amount of rails | 4 rail terminals |
| Rated Voltage | TUV 1000V DC |
| Rating current | 15A |
| Cable size | 4.0mm sq (90CM) |
| Pin OD: | 4.0mm |
| Proof voltage: | TUV 6000V AC(1Min) |
| Pollution degree: | 2 |
| Protection class: | Class II |
| Contact Material: | Copper, tin plated |
| Contact resistance: | ≤5mΩ |
| Protection degree: | IP 65 |
| Withdrawal Force: | ≥50N |
| Temperature Range: | -40℃~+85℃ |
Company Information
LEADER ENERGY is a new energy enterprise,located in SHENZHEN, China,specializing in R&D,
manufacturing and marketing PV connectors,PV junction boxes ,PV cable and PV assembles etc;
with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems,
and by the products R&D,mold design,production,sales through-train service.With advanced technology,
our products have been authorized by TUV Rhineland,UL,CE successfully.
LEADER Company adheres to self R&D,strict detection standards and perfect detection system,
modernization management approaches and excellent talent teams,
hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand.
