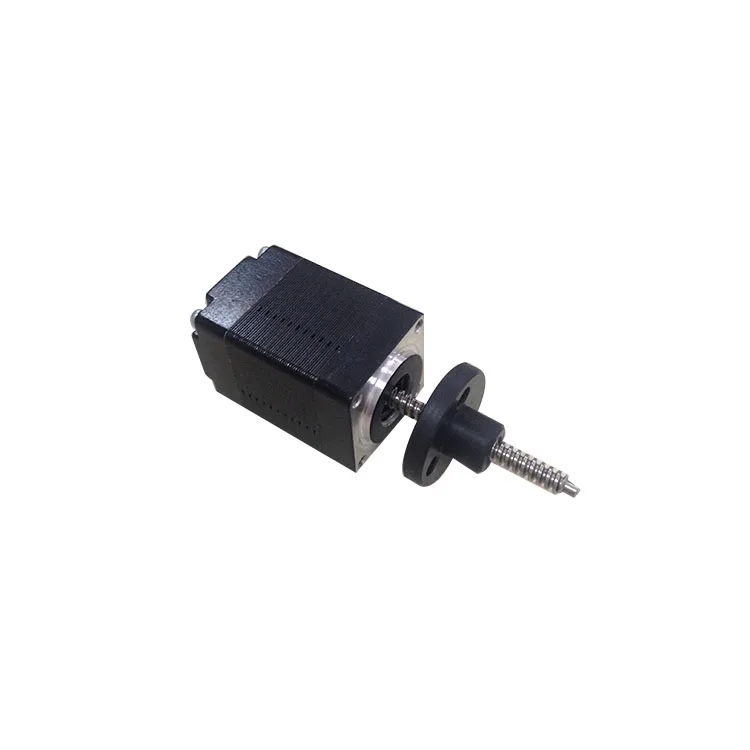

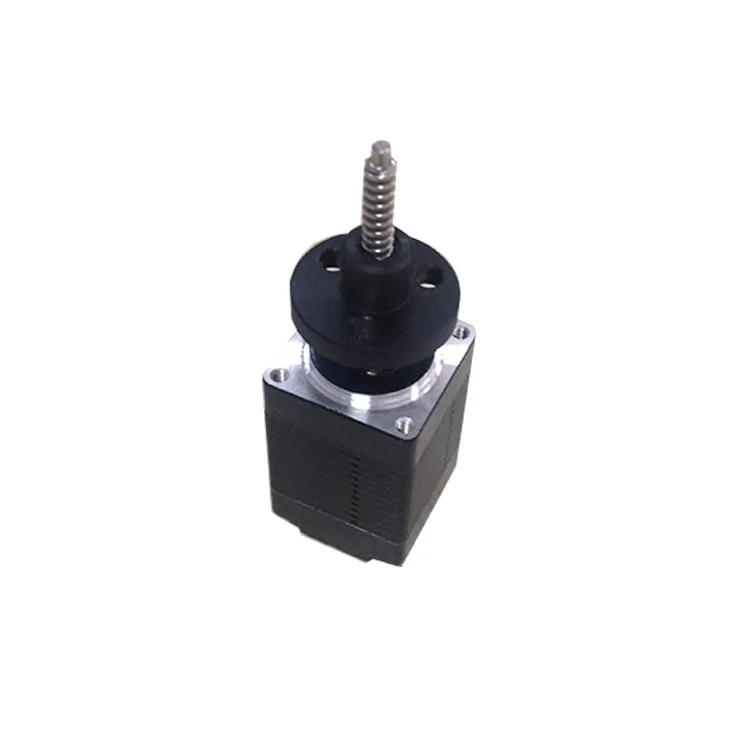

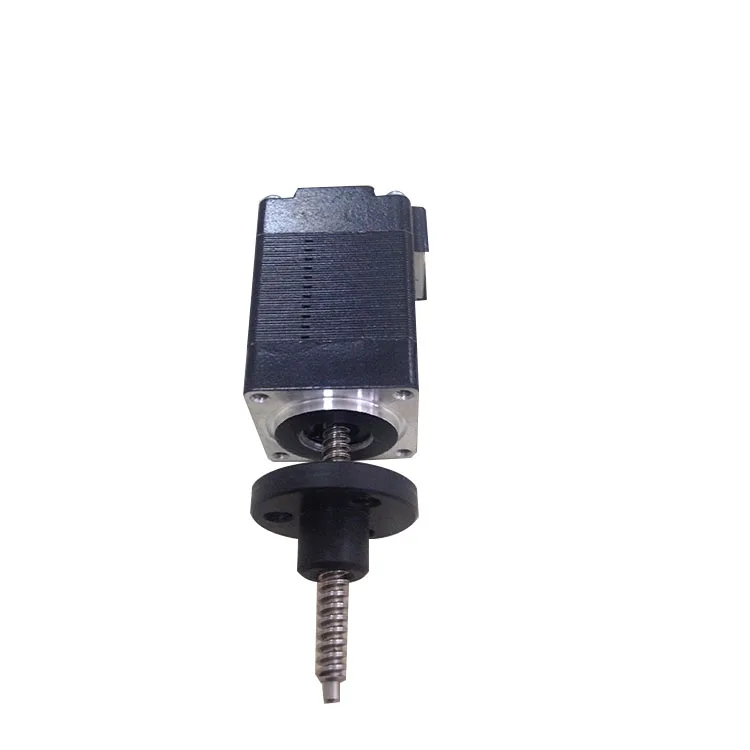

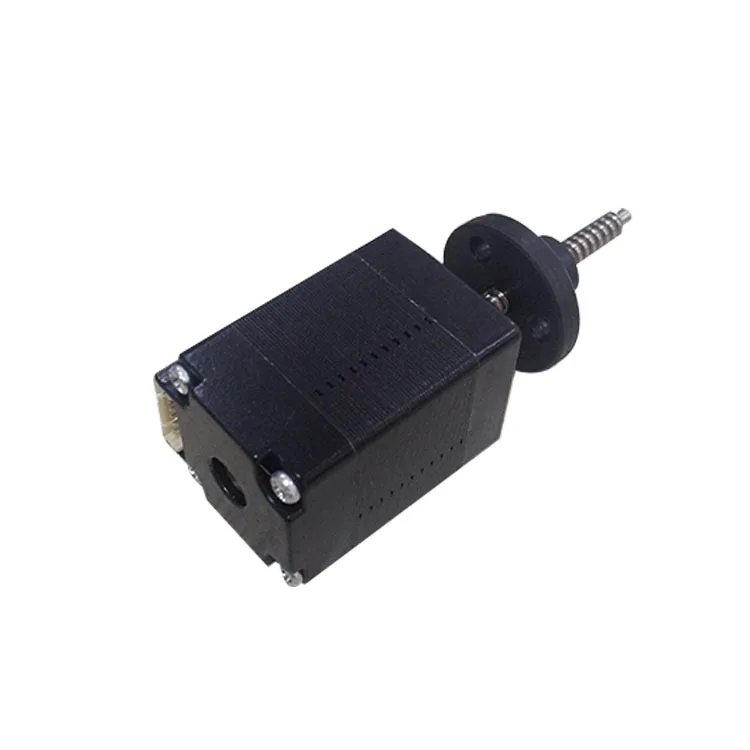

New coming nema 8 linear stepper motor with leadscrew Tr3.5x1.22

Share on (60367947352):


Price:

Quantity:


Product Overview

Description


\u007F.jpgNema 8 Linear Stepper Motor 8HY0001-30N3512A

4_02

ItemSpecification
Step Angle 1.8°
Step Angle Accuracy±5% (full step,no load)
Resistance Accuracy±10%
Inductance Accuracy±20%
Temperature Rise80°CMax.(rated current,2 phase on)
Ambient Temperature-10°C~+50°C
Insulation Resistance100MΩMin.  500VDC
Dielectric Strength500VAC for one minute
Shaft Radial Play0.06Max.(450 g-load)
Shaft Axial Play0.08Max.(450 g-load)



Phase VoltageCurrentInductanceResistanceHolding Rotor WeightLengthWire
No.TorqueInertiaNo.
 VAmh ±20%Ω ±10%mN.mg.cm ²kgmm
23.250.51.76.51820.06304

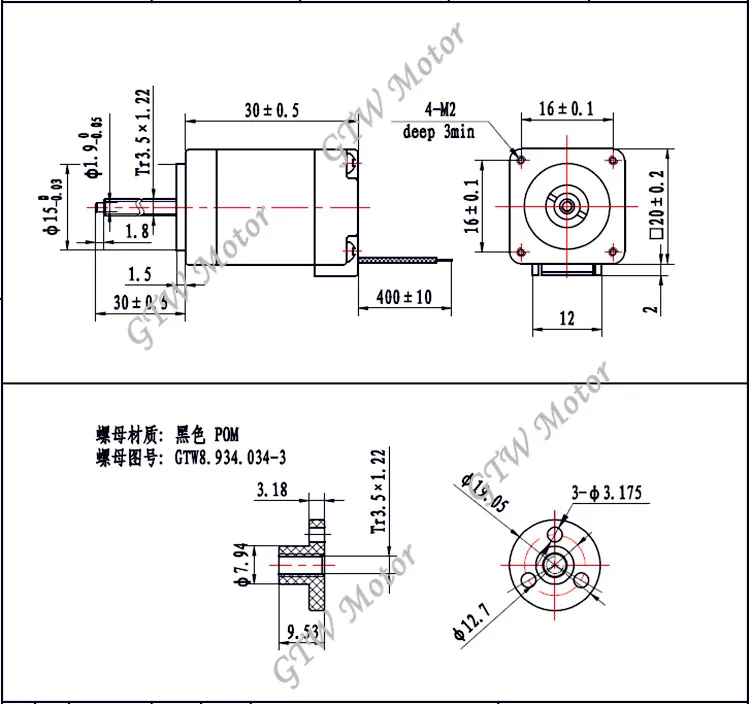

nema 8 linear motor.jpg

4_04

More products

4_06

4_074_084_094_104_11

We Ningbo Getwell Motor Co.,Ltd is a professional manufacturer of automation control. Currently, our company specialized in the production of linear actuator, hybird stepper motor, screw and nut.

For more details, please feel free to contact us!
