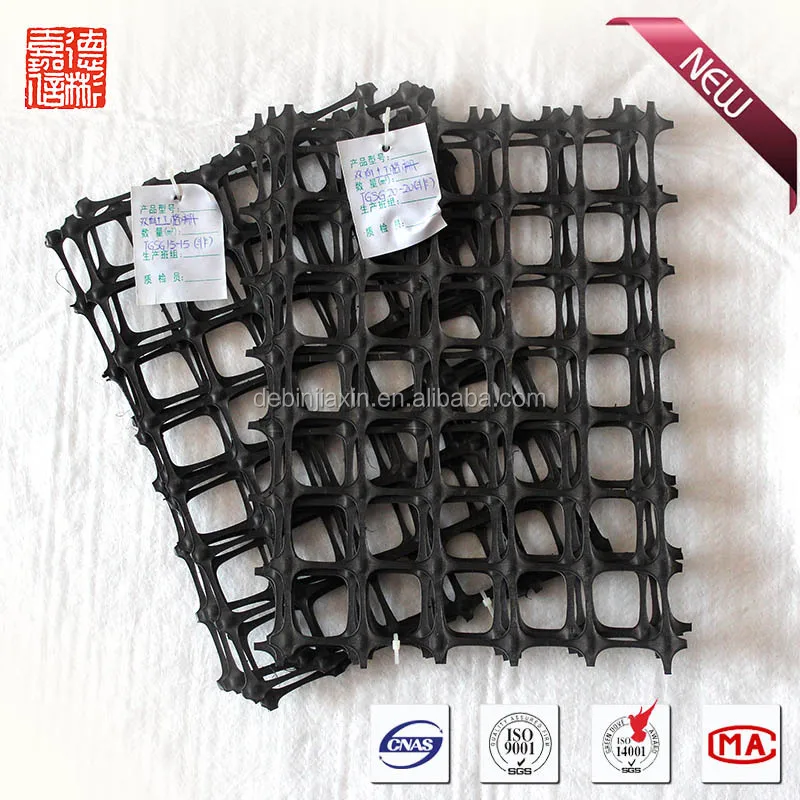

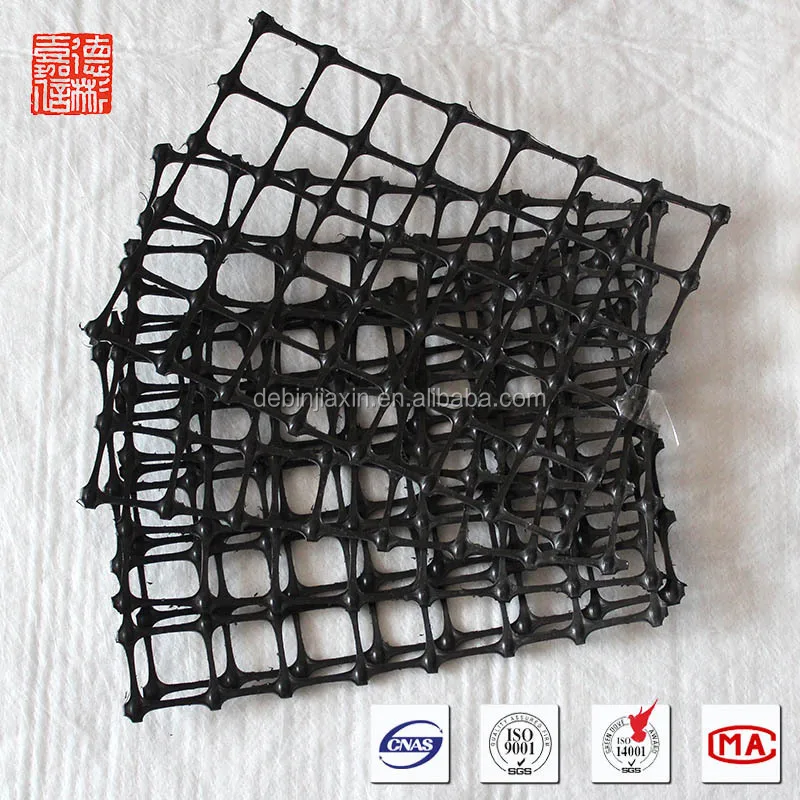

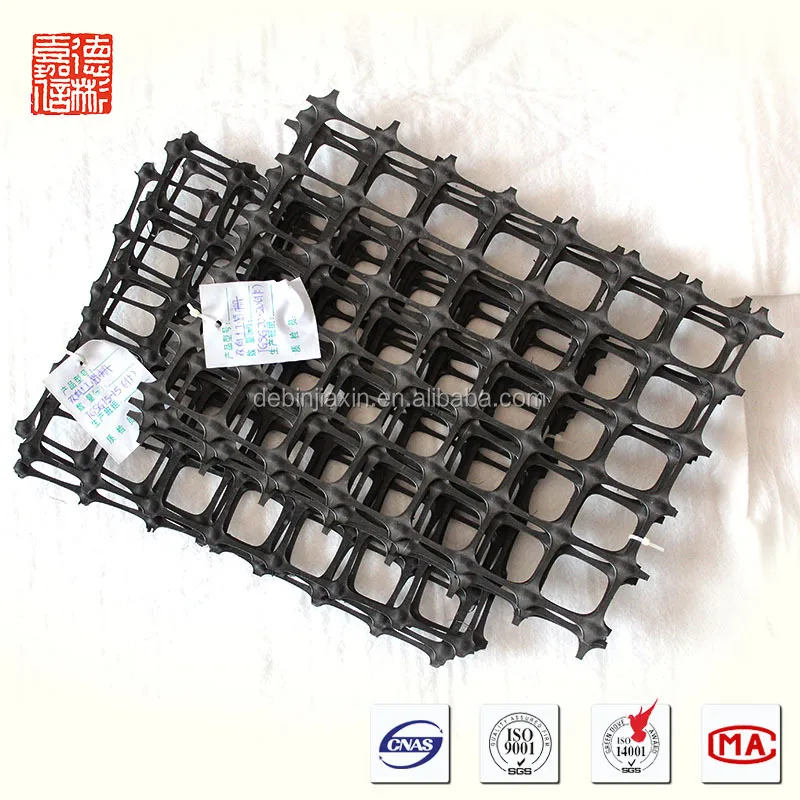

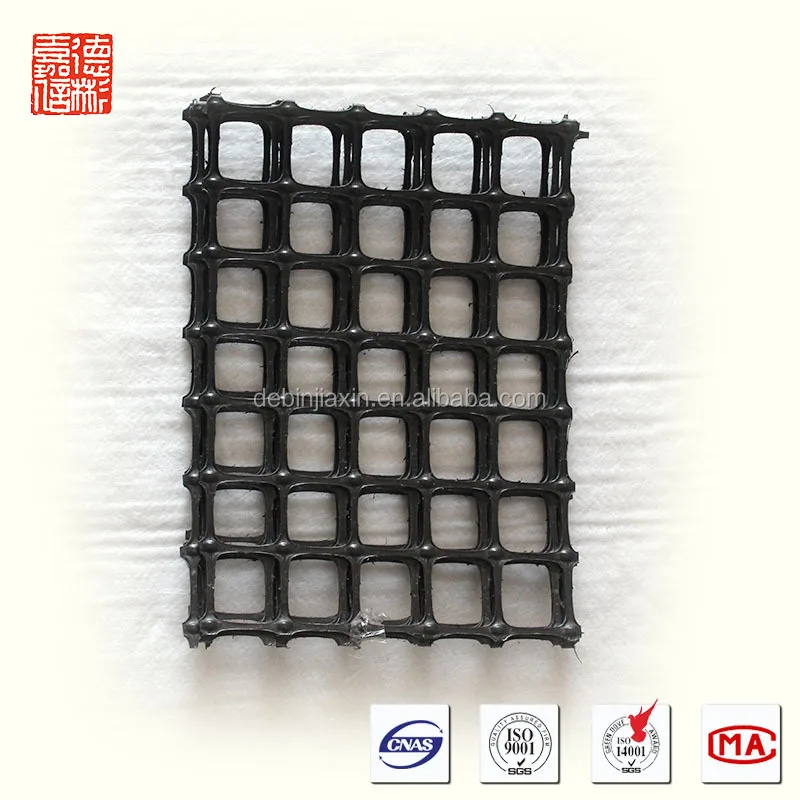

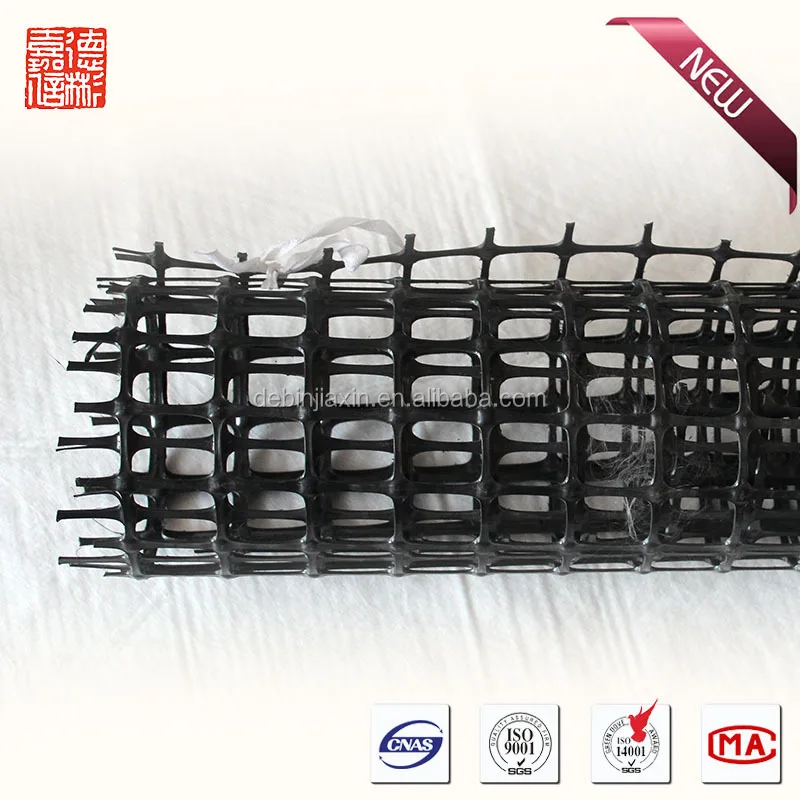

Road reinforcement plastic biaxial geogrid SS50
- Category: >>>
- Supplier: Shandong Debin Jiaxin New Materials Co. Ltd.
Share on (60367965344):
Product Overview
Description
Road reinforcement plastic biaxial geogrid SS50
Product description
Type: Plastic geogrid
Material: High-density polyethyle
Strength: TGSG15KN-TGSG60KN
Width:1m-6m
Roll length: 50m-100m
Color: Black or at your request.
Temperature range:-60oC -- +60oC
Lifetime: more than 50 years
Executive standard:GB/T 17689-2008
Specification
| Item | Tensile strength(KN/m) | Tensile strength at 2% elongation | Tensile strength at 5% elongation | Nomianal elongation | Products in the range of coal mine | ||
| TGSG15-15 | ≥15.0 | ≥5.0 | ≥7.0 | ≤15.0/13.0 | Fire out time from outer flam(s) | Surface resistivity | |
| TGSG20-20 | ≥20.0 | ≥7.0 | ≥14.0 | ≤3 | <1×109 | ||
| TGSG25-25 | ≥25.0 | ≥9.0 | ≥17.0 | ||||
| TGSG30-30 | ≥30.0 | ≥10.5 | ≥21.0 | ||||
| TGSG35-35 | ≥35.0 | ≥12.0 | ≥24.0 | ||||
| TGSG40-40 | ≥40.0 | ≥14.0 | ≥28.0 | ||||
| TGSG45-45 | ≥45.0 | ≥16.0 | ≥32.0 | ||||
| TGSG50-50 | ≥50.0 | ≥17.5 | ≥35.0 | ||||
Introduction
Biaxial geogrid is with polypropylene, high density polyethylene as raw materials, made by special extrusion, two-way stretch.It Can reduce structural fill, uniform load distribution, and has high two-way tensile modulus and tensile strength, high mechanical damage ability, endurance ability.
Property
1.) Improve roadbed bearing capacity,enlarge road lifetime.
2.) Prevent road collapse and crack
3.) Prevent soil and water loss in slope
4.) Could replace steel-plastic geogrid in coal mine.
Application
1.) for a variety of roads, railways , airports enhance road embankment reinforced .
2.) the foundation for large parking garages and other permanent load and terminal enhancements .
3.) for slope protection railways, highways.
4.) for the culvert enhancement.
5.) for a one-way stretch geogrid reinforced soil slopes after secondary enhanced further enhance the soil, prevent soil erosion.
6.) mining, tunnel reinforcement
Testing
Packaging&shipping
Our factory
Certificate
Customer
Our service
1. The sample is free.
2. The quality of our products are qualified.
3. Our delivery speed will be the fastest
4. We can provide the most professinal technical guidance and service
FAQ
| 1 | How about the delivery time? |
| Lead time since receipt of 30% T/T deposit payment: 3 weeks. | |
| 2 | What kind of payments does jenor support? |
| T/T | |
| 3 | What's are the MOQ? |
We can according to your condition to set the MOQ. And we can provide you samples for quality inspection. | |
| 4 | How to deal with the sample charge? |
Accordeing to our company policy, the samples are free, we only charge the freight fee. And we will return the freight fee If you set the order . | |
| 5 | Can you produce the product according to customers' requirements ? |
Sure, we are professional manufacturer, OEM and ODM are both welcome. | |
| 6 | Can you tell me your main customers? |
| That's our customers' privacy, we should protect their information. At the same time, please rest assured that your information is also safe here. |
