Low compression set, high temperature stability,low
temperature flexibility, flame rated (UL 94, FAR),
and environmental sealing (UL 50, UL 508).
Material Brand
Rogers Bisco
Typical Material P/N
HT-800 HT-801
Thickness Range
Aa per request
Use Temp.
From -55°C to 200°C
Industry for use
Electronics devices,Telecommnucation devices.
Processing of
Die-cutting Capabilities
LaminationCutting Stamping Die-cutting Assembly
Tighest Tolerance
+/- 0.1mm +/- 0.15mm ISO Tolerance Standard
Tape Application
Available,one side or both sides
Typical Tape
3M 467MP, 3M 9448, 3M 9495LE, Nitto, Tesa, Sony
Volume
Over 5 million
Turn Around Time
Mold Building: 1-2 Days
Sample Lead Time: 3-5 Days
Mass Production Lead time: 8-12 Days
In-process Inspection
First Artical Inspection
IPQC
Last Artical Inspection

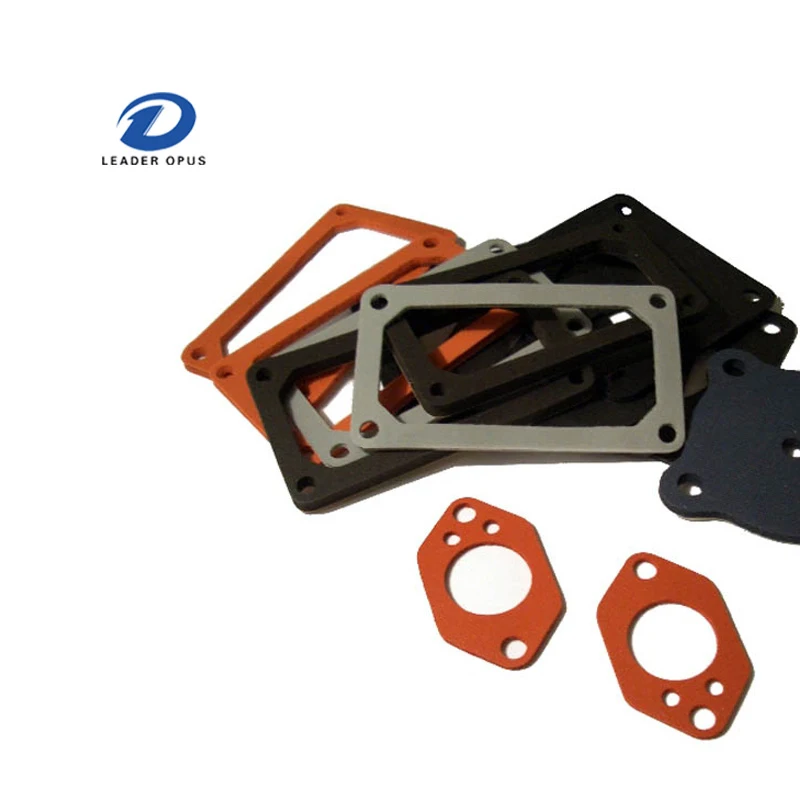

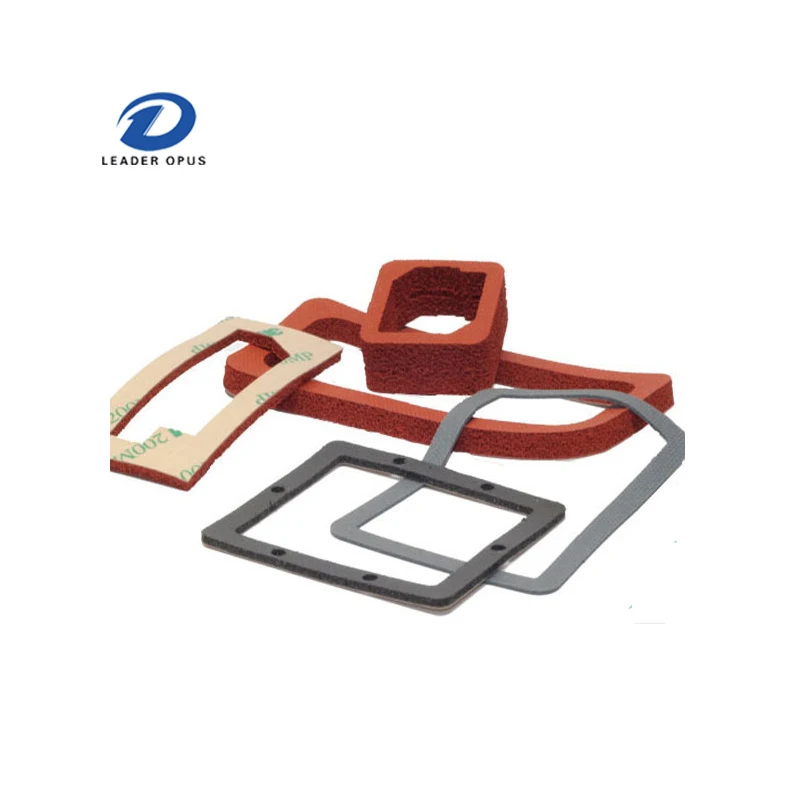

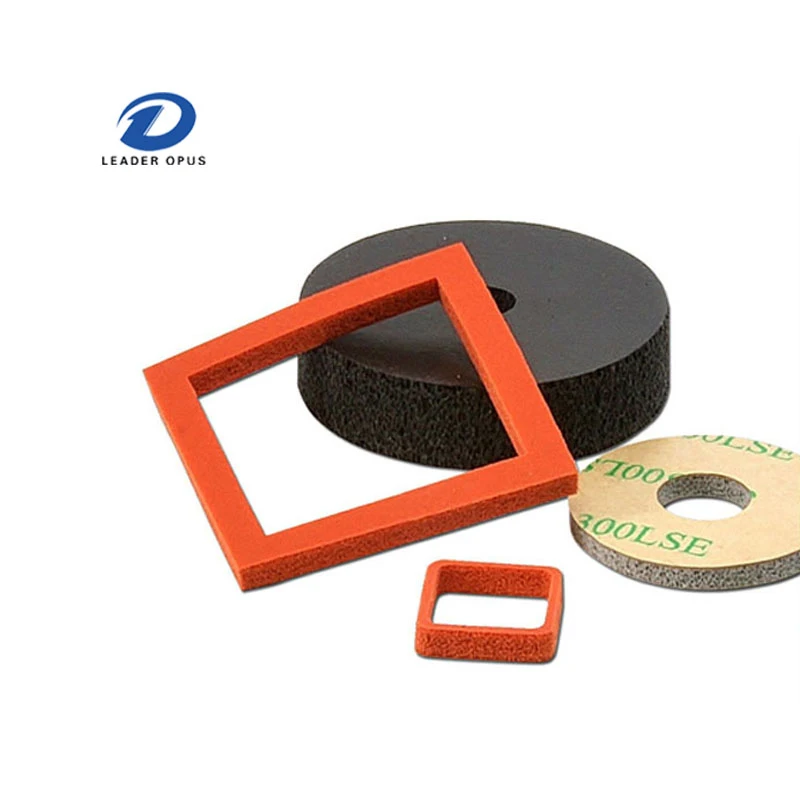

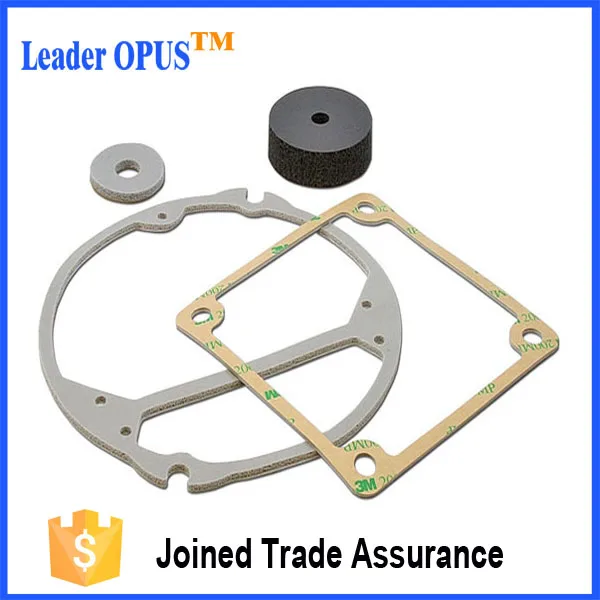

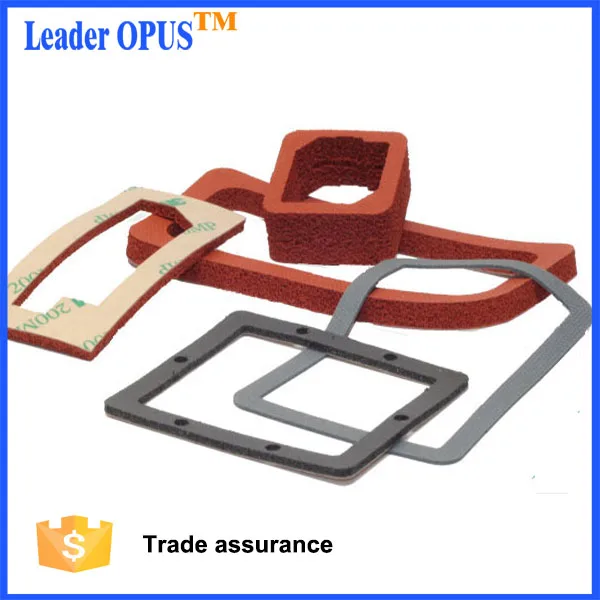

Product Show
Properties
Bisco HT-800
Property
Test Method
Value
PHYSICAL
Color
Black, Gray & Red
Thickness, inches(mm) Tolerance
1/32-1/2
(0.80-12.70) See Reverse
Standard Width, inches(mm)
36(914)
Density.Ib./ft3 (kg/m3)
ASTM D1056
22(352)
Compresslon Force Deflection,
psl(kPa)
Force measured@25%
Deflection
ASTM D 1056
9.0(62.0)
Compresslon Set, % max.
ASTM D 1056 Test
D@1580F(700C) ASTM D 1056 Test
D@2120F(1000C)
‹1
‹5
Tensile Strength, psl(kPa)
ASTM D 412
45(310)
Elongation, %
ASTM D 412
80
FLAMMABILITY & OUTGASSING
Flame Resistance
UL 94
Listed V-0 and HF-1
Flame Spread Index(L,)
ASTM E162
‹25
Smoke Density(D,)
ASTM E 662
Tested @ 4.0 minutes
Tested @ 1.5 minutes
‹50
‹20
Toxic Gas Emissions Rating
SMP-800C
Pass
Typical Applications
Company Information
Dongguan Leader Optronics Technology Co.,Ltd is well known in China,Our die cutting gaskets are widely used in theTelecommunications, Electronics, Automotive appliance, LCD/TV, Battery Models, and Computer
/ Notebookindustries. From die cutting gasket designs, prototype samples to large scale full production runs, Leader OPUS has the equipment, experience, and dedicated technology to provide you with a satisfying
product on time.
Leader OPUS, your number one source of die cutting gaskets manufacturer, offer a wide range of high quality customized die cutting gaskets/seal/strip to suit your any demand. Come and contact us!
