Product name: High quality floor grinding machine for concrete
High quality floor grinding machine for concrete
1.Planet grind disc available for different abrasive. It can equip with vacuum equipment to achieve dry and wet working mode. Pay attention to green construction.2.It is easy and fast to change the abrasives by New Multi-function support frame system
Applied for various floor grinding and polishing like epoxy,wear-resistant floor ,curing floor and penetration floor as well as all kinds of stone maintenance.
Suitable to the relevant small area's floor grinding and polishing :light weight and fexible to operate,easy handling.
SPECIFICATIONS:
Power Supply: 230V 50-60Hz 3.7KW 5 HP Motor Single Phase
Grinding Wheel Capability: 2x250mm (2x10")
Grinding Head Capability: 6x4" or 6x3"
Dimensions: 19.5" Width and 9.5" Depth
Rotation Speed: 300-1400rpm
Working area: 500mm
Water Tank: 20L/5.3Gal
Noise: 65DB
Machine Weight: 300Lbs or 388lbs with weights
Combines Gear and Belt Driven Function
2 pcs (20KG/44lb weights) 88lbs total
6 Magnetic Discs with hook backing for attaching pads/discs
One year manufacturers warranty on Inverter, Motor and Gearbox
Power Cord not included. Must be installed by a qualified Electrician
Model
T2
T3
Voltage
220-240V
380-440V
Current
17A
13A
Motor
5HP(3.7KW)
5HP(3.7KW)
Inverter
5HP(3.7KW)
5HP(3.7KW)
Frequency
50/60HZ
50/60HZ
Disc speed
300-1600rpm
300-1600rpm
Grinding width
500mm
500mm
Disc diameter
250mm×2
250mm×2
Water-tank
20L
20L
Weight
100KG
100KG
Dimension
970×500×700
920×500×700
Product picture

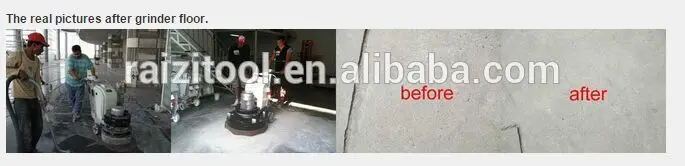

The real pictures after grinder floor.
