LGX splitter box/ PLC splitter cassette, 1*8 Fiber Optical PLC Splitter
- Category: Fiber Optic Equipment >>>
- Supplier: Shenzhen DYS Fiber Optic Technology Co. Ltd. [Guangdong China]Shenzhen
Share on (60368344538):
Product Overview
Description
FTTH 0.9mm Lgx Cassette Type 1x4 1x8 1x16 Sc Upc Fiber Optic Plc Lgx Splitter Box
DYS' PLC splitter quality control, minimizing products risk
1)100% raw material testing
2)Semi-finished products pass the High and low temperature cycle testing
3)Finished product pass the High and low temperature cycle testing again
4)100% performance testing before shipping
Application
FTTx Deployments(GPON/BPON/EPON)
Cable television (CATV)
Local area networks (LAN)
Test equipment
Passive optical networks(PON)
Cable television (CATV)
Local area networks (LAN)
Test equipment
Passive optical networks(PON)
Feature
Excellent Mechanical,Small Size
High Reliability
Low insertion Loss and low Polarization Dependent loss
High channel counts
Excellent Environmental Stability and Widely Used
High Reliability
Low insertion Loss and low Polarization Dependent loss
High channel counts
Excellent Environmental Stability and Widely Used

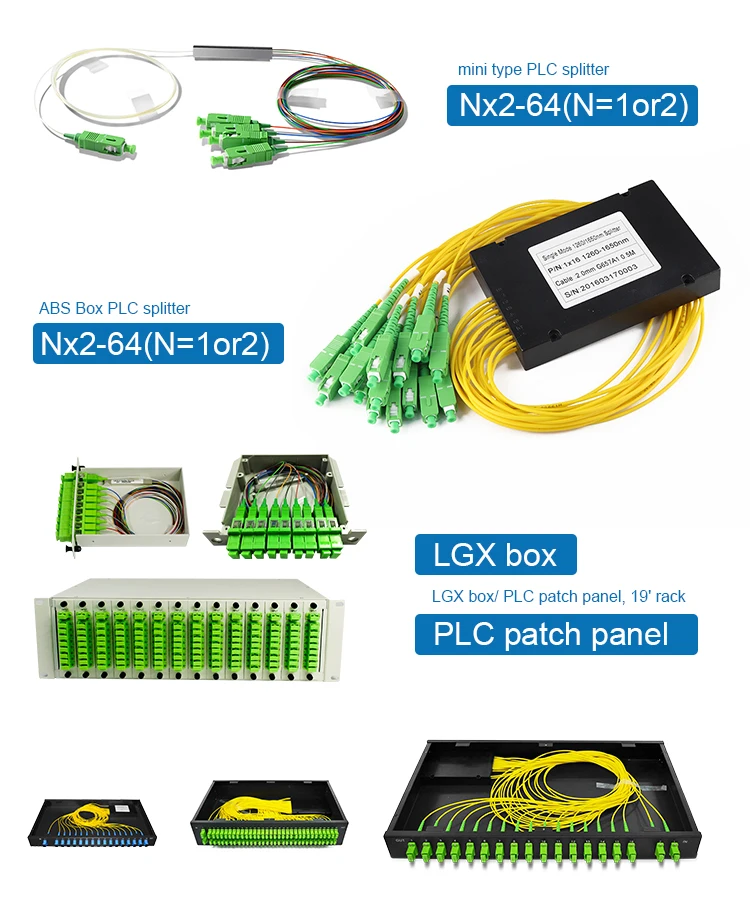

ABS PLC splitter with SC APC connector
type PLC splitter without connector
PLC splitter with SC APC connector

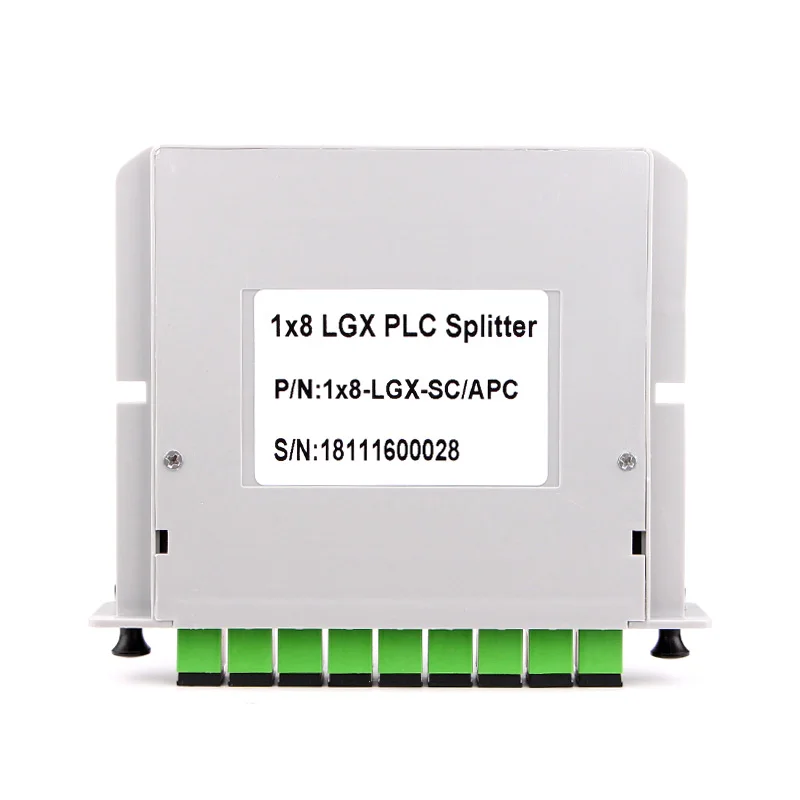

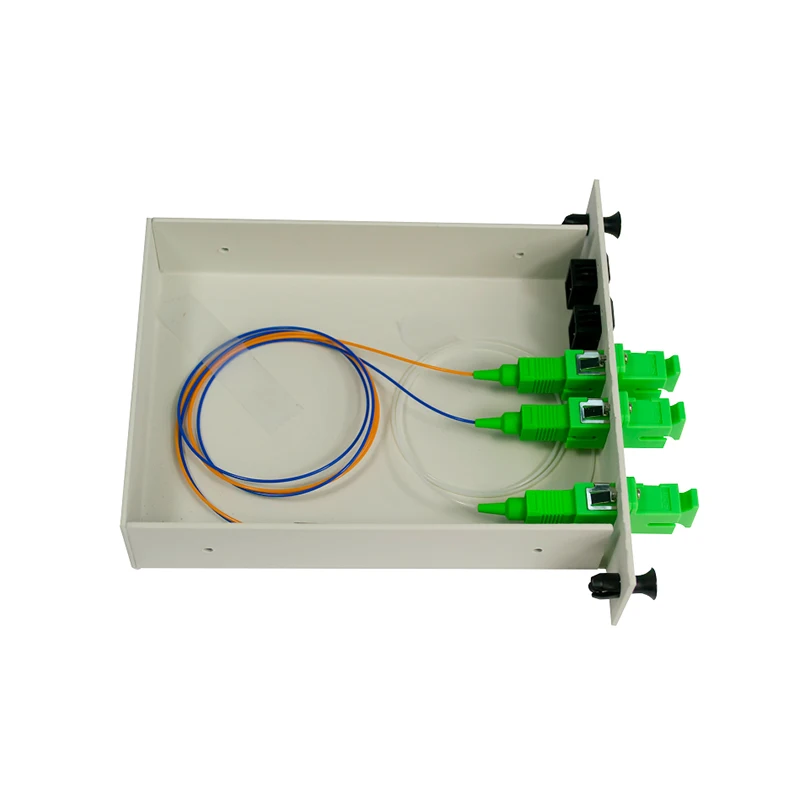

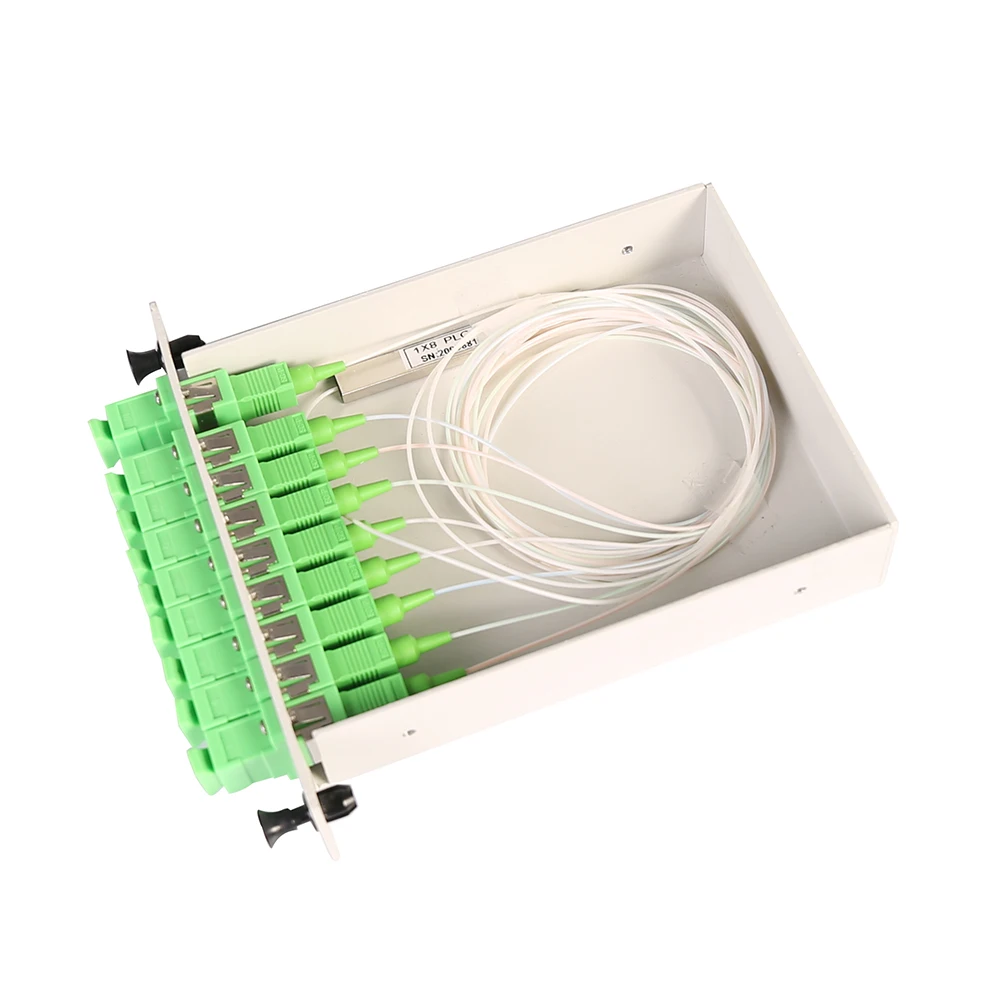

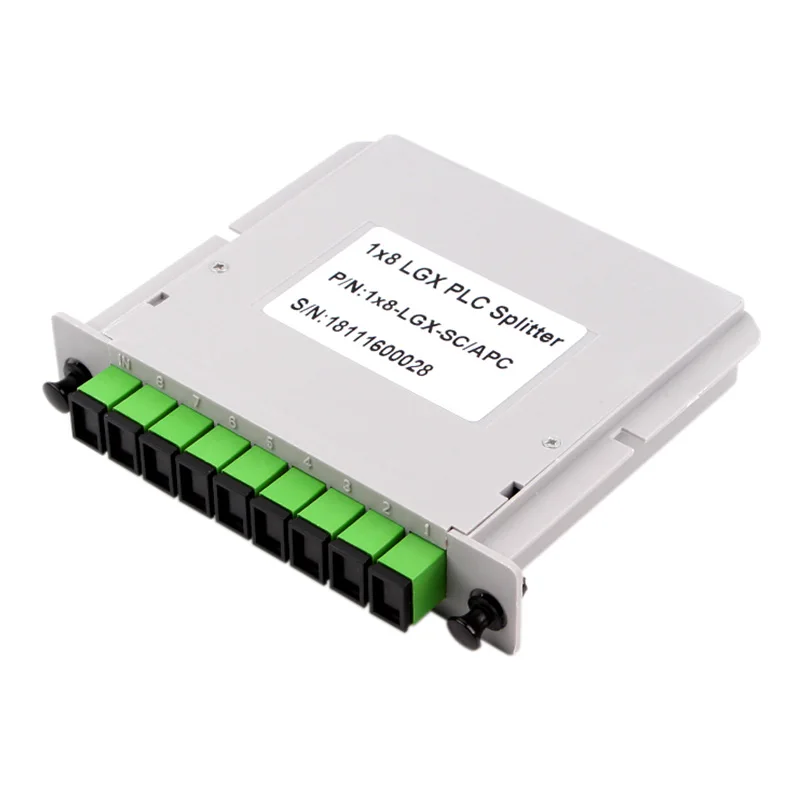

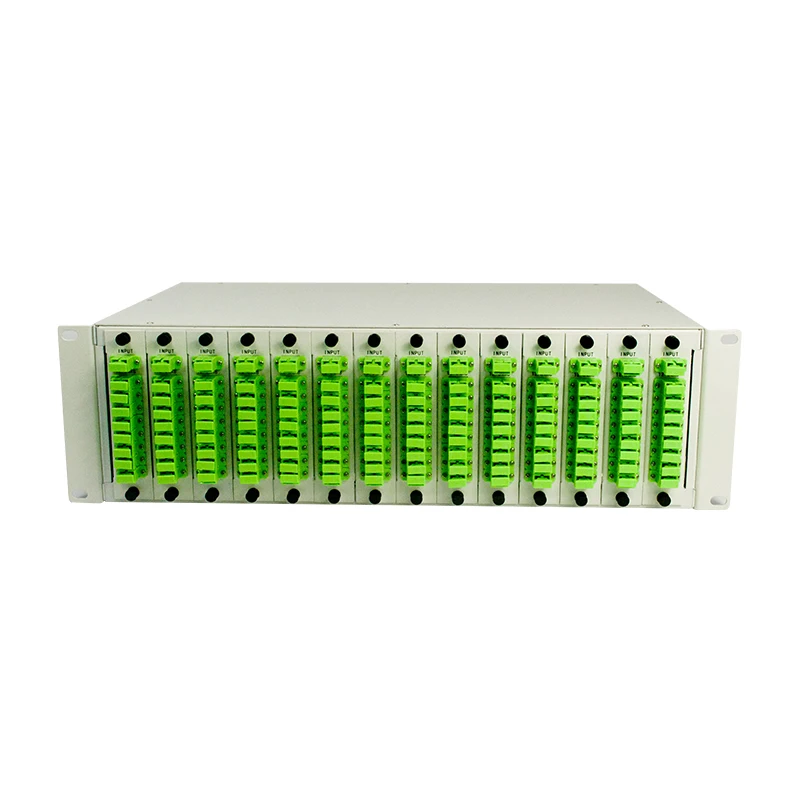

LGX PLC splitter with SC APC connector
Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) | |||||
Fiber | 9/125 um SMF-28e or customer appoint | ||||||||||
Operating Wavelength(nm) | 1260~1650(nm) | ||||||||||
Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB | |||||
Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB | |||||
Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | |||||
Return Loss | UPC≥50dB APC≥60dB | ||||||||||
Directivity | ≥55dB | ||||||||||
Working Temperature(℃) | -40°C to +85°C | ||||||||||
