Дизельный двигатель Duetz BF6L913C с 6 цилиндрами для генератора и строительства, от 114 кВт до 143 кВт
- Category: >>>
- Supplier: Xiamen Sitaiqi Industry & Trade Co. Ltd.
Share on (60368480442):
Product Overview
Description

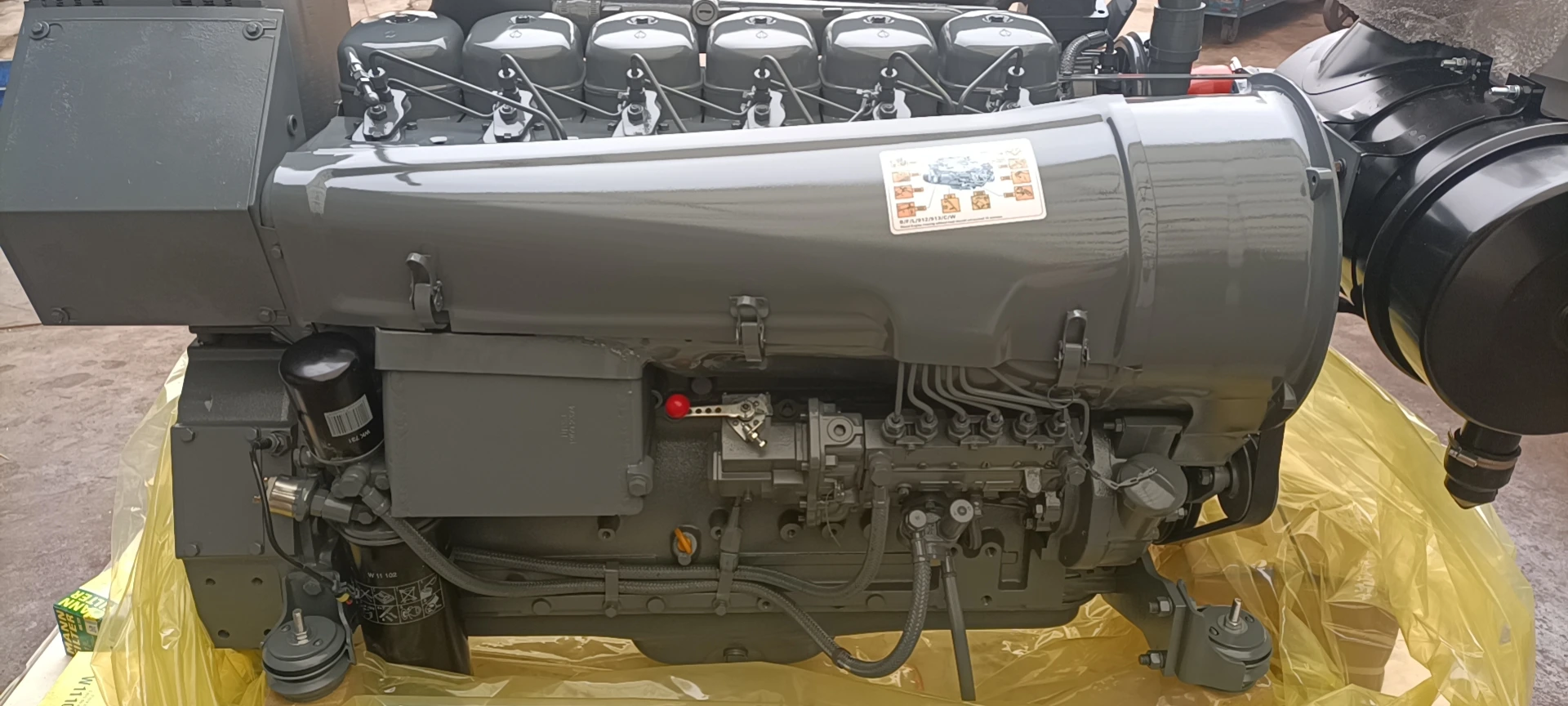

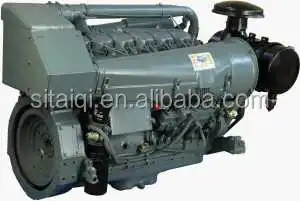

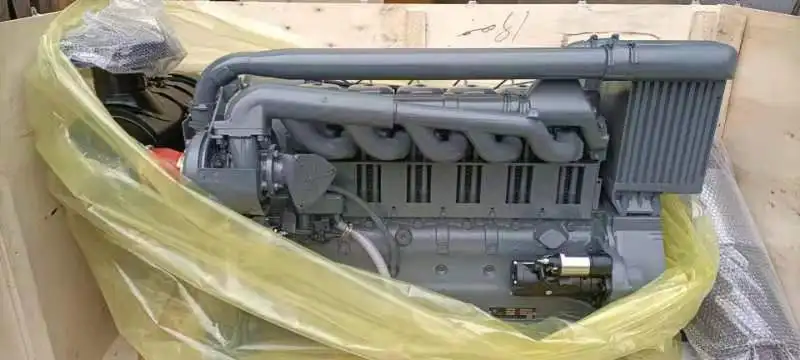

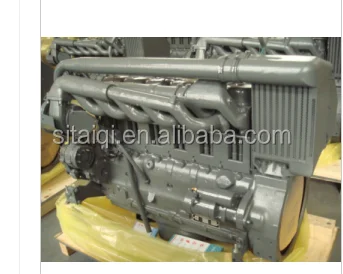

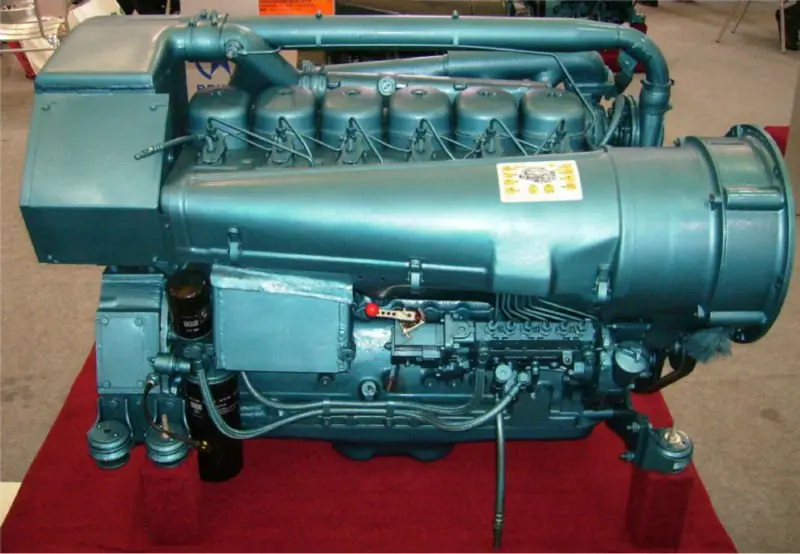

Duetz BF6L913C 114kw to 141KW air cooling Diesel 6 cylinders Engine for generator and construction
| Technical Parameter | |
|---|---|
| Model | BF6L913C |
| Number of Cylinders and arrangement | 6 cylinders/inline |
| Cylinder Diameter/Stroke | 102/125 |
| Discharge Capacity | 6.128L |
| Coolant and Number of Stroke | Air-cooled, 4 strokes |
| Intake System | Supercharging |
| Power/Engine Speed(kW/rpm) | 114/1500 137/1800 125/2300 141/2500 |
| Dimension L/W/H(mm) | 1134*711*990 |
| Weight(kg) | 510 |
| Structural Parameter | |
|---|---|
| Max. Power of Diesel Engine (kw/bhp) | 114kW |
| Rated Speed of Diesel Engine (r/min) | 1500-2500 |
| Max. Torque of Diesel Engine (n.m) | 620 |
| Emission | EPOII |
| Performance Parameter | |
|---|---|
| Model of Diesel Engine | BF6L913C |
| Number of Cylinders | 6 |
| Intake System | Turbocharging |
| Discharge Capacity | 6.128L |
| Cylinder Diameter and Stroke (mm) | 102×125 |
| Ignition Order | 1-5-3-6-2-4 |
| Coolant | Air |
| Injection Mode | Direct Injection |
| Compression Ratio | 18:1 |
| Rotation Direction | Clockwise (From Fan End) |
| Power Output | Flywheel |
| Net Weight (kg) | 510 |
| Length (mm) | 1134 |
| Width(mm) | 711 |
| Height(mm) | 990 |
| Remarks |
|---|
| 1. Final size depends on complete engine specification. |
2. It is only an estimate, without the weight of fan driving device, flywheel, flywheel casing and starting motor.
|
