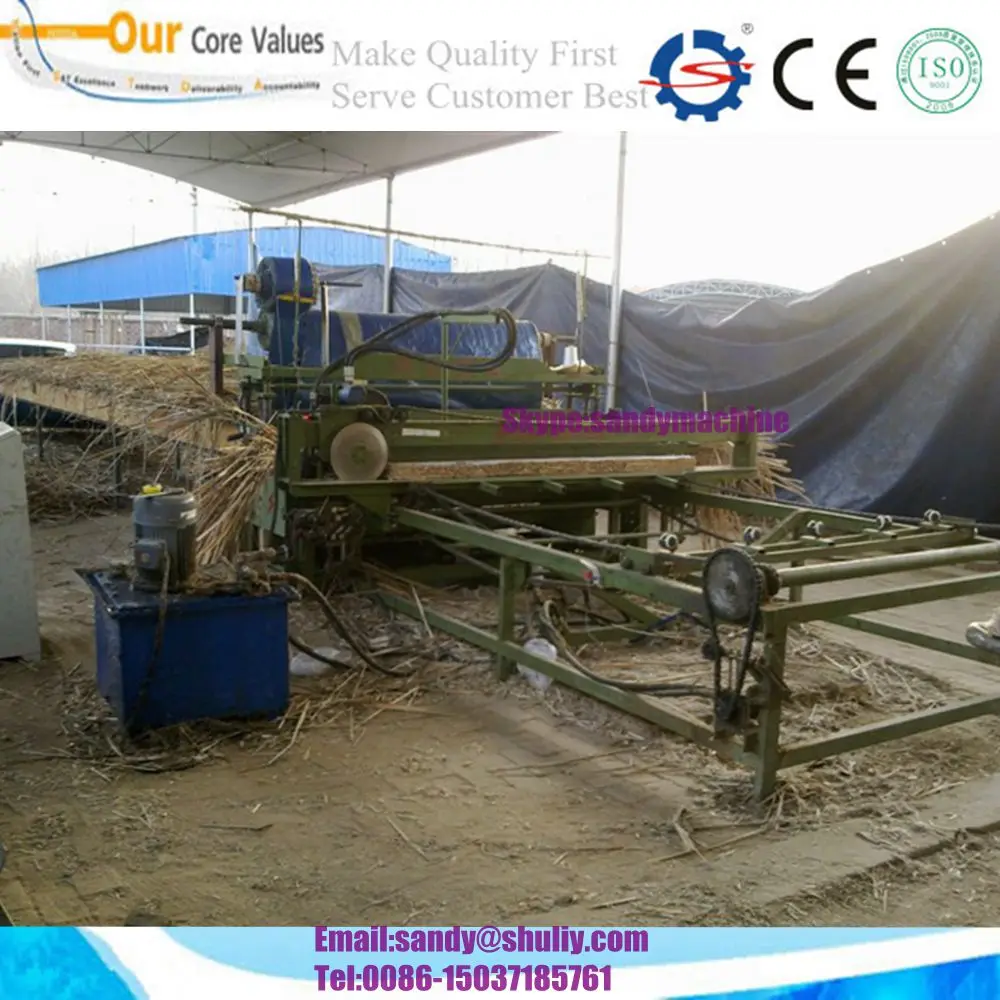

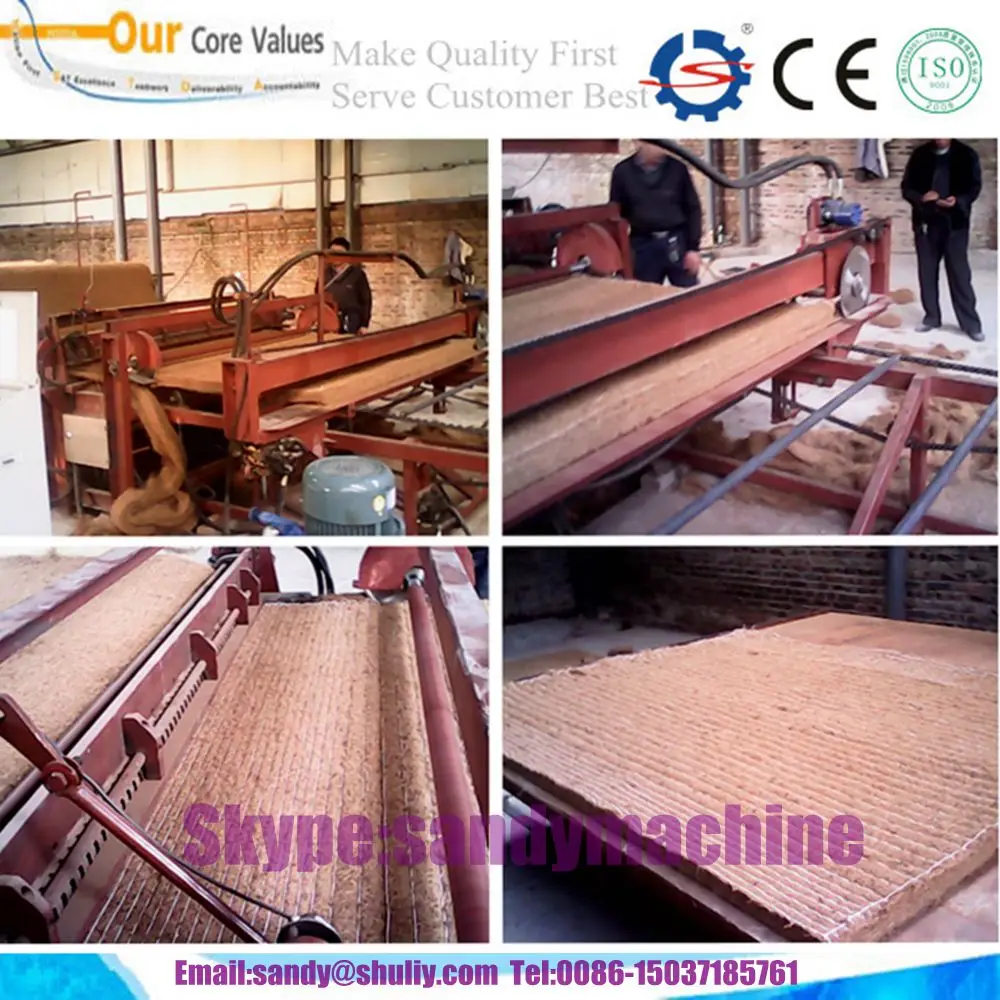

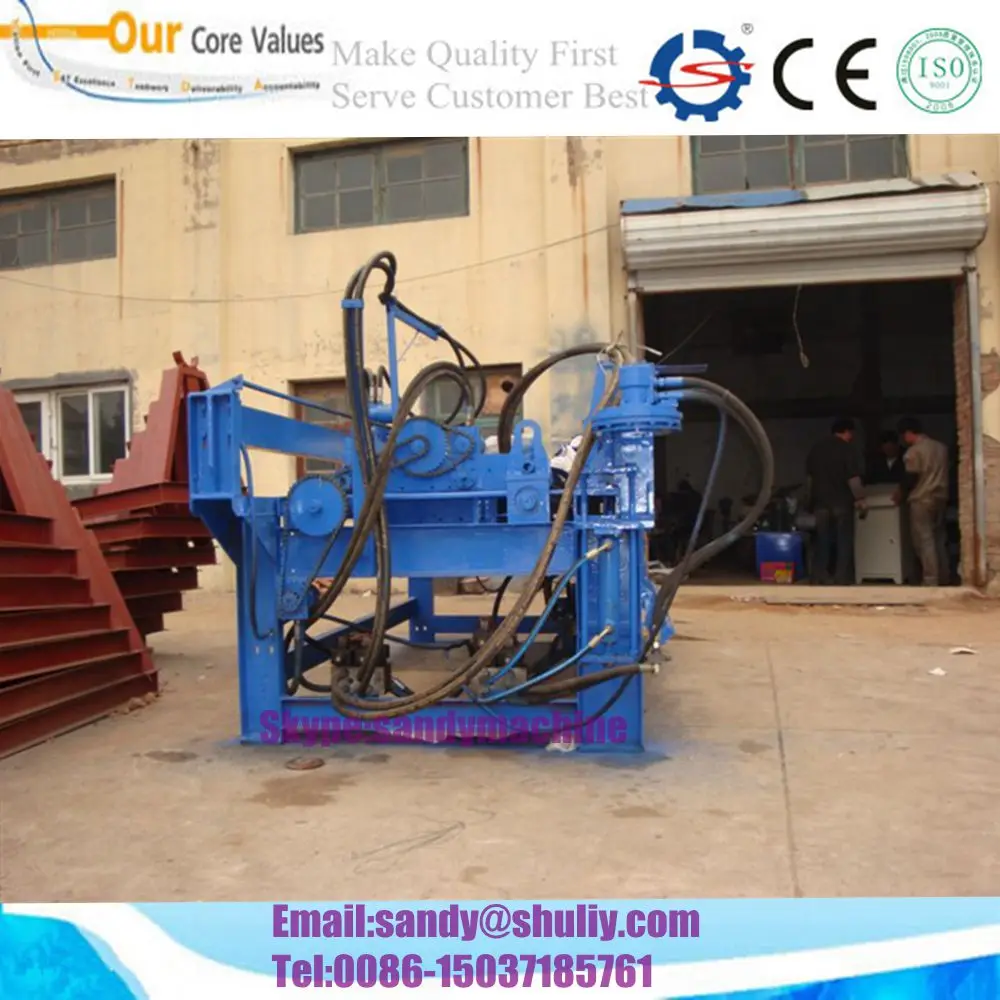

bamboo mat weaving machine

Description:

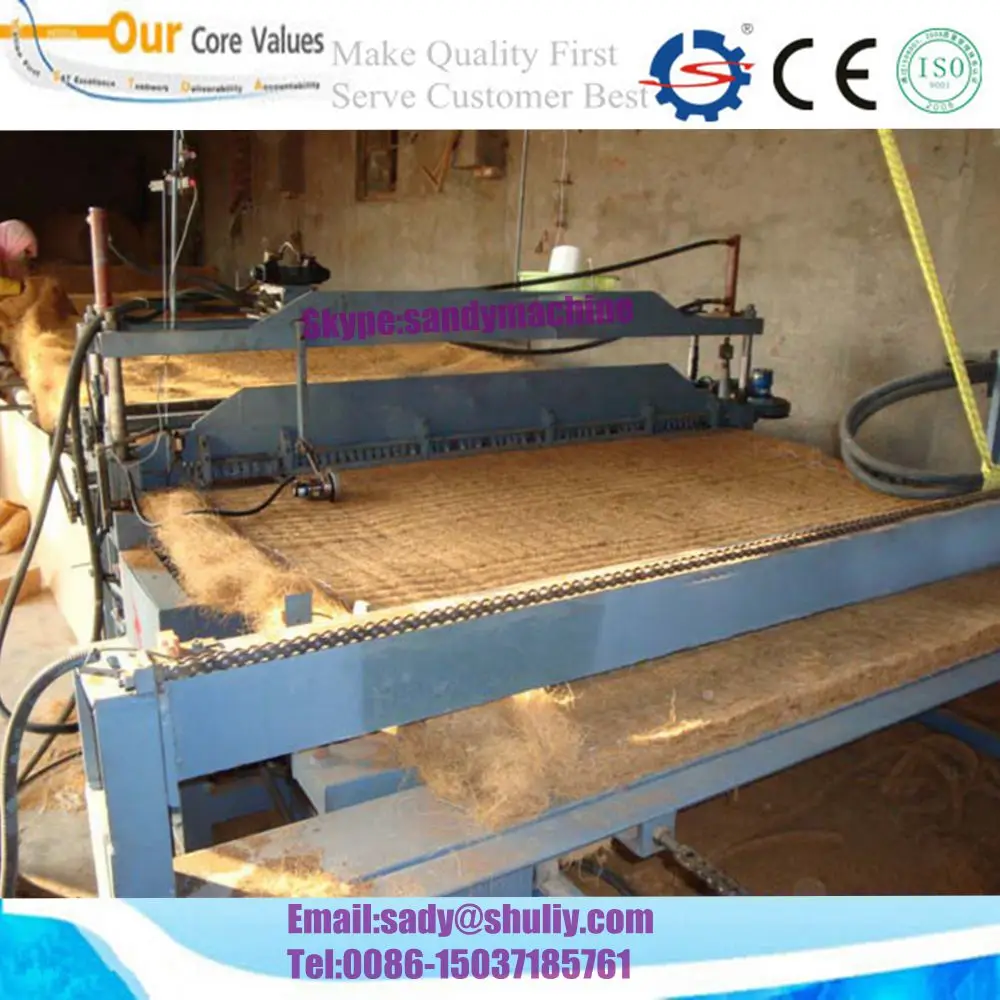

Coconut Fiber Mattress Braiding Machine/Coco Fiber Mattress Knitting Machine/Hemp Palm Mattress Knitting/Weaving Machine/high quality palm mattress machine/2012 new developed palm fibre knitting machie/coconut fibre weaving machine

Main Material:

rice straw, corn straw, millet straw, reed, grass, cattail and haulm, etc

Features:

1.Computer control, text display, hydraulic pressure drive, remote boot.

2.Power system chooses microcomputer automatic control, drive hydraulic system to accomplish the feeding, diameter

weft send line.

3.Signal control interlock at all levels. Send spindle speed adjust the spindle, appear such as automatic parking break fault.

4.Needle code, dense needle, processing length, keyboard input. 2-7 cm thickness change without needles, special thickness can be customized.

5.Human nature design, have memory, such as little interest or abnormal middle power outage, data unchanged; The screen

can show the set length, the current length, number of packages, work state, 5-8 meters remote control switch machine.

Model  SL--2000

Overall size 8000*3000*1400mm Weight  2000kg

Material slot size 6000*2400*2240mm Allowable pressure  7-8mpa(max 12mpa)

Power  4KW Voltage  380V(three phases and four wires ) 50HZ

Needle pitch 2-9cm Sewing thickness 2-7cm(adjustable and without changing needles)

Speed  45m/h/6cm Capacity of tank 120L

Oil type 46# hydraulic oil Oil temperature  20-70°C

6.Can sewing mountain brown, coconut tree brown, hemp fibers and other plants.

  Model&parameter of our Reed Mat Weaving Machine:

If you are interested in our product,please feel free to contact me:
