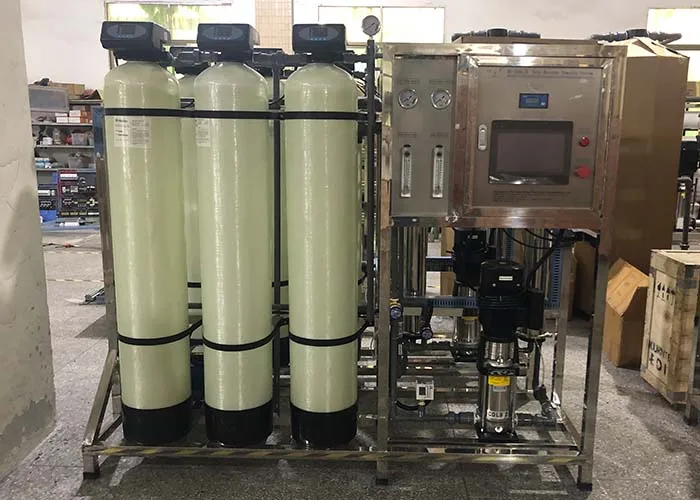

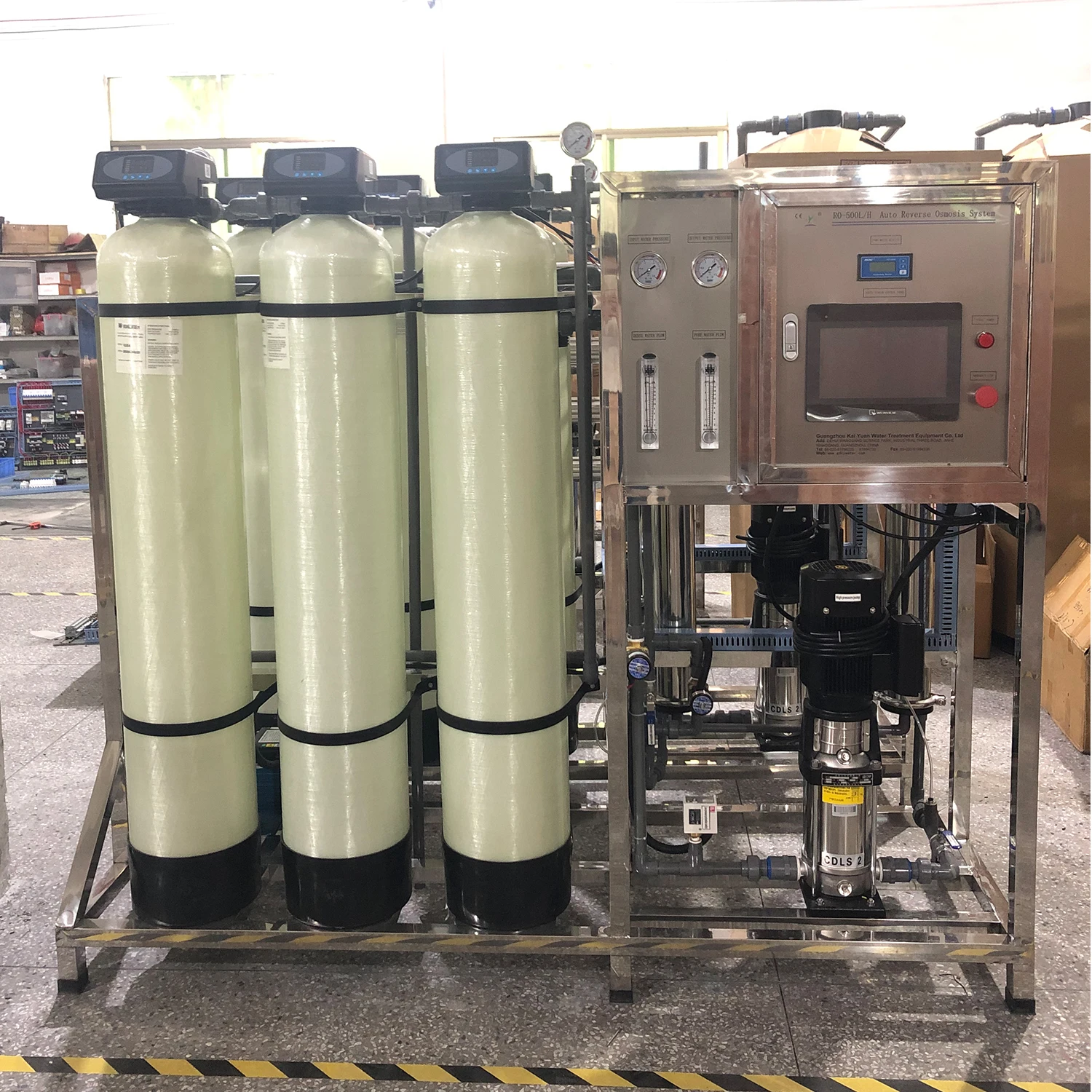

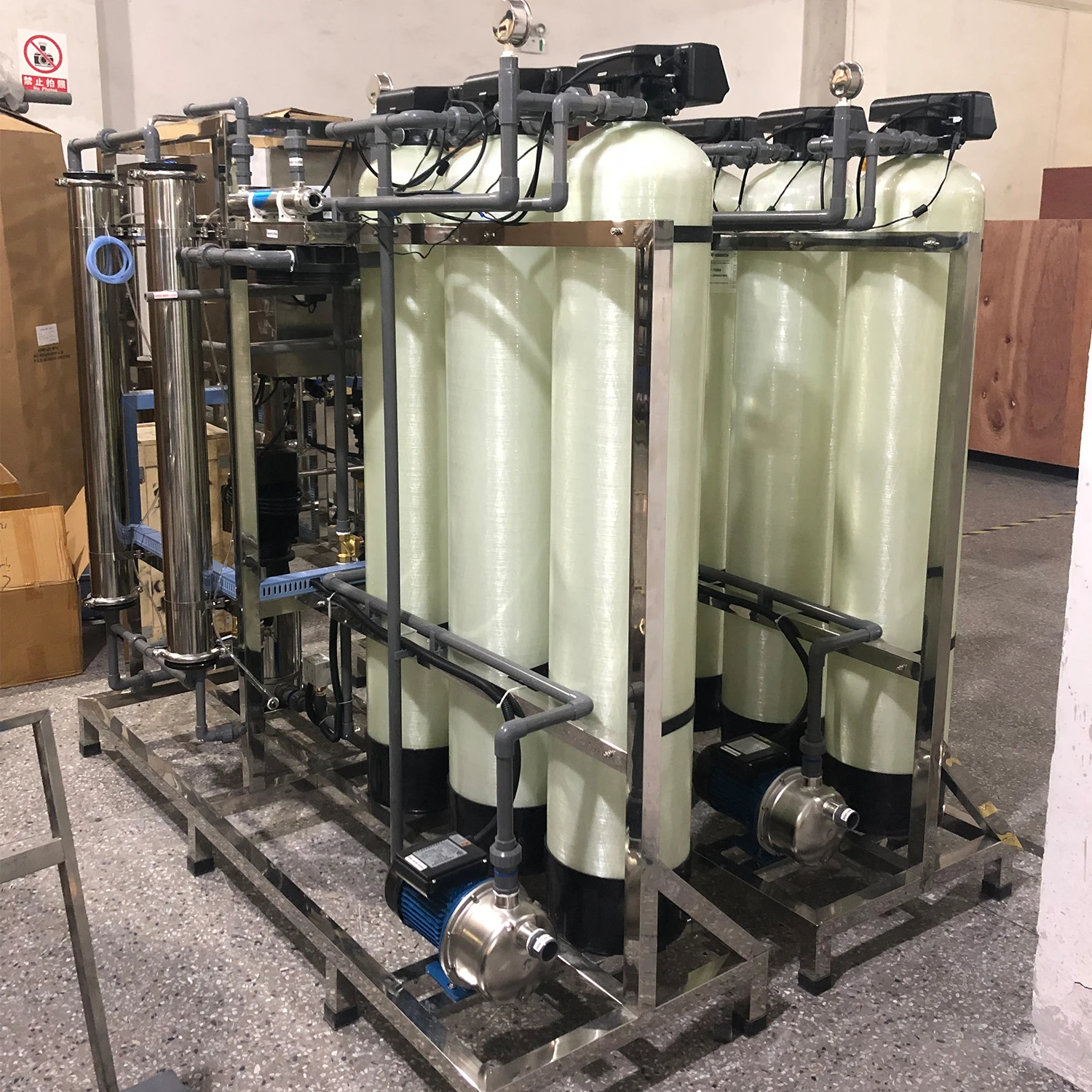

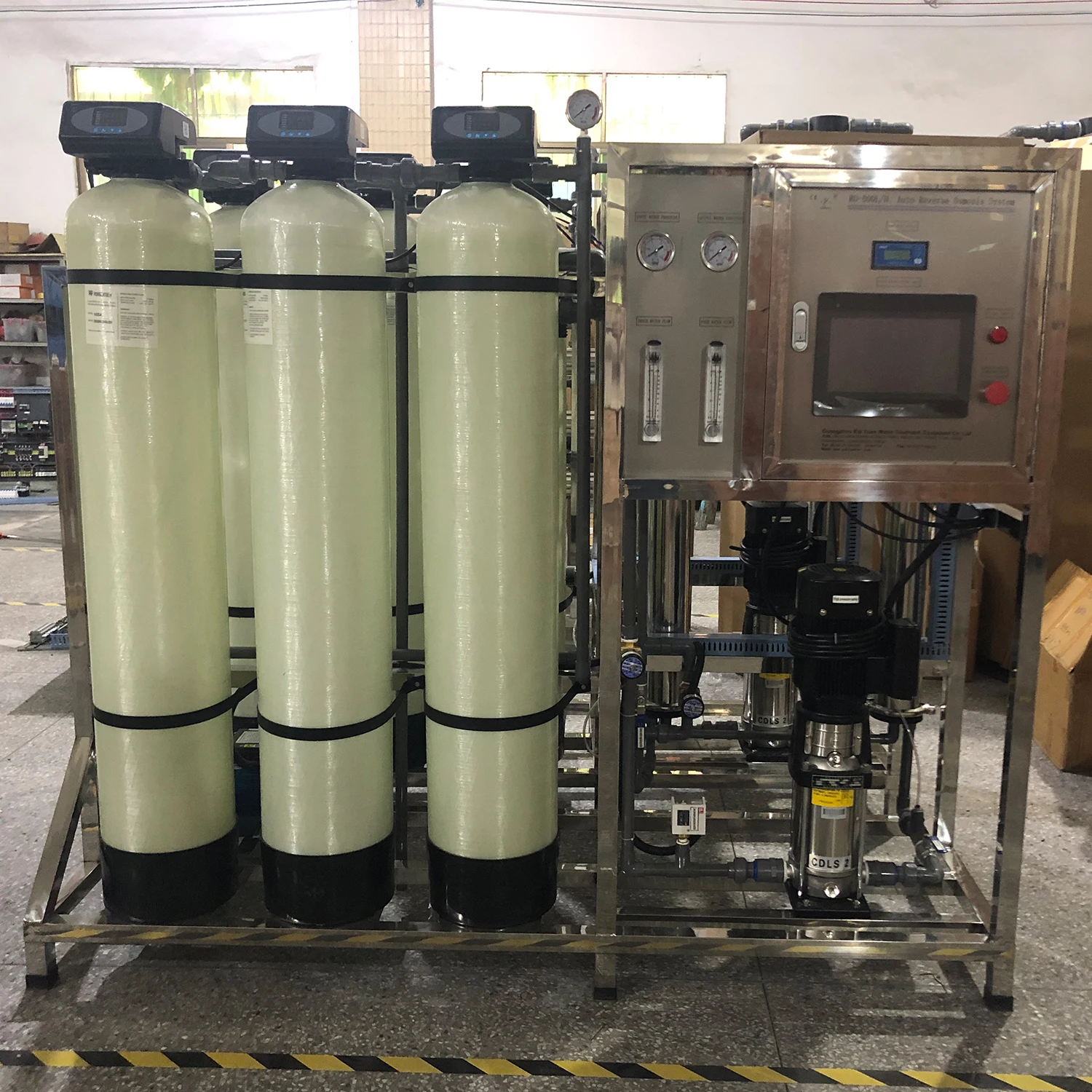

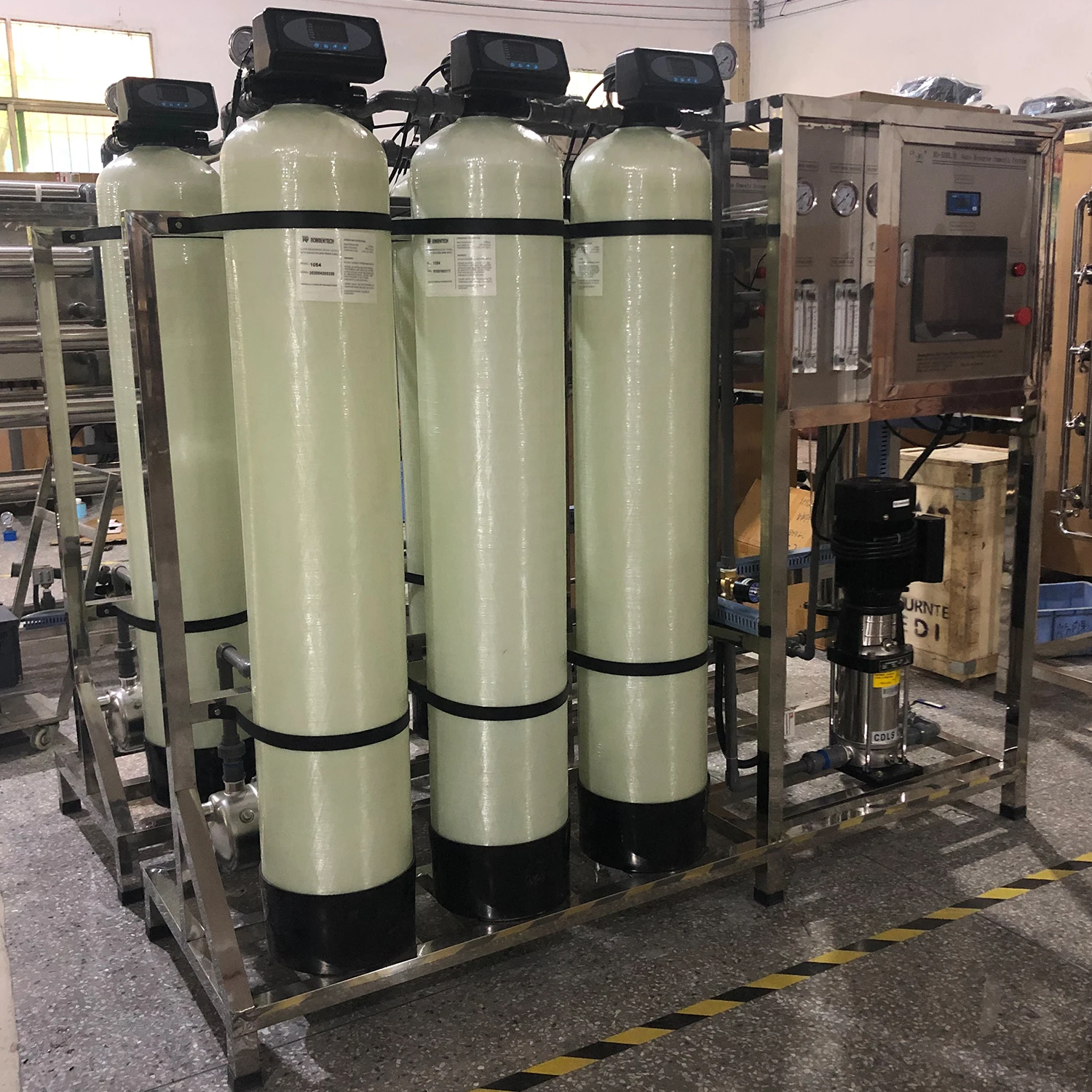

500LPH reverse osmosis system for water treatment automatic water purification machine drinking water treatment plant
- Category: >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (60368767573):
Product Overview
Description
Product Description
500LPH water softener system for water treatment automatic water purification machine drinking water treatment plant
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane.
It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment.
Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.
The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity<2 us/cm.

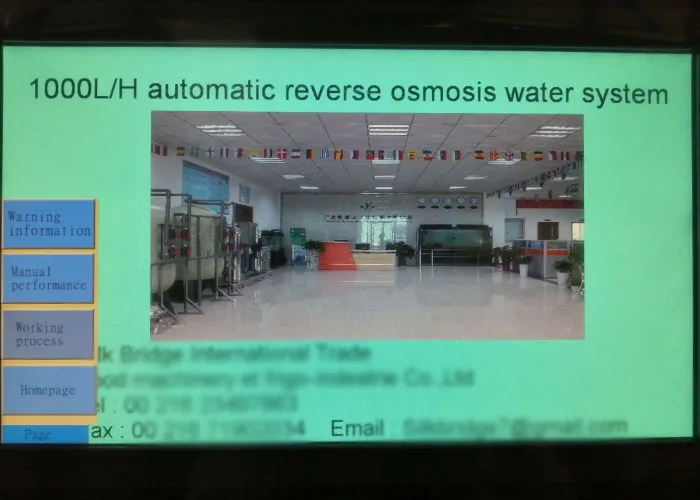

Touch screen instruction
1. Homepage: after you touch fast sel you can see 4 options.

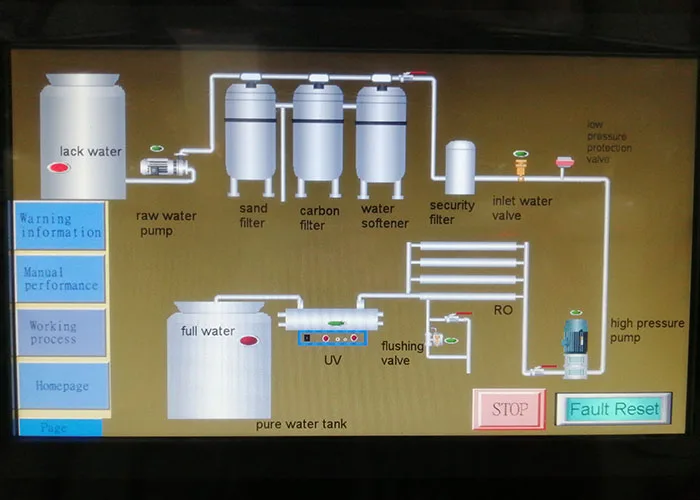

2. Press Working process you will see picture as bellow: this one show whole system running and water level in raw water tank and pure water tank. When it is working, light will be blinking.

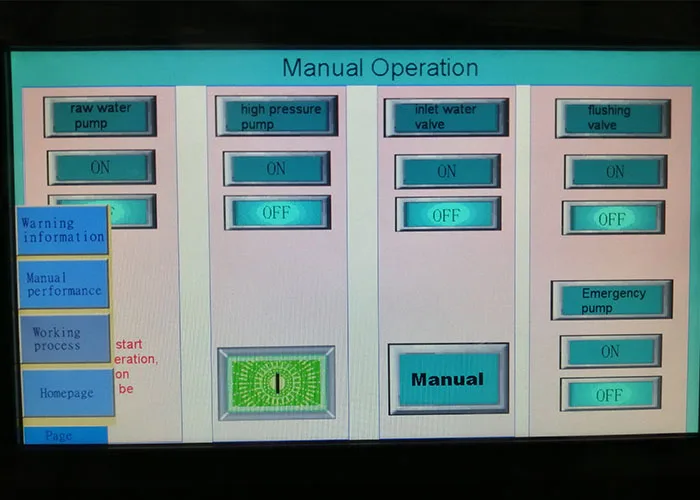

3. Press manual operation: You can press start or stop to control pumps and valves manual. After manual operate, pls change to auto mode. When it is blinking means part is working, if you need to stop it, just press stop or off button.
Notice: when you start manual operation, all protection function will be useless.
Notice: when you start manual operation, all protection function will be useless.

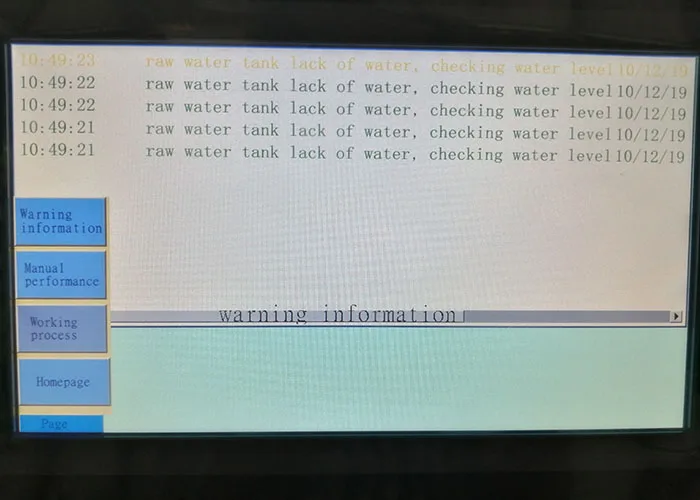

4. Press waring information to this page: this page will write all problems of machine including raw water tank lack of water, low pressure alarming....
Product Processing

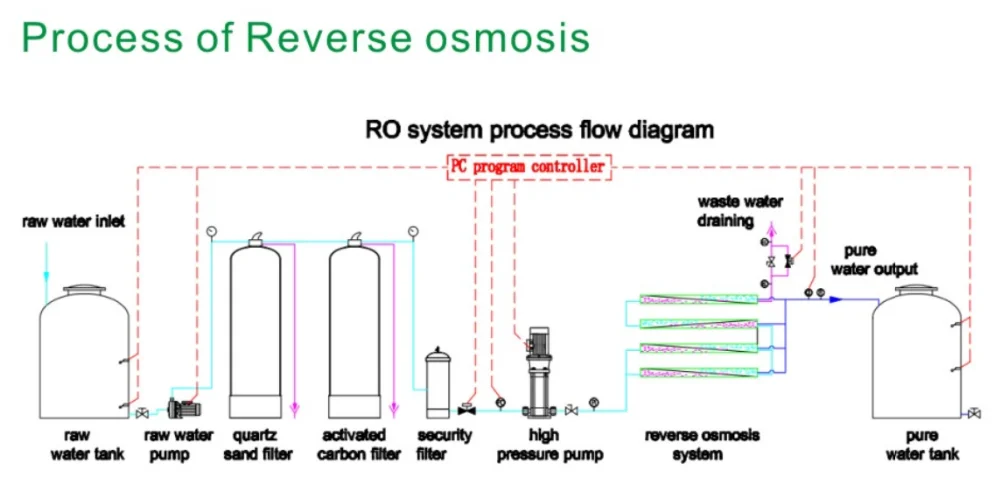

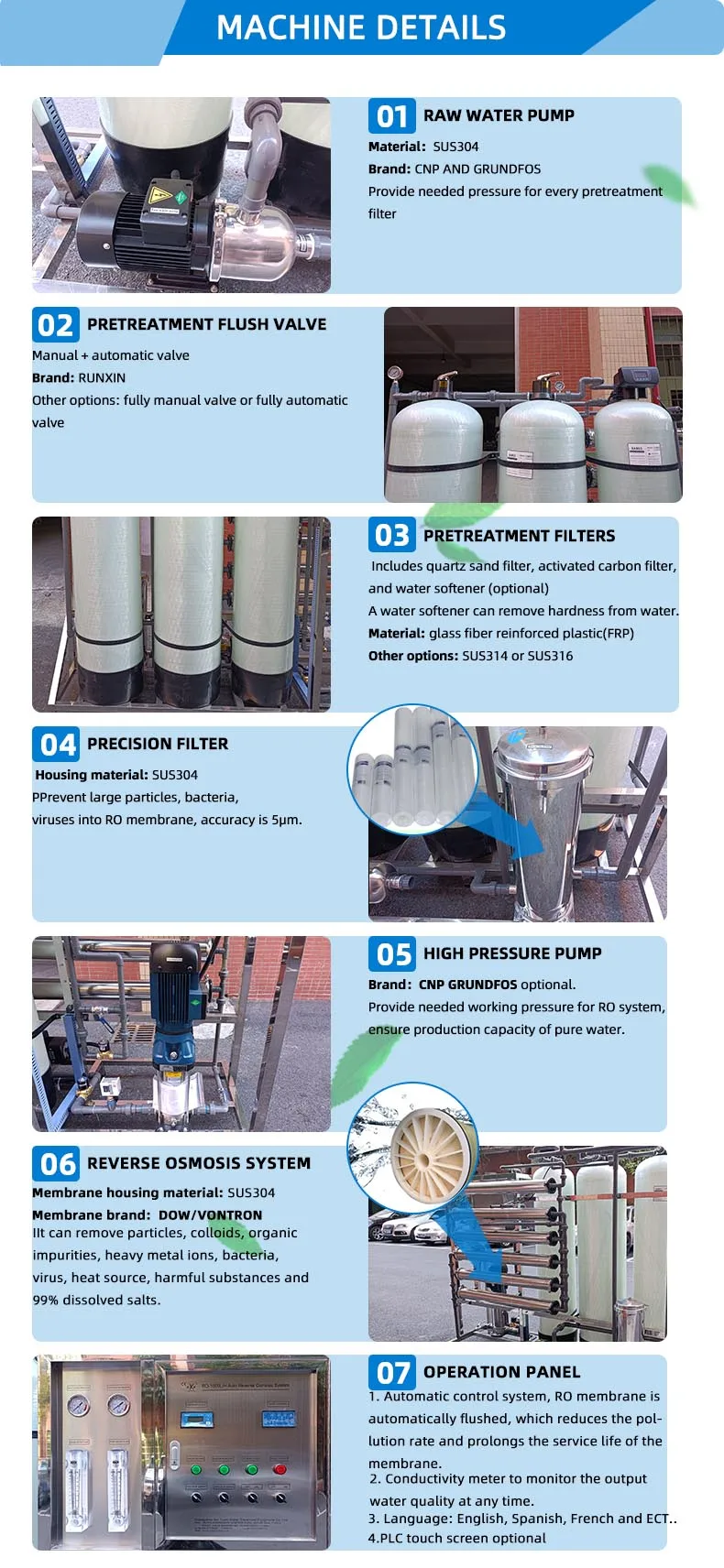

Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+water supply point | ||||||||
Some parts function for your reference as below^^: | ||||||||
Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc. | ||||||||
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances. | ||||||||
Security filter: fill cation resion inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um. | ||||||||
Water softener(Chemical dosing system): adopt cation resin to soften wate/add antiscalant(buyer supply) , absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water. | ||||||||

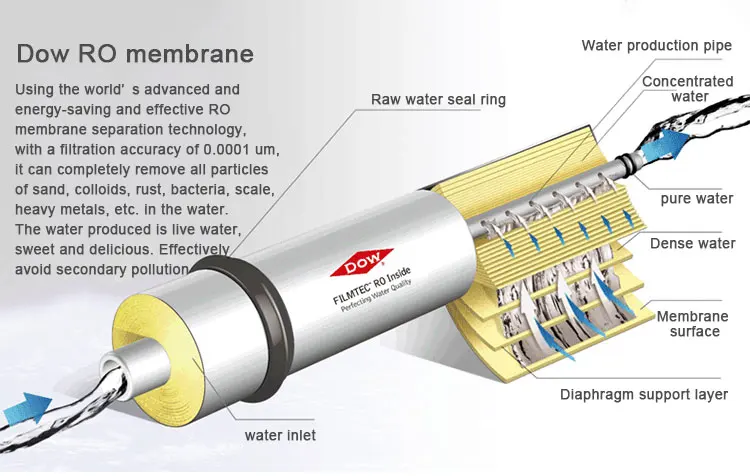

RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | ||||||||
UV sterilizer: for killing bacterial in water, be safe for drinking. | ||||||||
Component:
There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 year
We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.
Application:
Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
Related products
Company Information
Kai Yuan company which is >12years experience in water treatment with ISO9001, CE, SGS Certification, good feedback, excellent quality and top 5 supplier in China. (Our mission: Input your owned water, output your needed water. Our values: Build win-win relationship with client, staff and supplier.)
Why Choose Us
Our Service:
A team of experienced engineers are dedicating in developing, manufacturing, installing and debugging the equipments and international sales can be contacted any time. We have not only strict quality control, products are approved by CE and SGS, but also considerate customer service hot-line. Meanwhile, professional engineers can provide satisfying plan
as customer's requirements. i. e. OEM/ODM service is available.
We have more than 20 engineers, they help to supply all kind of treatment process according to customers their raw water quality and output water inquirment, all of them have more tahn 8years experience, pipe connection technology can acheved high medical level, also they can help to go to instal our machine all over the world if customer they want; so in others words we are 100% OEM/ODM prefessional team, and we provite free lifetime technique support with you^^
Our advantages:
A.\tStable quality, do not change suppliers >10 years;
B.\tPrice is ideal and keep the price fixed , customers believe us;
C.\tFast delivery and high efficiency, we pay great attention to timeliness for the convenience of customers;
D.\tProfessional team, tell us what you needs, we will quickly provide a suitable solution with you.
Installation abroad
Customers feedback
FAQ
1.What is the Guarantee and after sale-service Kai yuan company can supply ?
it is one year guarantee ( except for Artificially damaged)
Any problems with the accessories,like valves , pumps etc. within 1 year , we could delivery to you for free .
2.Does the machine/equipment difficult to install ?
Kai yuan factory already connect/adjust well for the machine before delivery ,and we will Provide the specific entire system"User Manual",if need can take Video for how to operate machine. .
3.Does Kai yuan will help customer install the machine in their country ?
In additional , Kai yuan can also send their engineers to customer place to install this equipment and train staff, but the buyer should pay for the relevant cost for our workers.
4.What is the packing of this machine ? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you open wooden case to pick out of machine is ok .
5. What is requirement information i need to provide for achieve the suitable ro machine/other relevant products i want ? It is kindly that you could provide us a raw water analysis /water test report .
