5 150TON capacity 6 62mm long stroke low height single acting flat hydraulic jack
- Category: Jacks >>>
- Supplier: Jiangsu Canete Machinery Manufacturing Co. Ltd.
Share on (60368868889):
Product Overview
Description
5-150TON capacity 6-62mm long stroke low height single acting flat hydraulic jack
Features:
Single acting,spring return
High strength alloy steel for durability

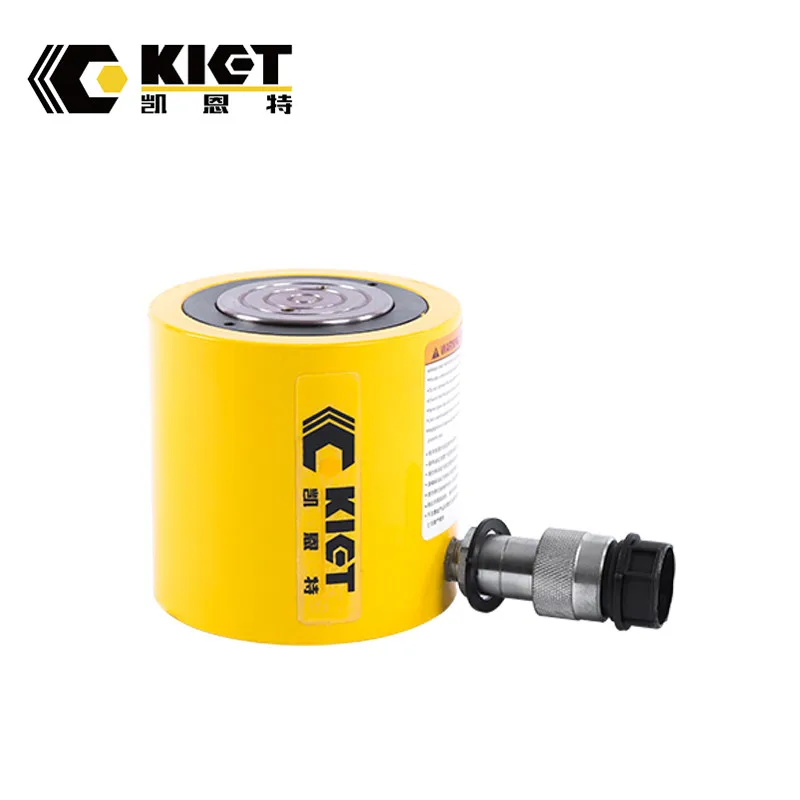

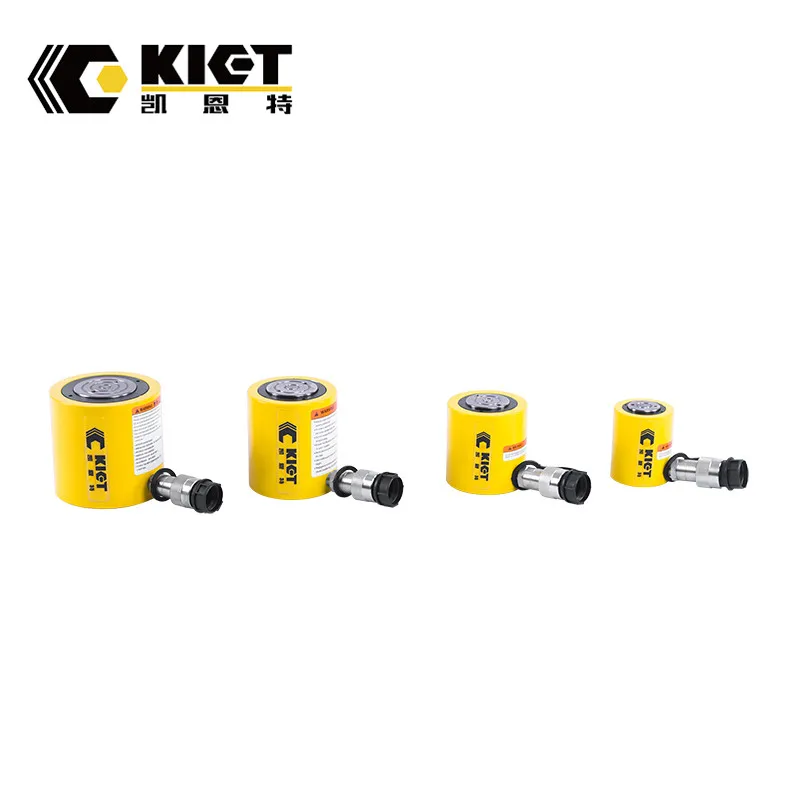

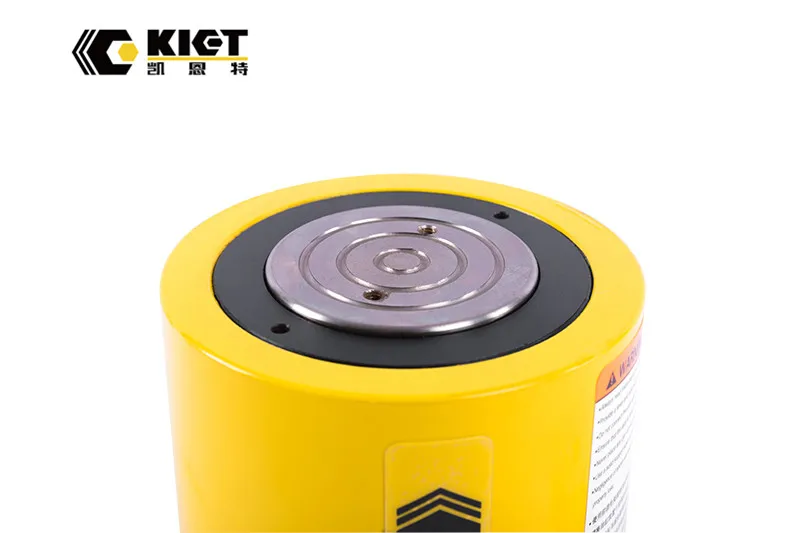

Products pictures:
Parameters:
| Model | Capacity (T) | Max.Working | Closed | Stroke (mm) | Effective Area (cm²) | Oil | Extended Height | Outside | Bore | Plunger | Weight (kg) |
| Pressure | Height | Capacity | Diameter | Diameter | Diameter | ||||||
| A | D | E | F | ||||||||
| (Mpa) | (mm) | (cm³) | (mm) | (mm) | (mm) | (mm) | |||||
| KET-RCS-101 | 10 | 70 | 88 | 38 | 14.5 | 55 | 126 | 69 | 42.9 | 38.1 | 4.1 |
| KET-RCS-201 | 20 | 70 | 98 | 45 | 28.7 | 129 | 143 | 92 | 60.5 | 50.8 | 5 |
| KET-RCS-302 | 30 | 70 | 117 | 62 | 42.1 | 261 | 179 | 101 | 73.2 | 66.5 | 6.8 |
| KET-RCS-502 | 50 | 70 | 122 | 60 | 62.1 | 373 | 182 | 124 | 88.9 | 69.8 | 10.9 |
| KET-RCS-1002 | 100 | 70 | 141 | 57 | 126.7 | 722 | 198 | 165 | 127 | 92.2 | 22.7 |
| KET-RCS-1502 | 150 | 70 | 130 | 44 | 196 | 862 | 174 | 204 | 158 | 115 | 33.9 |
| KET-RCS-2500 | 250 | 70 | 155 | 50 | 346 | 1730 | 205 | 275 | 210 | 185 | 63 |
| KET-RCS-3000 | 300 | 70 | 200 | 60 | 433 | 3601 | 260 | 297 | 235 | 210 | 95 |
Application

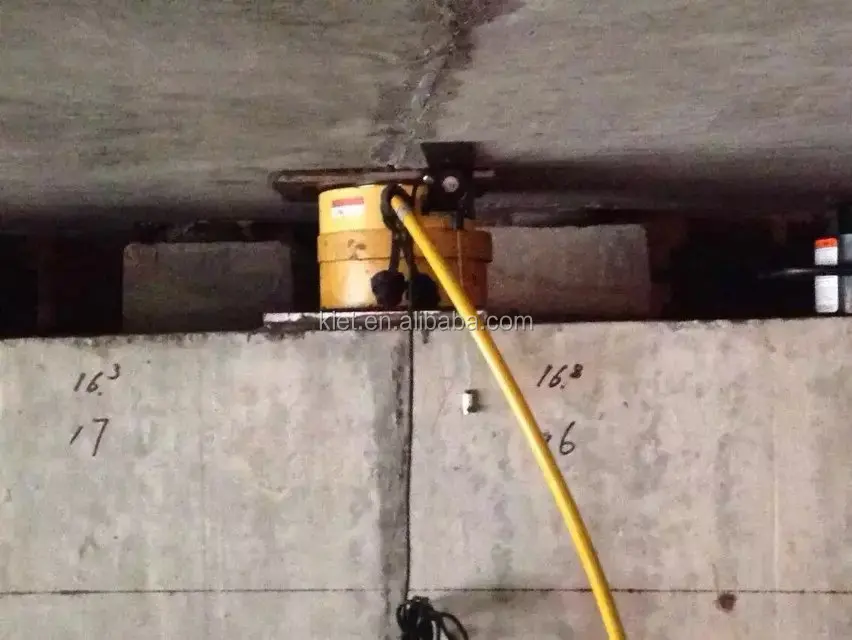

Low height hydraulic cylinder applied in bridge lifting

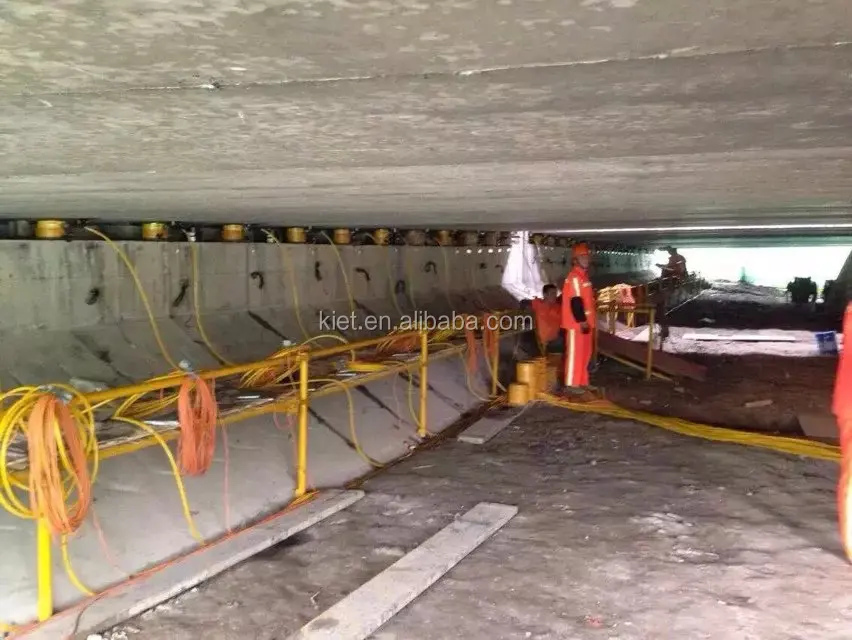

Synchronous lifting system for bridge lifting

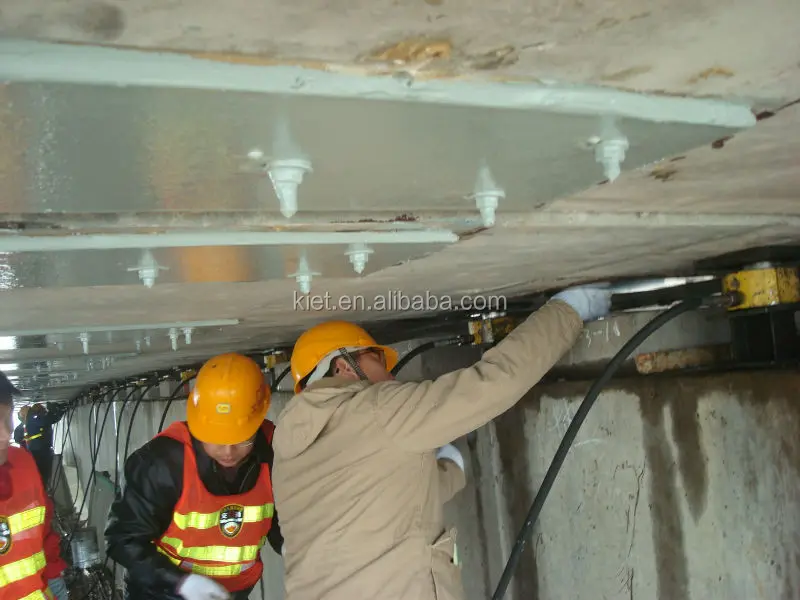

Bridge lifting and replace the rubber support of Viaduct

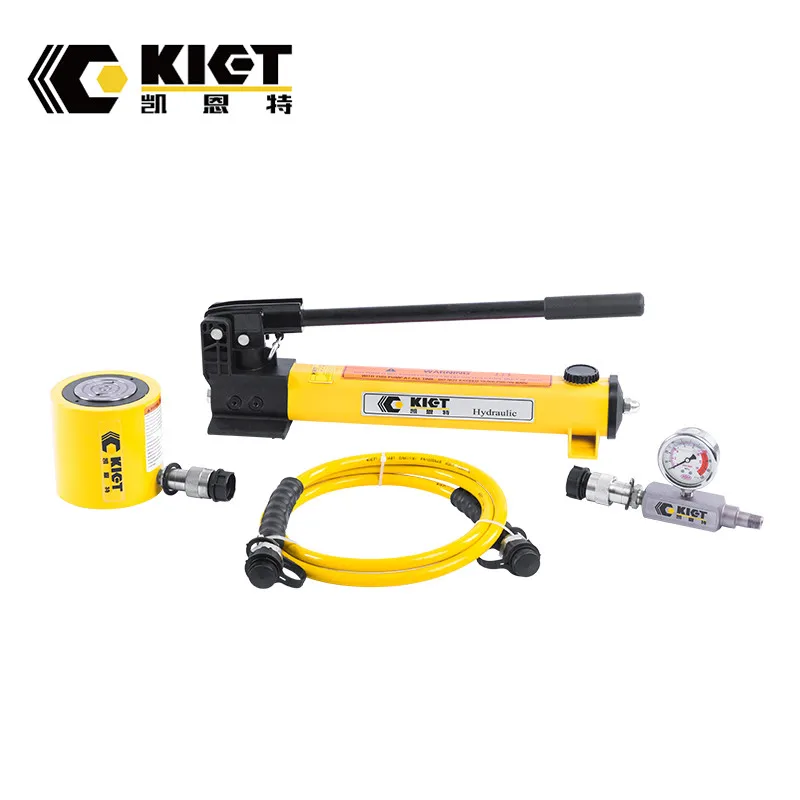

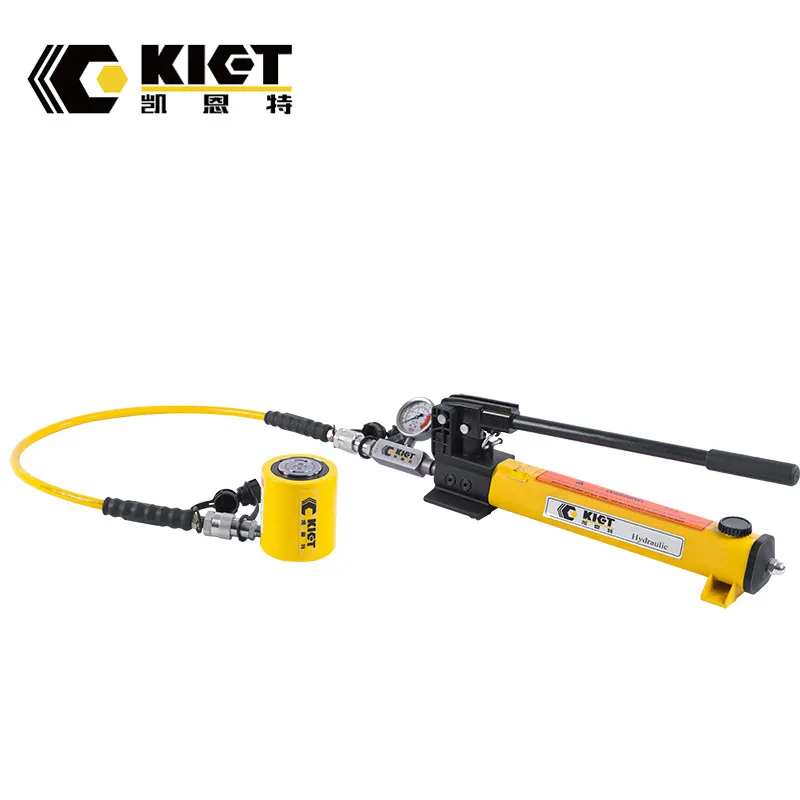

Pump Selection:
| Model | Working Pressure(MPa) | Oil Displacement Per Stroke(ml) | Outlet Size | Oil Tank Capacity | Dimensuons | ||
| 1st stage | 2nd stage | 1st stage | 2nd stage | (ml) | (mm) | ||
| KET-P-142 | 1.3 | 70 | 32 | 1.6 | NPT1/4" | 350 | 310×137×127 |
| KET-P-392 | 1.3 | 70 | 32 | 1.6 | NPT3/8" | 901 | 533×157×127 |
| Model | Working Pressure(MPa) | Oil Displacement Per Stroke(ml) | Outlet Size | Oil Tank Capacity | Cylinder Type | ||
| 1st stage | 2nd stage | 1st stage | 2nd stage | (L) | |||
| KET-P-80 | 2.5 | 70 | 16.22 | 2.46 | NPT3/8 | 2.2 | Single Acting |
| KET-P-84 | 2.5 | 70 | 16.22 | 2.46 | NPT3/8 | 2.2 | Double Acting |
| KET-P-462 | 1.4 | 70 | 126 | 4.7 | NPT3/8 | 7.4 | Single Acting |
| KET-P-464 | 1.4 | 70 | 126 | 4.7 | NPT3/8 | 7.4 | Double Acting |
Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
• Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
• Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
