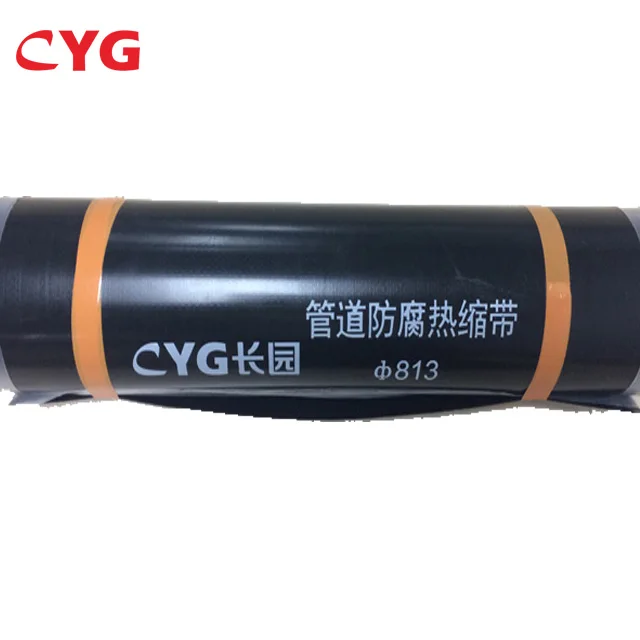

Crosslinked polyolefin heat shrink sleeve equal to Canusa heat shrink sleeves

Share on (60369082499):


Price:

Quantity:


Product Overview

Description





  Crosslinked polyolefin sleeve equal to Canusa heat shrink sleeves









Product Description


Crosslinked polyolefin sleeve description :





CYG Crosslinked polyolefin sleeve coated with a protective heat sensitive adhesive which effectively bonds to steel substrates and common pipeline coatings including polyethylene and fusion bonded epoxy.

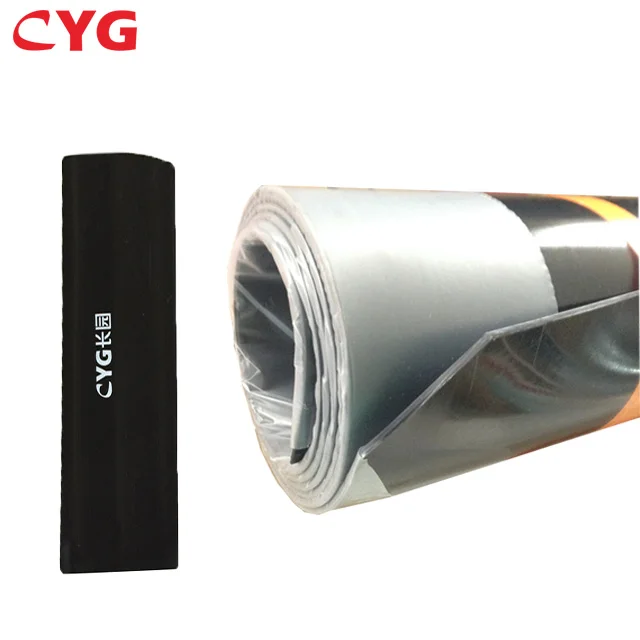

heat shrink sleeve (3).jpg








Crosslinked polyolefin sleeve function :





CYG Crosslinked polyolefin sleeve  is available with a broad range of adhesives to accommodate various operating temperatures and soil stress conditions.





 3LPE heat shrink sleeve.jpg








Crosslinked polyolefin sleeve form excellent adhesion with the surface of steel pipeline, PE-coating; meanwhile, it forms a continuous, firm anti-corrosive system with the surface of the pipeline.

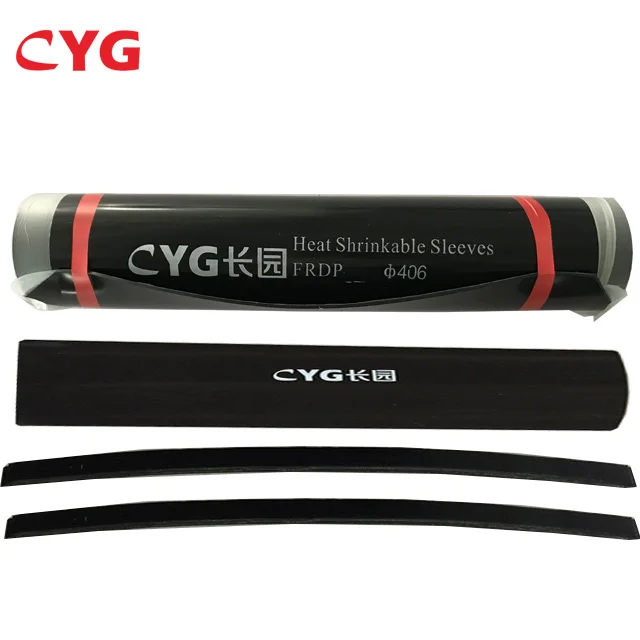

 FRDP heat shrink sleeve.jpg





Crosslinked polyolefin sleeve enjoys strong adaptive capacity to environment and good resistance to mechanical damage. It has good resistance to liquid pressure and bacterium, mildew and other chemical corrosion.

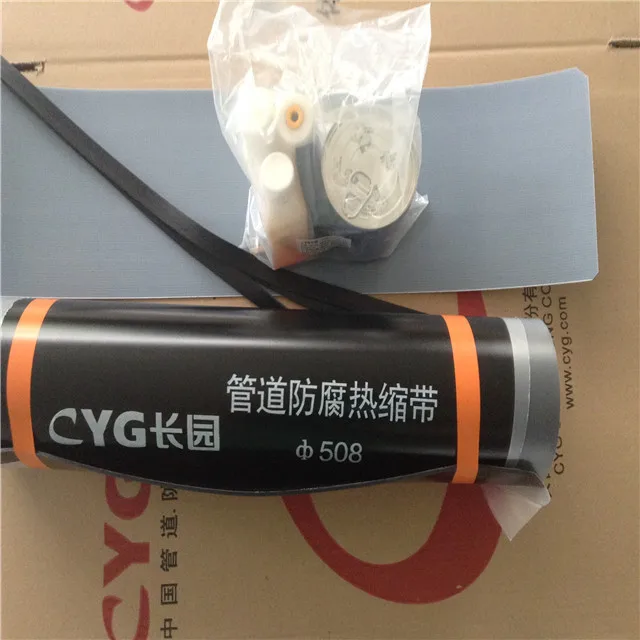

heat shrink tube.jpg











Crosslinked polyolefin sleeve Properties:
























































































































Property



Test Method



Value



Tensile Strength 23 ℃



ASTM D638



22.3 MPa



Elongation



ASTM D638



640 %



Hardness 23 ℃



ASTM D2240



55



Volume Resistivity



ASTM D257



10 15Ω·m



Abrasion Resistance



ASTM D1044



30mg



Dielectric Voltage Breakdown



ASTM D149



35KV/mm



Heat Shock (225℃,4h)



ASTM D2671



No cracking, flow or dripping



Impact Resistance



ASTM G14



>15 J



Softening Point



ASTM E28



124℃



Lap Shear Strength 23 ℃



EN 12068



365N/ cm



Lap Shear Strength 100 ℃



5 N/



Cathodic Disbondment 23 ℃, 30days



EN 12068


ASTM G8



<15






Cathodic Disbondment 100 ℃, 30days



< 5mm



Impact



EN 12068



>15



Water Absorption



ASTM B570



0.05%



Low-Temperature Flexibility



ASTM D2671



>-20℃



Indentation



EN12068



1.0*(Pass)



Peel Adhesion  23℃



ASTM D1000



120N/CM



Peel Adhesion 100℃



EN12068






2N/CM



Fully Recovered S Thickness







2.0mm



Fully Recovered L Thickness







2.3mm









Crosslinked polyolefin sleeve application tools:








Heat shrink sleeve accessoriesHeat shrink sleeve for pipe joints accessories












Company Information


CYG Changtong New Material Co., Ltd. is a national High tech enterprise specialized in the field of pipeline corrosion protection materials as well as buried pipeline detection service and pipeline coating .





CYG is a leading manufacturer of sleeve, tape and epoxy coating systems that for over 15 years, have been used for sealing and corrosion protection of pipeline joints and other substrates. CYG high performance products are manufactured to the high quality standards and are available in a number of configurations to accommodate your specific project applications.





CYG equipments




























Enterprise Honor in CYG Changtong:





Member of Council in Chinese Society for Corrosion and Protection (CSCP)


Qualification Certificate of Corrosion Protection Construction


Qualification Certificate of Pipeline Detection





Well-known Brand of Pipeline Corrosion Protection in China


Corporate Member of China Association of Petroleum Engineering Construction (CAPEC)


State-Level High-Tech Enterprise with more than ten proprietary intellectual property rights










Stable supplier of PetroChina


Stable supplier of Sinopec


Stable supplier of China Gas Group





CNPC material supplier





Winner of “Award of Standing Together Regardless of Situation”


Principal supplier of corrosion protection materials in a number of large projects such as West-East Natural Gas Transmission Project 2ndPipeline, West-East Natural Gas Transmission Project 3rd Pipeline, Sichuan-East Natural Gas Transmission Project and Russia-China Crude Oil Transmission Project Mohe-Daqing Pipeline ect.





A lot of international project case( Turkmenistan, Uzbekistan, India, Chad and so on.) ( international project)





CYG Certification.jpg








High-temperature resistant 80℃ heat shrinkable tape has been tested and certified by DVGW.





Both pipeline heat shrinkable materials and visco-elastic anticorrosion tape and paste win the works approval and products certification by China Classification Society (CCS)











FAQ


 Will you accept OEM requirements ?





OEM order are welcomed and we can offer pipeline corrosion protection solutions according to your condition.


Besides, we can offer on service pipeline detection service.





Pls. do not hesitate to contact us for more information of Crosslinked polyolefin sleeve .
