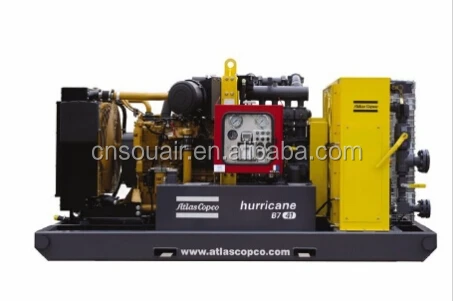

AtlasCopco Air Nitrogen Booster compressor Model B4 41/1000 geothermy/oil field/water well drilling project 350 1000psi 1400cfm

Product Overview

Description

Atlas Copco Air or Nitrogen Hurricane Booster B4-41/1000,B7-41/1000 Compressor 350Psi 24bar-1000psi 69bar 2440cfm/69M3/min geothermy/oil field/water well drilling project

Air or Nitrogen Booster - Models B4-41

The smallest compressor and lowest flow in the Hurricane booster lineup, this unit is ideal for moderately-sized rotary air drilling, pipeline testing, and similar intensity applications. It's the basic unit upon which increasingly powerful compressors are built.

STANDARD FEATURES

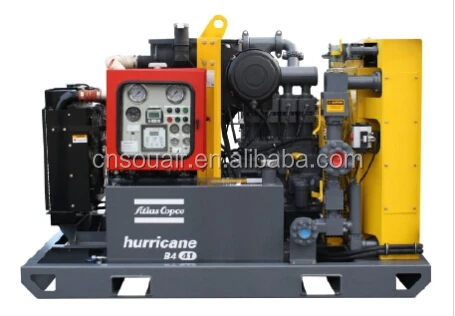

Hurricane B4-41 front no-frame

Automatic load/unload

On board fuel tank

Booster bypass manifold

Precooler and aftercooler

Suction scrubber tank

Dual inlet suction manifold

Temperature sensors at each valve

Open skid frame with single point lifting

24 volt DC starting and operating system

Suction and discharge safety relief valves

Full function instrument panel monitoring all pressures, temperatures and controls with full protection shutdown and fault indicators.

OPTIONAL FEATURES

Digital control panel

Automatic scrubber drain valve

Cold weather kit (containerized model only)

Manual louvers

Airstarter

Spark arrestor

Overspeed shutdown valve

Inlet particle filter

Service packs

Piston and valve repair kits

Container and rig safe models as well as other options, capacities and pressures available – consult factory.

SPECIFICATIONS



Specifications
Booster                                            B7-41/1000
Booster type                                    Model 276
                                                          4 cylinders, reciprocating
                                                          Drive engine Caterpillar C7
                                                          250 bhp @ 1800 rpm
Booster stages                                      1
Max suction pressure (psi / bar)                             350 / 24
Max discharge pressure (psi / bar)                           1000 / 69
Capacity at max suction pressure (cfm / m3/min)                          2440 / 69
Booster oil capacity (gal / l)                                 2.25 / 9
Engine oil capacity (gal / l)                                 7.50 / 28
Fuel tank capacity (gal / l)                                    85 / 322
Max operating ambient temperature (°F / °C)                                  125 / 52
Wet weight (lb / kg)                                              7,870 / 3,570
Overall dimensions, L x W x H (in / cm)                       139 x 80 x 72 / 353 x 203 x 183
Suction connection                                                 3 npt
Discharge connection                                            2 npt



Standard Features

• Automatic load/unload system

• Booster bypass manifold (single and 2-stage only)

• Engine speed adjustment

• Two-way concentric valves

• Watercooled booster block

• Precooler bypass system

• Dual inlet suction manifold

• Discharge temperature sensor at each valve

• Precooler (a+15°F / 8°C) & suction scrubber tank

• Aftercooler (a+50°F / 28°C)

• Open skid with single point lifting and fork lift slots

• 24 volt DC starting and operating system

• Suction and discharge safety relief valves

• Full function digital instrument panel monitoring all pressures,

temperatures and controls with full protection shutdown and

fault indicators



Options

• Automatic scrubber tank drain

• Cold weather kit (-20°F/-29°C)

• ComAp control panel

• Low pressure switch at booster inlet

(only with analog control panel)

• Lights for operation at night

• Full protection frame

• Weatherproof container

• Trailer

• Spark arrestor

• Overspeed shutdown

• Air starter

• ASME B31.3 welding standard

• Inlet mesh filter & particle filter

• Discharge particle filter & coalescing filter

• Service pack 250 hrs / 500 hrs / 1000 hrs / 2000 hrs

• Valve kits and piston kits
