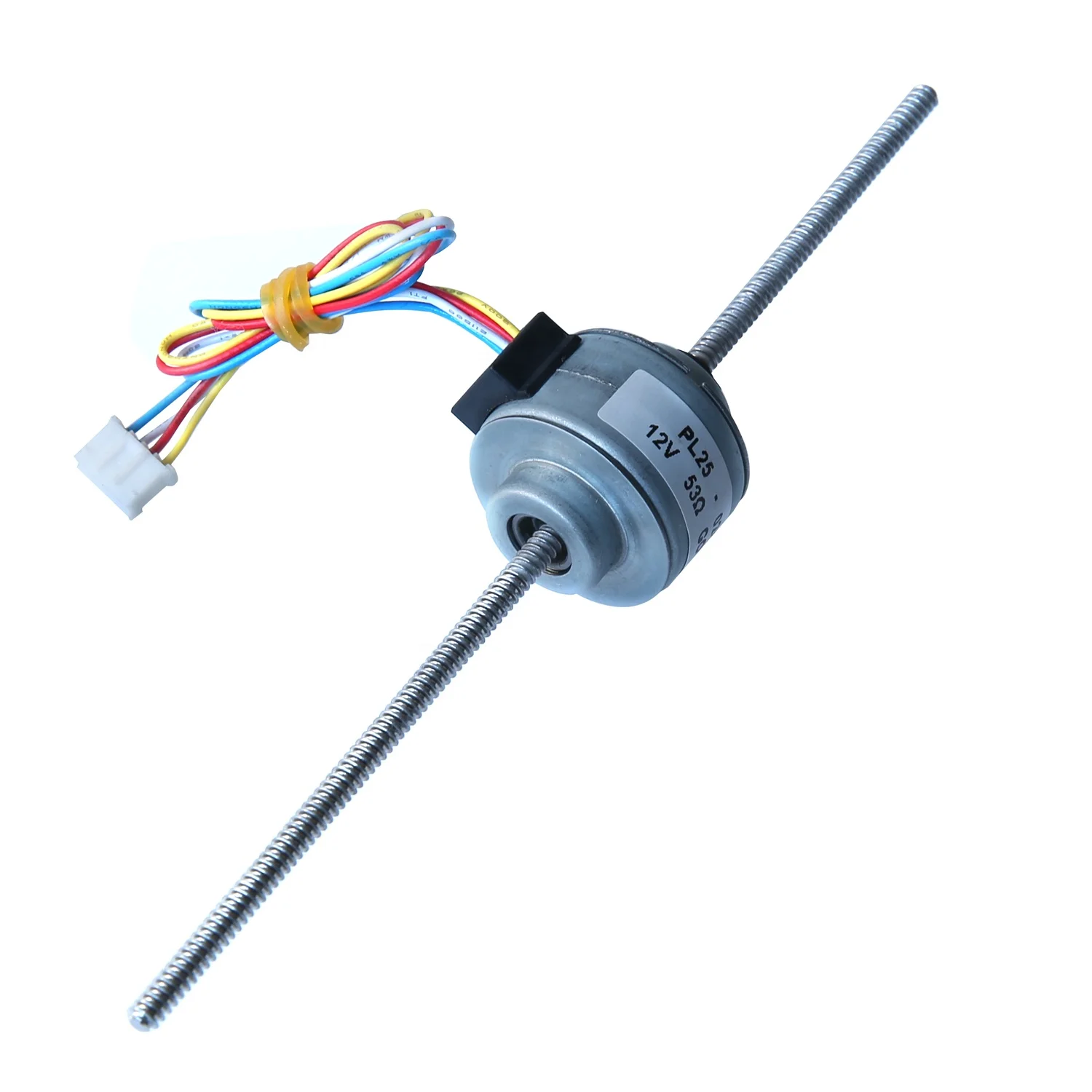

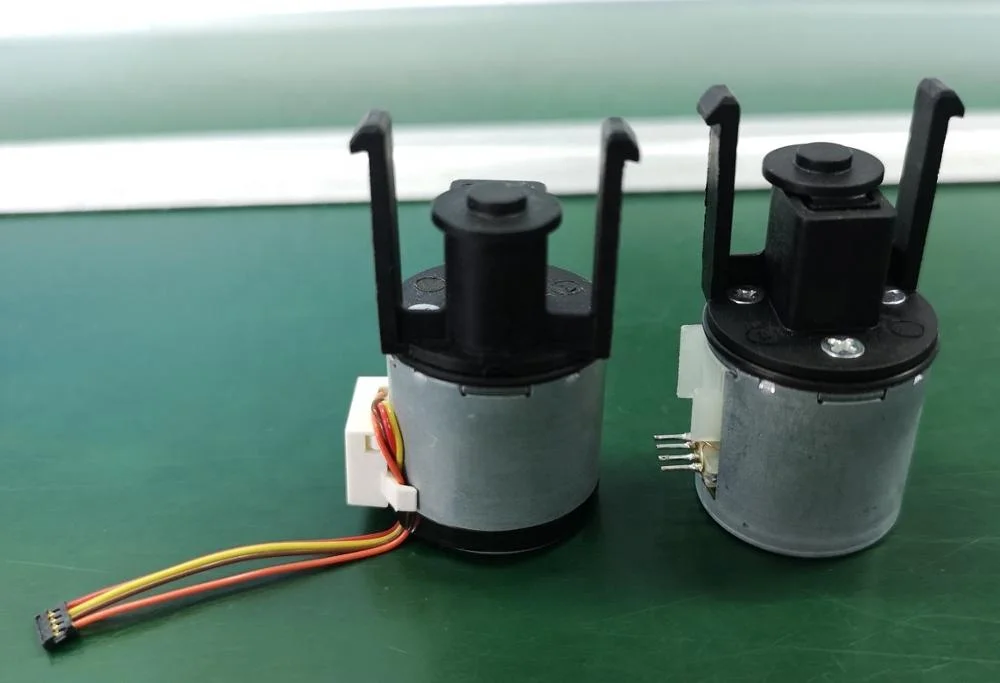

25mm pm linear stepper motor

Product Overview

Description

25mm pm linear stepper motor



1. Motor diameter: 25mm;

2. Motor type: External, Captive, No-captive;

3. Voltage: 5V, 12V, 24V(All could be customized);

4. Step Angle: 15 degree, 7.5 degree;

5. Step avail: 0.0508mm, 0.1016mm, 0.0254mm, 0.0417mm;

6. No. of Phase: 2 Phase(Bipolar 4 Wires);

7. Motor can be customized;

8. ISO9001-2008 Certified; RoHs meeted.





Manufacturers of Permanent magnet(PM) Stepper Motor & PM Synchronous Motor:







1. PM Series:

Diameter	8mm	10mm	15mm	20mm	25mm	35mm	42mm	55mm
Model No.	PM8S-020	PM10S-020	PM15S-020	PM20S(L)-020	PM25S(L)-048(024)	PM35S(L)-048(024)	PM42S(L)-048	PM55L-048

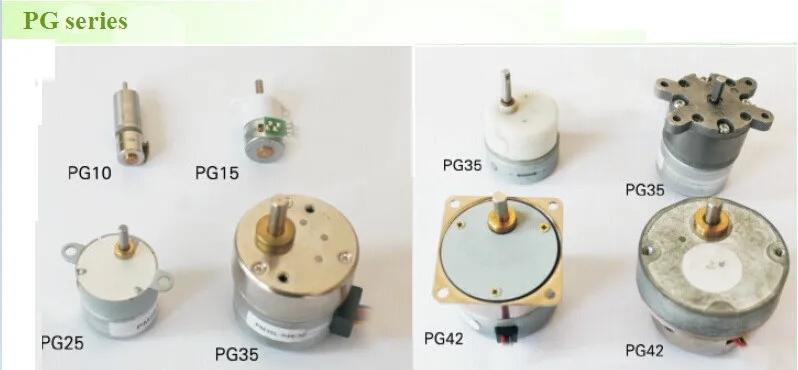

2. PG Series: PM Stepper Motor with gearbox(with different gear ratio) & BYJ Series

Diameter	10mm	15mm	20mm	24mm	25mm	28mm	35mm	42mm
Model No.	PG10S-020	PG15S-020	20BYJ46	24BYJ48	PG25S-048	28BYJ48	35BYJ46; PG35L-048	PG42L-048

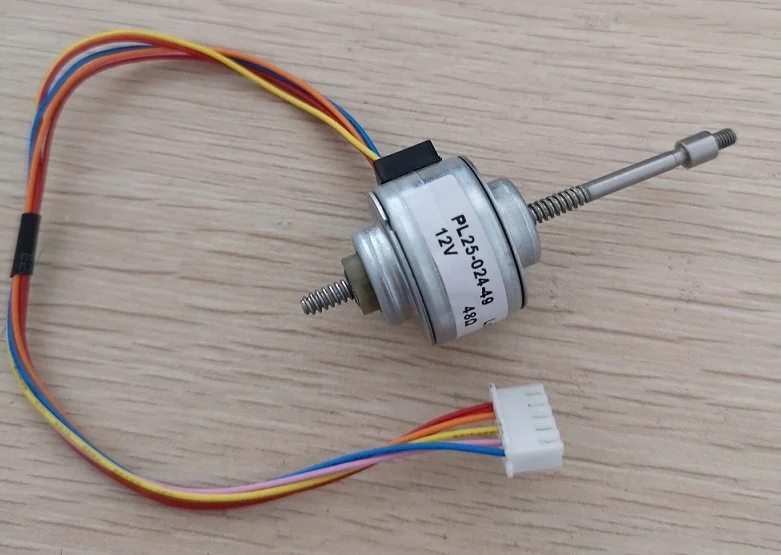

3. PL Series: PM Linear stepper motor(with lead screw):



Diameter	8mm	10mm	25mm
Model No.	PL8S-020	PL10S-020	PL25S-048(024)







Application :

HVAC/R Valve Actuation

Office Automation Printers, Copiers, Data storage

Medical Applications Pill dispensing Analysers

Telecommunication Antennae positioning Switching lines

Other Industries & Applications Robotics



Highlights :

Excellent open loop control - No encoders necessary

Digitally controlled - Easy to use with a micro processor

Cost effective - compact design, lower integration cost

Maintenance free - motor is brushless

Winding possibilities – Bipolar



General Specification:



Item	Specification
Step Angle Accuracy	±8%(full   step, no load)
Resistance Tolerance	±10%
Inductance Tolerance	±20%
Temperature Rise	80.C Max.(rated current,2   phase on)
Ambient Temperature	-20.C~+50.C
Insulation   Resistance	100MΩMin.   ,500VDC
Dielectric Strength	600VAC   , 1s , 3mA







Specification:



Model	Step Angle (Deg.)	No. of Phase	Rated Voltage (VDC)	Current/Phase (A)	Resistance /Phase(Ω)	Step Avail   (mm)	Max Pull-in Rate(PPS)	Holding Torque (g.cm)	Push Torque (100pps) (N)	Figure
PL25S-024-107	15	2	24	0.21	110	0.0417	500	120	9.8	1
PL25S-024-19	15	4	12	0.23	53	0.0417	500		20	2
PL25S-024-03	15	2	5	0.34	22	0.1016	600	120		3
PL25S-048-15	7.5	2	12	0.3	40	0.0254	600	120	10	4
25BYZ	15	2	12	0.23	53	0.0417	500	120	25	5
PL25-048-29	7.5	2	12	0.4	30	0.0508	850	140		3
PL25S-048-40	7.5	4	12	0.4	30	0.0508	600	120







 Dimension:











Wiring Diagram:
