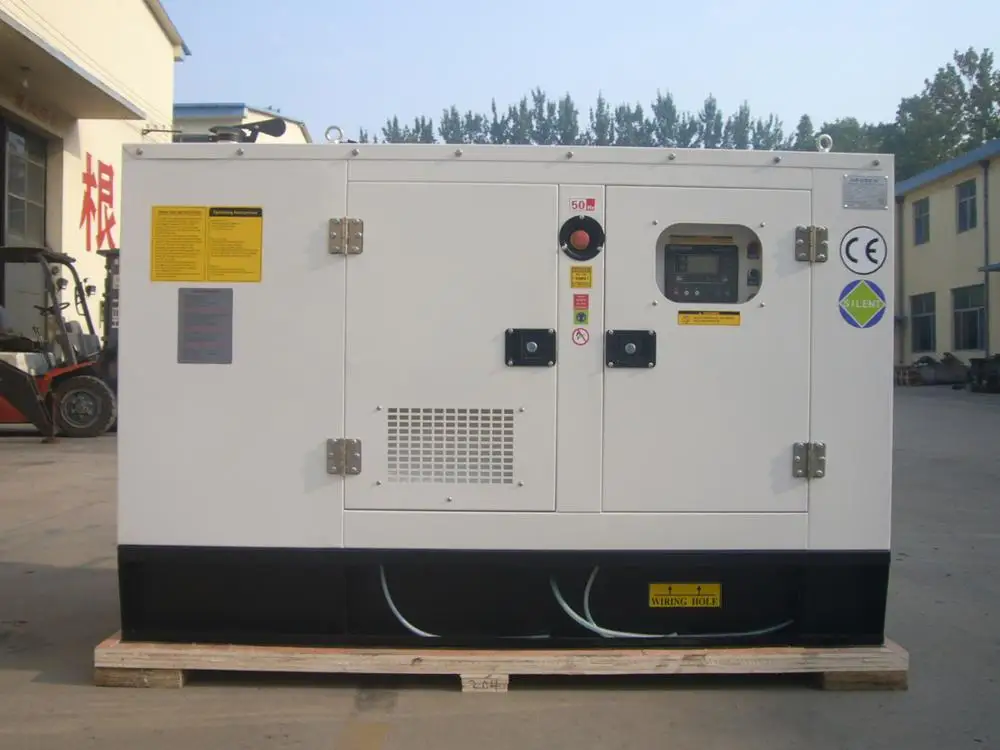

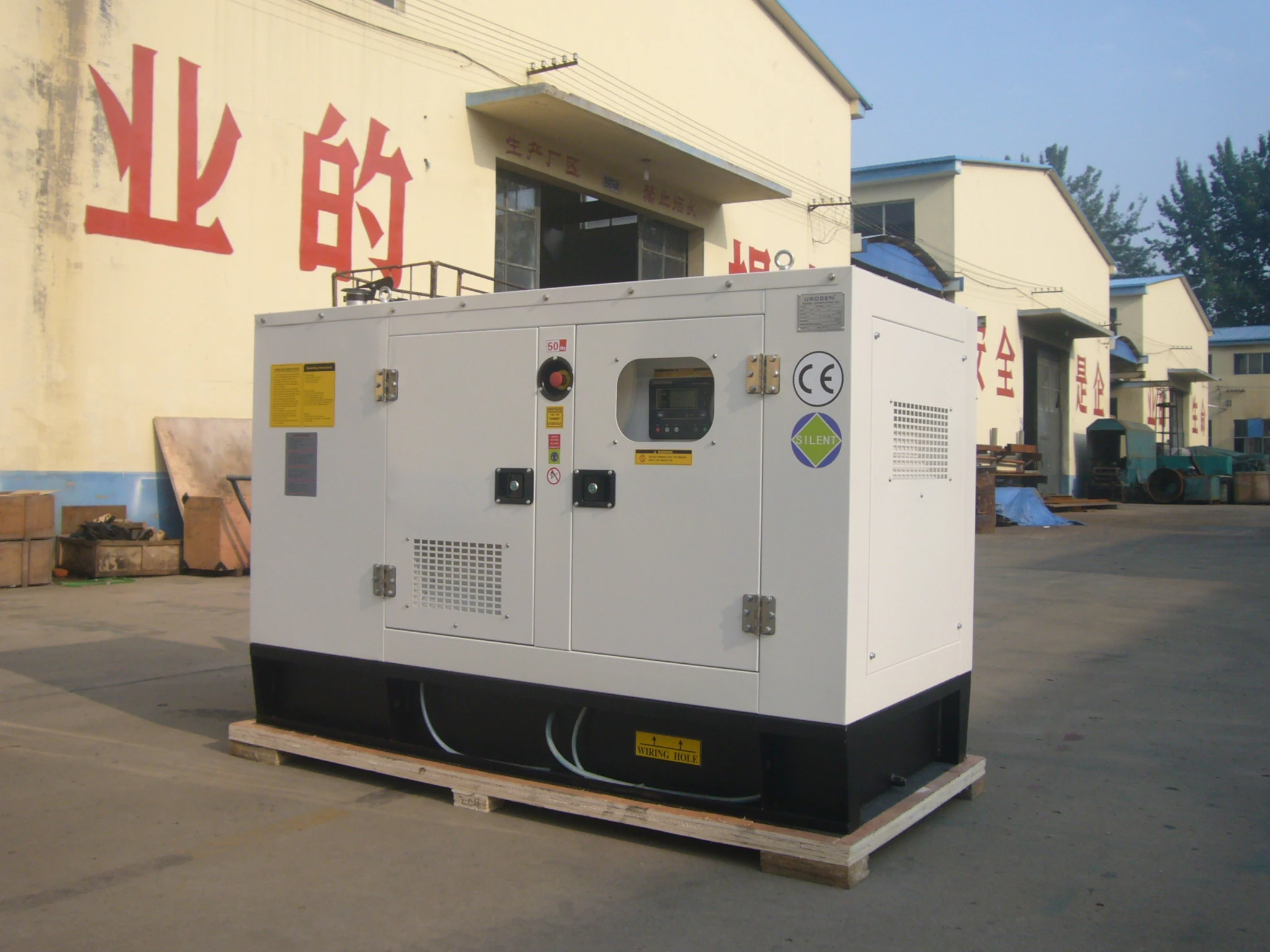

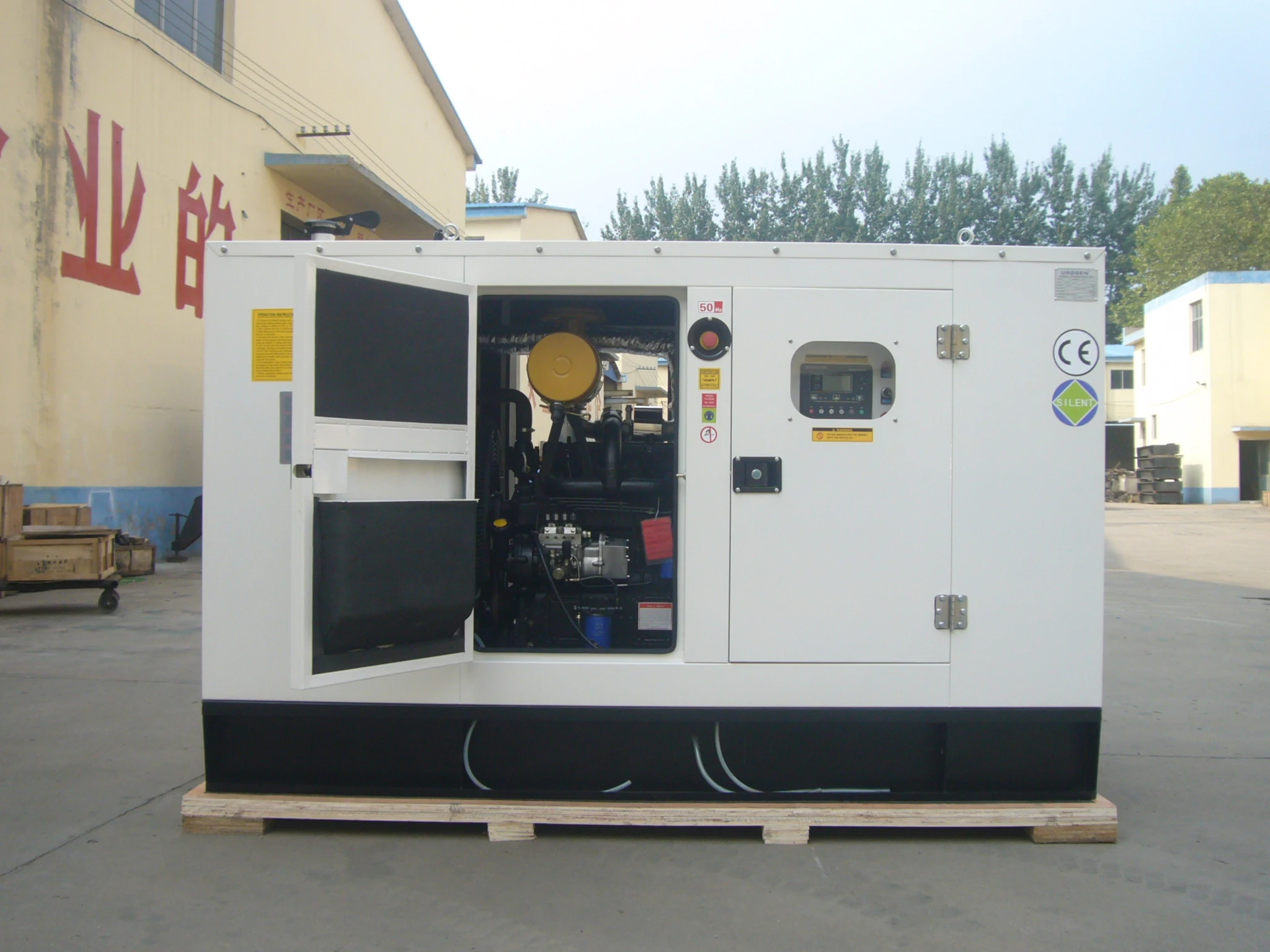

High efficiency Weifang 50kva silent generator powered by Ricardo engine

50kva silent generator

Genset model

GF-40

Prime power  (KW/KVA)

40/50

Standby power  (KW/KVA)

45/56

Frequency & voltage

230/400V, 50HZ

No. of  Phase

3

Genset type

Silent/Sound proof

Reference Dimension & Weight

(W*H, mm)/KGS

2400*1100*1750; 950kgs

DIESEL ENGINE

Engine brand & Model

Weifang engine, HFR4105ZD

Rated output

56KW

Rated Speed

1500RPM

Engine Type

Four stork, in-line water cooled

No. of cylinder

4

Bore*stroke

105*125mm

Aspiration method

Naturally

Governor

Mechanical

Starting method

Electric starting

Cooling method

Forced water cooled

Lubrication method

Pressure & splash lubricating

Fuel consumption

258g/kw.h

ALTERNATOR

Alternator brand & model

Stamford/Leroy Somer/China reputed one

Type

Brushless & self-excited

No. of phase

3

Volatage

230/400v

Frequency

50HZ

Power Factor

0.8

Insulation Grade

H

Protection Grade

IP22/23

Altitude

≤1000m
