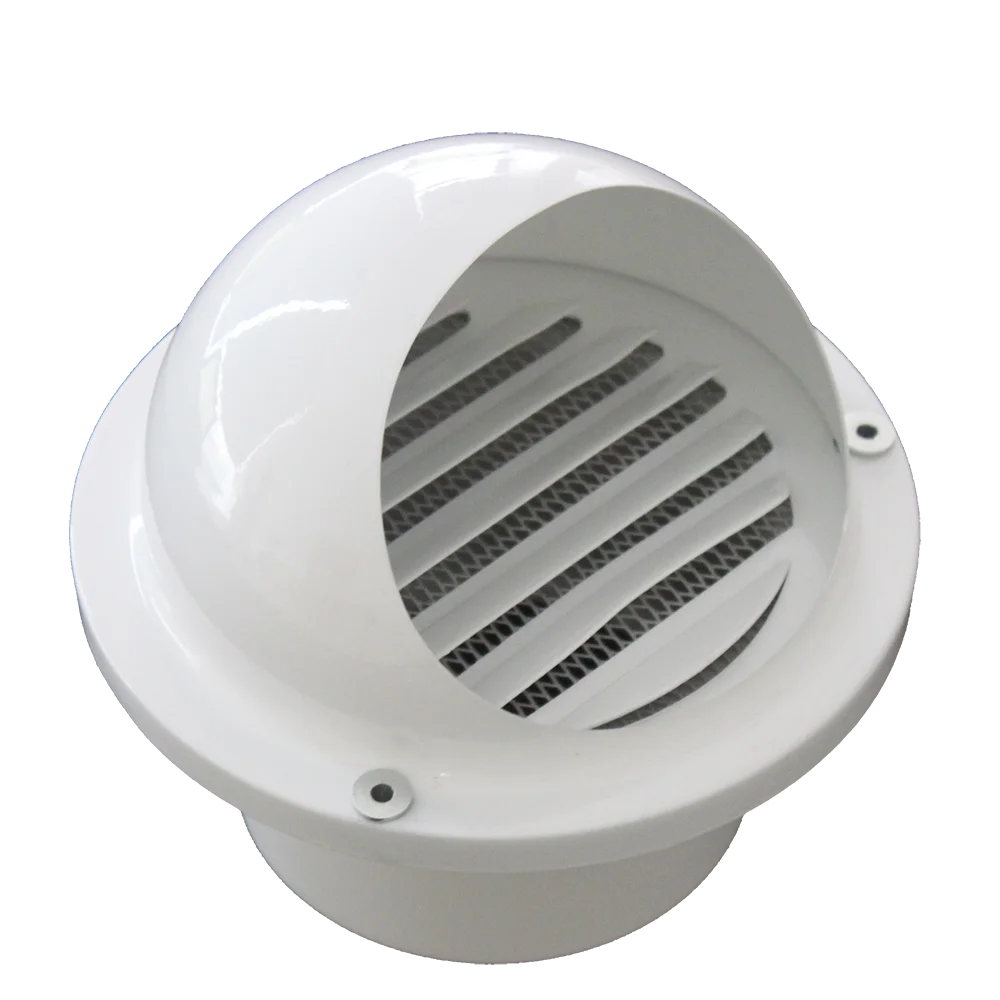

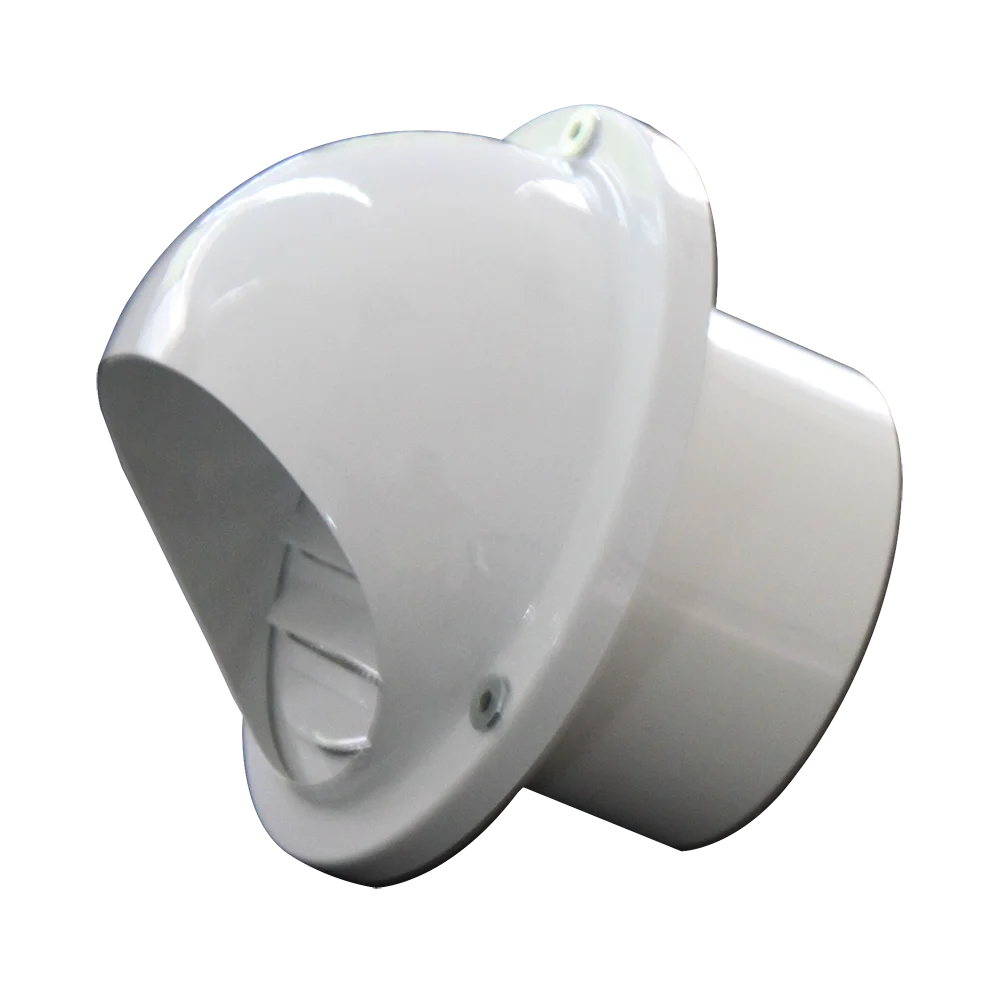

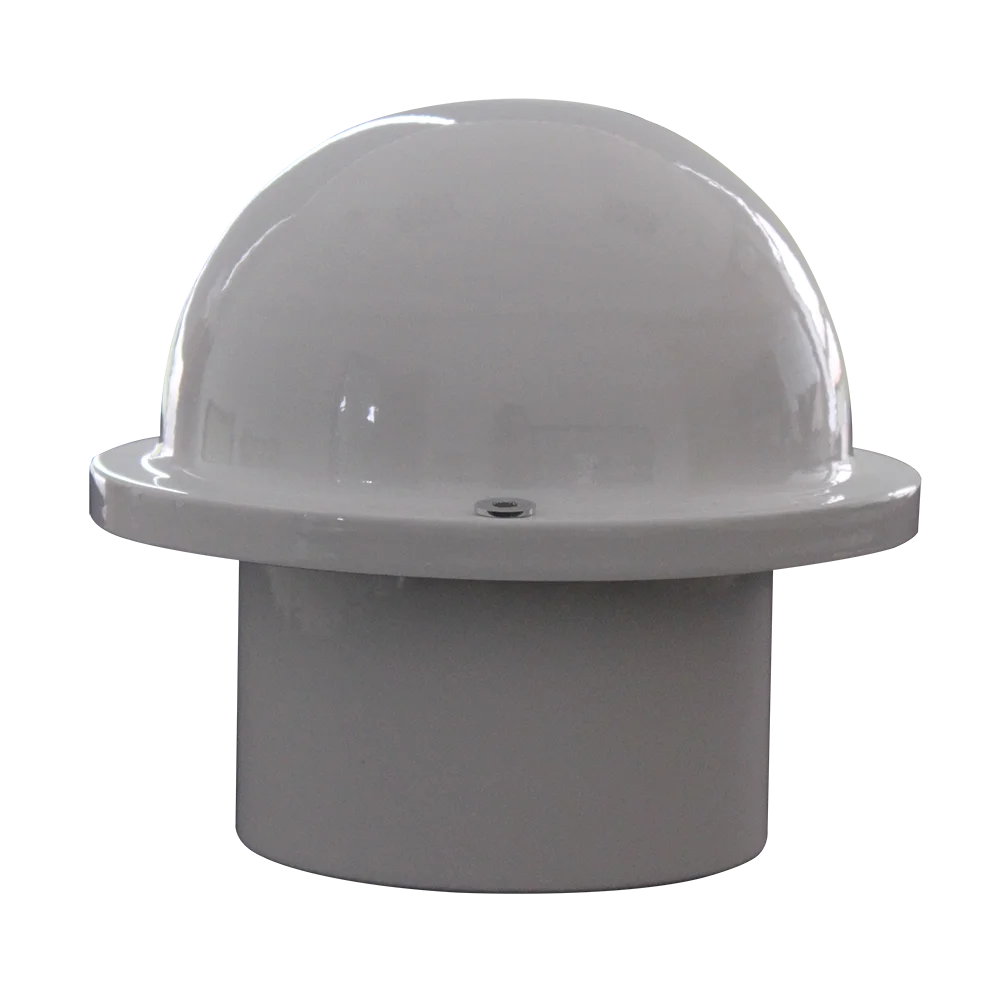

Powder coated waterproof aluminum air vent cap for fresh air system

Product Overview

Description

 Powder coated waterproof aluminum air vent cap for fresh air system







Construction:

• Frame & inner louver:: High quality extruded aluminum alloy(A6063)  sheet.



Description:

• The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.


• This type of air vent is incorporated with a set of louver blades. It is  is commonly used as exhausted outlet and ventilation on the exterior walls of washrooms, kitchens, warehouses, houses,apartments, condominiums, gymnasiums...ect.


• There are inverted spring hooks located on the neck , which are used to secure the device onto the wall or duct.


• EV-AN c/w aluminum air filter is for option.



Surface Finish:

• Powder coated color finish as per RAL color

         standard color: RAL9016, 9010



Material thickness:

Standard 1.0m





Size:

Item Code	Neck (mm)	Face (mm)	Φ C	L	E
EV-A-100	97	148	120	110	52
EV-A-120	117	168	140	110	52
EV-A-150	147	198	170	150	62
EV-A-180	177	228	200	150	62
EV-A-200	197	248	220	150	62
