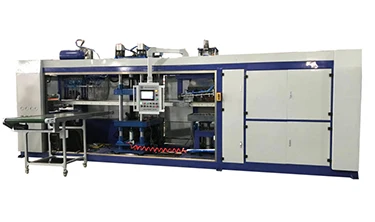

HW 7185 Full automatic vacuum forming machine with online cutting factory

HW-7185 Full automatic vacuum forming machine with online cutting factory

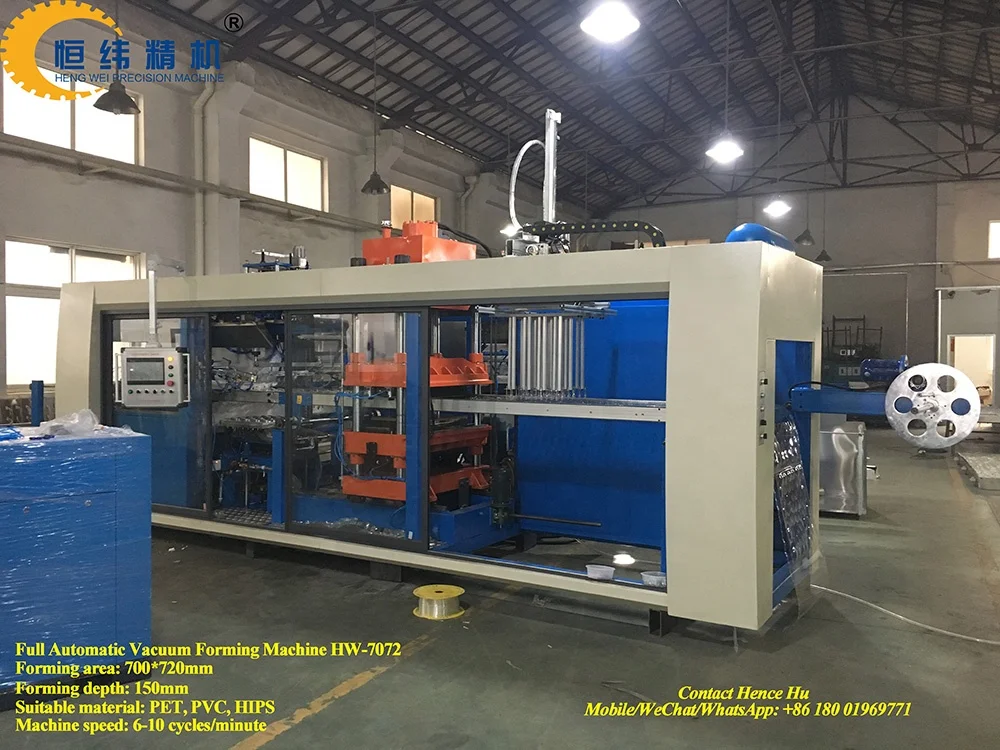

Product Name: HW-7072 Full automatic inline cutting vacuum forming machine
Forming Area: 700*720mm
Forming Depth: 150mm
Cutting Power: 60T
Machine Speed: 4-10cycles/min according to product, sheet and thickness.
Suitable Material: PVC, PS, PET, ABS, HIPS etc.
Material Thickness: 0.15-2.0mm
Vacuum Pump Flow: 100m³/h
Installed Power: 48kw
Actual Power Consumption: 20-30kw
Machine Size: 9000*2500*2680mm
Weight: About 4.5T

Shanghai Yiyou having entered the thermoforming industry as a manufacturer in 2010, Yiyou has been among the industry leaders with fully automatic air pressure and vacuum thermoforming machines, semi-automatic vacuum forming machine, thick sheet vacuum thermoforming machine and plastic cup thermoforming machine. Our machines are produced with high quality and performance in mind.

We are working in 2500 m2 production area and still looking for expand, operate with a team of 30 expert staff and R&D department, presenting innovative solutions at a favourable price, has now grown into a position to export to 4 continents and 15 countries so far.

Sectors:

- Blister Clamshell

- Plastic Seeds Tray

- Electronics Tray

- Flocking Tray

- Medical Tray

- Egg Tray

- Vegetable Box

- Plate

- Toy Pakcaging Tray

- Tool Packaging Tray

Machine Features:

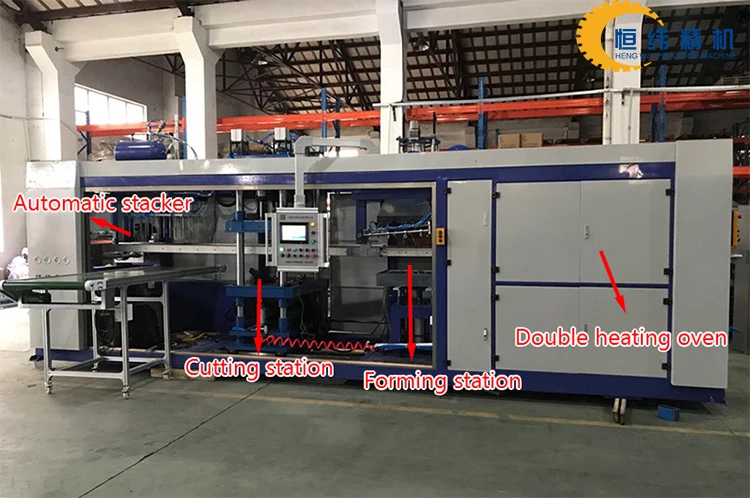

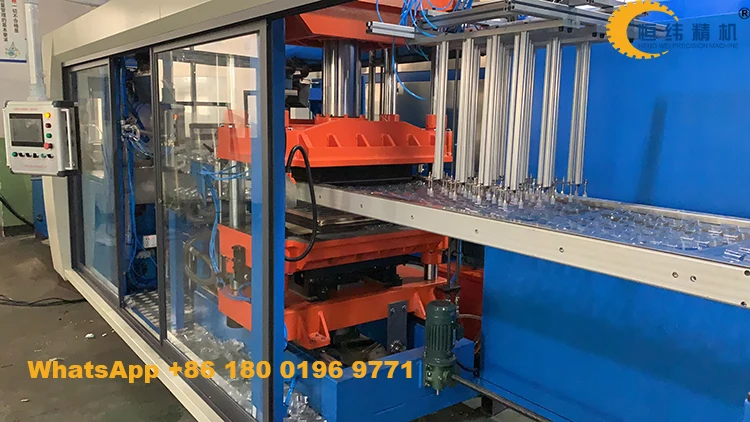

1. This machine adopts vacuum forming, equipped with automatic punch trimming function and conveyor belt stacking (three-station optional) function.

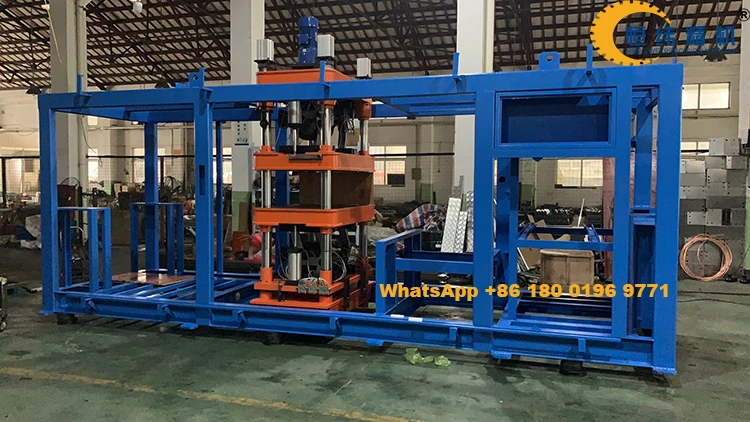

2. This machine uses a hydraulic device with 60 tons cutting force, which is strong and has a long life.


3. The whole machine parts are made of hard chrome on the surface to prevent rust.

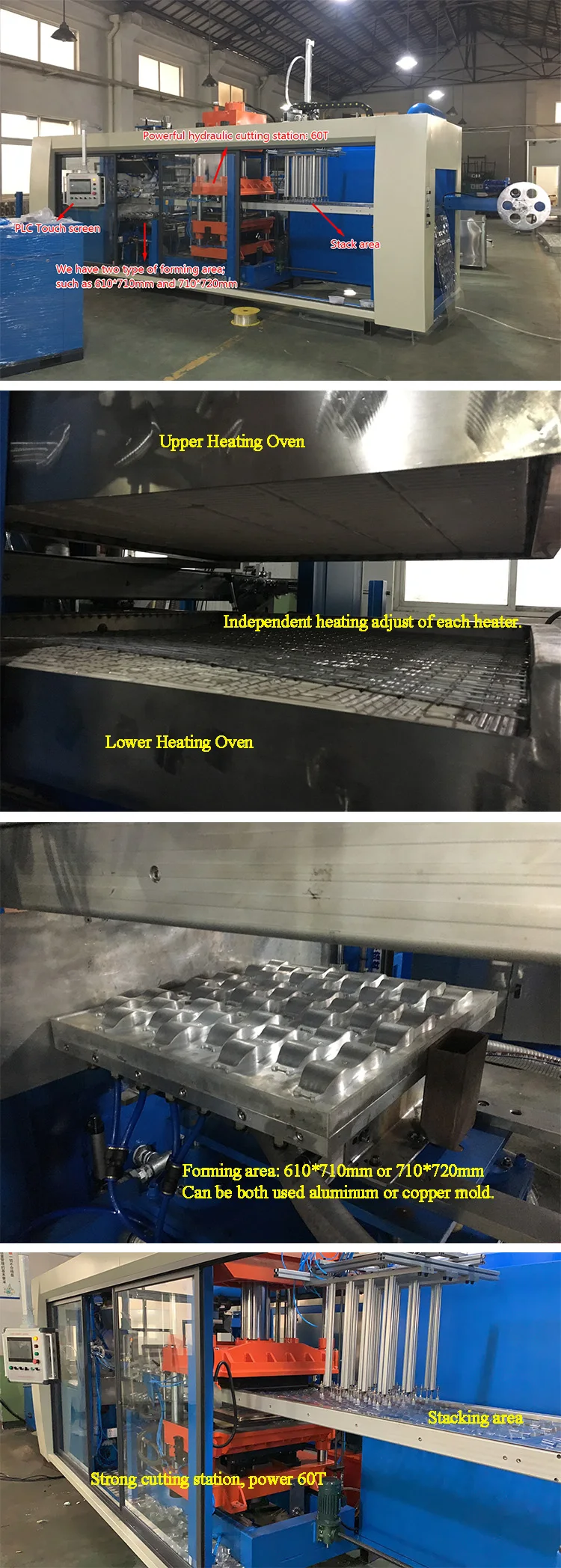

4. The heating part of the machine is fully sealed to prevent temperature difference from being caused by external factors.


5. The vacuum tank is increased to 0.4m3, effectively increasing the vacuum force.


6. This machine adopts double-tube vacuum synchronization function, and the vacuum walkway is added to make the product molding more perfect.

Equipment advantages: (Important, please pay attention):

• This machine is based on the imported of positive and negative pressure plastic machine in Germany. Based on the existing national conditions and plastics market, it is innovative under the premise of less single quantity, more styles and more expensive molds. The problem of labor, production efficiency and use of the blister manufacturer has been completely solved.

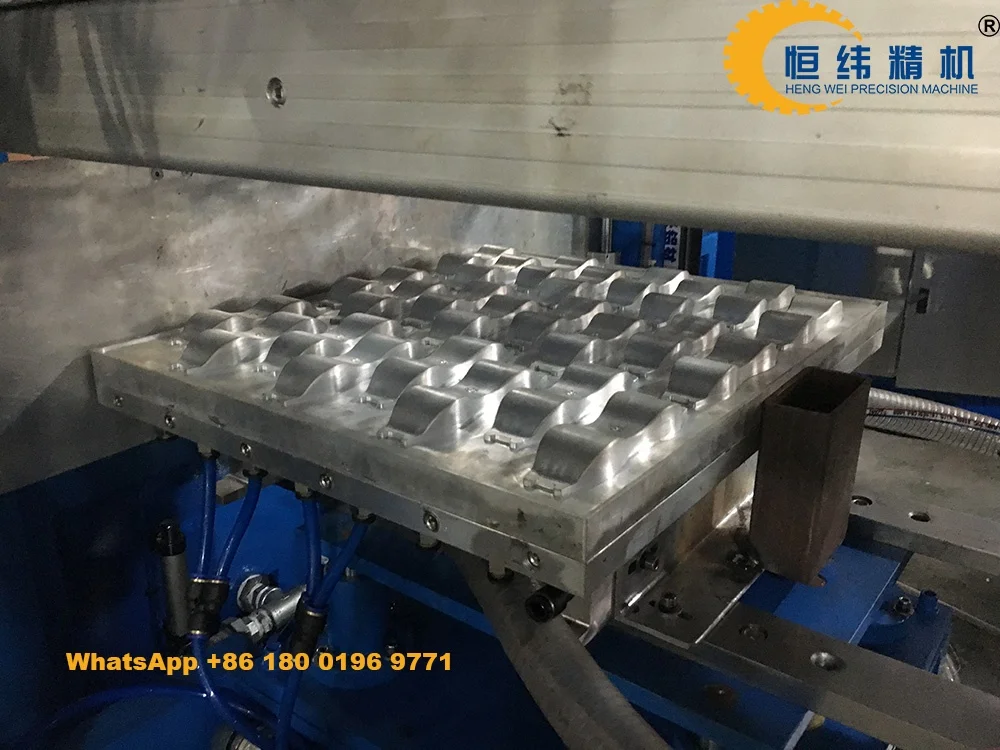

• This machine can be produced by aluminum mold, electrolytic copper mold or even plaster proofing mold. In the original mold, only need to re-type, knife mold can be produced at high speed. Reduce the semi-finished stacking sites required for punchers, packers, and general machine production.


• The vacuum forming plate of the machine is moderate, the cooling is enlarged, and the hot air system is installed to avoid the water mark on the plane, and the speed and quality are only less than the positive and negative pressure integrated machine.


• The cost of the equipment and the cost of production and use are much lower than that of the positive and negative pressure machine. The original equipment control and spare parts are imported.

Main configuration

Shanghai Yiyou having entered the thermoforming industry as a manufacturer in 2010, Yiyou has been among the industry leaders with fully automatic air pressure and vacuum thermoforming machines, semi-automatic vacuum forming machine, thick sheet vacuum thermoforming machine and plastic cup thermoforming machine. Our machines are produced with high quality and performance in mind.

Through our efforts over these years, we have accumulated more than 20 countries customer in our service. Under our meticulous service, all customers have a very high evaluation of our vacuum forming thermoforming machine quality and our services. And many customers have purchased a lot of equipment after the first purchase.

Our company is located in Shanghai, the economic capital of China. The factory is located in Suzhou, only 40 minutes by drive. Shanghai has very convenient transportation, and all countries around the world have direct flights to Shanghai. This is convenient for customers who want to purchase our equipment in the future if they want to inspect the machine or after-sales service. Moreover, Shanghai is China's quality capital, because all Shanghai products enjoy international reputation, because if we do not control the quality of the plastic thermoforming machine, we can not stand in Shanghai!

Quality is our culture, We build a brand with soul!!!

Click here to send your valuable inquiry to us!

Or Back to our homepage.

We are working in 2500 m2 production area and still looking for expand, operate with a team of 30 expert staff and R&D department, presenting innovative solutions at a favourable price, has now grown into a position to export to 4 continents and 15 countries so far.

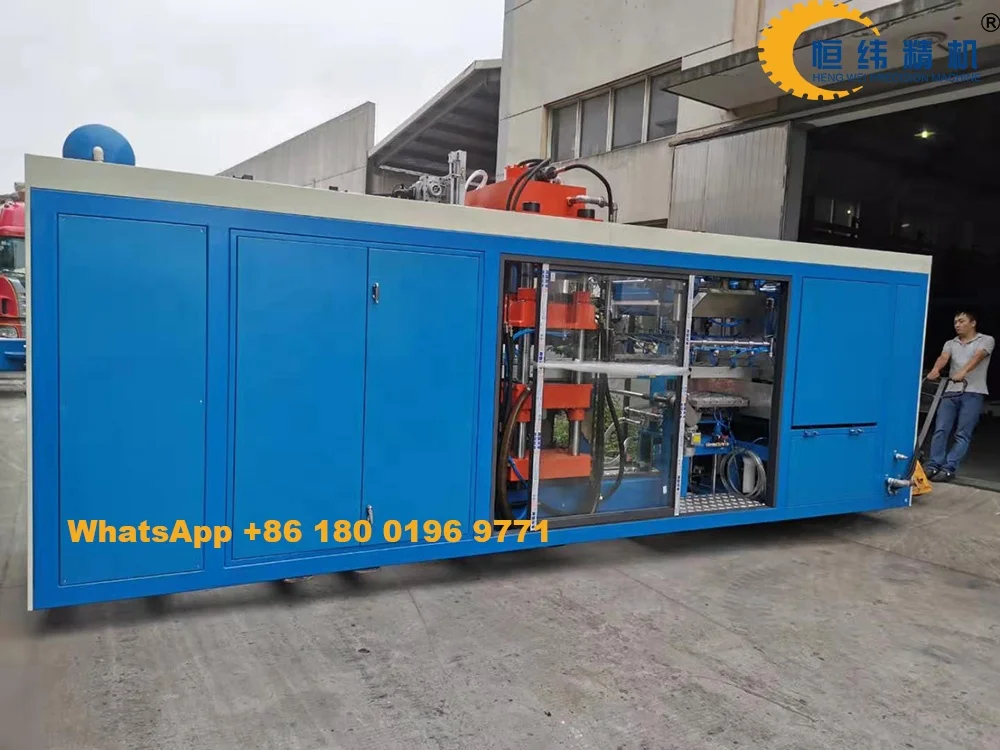

We have a very good professional loading and unloading team, the team has more than ten years of professional loading experience, and serves the delivery tasks of many Fortune 500 companies in Shanghai. The team has a range of forklift trucks ranging from 5 tons to 100 tons, which can be fully qualified for delivery of various type of our thermoforming machine. Moreover, every time we put the machine into the container, we will also use the imported professional fixing rope to firmly fix the machine in the container, which can effectively avoid the machine damage caused by the collision of the machine at sea.
