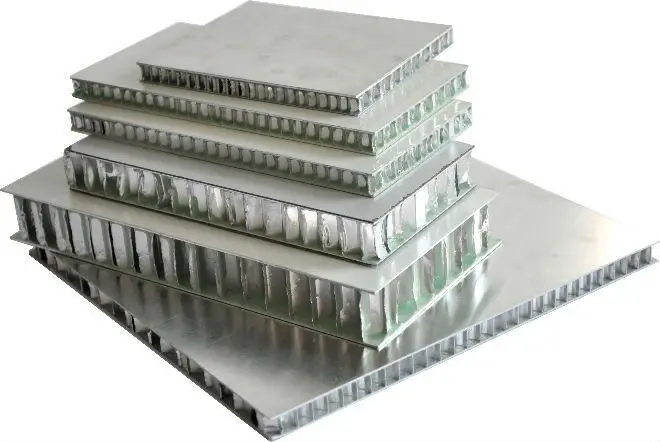

insulated aluminum honeycomb compound panel

Product Overview

Description

insulated   aluminum honeycomb compound panel

FLORES aluminium honeycomb panel is a sandwich panel bonded with aluminium face material and with a core in aluminium honeycomb. It offers high mechanical properties and good fire performance;



FLORES Aluminium honeycomb panel Structure



TOP ALUMINIUM SKINS Thickness in mm

 0,5 - 0,7 - 1 (standard)

Special thickness according to customers’ requirements;



ALUMINUM CORE

Hexagonal cells, Alloy series 3003

Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”;

Foil thickness: from 50 to 70 microns;



BOTTOM ALUMINIUM SKINS Thickness in mm

0,5 - 0,7- 1 (standard)

Special thickness according to customers’ requirements;



On request: Special alloys, treatments and coating with RAL color;



FLORES Aluminium honeycomb panel Specifications:

Total Thickness: 6mm-200mm

Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm;

Standard size: 1220x2440;

Other size on request;

Max. Width: 2000mm;

Max. Length: 10000mm;



Colors: RAL color

Min. order quantity:   10m2;

Quality Warranty: 20 years;



Company prodution capacity: 1000000m2 / year;

Company Management Certificate: ISO9001:2008, ISO14001:2004;



Fire-rated certificate:

EN13501-1 (EU standard)

BS476 part4, 6&7 (British standard)

Chinese B1 (Chinese Stand)
