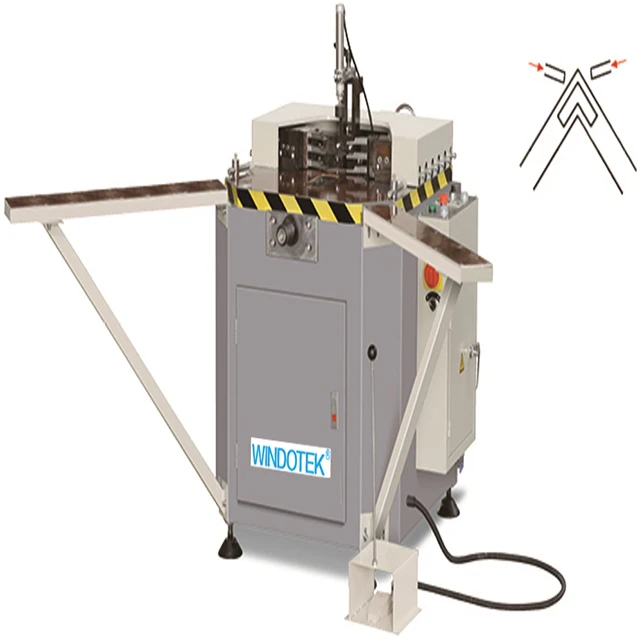

aluminum profile windows and door frame Corner Jointing Machine
- Category: >>>
- Supplier: Jinan Windotek International Co. Ltd.
Share on (60369869768):
Product Overview
Description
Product Description
aluminum profile windows and door frame Corner Jointing Machine
Function:

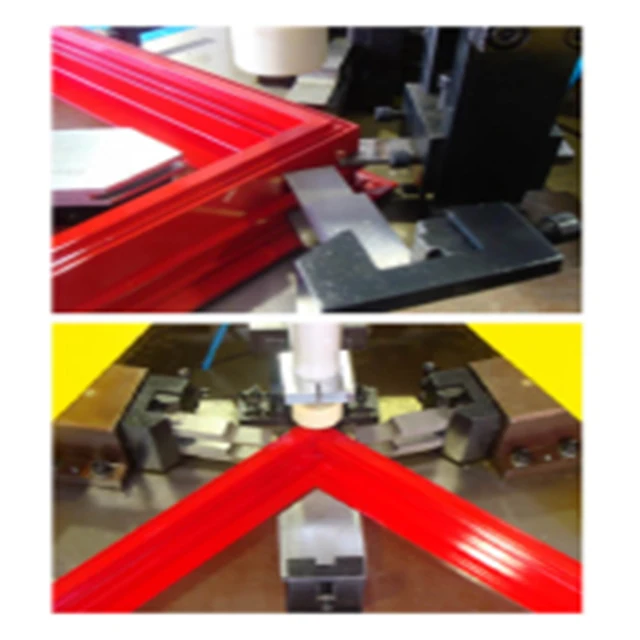

Aluminum Window Fabricating Machine, used for combining the 90° corner of aluminum window and door. Aluminum window corner crimping machine. single head corner crimping machine for aluminum.
Features:
Adopt new mechanical linkage device, realized complete synchronous corner combining
Adjustable locating device suitable for various sections and sizes processing
Left and right punching heads adopt hard synchronous feeding device, thus avoid uselessdeformation and made the connection more firmly.
Easy machine setting due to the synchronous feeding device.
Parameter:
Power supply: | 380V 50Hz |
Cutting motor power: | 1.5KW |
Rated oil pump pressure : | 16MPA |
Motor rotational speed: | 1400r/min |
Oil pump pressure : | 2.5MCY |
Operation air pressure : | 0.5-0.8Mpa |
Air consumption: | 2L/min |
Total combining pressure: | 48KN |
Corner combining cylinder stroke: | 85mm |
Main locating block setting range: | 54mm |
Max profile processing width: | 90mm |
Max profile processing Height: | 120mm |
Contour dimension: | 1850×1680×1210mm |
