2 way 3 wires fcu valve zone control valve for fan coil unit
- Category: >>>
- Supplier: Shaoxing Honglin Controls Co. Ltd.
Share on (60370069125):
Product Overview
Description
Product Description

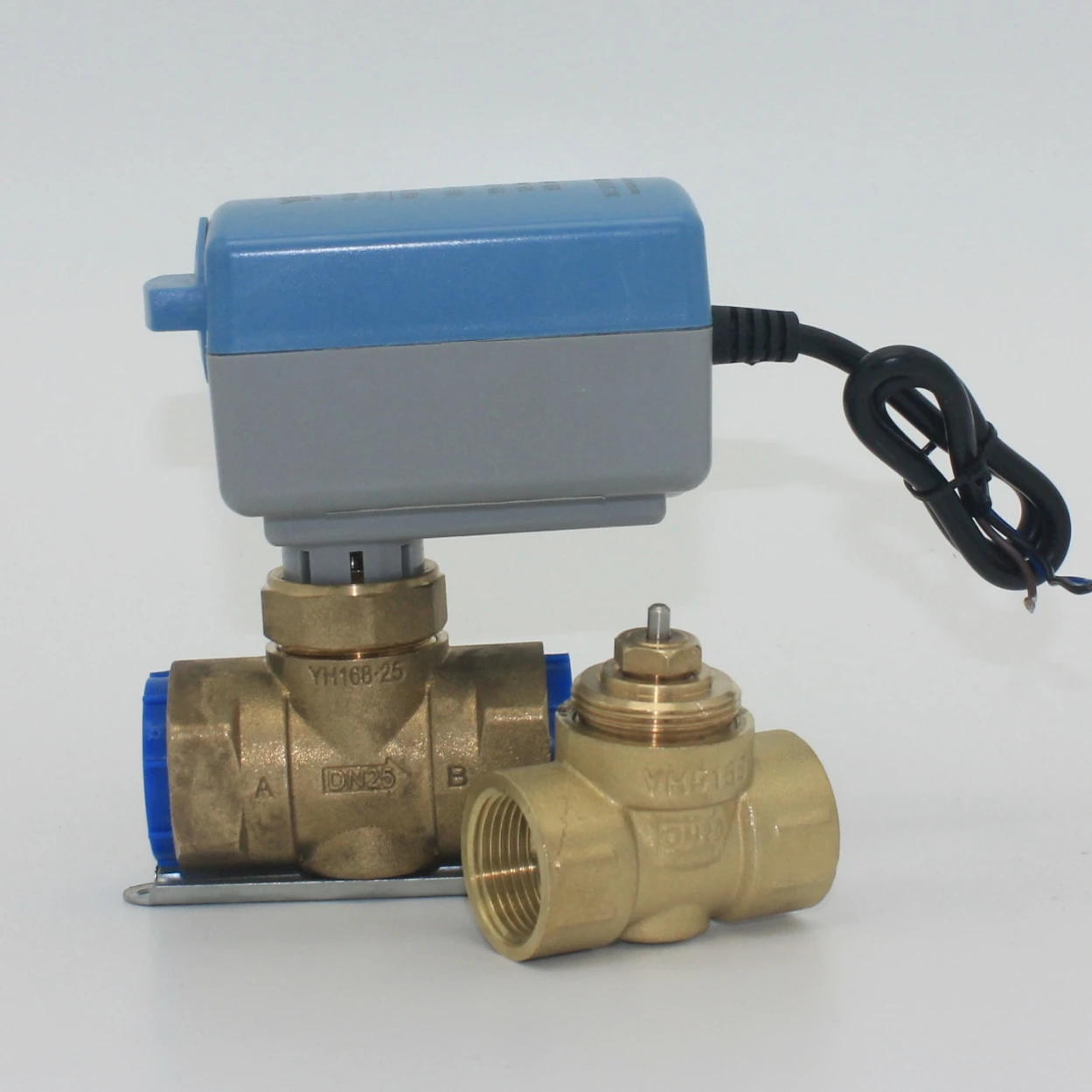

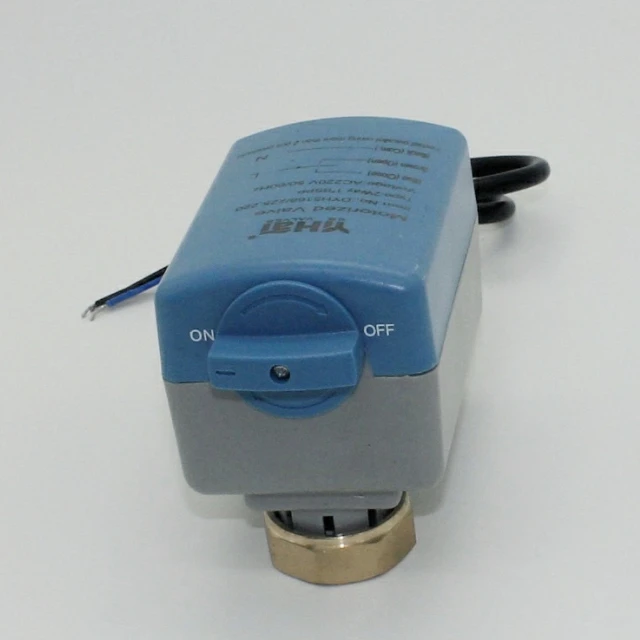

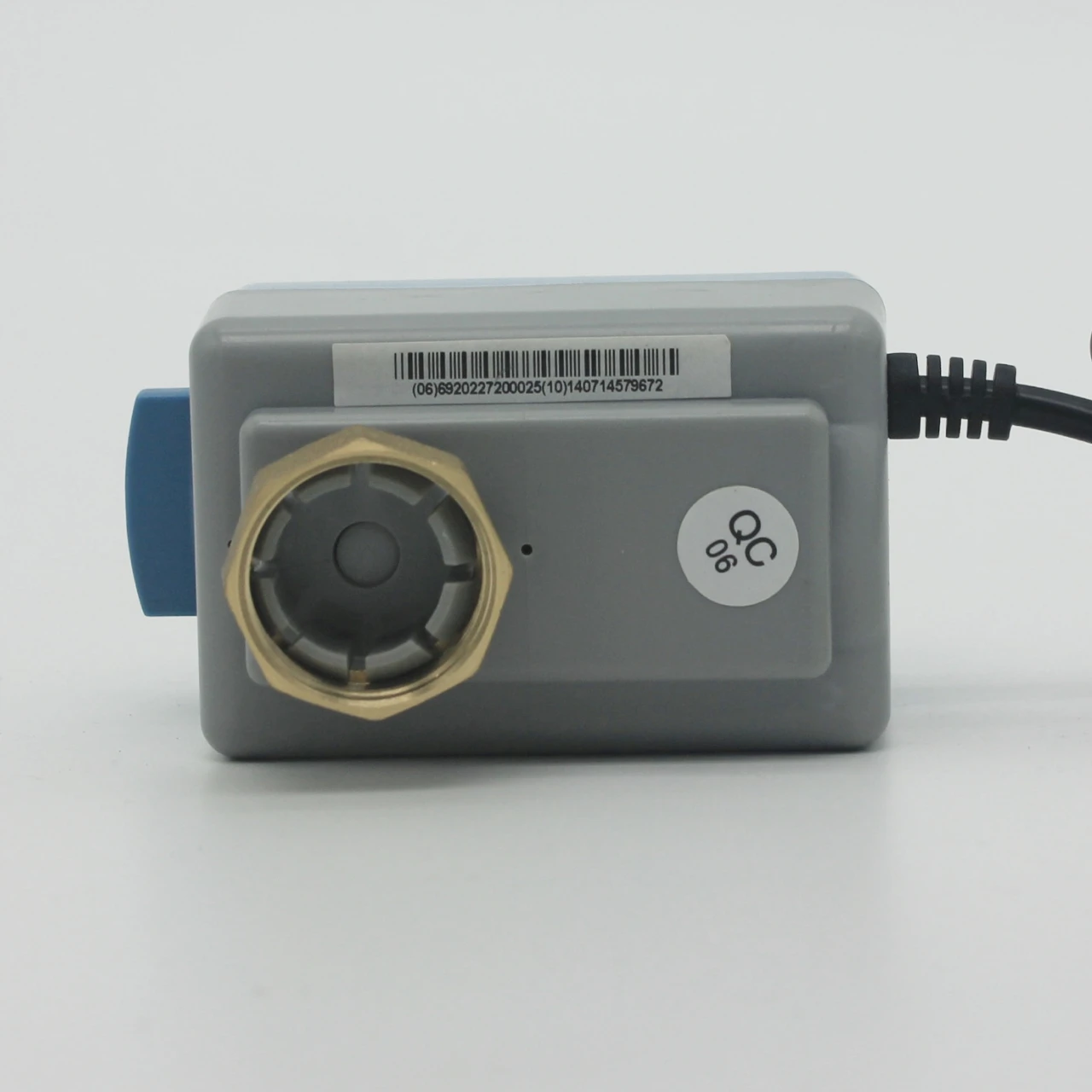

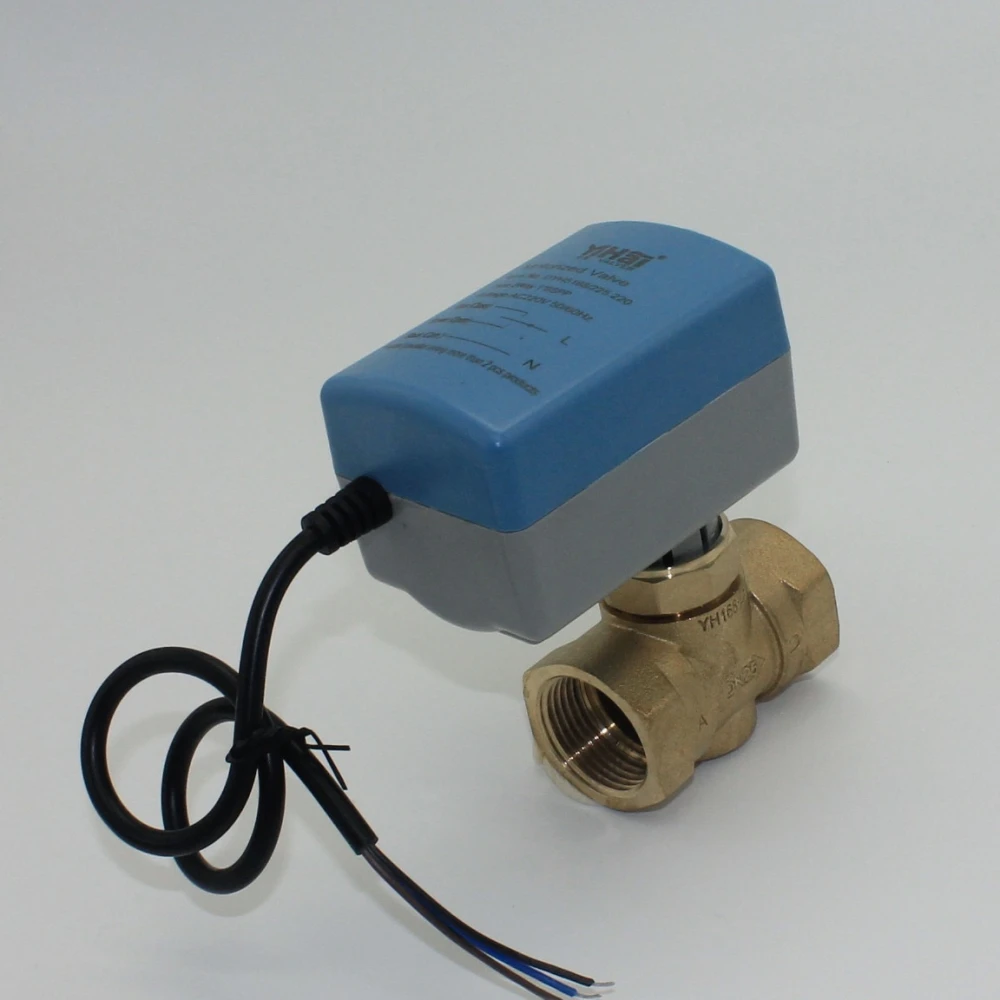

Motorized Valve
DYH5168 series motorized valves consists of DYH5168-A actuator and DYH5168 valve body assembly for controlling the flow of chilled or hot water in commercial HVAC equipment, such as heating, air conditioner system and solar system.
Specification
Item No. | DYH5168.215 | DYH5168.315 | DYH5168.220 | DYH5168.320 | DYH5168.225 | DYH5168.325 | |||||
Voltage Supply | AC24V/AC220V±10%, 50/60Hz | ||||||||||
Power Consumption | 3.0W | ||||||||||
Control Mode | On-Off(Open/Close) | ||||||||||
Run time | Open<(30-50)s Close<(30-50)s | ||||||||||
Action Type | N.C. 2-Way | Divert 3-Way | N.C. 2-Way | Divert 3-Way | N.C. 2-Way | Divert 3-Way | |||||
Rate Pressure | 1.6MPa | ||||||||||
Services Medium | Chilled and or Hot Water, Up to 50% Glycol | ||||||||||
Lead Supply | 3 Core(Brown, Blue, Black) | ||||||||||
Environment Temperature | 0℃（32℉）-50℃（122℉） non condensing | ||||||||||
Fluid Temperature | 0℃（32℉）-94℃（203℉） | ||||||||||

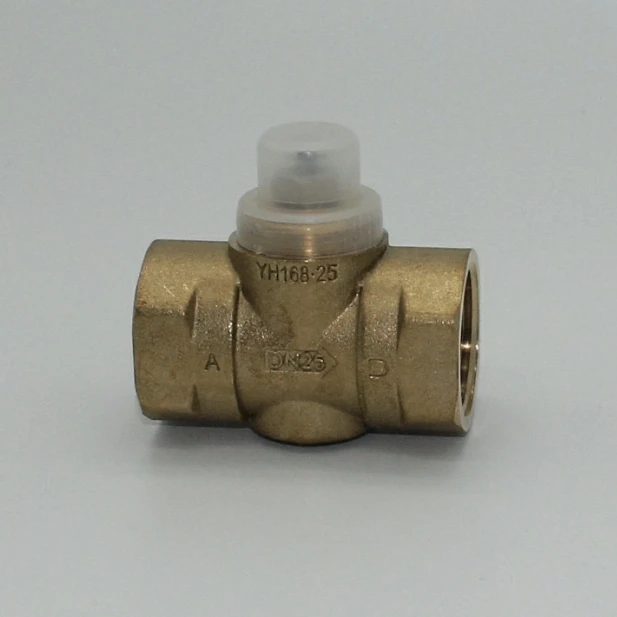

Material | Valve Body: Forged Brass Cover: ABS | ||||||||||
DN Size | DN15 | DN15 | DN20 | DN20 | DN25 | DN25 | |||||
End Connection | BSPP / NPT Internal Threaded | ||||||||||
Size(Inch) | 1/2” | 1/2” | 3/4” | 3/4” | 1” | 1” | |||||
Kv (Cv) Value | 3.0（3.5） | 3.0（3.5） | 4.5（5.3） | 4.5（5.3） | 7.5（8.8） | 7.5（8.8） | |||||
Close off Pressure (MPa) | 0.30 | 0.30 | 0.25 | 0.25 | 0.20 | 0.20 | |||||
