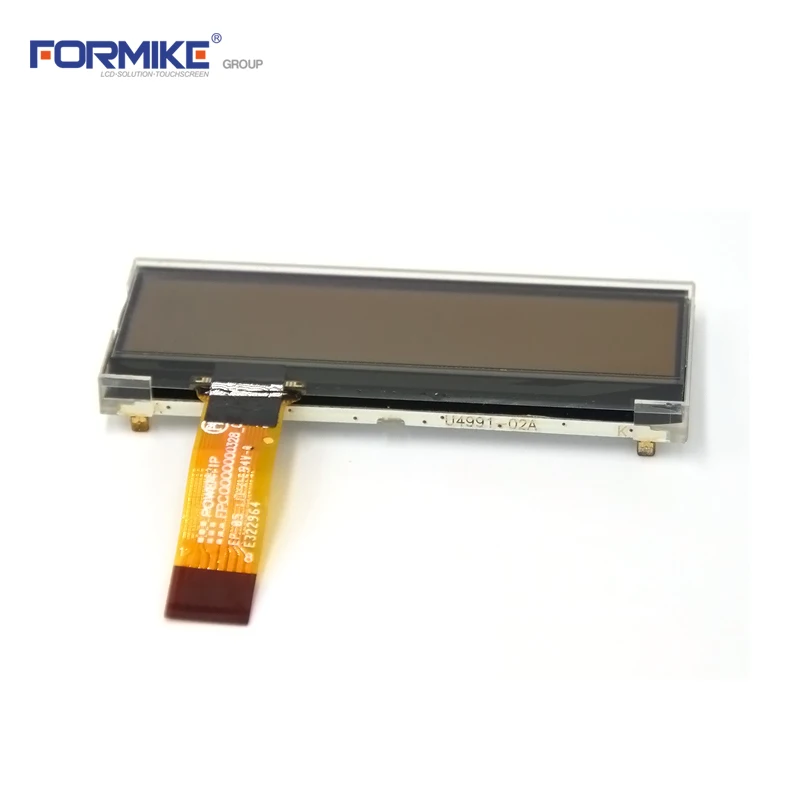

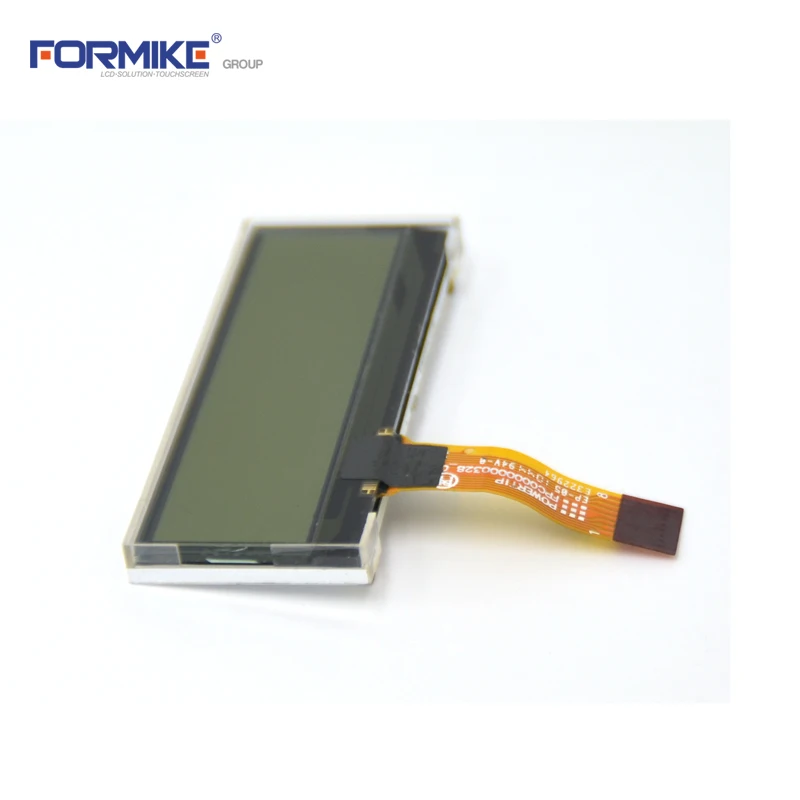

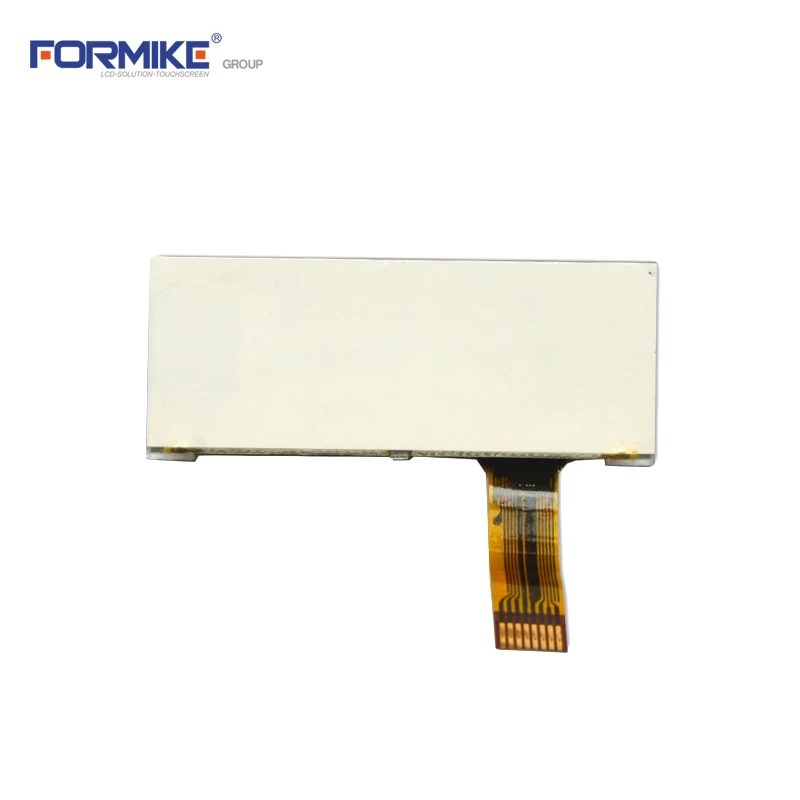

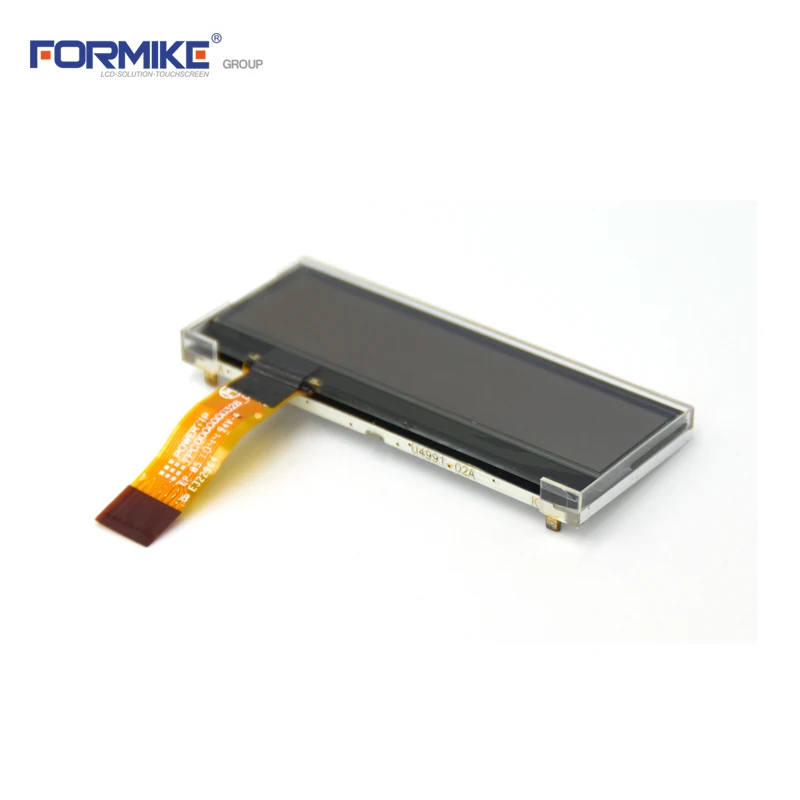

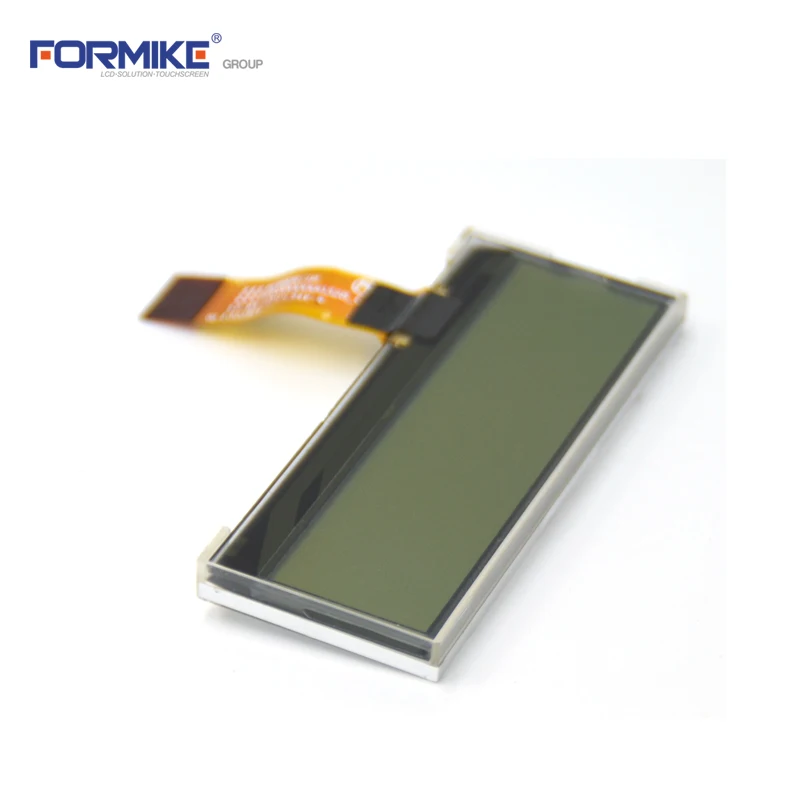

16x2 character COG LCD display (WG1602U8FSW7G)
- Category: >>>
- Supplier: Formike Electronic Co. Ltd.
Share on (60370163224):
Product Overview
Description
| Feature | |
| Item | 16x2 character COG LCD display (WG1602U8FSW7G) |
| Number of Characters | 16Characters x 2 lines |
| Display Mode | FSTN Gray, Positive, Transflective |
| Viewing direction | 12 o'clock |
| Backlight | White LED backlight |
| Driving condition | 1/16Duty,1/5 Bias;VDD=5.0V,VLCD=4.5V |
| Built-in controller | ST7032I-0D-G |
| Operation temp | -20°C~70°C |
| Storage temp | -30°C~80°C |
| Mechanical Specifications | |
| Dimensional outline (W*H*T) | 66.0 (W) x 26.5 (H) x 5.2 MAX. |
| Viewing area (W*H) | 62.0 (W) x 16.0 (H) |
| Active Display Area | 56.2 (W) x 11.5 (H) |
| Delivery Information | |
| Lead time | 1~2 weeks for 2 character lcd module sample; 5~6weeks for mass production |
| Shipping way | By DHL,FEDEX,UPS or appointed forwarder |
| Loading Port | Shenzhen or Hong Kong port |
| LCD image | |
 | |
 | |
| 3) Our Advantages | |
| ♦ A wide array of LCD products | |
| ◊ Including graphic,character and alphanumeric modules, 1.45"-10.4" inch standard color LCD modules,capacitive touch panel and various of cover lens and OLED displays. | |
| ♦ Competitive price | |
| ◊ Our own VA,TN,STN,FSTN,DFSN monochromic LCD panel and capacitive sensor factory to save your cost. | |
| ♦ Short leadtime | |
| ◊ Our Monthly capacity: 5.2 millions LCDs and 900,000 LCD modules& capacitive touch panels | |
| ♦ High Quality | |
| ◊ With Dust-free workshop,we have passed ISO9001-2008 and ISO14001:2004 certificates,all our products are REACH and RoHS compliant | |
| ♦ Stable Customers | |
| ◊ Long-term partner of 3M,Texas Instruments,Luminary Micro,Midea,Haier,Panasonic,C-Dots and Ingersoll Rand.,etc. | |
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report → Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
