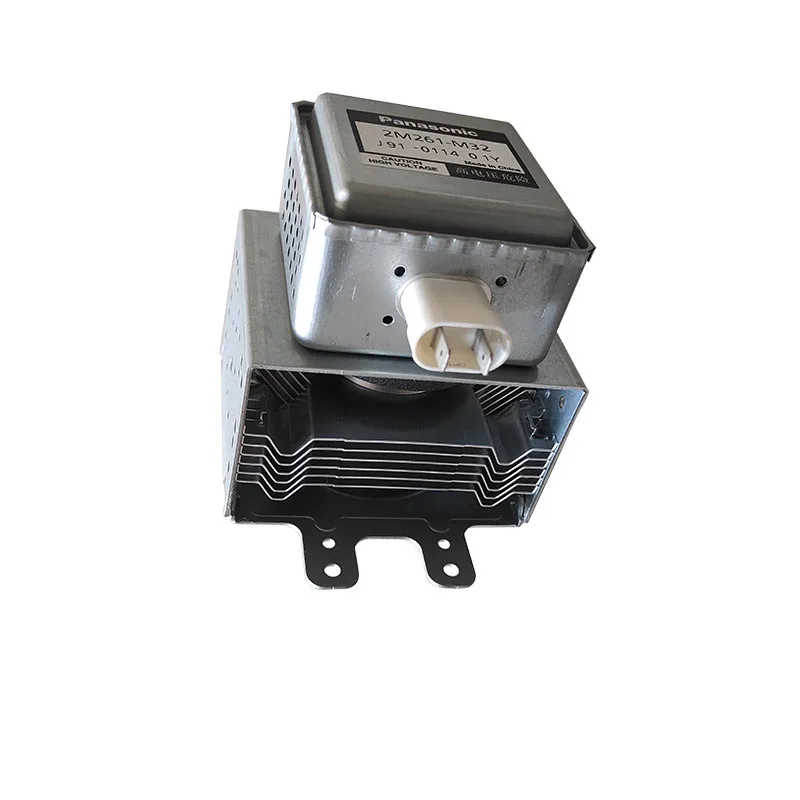

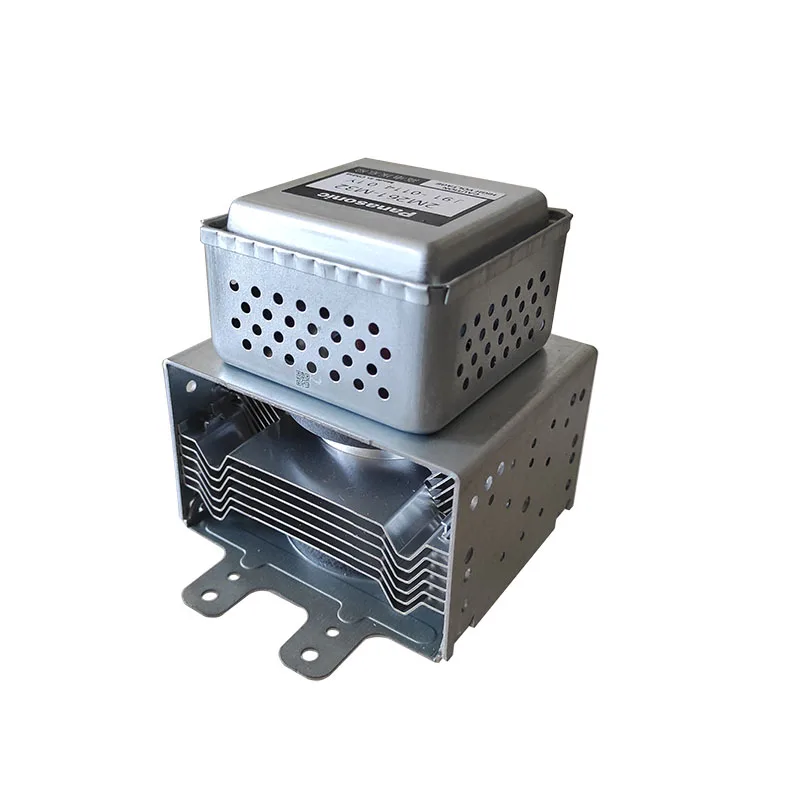

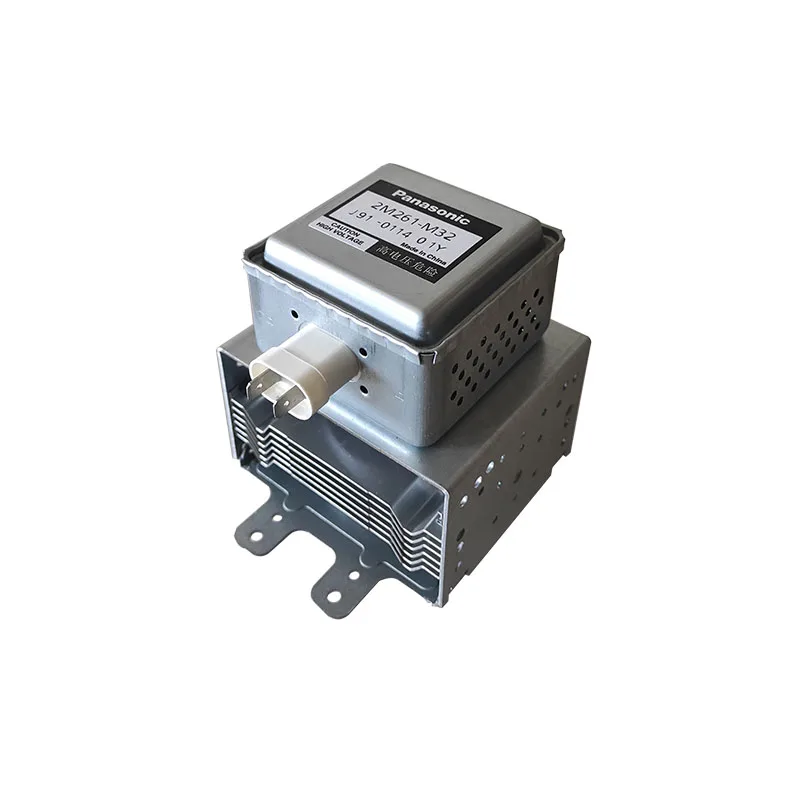

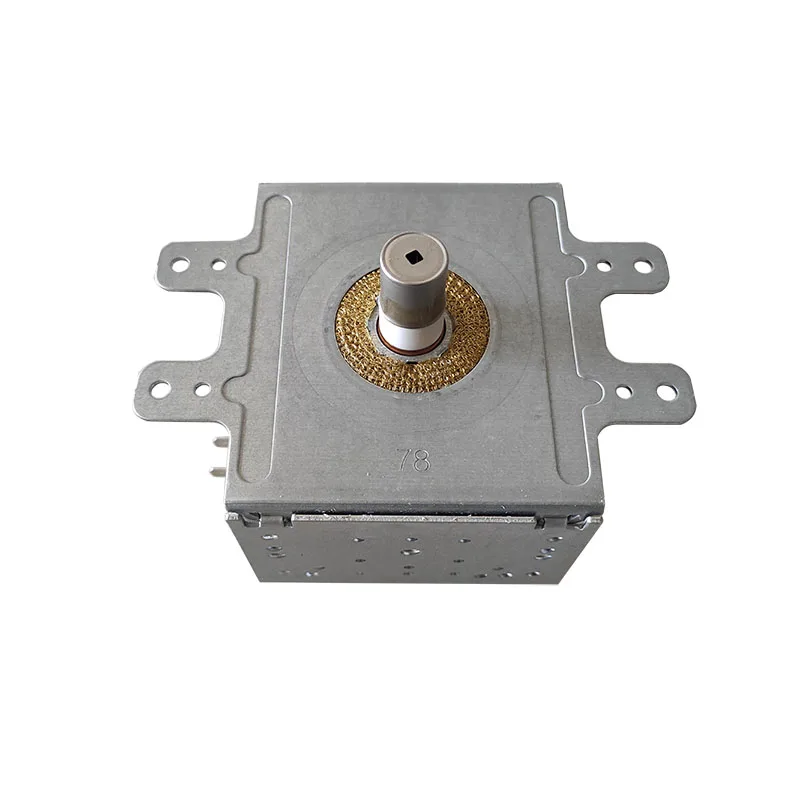

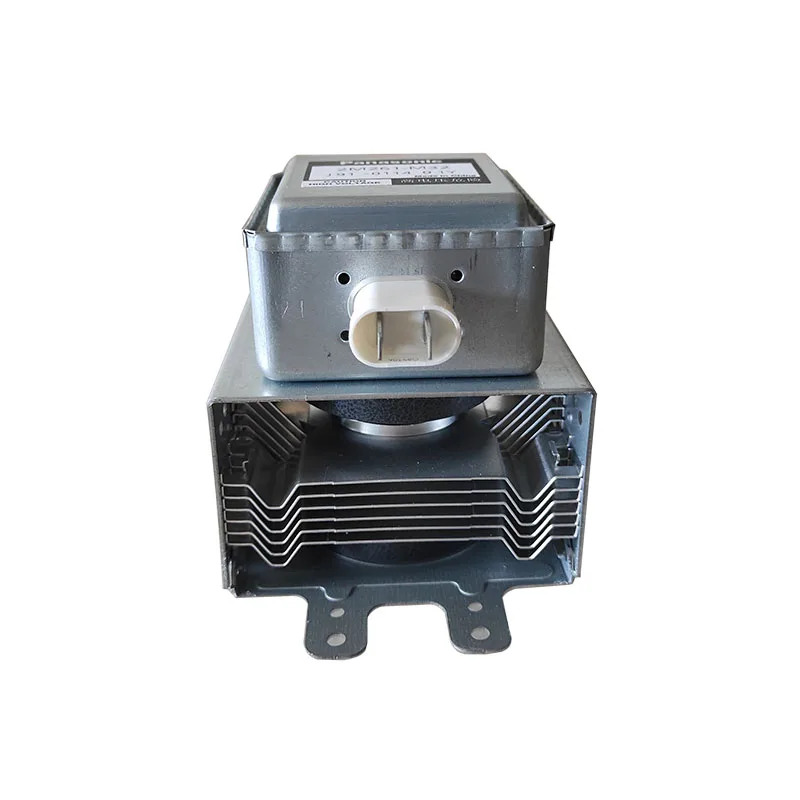

voltage instability Panasonic industrial microwave frequency magnetron 2M261-M32









Product principle:



Magnetron is the heart of the application of microwave equipment, therefore, the correct use of magnetron is essential for the maintenance of microwave equipment to work normally.Magnetron use notice:


Whatever equipment require magnetron output load as far as possible do match, a standing wave big not only reflected power, it was able to actually received power is reduced, and can cause magnetron moding and cathode overheating, serious damage to the pipe, to avoid the happening of the moding, request power resistance too.

Cooling is one of the working condition of ensure the normal order of the magnetron tube, high power magnetron anode commonly used water cooling, cathode filament draw out part and output ceramic window simultaneously forced air cooling.Bad will make pipe overheating and can't work normally, serious when will burn out the pipe.Should be forbidden under the condition of insufficient cooling work.

the reasonable adjustment cathode heating power.Way to prevent cathode overheating is adjusted by the regulation to reduce the cathode heating power ,in order to avoid the microwave working instability caused by the power supply voltage fluctuation, magnetron anode voltage is usually composed of the leakage inductance of the transformer to provide power supply circuit, it can be stable magnetron anode current,and make the microwave output power stability.





Product parameters:



number	power	anode voltage	Filament voltage	filament current	frequency	cooling way	shape size	weight
2M261-M32	1000W	4.5V	3.3V	10A	2455MHZ	water cooling	126*94*135mm	0.8KG



The variable-frequency magnetron, air/water cooling, waveguide output.





Scope of application:



This is a factory from shanghai producting panasonic magnetron , and it suitable for industrial microwave drying/sterilization equipment use for a long time.

fixed size: 35mm*115 mm,

the fixed direction: up and down,

fixed direction: left and right sides.
It can adopt two cooling ways, air/water cooling water circulation way,  Heat dissipation is better, the longer the service life.
