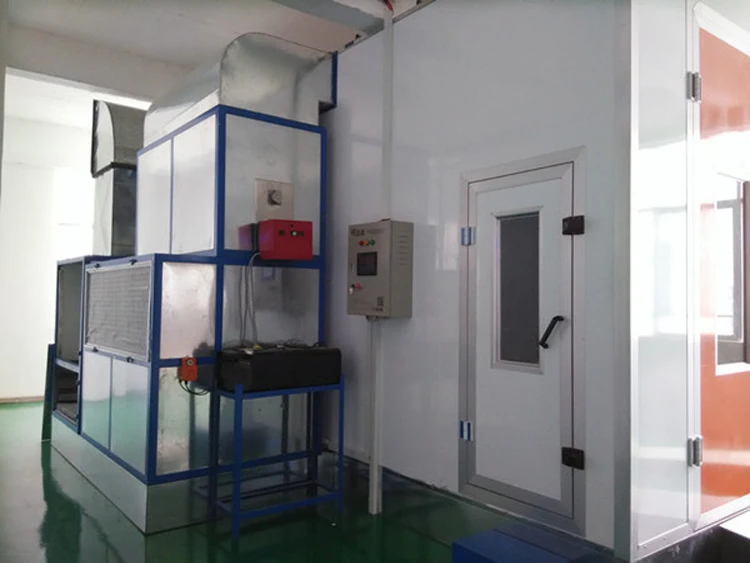

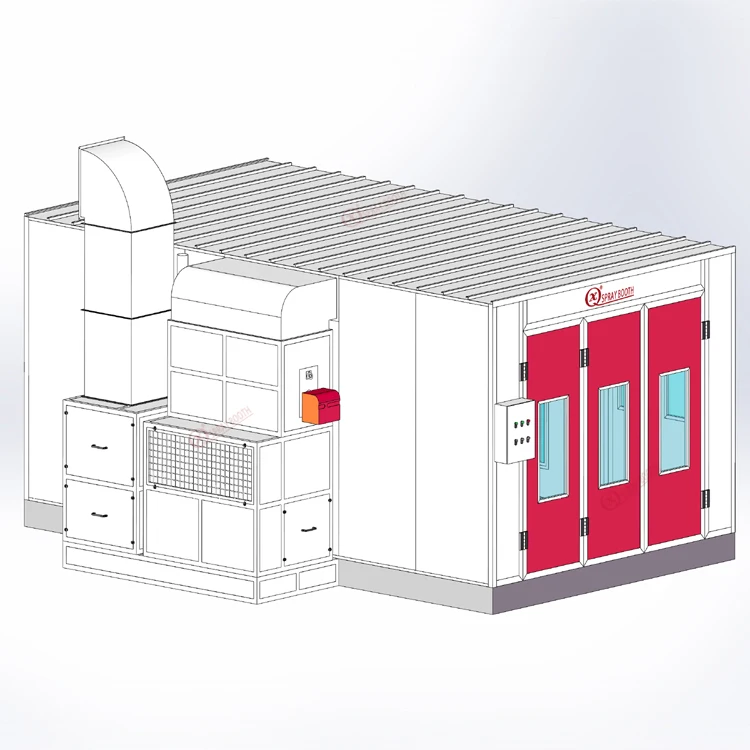

QX2000AB Paint spray booth factory direct infrared oven Deluxe automobile paint spraying room
- Category: >>>
- Supplier: Guangzhou Qiangxin Environmental Protection Electromechanical Equipment Co. Ltd.
Share on (60370339540):
Product Overview
Description
Product Description
Description for car spray booth | ||||||
Outside Dimensions(mm) | 7000*5500*3300(L*W*H) | Inside Dimensions(mm) | 6900*3900*2650(L*W*H) | |||

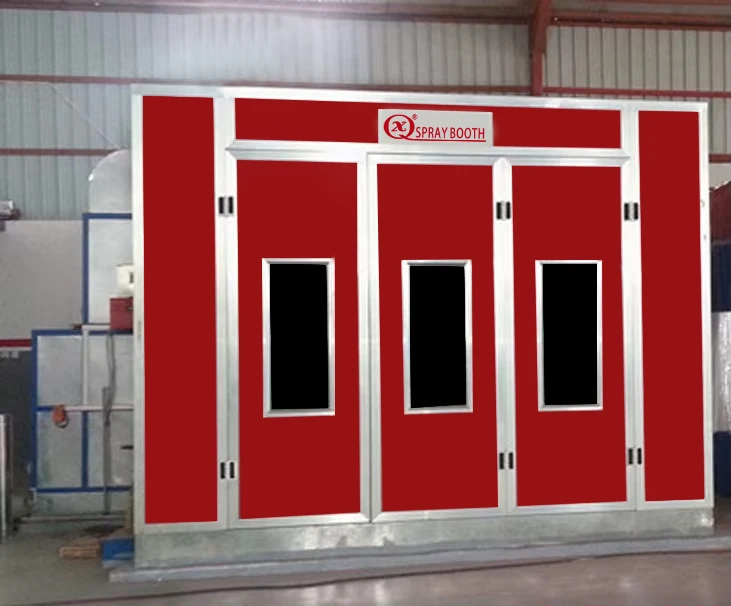

Entrance Door Door(mm) | 3 folds,size is 2850×2,600mm (W×H), with tempered glass embedded into square frame.Equipped with Handle & Lock | Personal Door(mm) | Size is 700×1700mm(W×H), with tempered glass embedded into square frame. Equipped with Handle & Anti-Explosion Lock | |||
Total Power | 14.5 KW | Voltage | 380V/50 or 60Hz/3Ph, etc. | |||
Wall Panel | 50mm EPS with colorful steel skin board, anti-flame and heat-insulation, steel sheet thickness: 0. 476mm | 50mm Rock-wool with colorful steel skin board, anti-flame and heat-insulation, steel sheet thickness: 0. 476mm | ||||
Basement | Full Grid Plates (Galvanized)* 5 rows, surface galvanised treatment, WIth 2 ramps,each size 630x2,000mm(WxL) | 0.8mm Galvanized Steel Sheet | ||||
Air Make-up System | Air-Intake Fan System | 2*4kw turbo fan installed with centrifugal copper motor; air capacity:25000m3/h | ||||
Air-Exhaust Fan System | 1*5.5kw centrifugual copper motor fan; air capacity: 15000m3/h | |||||
Air Capacity | 25000m³/h | |||||
Air Flowing Speed | 0.25m/s | |||||
Purification System | Air intake Filter/Prefilter | Air inlet with prefilter: dust holding capacity 400g/㎡; class G4; Filtration precision ≥5μm; Flammability (GB/T1759-2006) F1; Temp.resistant <100 | ||||
High efficient Filter | Ceiling equipped with CC-G650 type high-efficiency filter: dust holding capacity 600g/㎡; class F5; Filtration precision ≥1μm; Flammability (GB/T1759-2006) F1; Temp.resistant<100 | |||||
Air-Exhaust Filter | Outlet with filter cotton: dust holding capacity 550g/㎡; Class according(DIN en779) G2、G3、G4; Filtration precision ≥5μm; Temp.resistant<100 | |||||

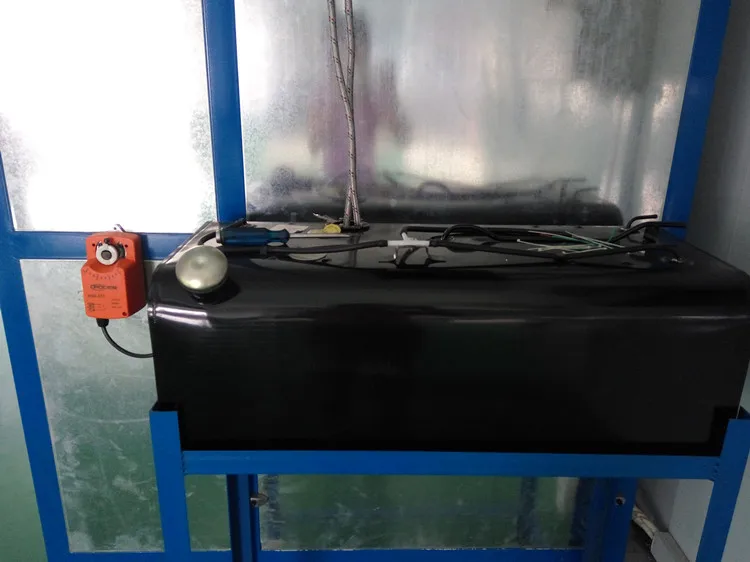

Heating System | Heating Exchanger | Heating Exchanger*1unit,made of 1.5mm stainless steel SUS304,round type multi-cycle,radiatorpipe,equipped with safe anti-explosion hole,1M stainless steel chimney, 3M long bended galvanised steel chimney & 1 pc of rain shield. | ||||

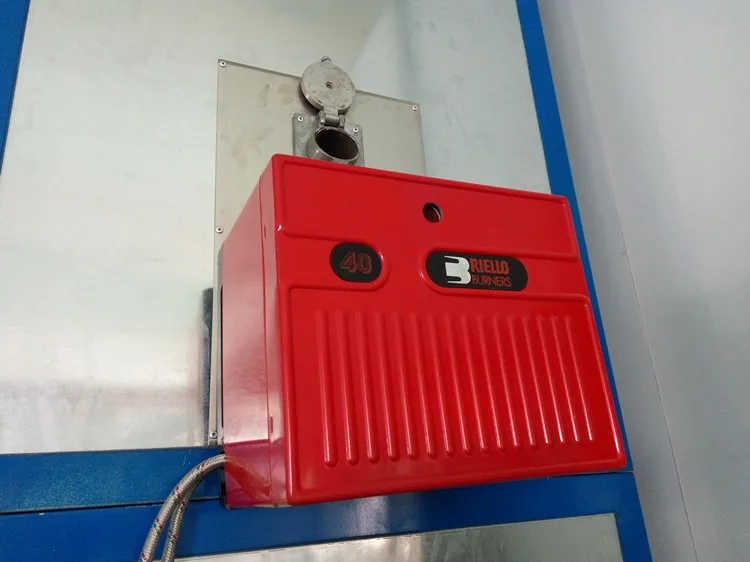

Heating Burner | Diesel Burner*1unit (Italy RIELLO, G20), Heating capacity: 260,000Kcal/H Belimo NMU230 20NM electric damper | |||||
Max. Heating Temperature:75℃ | ||||||
Lighting System | Ceiling Light | 8 Units, 8*4=32 pcs, 18w LED lamp, with Light Fixtures, anti-explosion designed | ||||
Illumination | ≥1000LUX | |||||
Control System | Switched Control Panel | Button type control box, with main switch Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. | ||||

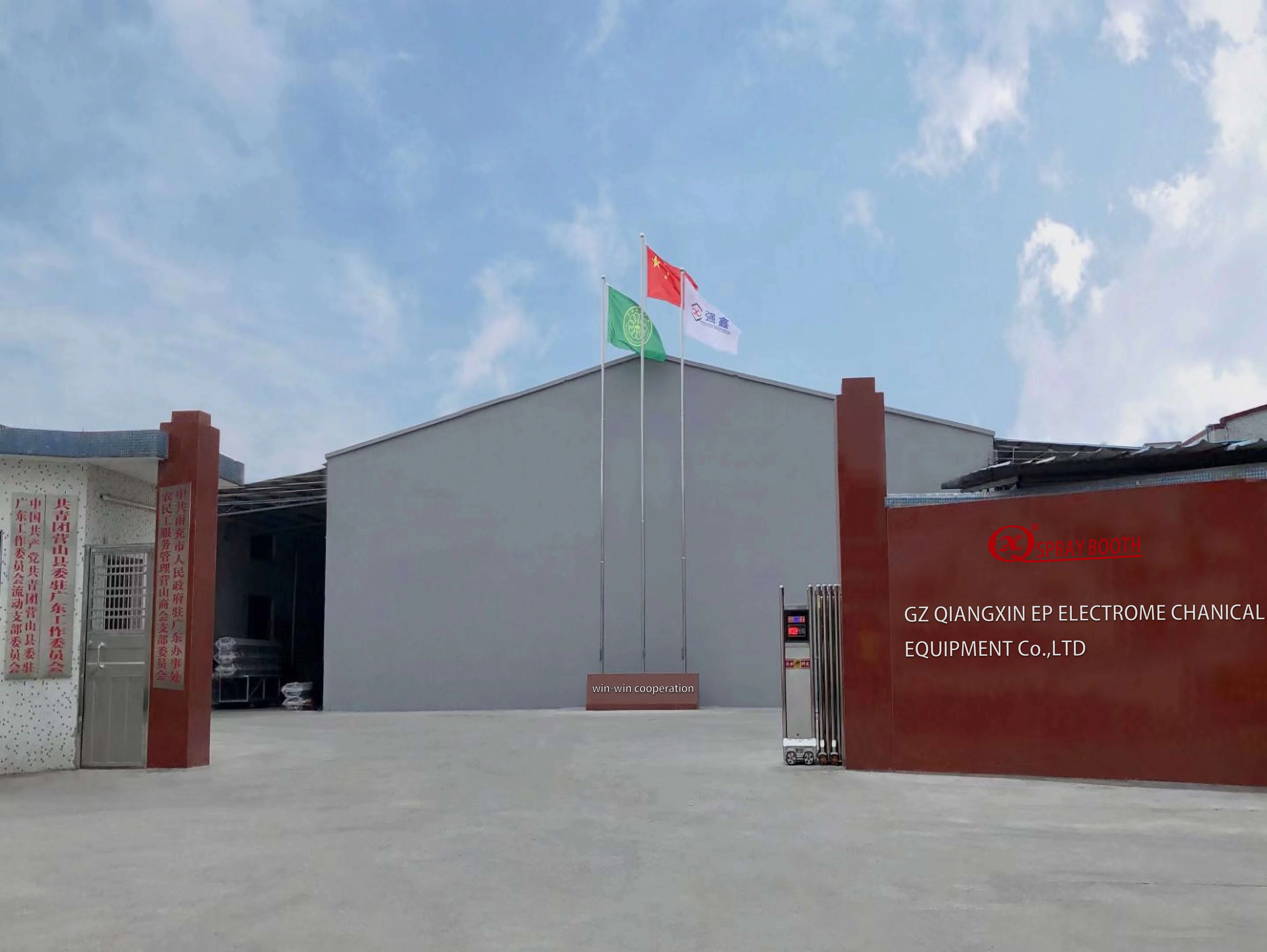

Company Profile
GZ QIANGXIN ELECTROMECHANICAL EQUIPMENT CO., LTD.
automobile garage.QX was approved by CE certification and ISO9001 quality management system certification.Professional engineering,installation team,pre-sales&after sales service team pursue the customers assurance and satisfaction.Our products enjoys a good reputation at home and abroad,had exported to Australia,Germany,Norway,Russian Federation, Nigeria, Ghana, Singapore, Philippine, Korea, Ethiopia, Egpyt, Seychelles, Sudan, Qatar, Namibia, Kingdom of Saudi Arabia etc...Our company
management concept "take prestige as the life,take technology as the forerunner, take quality as the foundation,take services as the guarantee".
Package&Shipping
One set car spray booth with 21-22CBM 3 Tons can be loaded in 20 feet container.
Customer Photos

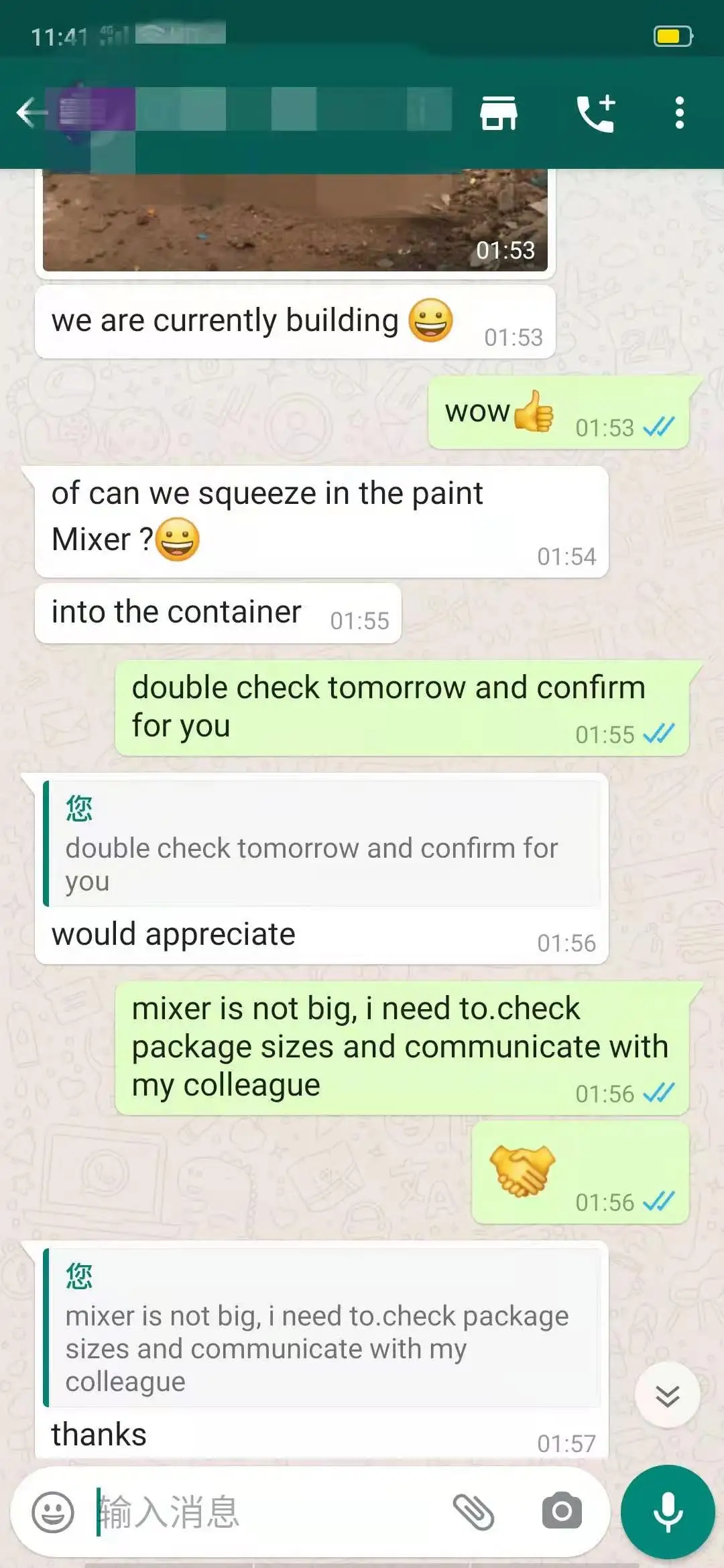

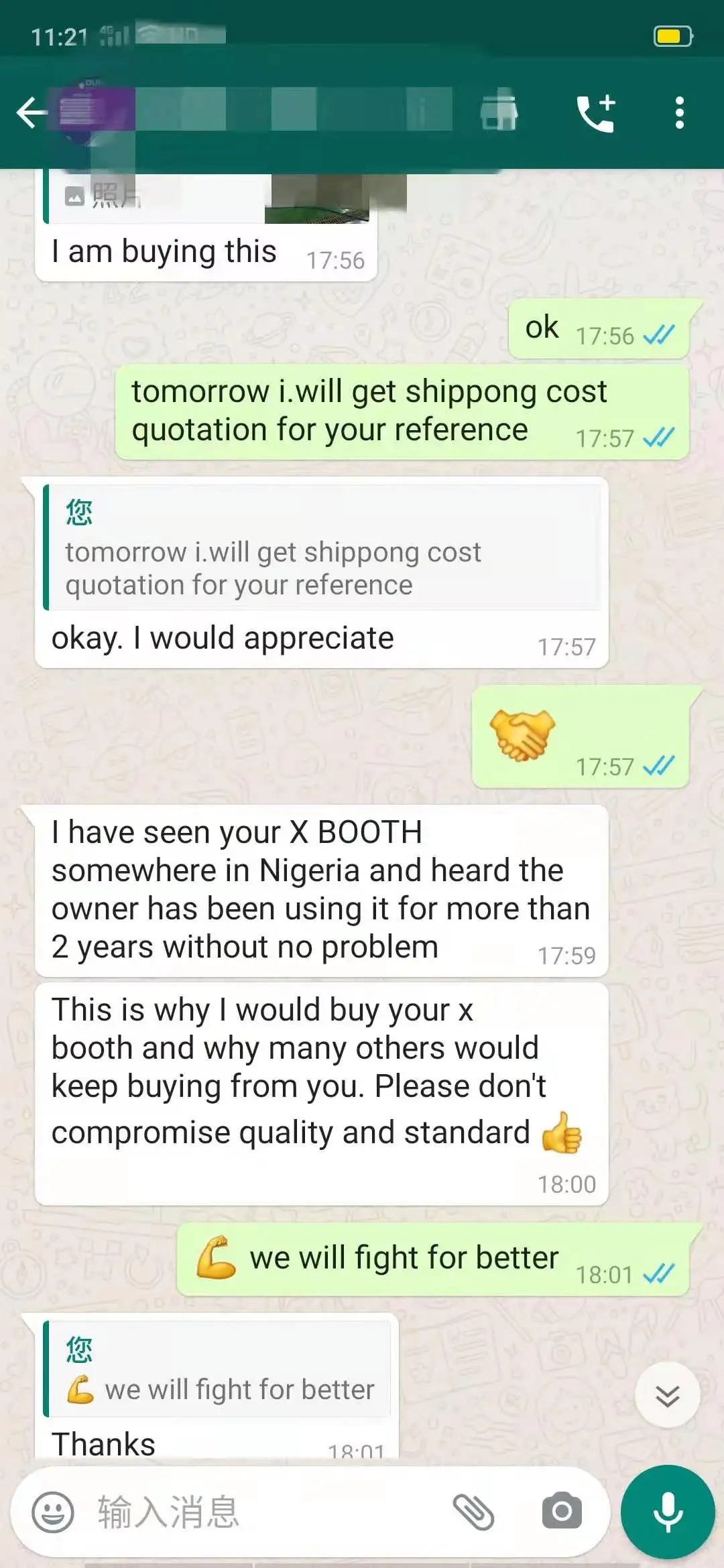

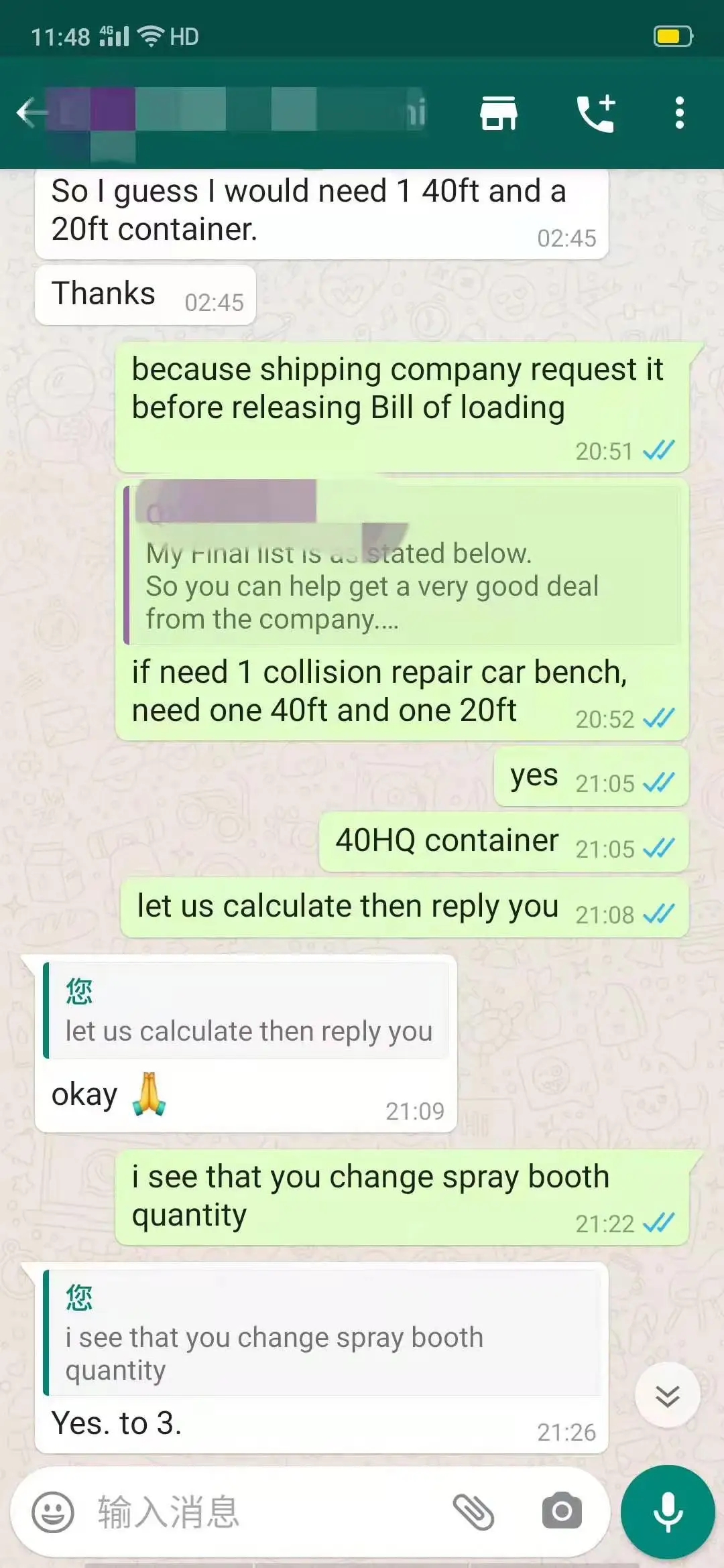

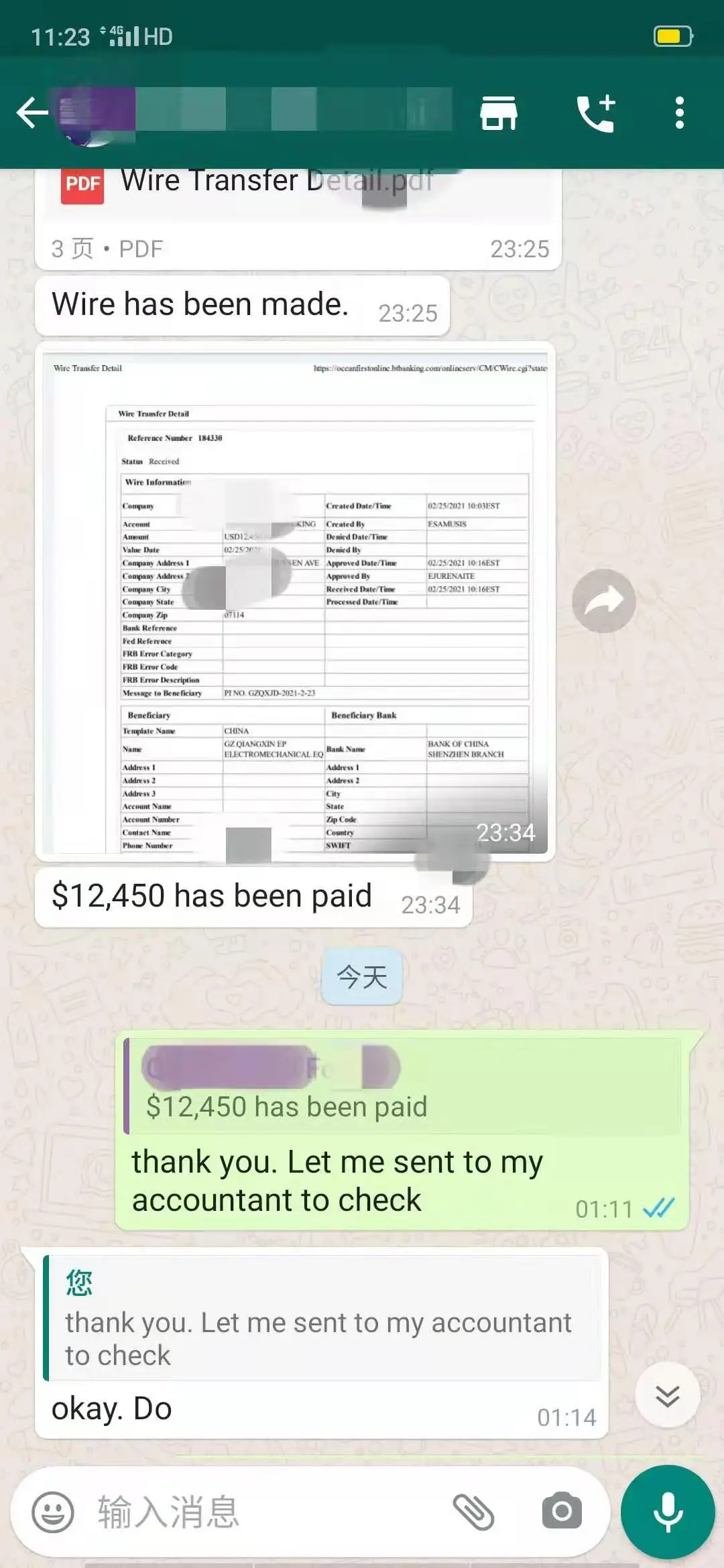

Customer Feedback
FAQ
Q: Are you a directly factory?
A: Qiangxin is a directly factory specialized in manufacturing car spray booths, furniture spray
booth high temperature baking oven etc.
Q: How do you control your products quality?
A. Our factory is pass ISO certified. We have our own QA and QC team. They will check on site and finished products to ensure all
details to meet our highest standard and the customer’s requirements.
Q: What is your payment terms?
A. We accept T/T, L/C, Western Union, Alibaba Trade Assurance, etc.
Q: How long is your lead time?
A.For standard spray booth need 7 days.For customized products, need 15 to 20 days
Q:Can I have a visit to your company before placing an order?
A: Sure, welcome to visit Qiangxin. Our factories locates in Baiyun District Guangzhou city,China. Near the Baiyun Air port.
booth high temperature baking oven etc.
Q: How do you control your products quality?
A. Our factory is pass ISO certified. We have our own QA and QC team. They will check on site and finished products to ensure all
details to meet our highest standard and the customer’s requirements.
Q: What is your payment terms?
A. We accept T/T, L/C, Western Union, Alibaba Trade Assurance, etc.
Q: How long is your lead time?
A.For standard spray booth need 7 days.For customized products, need 15 to 20 days
Q:Can I have a visit to your company before placing an order?
A: Sure, welcome to visit Qiangxin. Our factories locates in Baiyun District Guangzhou city,China. Near the Baiyun Air port.
