hot selling tiny Micro Magnetic Powder clutch

Product Overview

Description

2015 hot selling Micro Magnetic Powder clutch

powder clutch Product Overview:

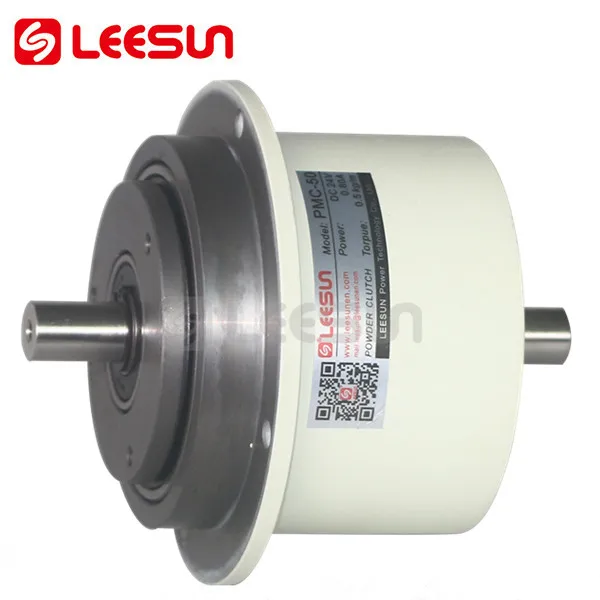

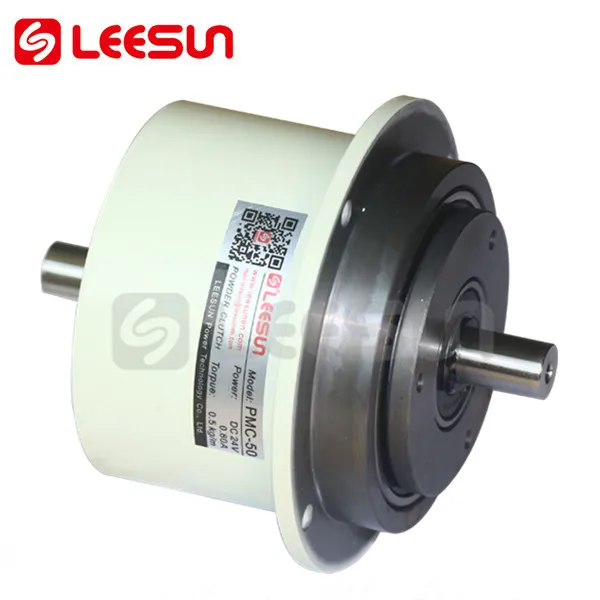

LEESUN PMC-5 Micro magnetic powder clutch  is a mini type of auto-control component with high-performance which uses driving and driven units as main body, powder (magnetic powder) with high magnetic conductivity as working medium and exciting current as control means so as to achieve control transfer/braking torque and to keep the linear relationship between input current and output torque. With the development of the modern industry, it plays an increasingly important role in all industrial fields and demonstrates great advantages over other components.

 Micro powder clutch  Product Features:

(1) high-precision torque control

(2) superior durability, long life , portability

(3) the stability of a fixed superior torque characteristics
(4) Continuous operation of the use of sliding
(5) link sleek, non-shock
(6) suitable for high-frequency operation
(7)lightweight, maintenance-free, long life
Micro magnetic powder clutch  Data:

 Micro magnetic powder clutch Specification:



Rated voltage:24V

Model		PMC-5	PMC-10	PMC-20	PMC-50	PMC-100
Rated torque [kgf-m](N-m)		0.05(0.5)	0.1(1)	0.2(2)	0.5(5)	1(5)
Capacity DC24V (75°C)	Current (A)	0.35	0.47	0.55	0.8	1.0
	Power (W)	8.4	11.3	13	19	24
	No. of hour set(S)	0.02	0.03	0.055	0.055	0.09
Weight(kg)		0.67	0.88	1.27	2.3	4.1
Necessary exothermic area
Maximum speed (r/min)		1800
Exterior Dimension	L1	77	83	95	111	135
	L2	16.5	18.5	22.5	25	32
	L3	8.5	8.5	22.5	25	32
	L4	4	4	4	4	5
	L5	13.5	16	19.5	22	29
	L6	5.5	5.5	6.5	6	7
	L7	10.5	12	15	18	25
	L8	9	10	13	16	20
	D1	70	76	85	100	128
	D2	60	66	75	90	114
	D3	50	56	65	80	98
	D4(h7)	60	66	80	95	98
	D5(h7)	40	42	48	60	80
	D6	30	34	40	50	70
	D(g6)	5	7	9	12	15
	T	4.5	6.5	8.5	11.5	16.5





Our products can be widely used in paper making,printing,packaging,plastic items,rubber industry,textile industry,printing and dyeing,wire and cable,metallurgy industry and

tension control of winding and unwinding in roll material processing industry.

LEESUN POWER TECHNOLOGY  CO., LTD established in 2001 and located in Dongguan city.

It's a professional design and development team, the main development and production of industrial machinery of high precision magnetic powder clutch brake, electromagnetic clutch brakes, air pressure disc / pass-axis clutch brakes, as well as packaging and printing Take-up equipment industry-specific inflatable shaft, pressure sets of folders (inflatable swollen), fast and secure chuck, aluminum alloy guide roll, automatic tension controller, the roll diameter Tension controller, guiding systems. Comprehensive range of products in the take-up device industries to provide a variety of tension control solutions.



All along, we are actively enterprising, innovation, integrity management, service industry more than a dozen set, because of the quality of products and companies seeking strict Ke tireless efforts of all colleagues, resulting in "LEESUN" brand to become the industry leader and has been marketing the country and the exported to Europe( Germany),Southeast Asia( Japan and India )and South America ( Argentina and Brazil )other regions.
Through constant innovation and development of the establishment of LEESUN POWER TECHNOLOGY  CO., LTD as the mainland base of operations and the establishment of the Department of South China factory, have been established for East Marketing Department, North China Marketing Department, to provide users with better products and services, so that "LEESUN" Products more widely used in packaging machinery, printing machinery, wire and cable machinery, paper version of the system machinery, rubber machinery, tableware machinery, textile machinery, glass machinery, woodworking machinery, electronic machinery and other equipment, the battery industry.
Our business philosophy: the leading science and technology, well production, sustainable development

Our goal: a strong-the quality of the image outside, the unison into first-class science and technology of modern technology manufacturing companies.



LEESUN Science&Technology, unlimited power!





Since 2007 years old,Our factory use “Leesun” brand to attend Intermational Exhibition every time,Our products are popular with custormers from all over the world.



2007 PTINTCHINA(DONGGUAN), 2011 PTINTCHINA(DONGGUAN), 2013 SIAF  (GuangZhou), 2012The 19^nd South China International Exhibition on printing Industry(Guangzhou), 2014The 21_^nd South China International Exhibition on printing Industry(Guangzhou),2015 The 22_^nd South China International Exhibition on printing Industry(Guangzhou), In all walks of life exhibition, our LEESUN brand products are popular with customers from all over the world.



How to get your suitable machine or parts ?
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Skype) and let us know your enquiry.
• Discussion:Let us know the model number,like LEESUN-PMC-5 micro powder clutch , specify the items you desire, confirm specification; OEM/ODM consultation.
• Place order as per contract or discussion.
• Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
• Payment settled.
• Order completed under our arrangement.
• Goods shipped as per contracted term.
• Goods arrive at local port or warehouse, depending on contracted term.
• Support & re-ordering.
Any question about Printing Machinery Parts ,contact with us please,sincere service for you and welcome to LEESUN power!
