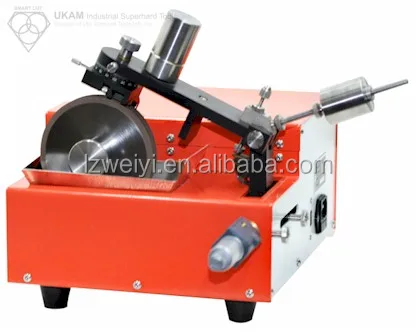

SYJ 150 Low Speed Diamond Saw for specimen precision cutting

Share on (60370597407):


Price:$1,999.00

Quantity:


Product Overview

Description



Product Description


.jpg

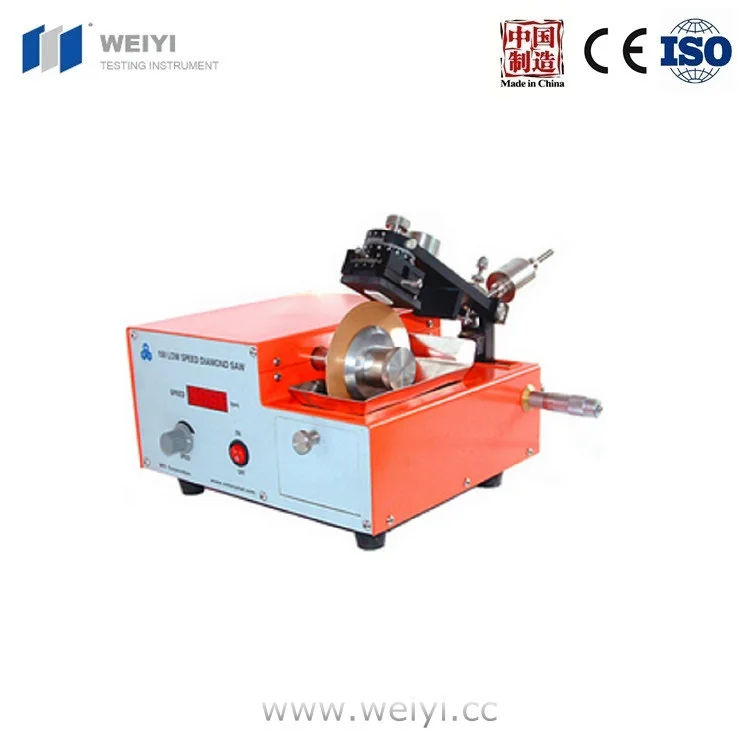

SYJ-150.jpgsyj-150 (2).jpg




































Model:

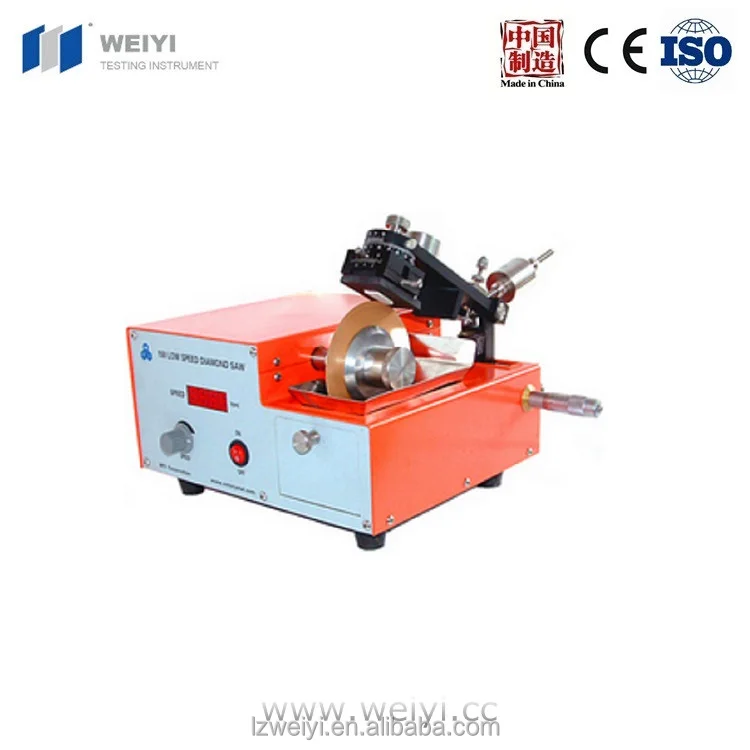

SYJ-150 Low Speed Diamond Saw



Brief Introduction:



SYJ-150 Low Speed Diamond Saw is CE certified, used to precision cut the material samples for researching. Such as crystal, ceramic, glass, rock, mineral, refractory materials, PCB board, metal, building materials, plastic samples etc.






Main


Feature:



Used for precision cutting the material samples, high torque, running steady, can cut the thickness of various materials(0.1mm). Suitable for samples' follow-up thinning, polishing and various operation.



Technical


  Parameter:



1. Speed range:20-600RPM stepless speed adjust


2. Voltage:AC 110V/220V
3.

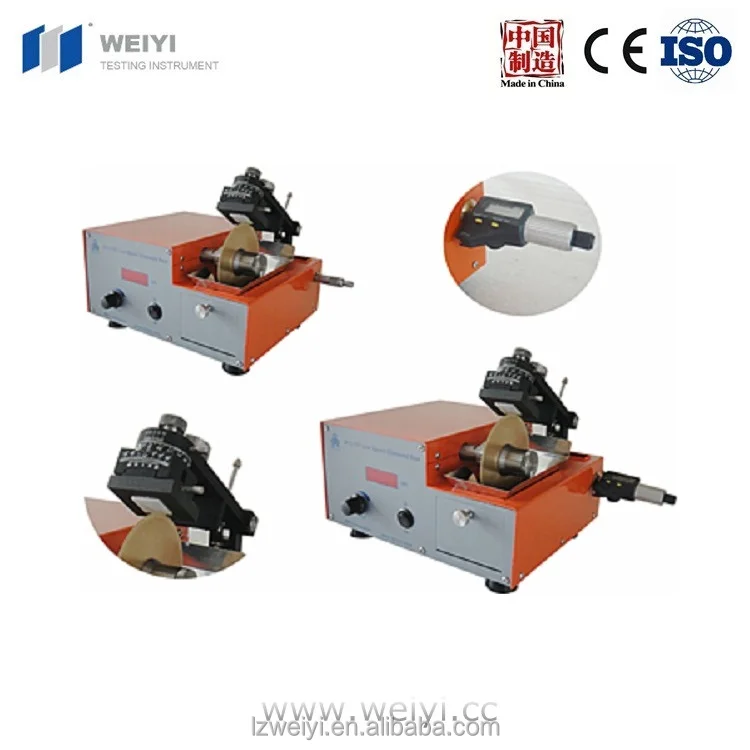

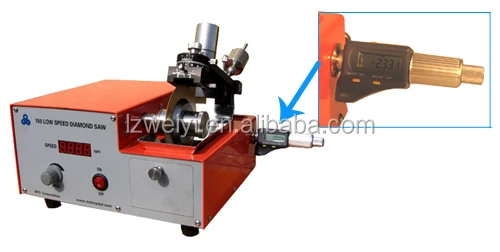

Position accuracy:0.01mm(Mechanical and digital display, digital display should be purchased in selection)
4.
Two dimension, angle adjustable:spinning 360°
5.
Travel distance:50mm(Fine adjustment travel distance 25mm)
6. Max dia. wafer blade:100mm(4 inch)
7. Automatic shut off:allowed unattended
8.
Digital display axis RPM



Specification:



Size:360×260×260mm  Weight:17.5kg



Standard Accessories:









































































1



Adjustment sample holder



1set




2



Mini-vise









1 pc







3



O-ring of driving Motor



2 pcs







4



Full sintered diamond blade100mm×12.7mm×0.35mm)



1 pc







5



 Electroplating diamond blade(Φ100mm×12.7mm×0.4mm)



2 pcs







6



Sic blade(Φ100mm×12.7mm×0.4mm)



10 pcs







7



Al2O3 blade100mm×12.7mm×0.4mm)



10 pcs




8



Resin ceramic block(50mm×50mm×12mm)



2 pcs




9



Aluminum plate (25mm×50mm×7mm)



2 pcs




10



High quality wax bulks for samples bounding



2 pcs




11



Blade clamps62mm, Φ46mm, Φ35mm)



3 set
