Shenzhen Li-ion Battery Bodyguard Technology Co.,LTD
\t

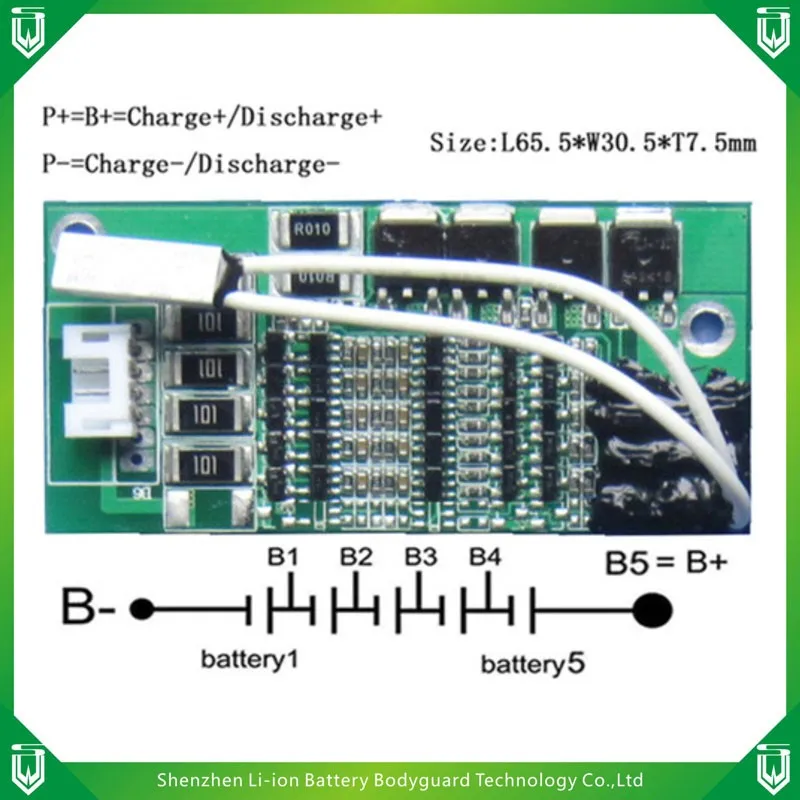

PCM Specifications For 16V(5S) LiFePO4 Battery Packs
\t
Model: LWS-13S15A-051(5S)
\t
 No.
\t
Test item
\t
Criterion
\t

1
\t

Voltage
\t
Charging voltage
\t
DC:18V 3.6/Cell
\t
Balance voltage for single cell
\t
3.60±0.025V
\t


2
\t


Current
\t
Balance current for single cell
\t
36±5mA
\t
Current consumption
\t
≤20μ A
\t
Maximal continuous charging current
\t
16A
\t
Maximal continuous Discharging current
\t
16A
\t

3
\t


Over charge Protection
\t
Over charge detection voltage for single cell
\t
3.90±0.025V
\t
Over charge detection delay time
\t
0.5S—2S
\t
Over charge release voltage for single cell
\t
3.80±0.025V
\t

4
\t


Over discharge protection
\t
Over discharge detection voltage for single cell
\t
2.00±0.05V
\t
Over discharge detection delay time
\t
10mS—200mS
\t
Over discharge release voltage for single cell
\t
2.50±0.05V
\t


5
\t


Over current protection
\t
Over current detection voltage
\t
0.10±0.015V
\t
Over current detection current
\t
40±10A
\t
Detection delay time
\t
5ms—15ms
\t
Release condition
\t
Cut load
\t

6
\t

Short protection
\t
Detection condition
\t
Exterior short circuit
\t
Detection delay time
\t
200-500us
\t
Release condition
\t
Cut load
\t
7
\t
Resistance
\t
Protection circuitry(MOSFET)
\t
≤20mΩ
\t

8
\t

Temperature
\t
Operating Temperature Range
\t
-40~+65℃
\t
Storage Temperature Range
\t
-40～+125℃

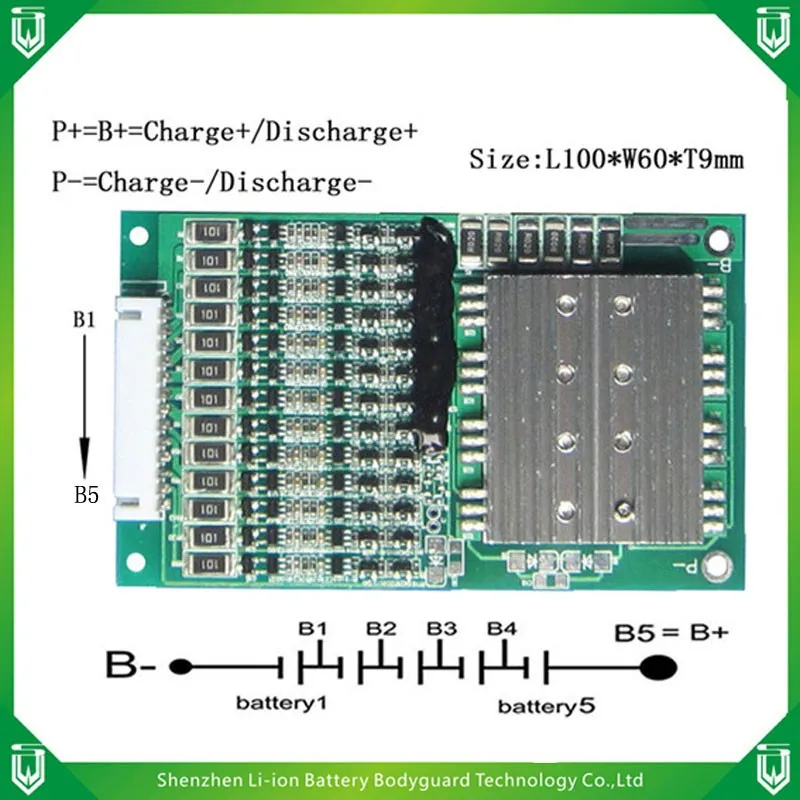

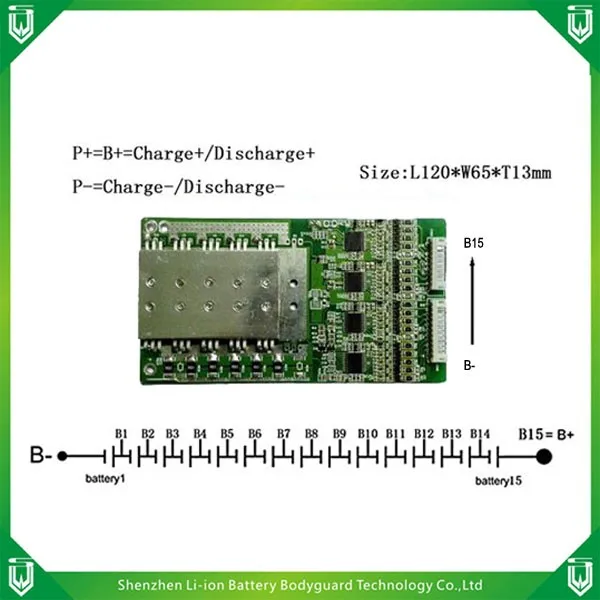

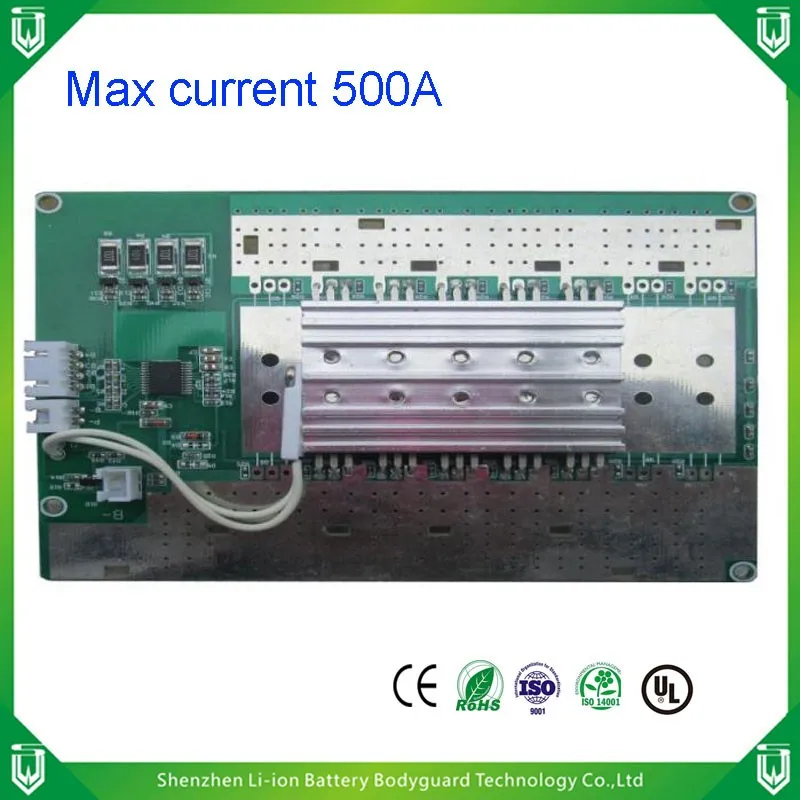

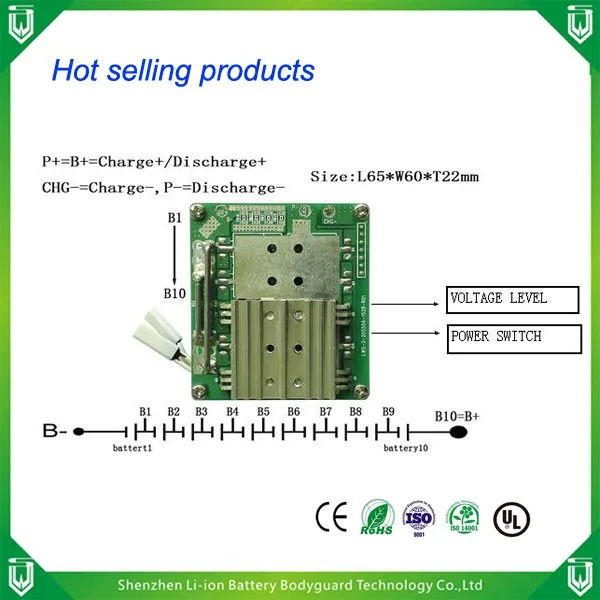

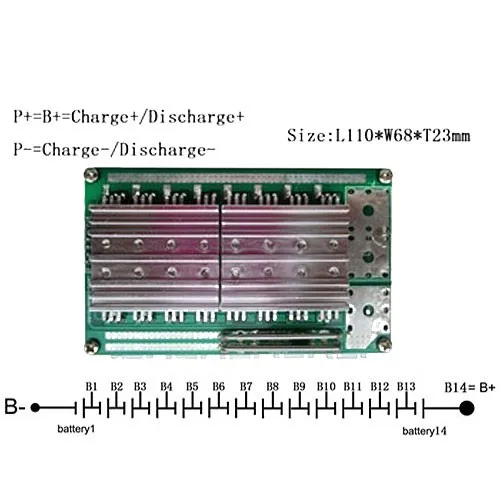

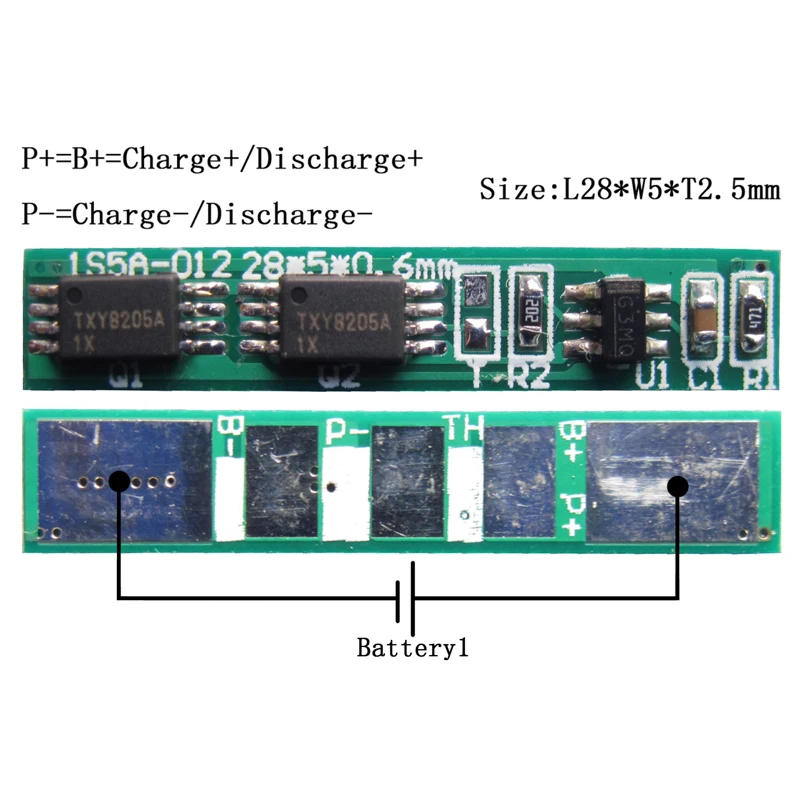

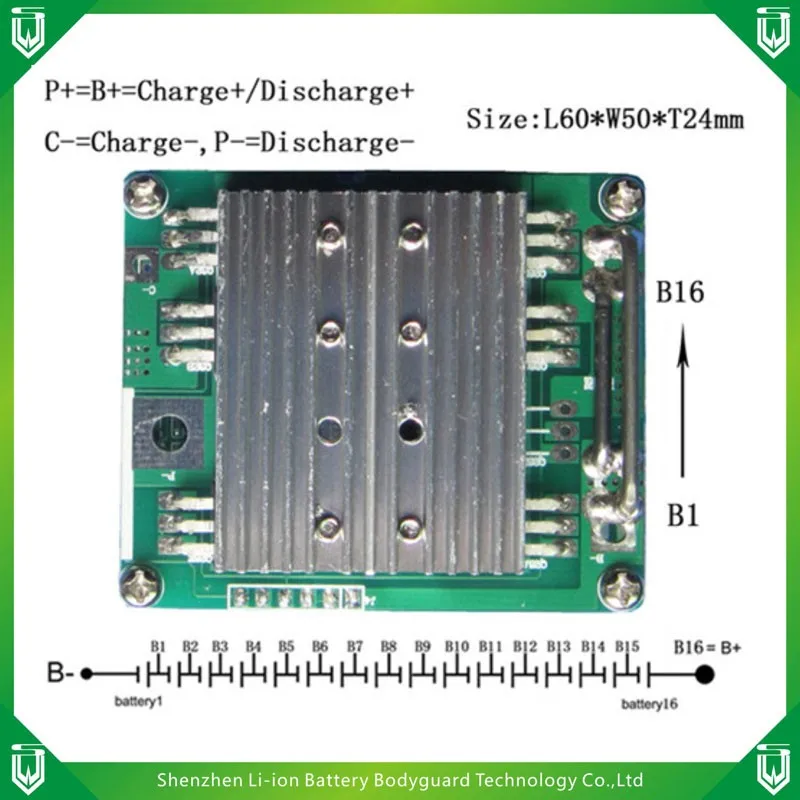

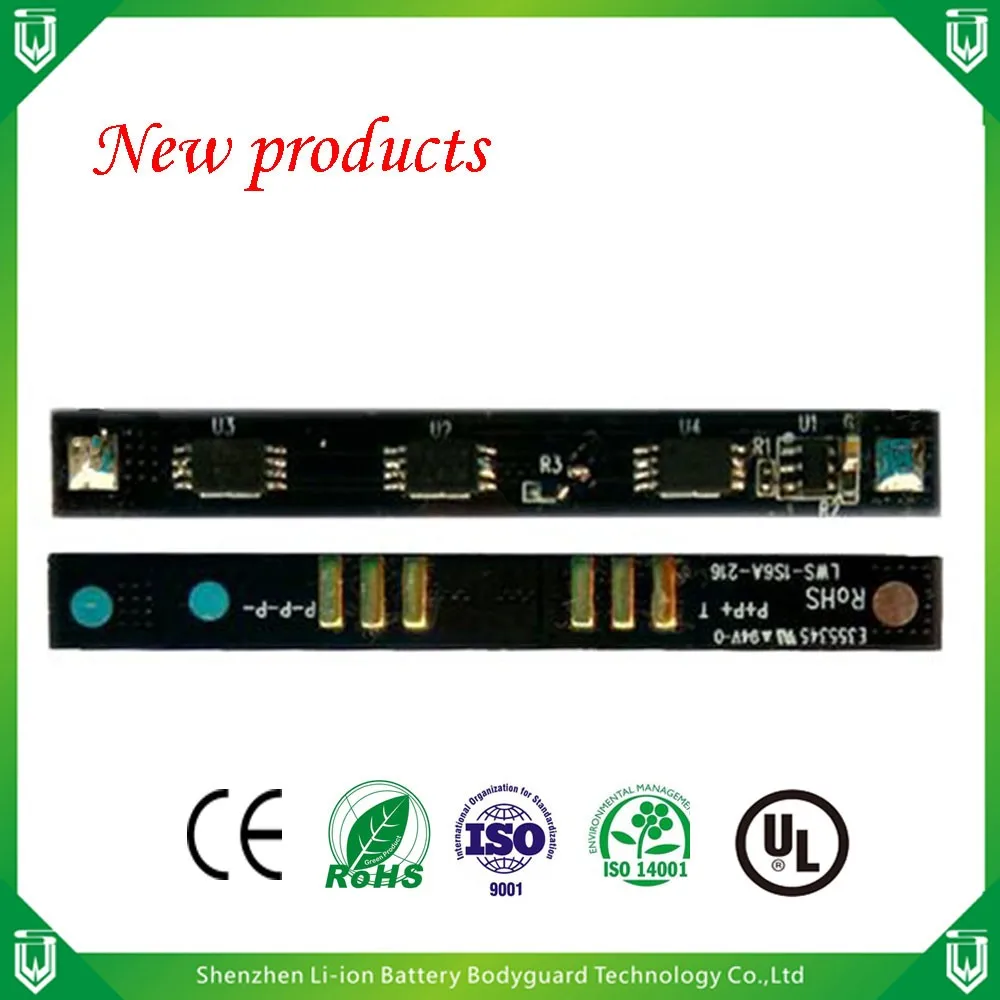

Other products

We professionally manufacture lithium polymer battery and pcb for more than 5 years in China.

We have cooperated with HP,Emerson tool,NIke,WD.

Our company is established in 2013.

Product Certificates CE ROHS.

Quality control system certificates:ISO9001,ISO14001

Our Company

1.Complete products contract PCB assembly and manufacturing services


2.Circuir boards 2 to 30 layers PCB layout,fabrication, PCB assembly and box build


3.Active and passive components source is directly from original manufacturer


4.Enclosure cabinet case plastic injection molding,mental stamping,manufacture and assembly


5.High-precision 0201 size components SMT technology and lead-free


6.IC pre-program


7.Hight-precision E-Tasting

Packing & Delivery

Inner packing:Vaccum packing/Plastic bag.

Outer packing:Standard carton packing or packing per customer's requirements.


Shipped within 3-7 working days after payment

Our Service

1.after sales services


2.OEM,ODM,Customized Design


3.We can provide 24 hours service for you. We pride ourselves on our ability to custom tailor programs around our


 customers'needs. We take time to listen to your unique business needs and then set out to surpass them

FAQ
Q: How do I judge what material my battery is ?

A: Please take a look at the battery body.if the normal voltage of your battery shows as 3.2V,the battery will be LiFePo4.If the normal voltage of your battery shows as 3.6V or 3.7V, the battery will be Li-ion or Li-polymer battery. you can also ask battery manufacturer the material of battery.


Q: Can I use this protection circuit board for my battery?

A: Can use this protection circuit board, or not? There are 2 questions:How much cells in series is your battery pack? The protection circuit board you need to buy must be same cells in series as your battery pack.What material is your battery? Only the LiFePo4 battery has different electric parameter from other battery, so if you need buy the protection circuit board for LiFePo4 battery , Please let us know firstly.


Q: Do we need cell balance or not?
A: The function of balance : Since battery is made of many pcs of cells in parallel and in series, the cells can't be the same as no two people in the world is the same , so can only put in group with similar performance is not consistent , which will lead to each cell voltage is not consistent as well after the completion of the charging if without balance fun


Q: Do you have Minimum Order Requirement (MOQ)?
A: No, We don’t have MOQ, Different customer have different requirement ,We can provide various capacity and size is per your requirements,Also ODM / OEM is welcome.

Q: What is your term of payment?
A: PayPal, T/T, L/C,
