25W ac reversible geared motor right angle
- Category: >>>
- Supplier: Chengdu Lunyee Imp. & Exp. Co. Ltd.
Share on (60370877575):
Product Overview
Description

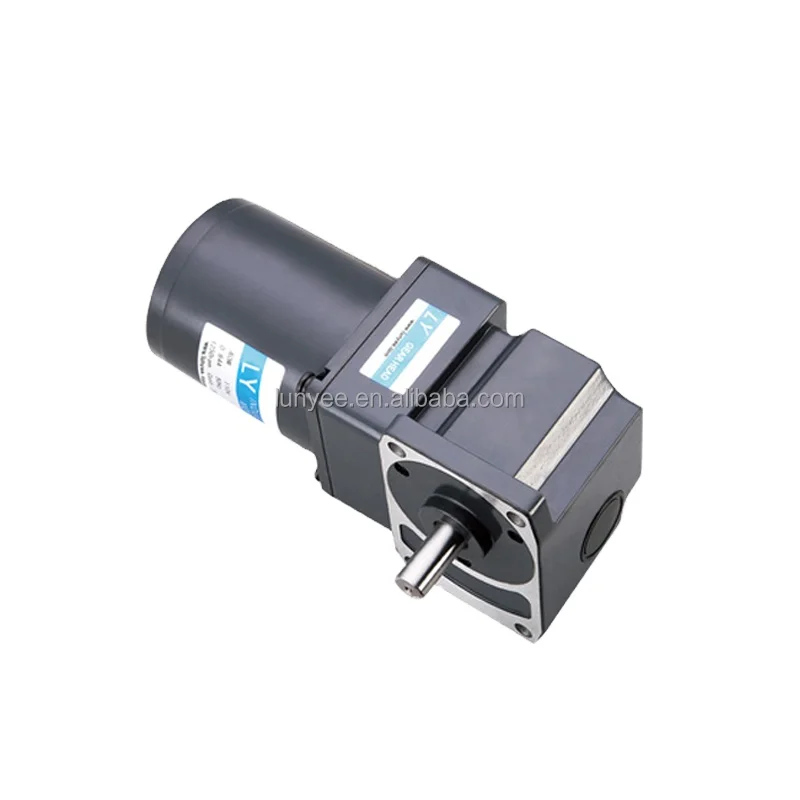

Right Angle 25W ac reversible geared motor
For right angle gear motor, we can make form 3W to 250W
Motor Specification
| Model Type | Output power | Frequency | Current | Starting Torque | Rated Torque | Rated Speed | |
| LeadWire Type | W | Hz | A | mN.m | mN.m | r/min | |
| Pinion shaft | Round shaft | ||||||
| 4RK25GN-A | 4RK25GN-AT | 25 | 50 | 0.59 | 160 | 200 | 1250 |
| 60 | 0.69 | 140 | 165 | 1550 | |||
| 4RK25GN-E | 4RK25GN-ET | 25 | 60 | 0.45 | 140 | 165 | 1550 |
| 0.50 | |||||||
| 4RK25GN-C | 4RK25GN-CT | 25 | 50 | 0.29 | 140 | 200 | 1250 |
| 0.30 | 200 | ||||||
| 4RK25GN-H | 4RK25GN-HT | 25 | 60 | 0.35 | 140 | 165 | 1550 |
Allowance torque unit :upside (N.m) /Belowside (kgf.cm)
| Type | Gear ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | |
| motor/gearhead | speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | ||
| 4RK25GN-A | 4GN-K | 50Hz | 0.49 | 0.58 | 0.81 | 0.97 | 1.2 | 1.5 | 2 |
| 4RK25GN-E | 5 | 5.91 | 8.26 | 9.89 | 12.2 | 15.3 | 20.4 | ||
| 4RK25GN-C | 60Hz | 0.4 | 0.48 | 0.67 | 0.8 | 1 | 1.2 | 1.7 | |
| 4RK25GN-H | 4.08 | 4.89 | 6.83 | 8.16 | 10.2 | 12.2 | 17.3 | ||
| Type | Gear ratio | 15 | 18 | 25 | 30 | 36 | 50 | 60 | |
| motor/gearhead | speed r/min | 50Hz | 100 | 83 | 60 | 50 | 41 | 30 | 25 |
| 60Hz | 120 | 100 | 72 | 60 | 50 | 36 | 30 | ||
| 4RK25GN-A | 4GN-K | 50Hz | 2.4 | 2.9 | 3.7 | 4.4 | 5.3 | 6.6 | 7.9 |
| 4RK25GN-E | 24.4 | 29.6 | 37.7 | 44.9 | 54.1 | 67.3 | 80 | ||
| 4RK25GN-C | 60Hz | 2.02 | 2.4 | 3 | 3.6 | 4.3 | 5.4 | 6.5 | |
| 4RK25GN-H | 20.4 | 24.4 | 30.6 | 36.7 | 43.8 | 55.1 | 66.3 | ||
| Type | Gear ratio | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| motor/gearhead | speed r/min | 50Hz | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 |
| 60Hz | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 4RK25GN-A | 4GN-K | 50Hz | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 4RK25GN-E | 80 | 80 | 80 | 80 | 80 | 80 | 80 | ||
| 4RK25GN-C | 60Hz | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 4RK25GN-H | 80 | 80 | 80 | 80 | 80 | 80 | 80 | ||
More types of AC Gear Motor we can supply:
1.Dimensions of device: 42mm, 60mm, 70mm, 80mm, 90mm, 104mm
2.Power: 6W, 15W, 25W, 40W, 60W, 90W, 120W, 140W,180W, 200W, 250W
3.Voltage:
a.single phase: 100 V/110 V/200 V/220 V
b.Three phase: 200 V/220 V/380V/440V
c.special voltages
4.Speed ratio:1:3-1:1800
5. Optional:
a.brake motor
b. variable frequency motor
c. stepper motor
d. speed controller
e. inverter
6. High dependability and reliability
If standard type is not what you need, we provide customer free design and production.
Our Services
1.Gold Supplier on Alibaba for 3 Years → Reliable Supplier with Good Reputation
2.Factory Direct Sale → Competitive Price & Full Stock
3.Quality Control → High Quality
4.Low MOQ → Accept Small Order
5.Accept OEM → Produce Products as Customers' Requirements
6.Fast Delivery → Delivery within 5 Working Days
7.Various Payment Methods → Easy to Pay
8.Changing or Refunding → Accept Returns
OEM Service is Available
Packaging & Shipping
| Packaging Detail: | 1. Lunyee standard packing 2. Neutral packing 3. Customized packing for 120W AC Motor |
| Delivery Detail: | 5 working days after payment confirmation |
Please feel free to inform us your reqeustDIAMETER POWER,VOLTAGE,SPEED,and QTYto get our information about sample, price, packing, leading time and any other related informations!
You can also visit our website for searching more products such as: AC gear motor, DC gear motor, Servo motor, Stepper motor, Hub motor, Linear motion components.
FAQ
Q: How long can I get my production after payment?
A: We would delivery within 7-10 days after payment confirmation.
Q: What is your after-sales services?
A: 1. We would supply the free maintenance within 12 months guarantee.
2. We would supply the professional solutions during using.
Q: How much is the freight and what is the mode of transportation?
A: The freight is based on the weight of order and the distance of shipment.
The mode of transportation we can supply is EMS, DHL, FedEx, TNT and so on.
Chengdu Lunyee Industries Development Co., Ltd. is a leading manufacturer and exporter for factory automation(FA) products!We are dedicated in power transmission and motion control solutions!
We manufacture power transmission products like AC gear motor,DC gear motor,high precision planetary gearbox for servo motor and stepping motor,linear motion products like linear bushing,linear guide,ball screw,locking nut and coupling and so on!
Please feel free to inform us your reqeust POWER,VOLTAGE,RATIO,OUTPUT SPEED,TORQUE and QTY to get our information about sample, price, packing, leading time and any other related informations!
