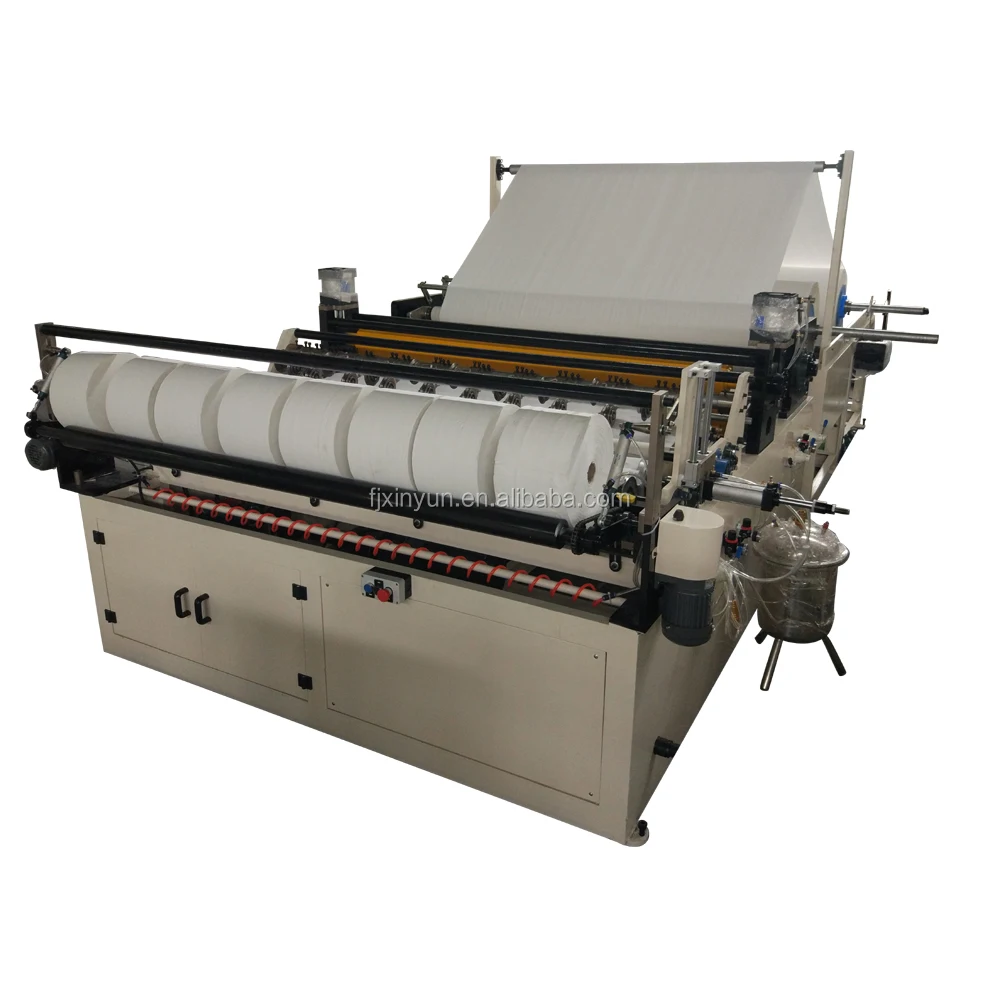

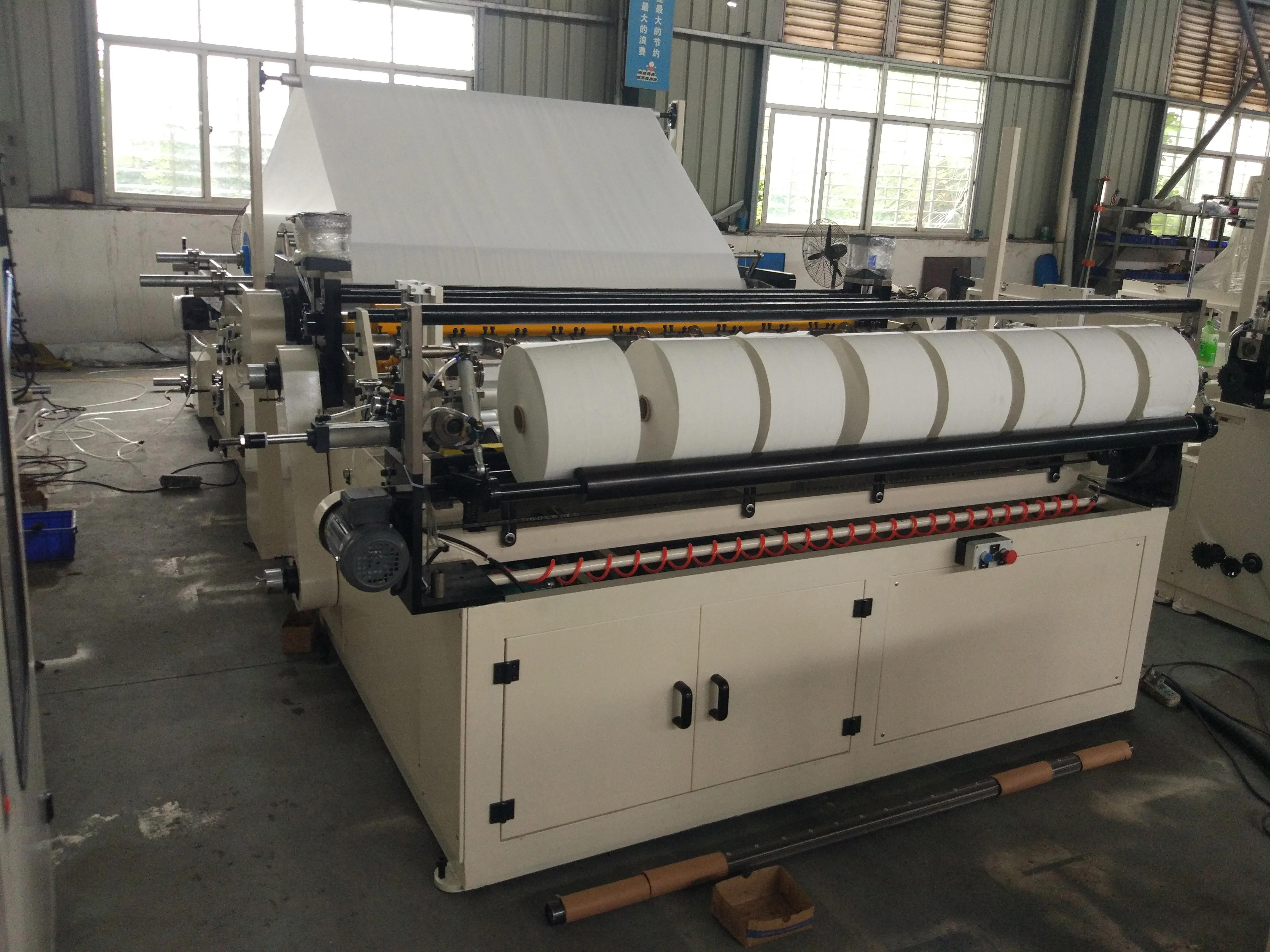

Automatic Toilet Paper Roll Rewinding Perforating Slitting Machine
- Category: >>>
- Supplier: Fujian Xinyun Construction Development Co. Ltd.
Share on (60371005383):
Product Overview
Description
Automatic Toilet Paper Roll Rewinding Perforating Slitting Machine
XY-TQ-1575G
Product Description
Automatic Toilet Paper Roll Rewinding Perforating Slitting Machine
XY-TQ-1575G

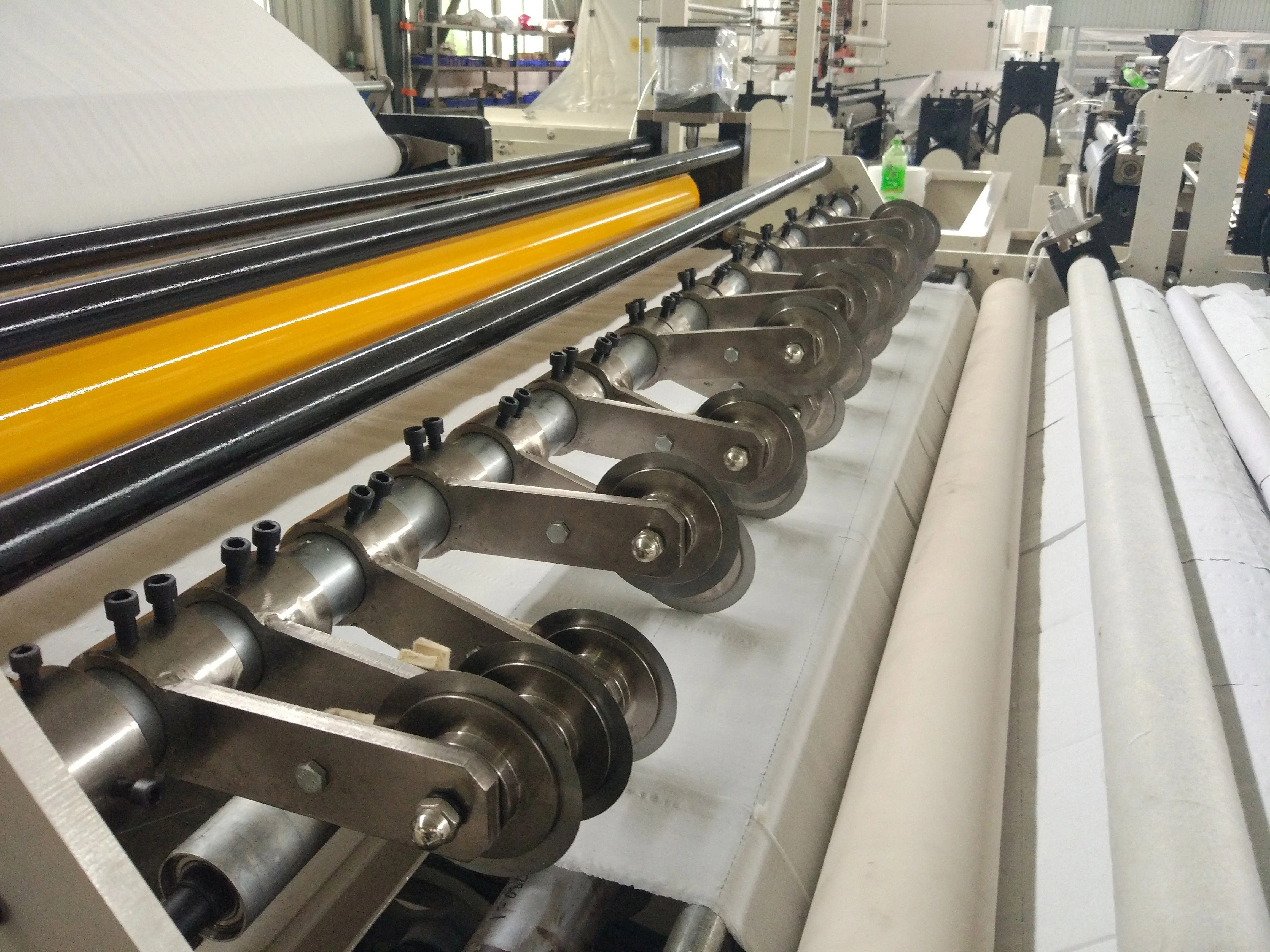

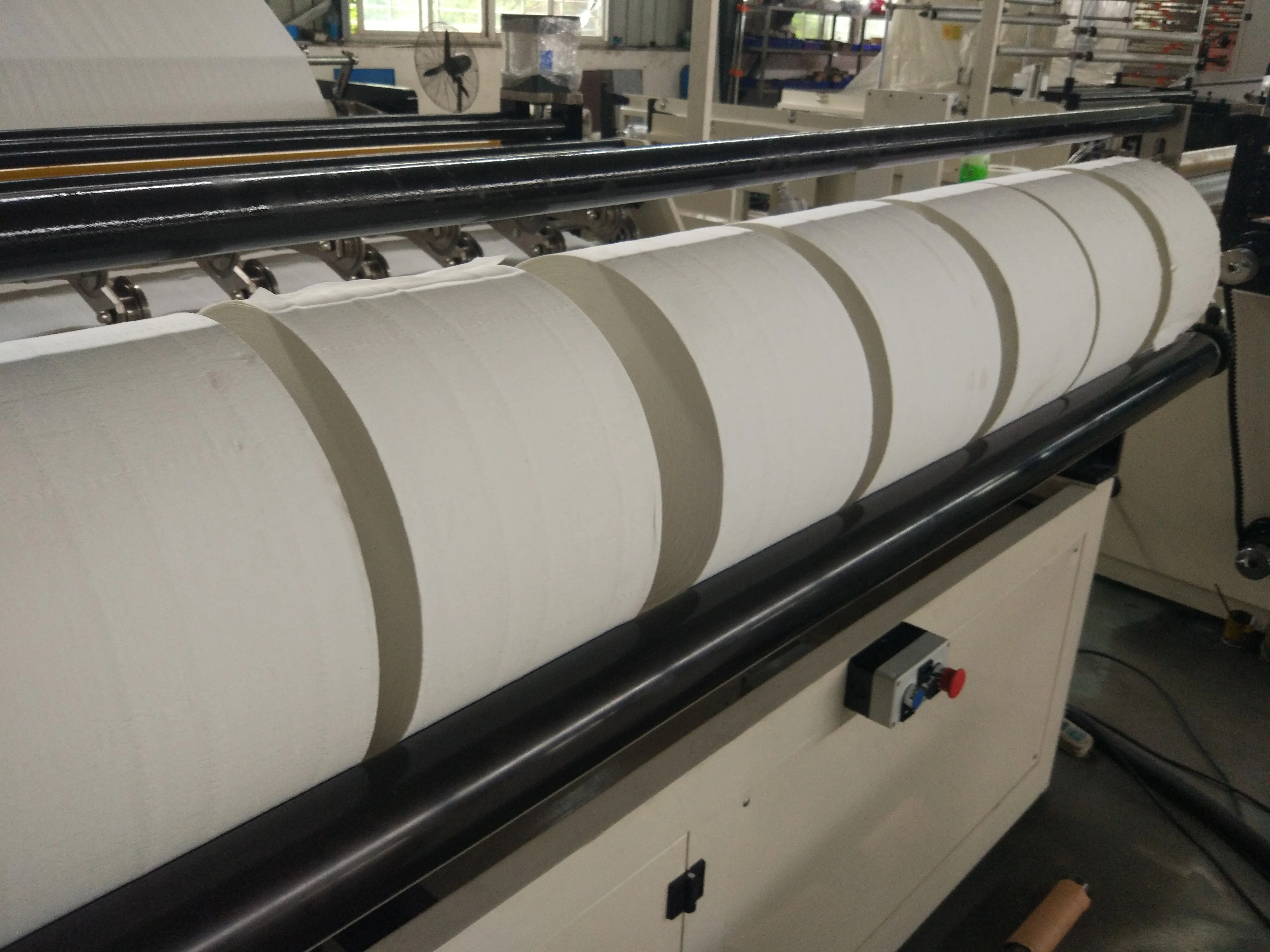

This equipment produce small raw material and towel roll. It has the function of embossment, perforation, slitting and rewinding ,all of them can be finished on one time. This machine equipped with pneumatic jumbo roll lifter , pneumatic belt driving, tension adjustment and so on. Adopt air-shaft for reeling.
Main character:

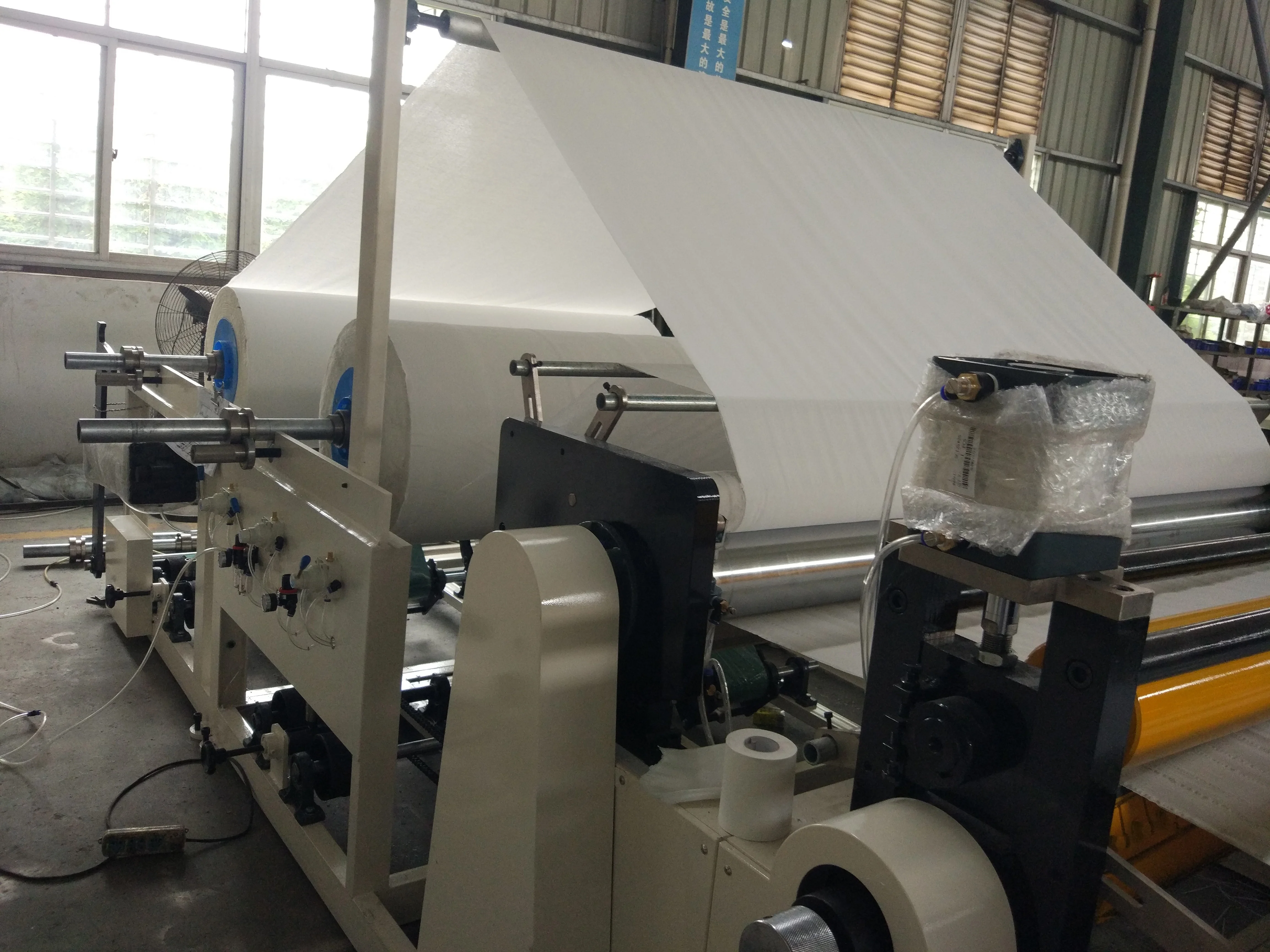

1. Adopt Pneumatic jumbo roll loading, belt driving and web tension control devices, the final rollers are rewinded by air-fill shaft.
2.With air-fill shaft to rewind the final products, the orientation of core easy and nicety.
3.Adopt steel to steel edge embossing, independent cylinder controlling, easy to additionust, every layer not separate.
4.With Jog button on the front and back for threading paper ,easier and safer.
5. Add tail sealing and embossing function.(need to order)
6. Equip with the colored glue lamination units.( need to order)
Main technician parameter:
Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
Width of raw material | 1150 | 1750 | 1950 | 2150 | 2350 | 2550 | 2750 |
Dia. of finished product (mm) | Φ90-1200 (the tension can be adjustable) | ||||||
Dia. of raw material (mm) | Φ1100(please point other specification) | ||||||
Inner dia. of core of raw material | 76.2 mm (please point other specification) | ||||||
Distance of perforation (mm) | 90~160mm | ||||||
Processing of capacity | 180-200m/min | ||||||
Reeling | Air shaft | ||||||
Embossment | Single embossment,double embossment ,steel to steel embossment | ||||||
Bottom roller of embossment | Felt roller, wool roller, glue roller. | ||||||
Unwinding stand | 1-3 layer please point the number of layers | ||||||
Calendering unit | steel to steel, steel to glue | ||||||
Pneumatic system | 3 air compressor,Min.pressure 5kg/cm2 Pa(prepare by customers) | ||||||
Power | 4.5-11 kw | ||||||
Overall size (mm) (L×W×H) | 6200x2600x1800mm | ||||||
Weight | 1800-4800kg | ||||||
Option (pay be customer ) |
| ||||||
Embossing unit | Single embossment, double embossment, steel to steel embossment | ||||||
Bottom roller of embossment | Felt roller, wool roller , glue roller | ||||||
Unwinding stand | 1-3layer | ||||||
Edge embossment | Need to order | ||||||
Calendaring unit | steel to steel, steel to glue | ||||||
Trimming unit | Vacuum adsorption trimming 1.5KW | ||||||
Trimming and sealing | Need to order | ||||||
Driving system | Frequency control | ||||||
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional manufacturer of: 1)Toilet Paper Machine 2)Facial Tissue Machine
3)Napkin Paper machine 4)Hand Towel Paper Machine 5)Pocket Tissue Machine
6)All kinds of Tissue Paper Cutting and Packing Machine and another Household Paper Equipments Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
