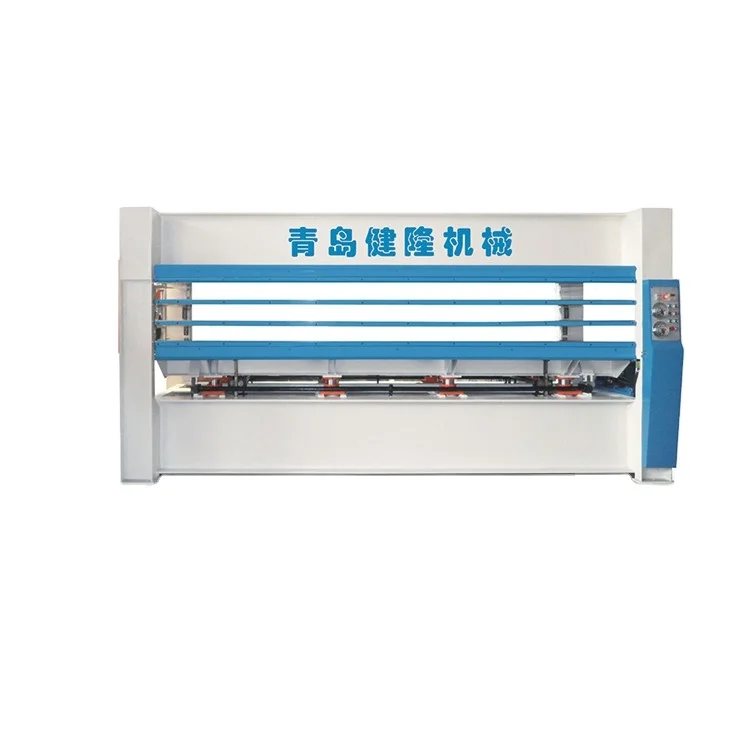

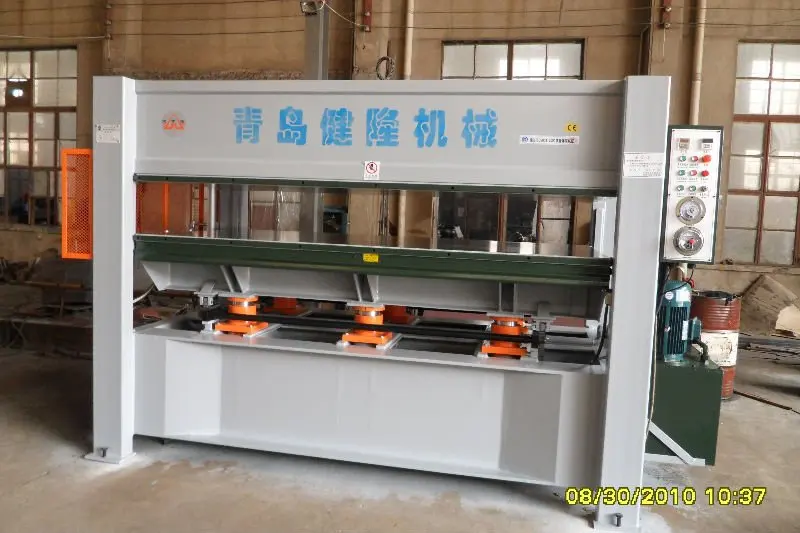

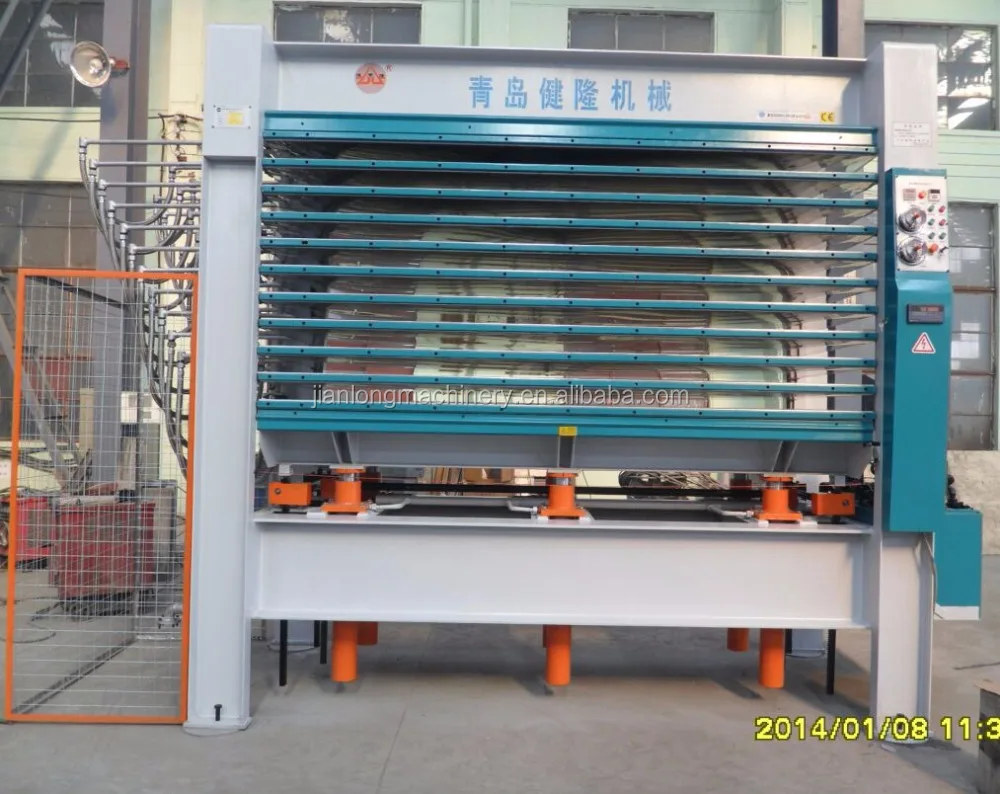

2020 new popular customizablel simpler operation CE hot press for sticking veneer mechine

Model

BY214x8/20(8)H

Total pressure

200ton

Feeding direction

Transversal

Dimension of hot platen

2500x1300x42mm

Number of layers

8

Number of platens

9

Opening

100mm

Diameter & stroke  of Oil cylinder

130mmx400mm

Number of cylinders

6

Low pressure pump flux

63L/min

High pressure pump flux

2.5L/min

Heating medium

Steam or thermal oil

Frame structure

Composite

Working pressure of high pump

25Mpa

Total power

5.5Kw

Overall dimension (Approx)

3800x1500x2310mm

Net Weight (Approx)

12000Kg
