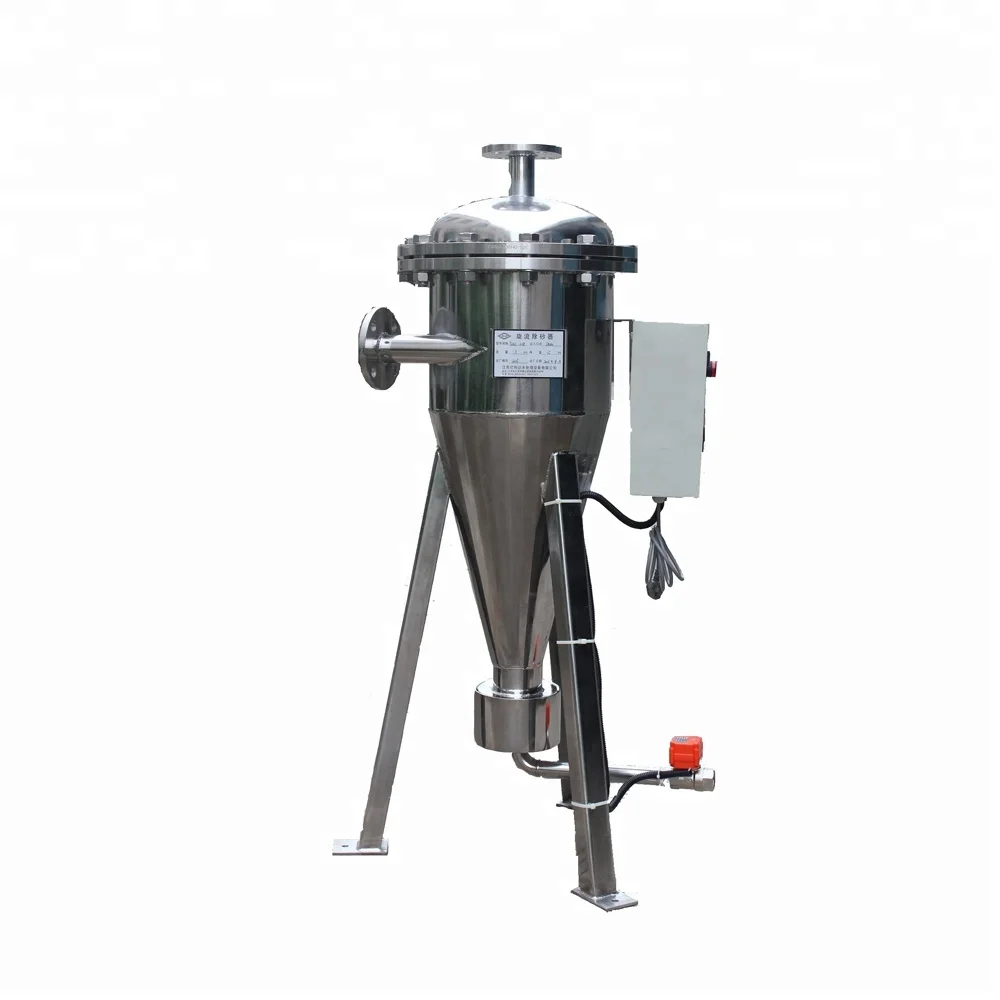

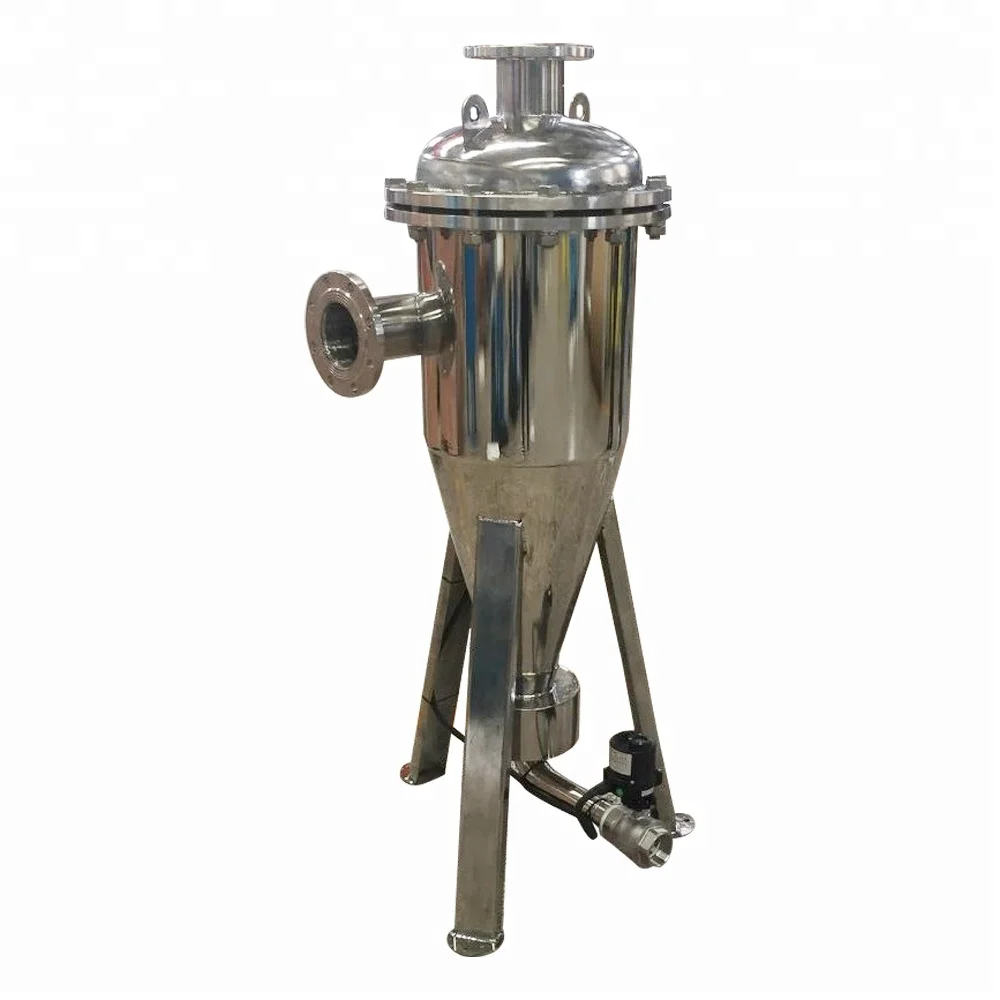

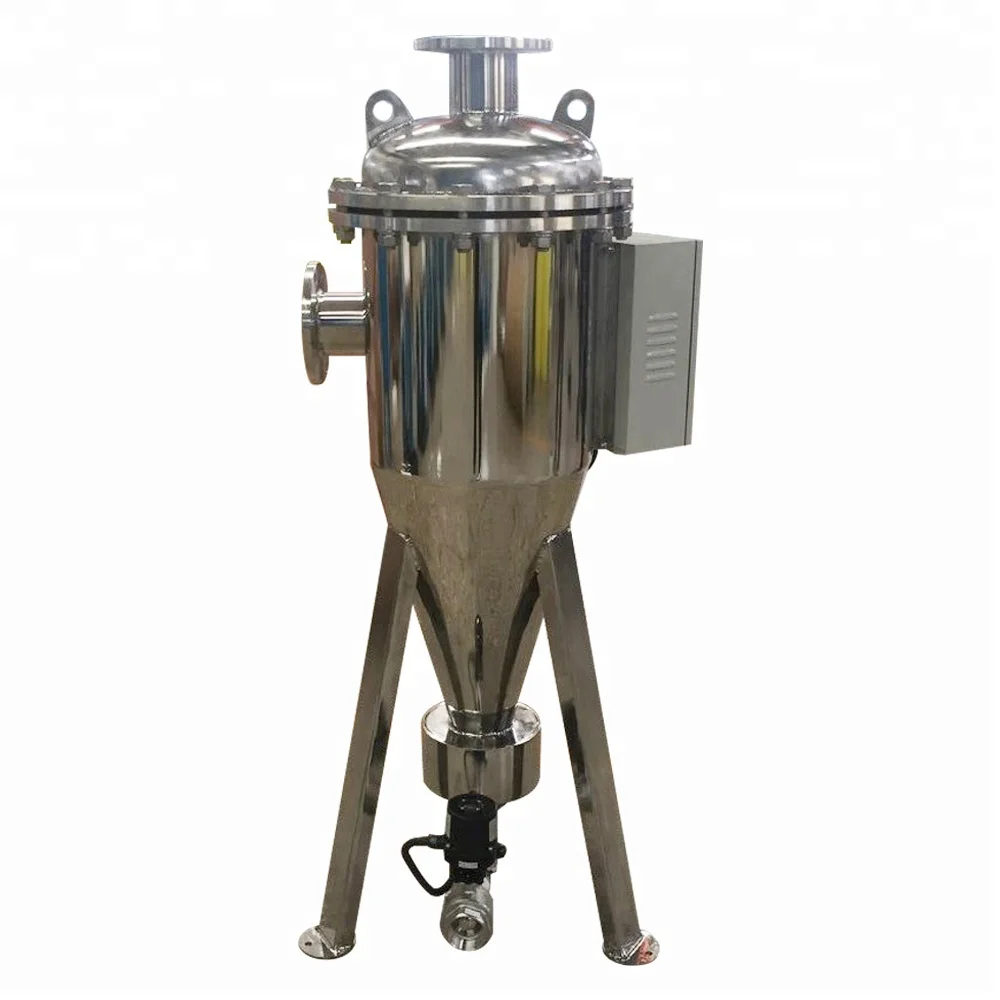

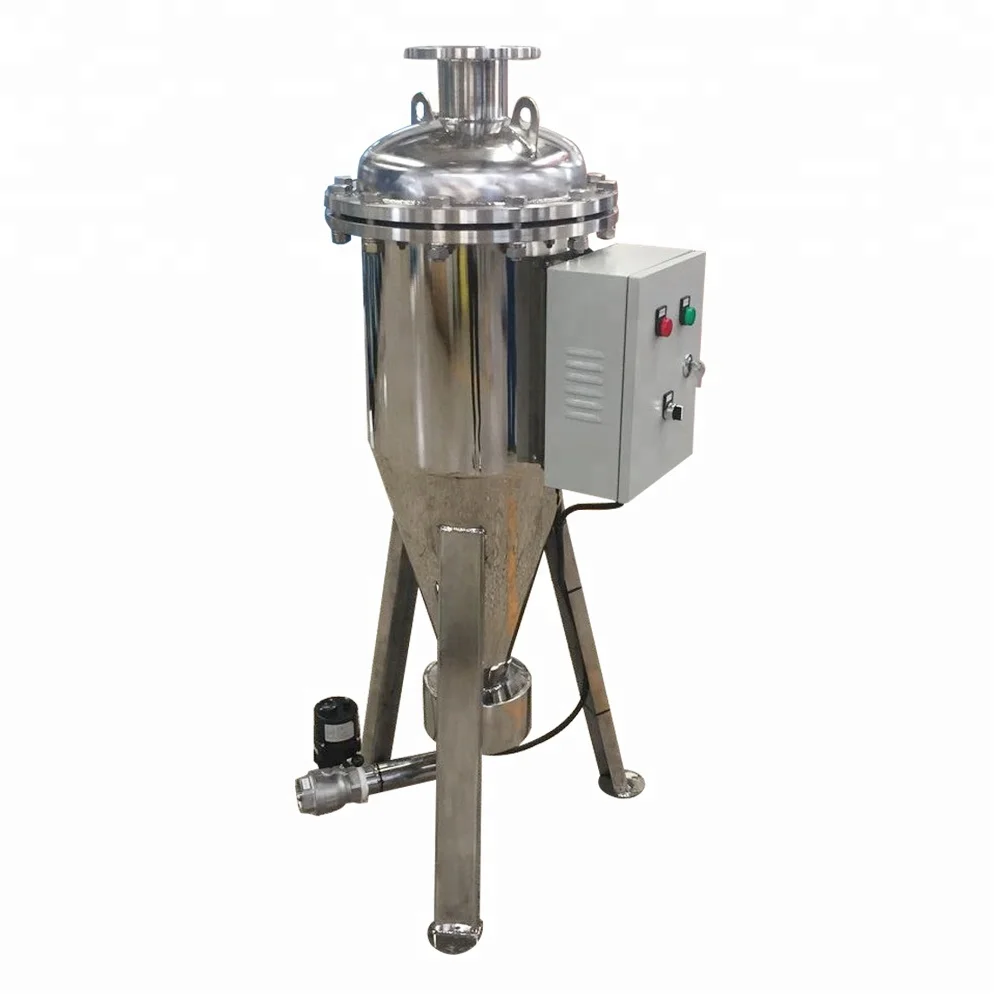

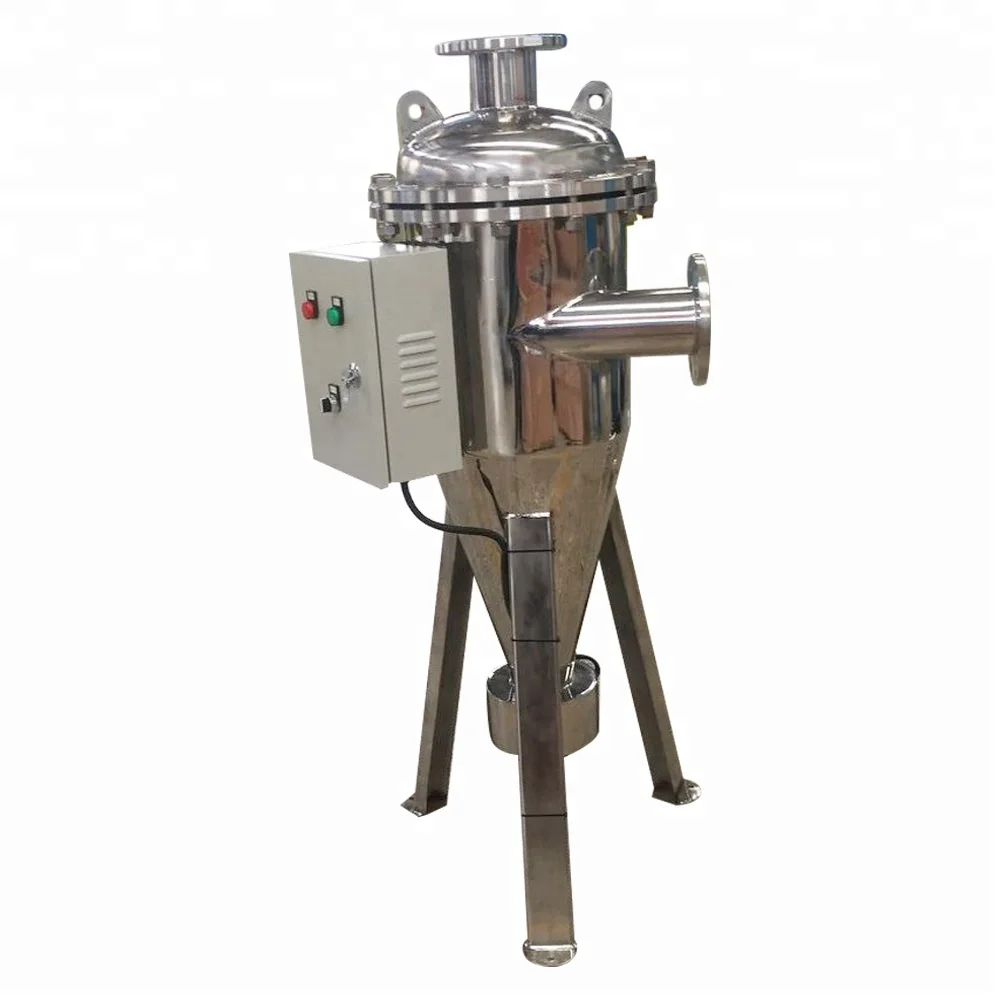

Stainless Steel Material Hydro cyclone Separates Sand Filter
Product Description
DESCRIPTION
A Hydrocyclone separates sand and other solid matter from water with very little head loss and 90% or better efficiency.
There is no head loss build up and no clogging when the solids are separated. Hydrocyclones are easy to operate and maintain, and have no moving parts or screens.
Versatility in system configurations and ease of installation are some of its great advantages.
A Hydrocyclone uses a tangential injection flow process, enhancing the centrifugal forces and moving solid particles outwards.
The dispersed particles move downward in a spiral path into an underflow chamber (sedimentation tank) while clean liquid moves upwards to the center of the spiral, towards the top outlet.
The dispersed particles move downward in a spiral path into an underflow chamber (sedimentation tank) while clean liquid moves upwards to the center of the spiral, towards the top outlet.
A specially designed rubber insert protects the neck of the Hydrocyclone from erosion and increases separation efficiency.
The Sedimentation Tank can be drained automatically with an automatic flushing kit (an electric valve, controller and small command filter).
Automatic flushing will not interfere with the proper functioning of the Hydrocyclone.
The Hydrocyclone has a 100 micron protective coating of extra durable polyester applied electrostatically and oven cured on a zinc-phosphate layer for maximal anti-corrosion protection.
The Sedimentation Tank can be drained automatically with an automatic flushing kit (an electric valve, controller and small command filter).
Automatic flushing will not interfere with the proper functioning of the Hydrocyclone.
The Hydrocyclone has a 100 micron protective coating of extra durable polyester applied electrostatically and oven cured on a zinc-phosphate layer for maximal anti-corrosion protection.
OPERATION
Based on the centrifuge principle, the particles are spun against the outside wall of the Hydrocyclone and gravitate
towards the bottom into the Sedimentation Tank. The velocity at which the water flows through the Hydrocyclone
determines the efficiency at which the particles are separated from the water.
Normal working conditions are achieved when headloss on the Hydrocyclone is not less than 3 psi with a
recommended range of 3-8 psi.
A headloss of less than 3 psi will reduce the separation efficiency and a headloss of more than
8 psi might induce increased erosion.
The Hydrocyclone is designed for a maximum recommended working pressure of 120 psi and should not exceed
150 psi.
Scope of application

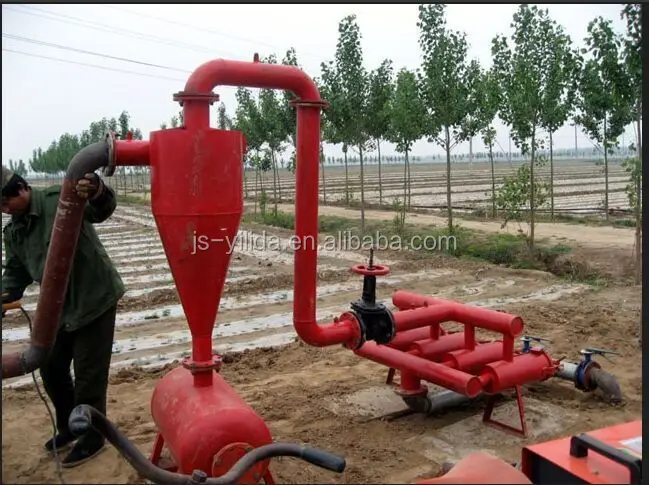

1. Mainly applied to water quality treatment and control for the raw water and water supplying, such as: river water, well water desanding, coal washing water, mineral separation, solid-liquid separation, gas and liquid immiscible liquid separation.
2. It can be widely applied to the water source heating pump system, a heating water, central air conditioning cooling water, chilled water, steel, power, chemical and other industrial and mining enterprises, tap water, sea water, surface water, ground water.
Product characteristics:
1.No energy consumption, good sand removing effect, especially suitable for sand content higher system using.
2.Low cost, convenient installation and operation, safe and reliable operation, small size, processing a large quantity of water, small occupied area.
MAINTENANCE
Apply a layer of grease to handle threads once a year.
Immediately repair any damage to the tank's protective coating.
FAQ:
1. What is capacity(m3/h or gpm)do you require?
2. What is the material do you want?--SS or carbon steel?
3. What is the operation do you want?---By manual or automatic?
Technical parameters for cyclone sand filter(type II)
| Model of sand filter | Flow rate (T/h) | Water inlet (mm) | Water outlet (mm) | Ø diameter of cylinder (mm) | A1 (mm) | B1 (mm) | B2 (mm) | H1 (mm) | H2 (mm) | H3 (mm) |
| YLXC–40I | 25 | 40 | 25 | 273 | 220 | 113 | 220 | 640 | 140 | 860 |
| YLXC–50I | 40 | 50 | 25 | 273 | 220 | 108 | 230 | 680 | 140 | 910 |
| YLXC–65I | 50 | 65 | 25 | 325 | 220 | 124 | 240 | 780 | 140 | 1030 |
| YLXC–80I | 60 | 80 | 40 | 325 | 220 | 118 | 250 | 830 | 180 | 1095 |
| YLXC–100I | 100 | 100 | 40 | 377 | 220 | 134 | 260 | 920 | 200 | 1205 |
| YLXC–125I | 160 | 125 | 50 | 377 | 320 | 122 | 300 | 980 | 200 | 1310 |
| YLXC–150I | 200 | 150 | 50 | 478 | 380 | 150 | 360 | 1010 | 200 | 1410 |
| YLXC–200I | 250 | 200 | 50 | 620 | 440 | 200 | 430 | 1065 | 200 | 1550 |
| YLXC–250I | 300 | 250 | 65 | 720 | 500 | 225 | 520 | 1170 | 200 | 1750 |
| YLXC–300I | 500 | 300 | 65 | 820 | 580 | 274 | 590 | 1375 | 250 | 1990 |
Note:
H1: Height from top to sewage outfall.
L: Distance between two supporting legs.
H2: Height from top to ground.
Packaging & Shipping
TO SHANGHAI NIBONG QINGDAO TIANJING GUANGDONG PORT
Our Services
We provide 24 hours online customer service.
Any inquiry about water treatment system, please feel free to contact me for further details!
Contact information:
Mobile phone: +86 13585066069
Email: yld AT jsyld.com.cn
Alibaba website: http://js-yilida.en.alibaba.com
Official website: WWW.zgyld.com
Guarantee period:1 year
After-sale service:800-827-87-226
