Product Overview
Description

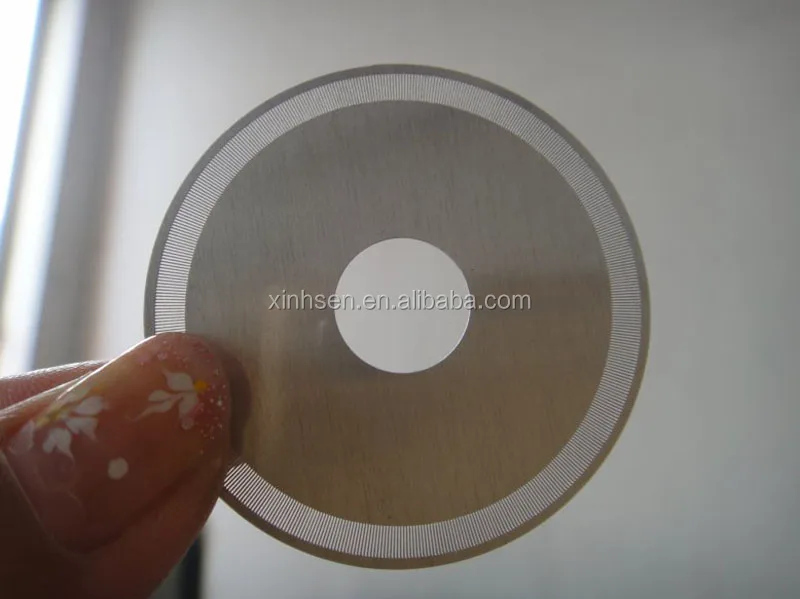

Metal photoelectric speed sensor encoder ring etch for motor
Product Description
Precision Encoder Disc for Motor:
We can provide different kinds of metal etching products according to the CAD drawings offered by client.
1. Product thickness can be achieved between 0.02 to 1.5mm.
2. Product size can be achieved between 1* 1mm to 700*600mm
3. Smallest open hole is Ø 0.02mm.
4. Smallest line width is 0.01mm.
5. Product precision is +/_ 0.005mm (common difference). It's generally 20% of material thickness
Etching Process:
Film(CAD output) →get the materials ready→Pre-treatment→DRY FILM(Lamination) →Exposure→Developing→Drying→Etching→Stripping → Checking,Packing,Delivery
Characters:
Precision Etching, Smooth Surface on Both Edges, No Embossment, No Convexconcave, No Burnisher Burr , No Warping, Any Complicated Pattern or Geometric Figure is Available.
Tolerance we can achieve:
Thickness below 0.2 mm, tolerance can be controled in +/-0.015mm
Thickness below 0.5 mm, toleracne canbecontroled in+/-0.05 mm

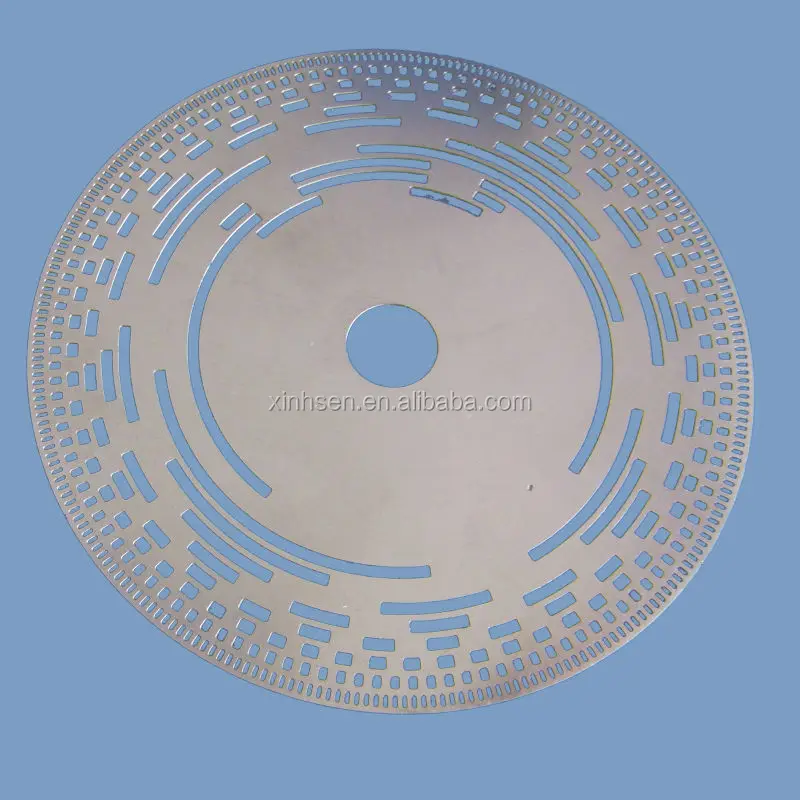

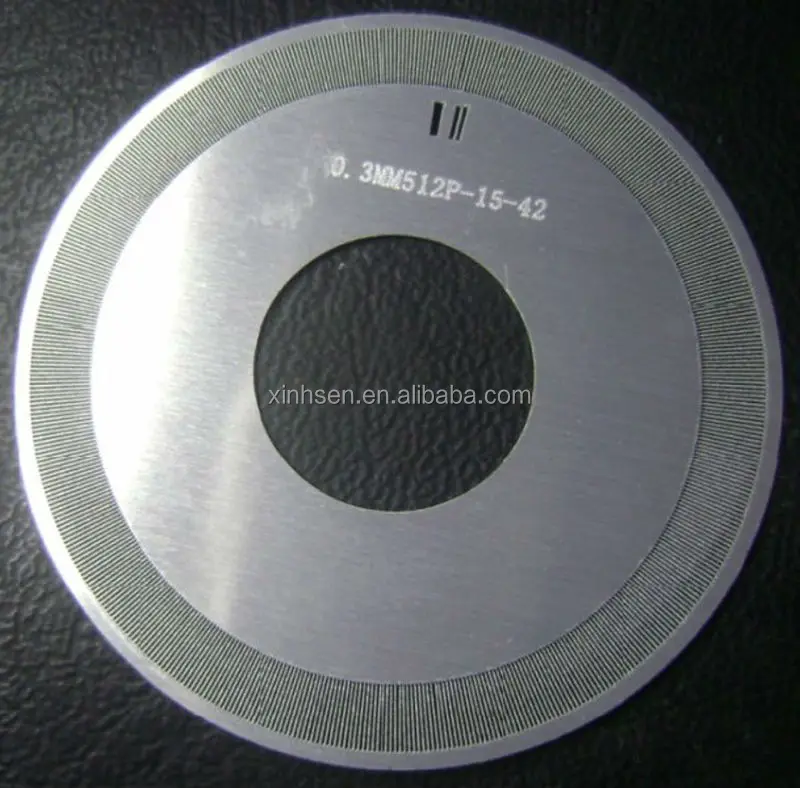

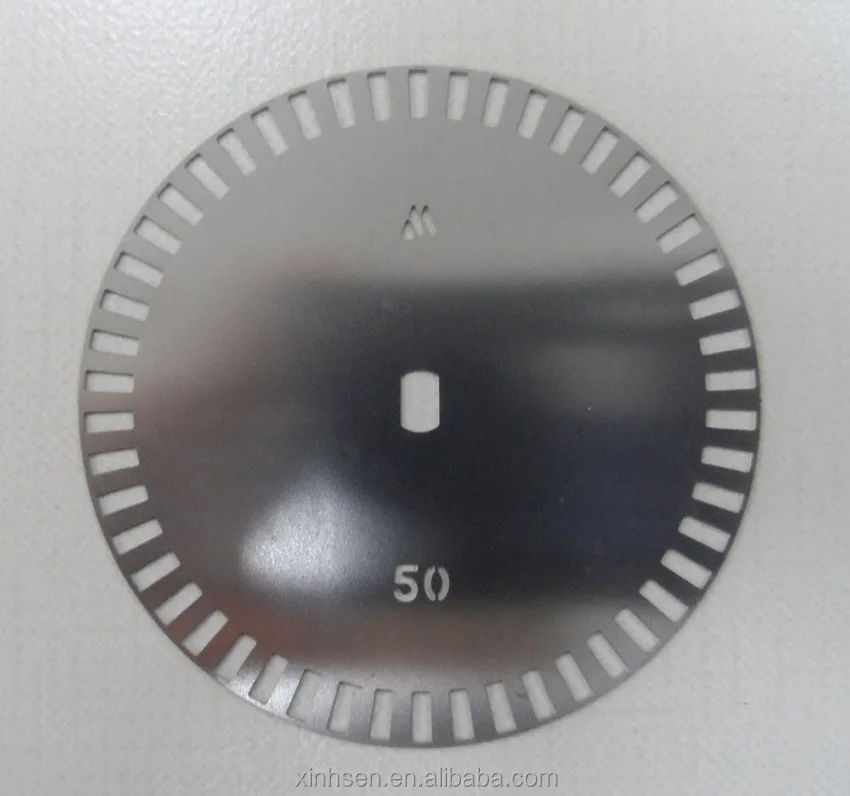

Encoder Disc
1. Low cost for samples
2. Customized product
3. Can achieve half etching
Specifications:
| Material | Stainless Steel, Brass, Bronze, Copper, Hardened Metals, Precious Metals and Aluminum alloy. |
| Thinkness | 0.02mm-1.5mm |
| Tolerance | +/_0.005mm |
| MOQ | Can be negotiated |
| Price | Negotiate, price quoted based on material, thickness, tolerance and your quantity |
| Place of origin | Shenzhen,Guangdong,China |
| Payment terms | 1)T/T, Paypal, Western Union 2) 30% deposit before mass production, balance before shippment |
| Features | 1. Low cost for molding; |
| 2. To achive metal half-etching; | |
| 3. High precision; | |
| 4. Products with complexed shape; | |
| 5. No burrs and integrated. |
Advantages:
1.Competitive price and most importantly quality control;
2.Modifications for machining flat complex metal parts would incur no tooling or set-up costs;
3. High precision metal etching process;
4. All the holes are clean, sharp, and burr-free with no heat affect zone;
5. Quality guarantee (ISO management);
6. No harmful to people, environment friendly products;
7. Strict inspection before despatch;
8. OEM and ODM welcome.

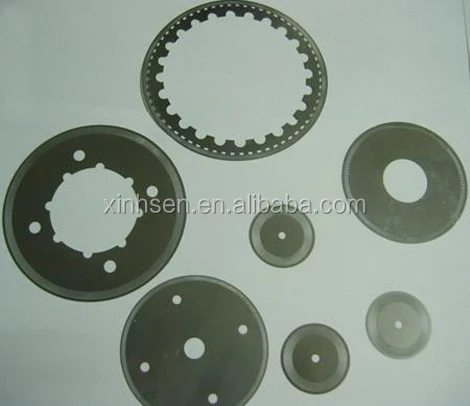

Products Show
Chemical etching product advantage:
1. Low Tooling Cost
2. Reduce Design Costs
3. Arbitrarily set LOGO and text
4.Quality guarantee( No burrs,No broken point, clean surface, Size precision)
5.High precision
