Product Overview

Description



 China supplier pellet carbonization furnace/vertical wood charcoal carbonization stove



1.   Introduction ------ wood charcoal carbonization machine :
      This wood charcoal carbonization machine is our new invention.The inner pot can be hanged outside which saves the cooling time , so the productivity increases a lot.It is the ideal choice for mass production.This type of furnace adopts the structure of unique air storage chamber, to fully reuse the smoke produced during the process of carbonization. 80% of the redundant smoke can be used in drying and carbonization which saves energy and increases the enterprise revenue.

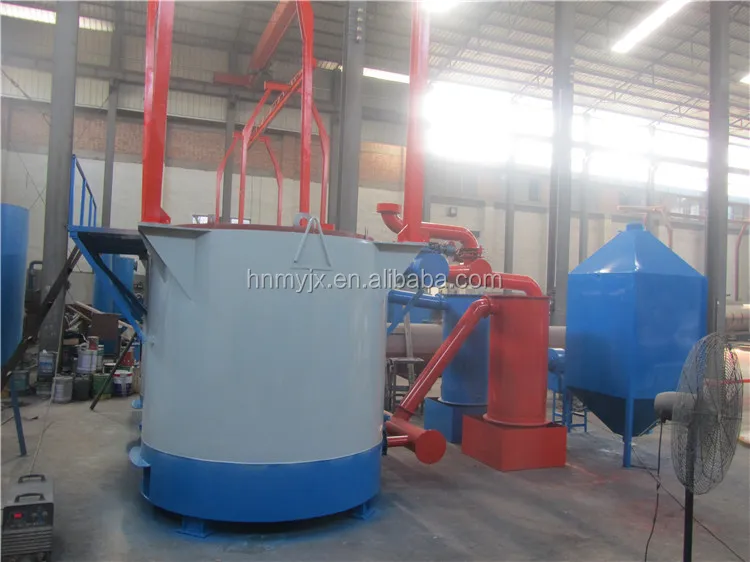

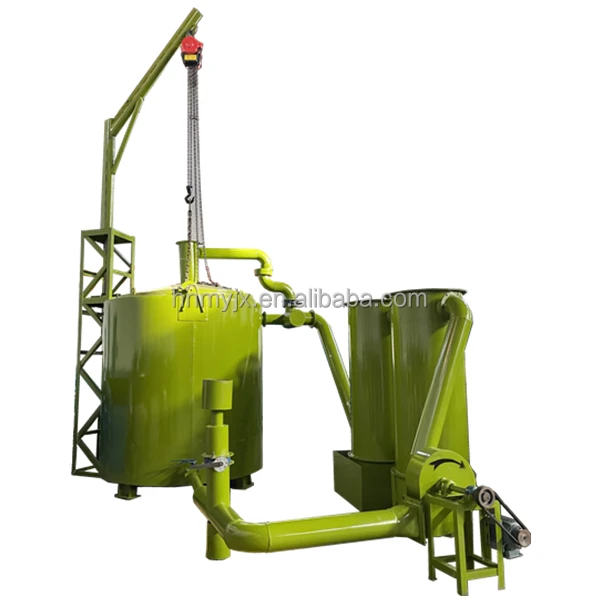

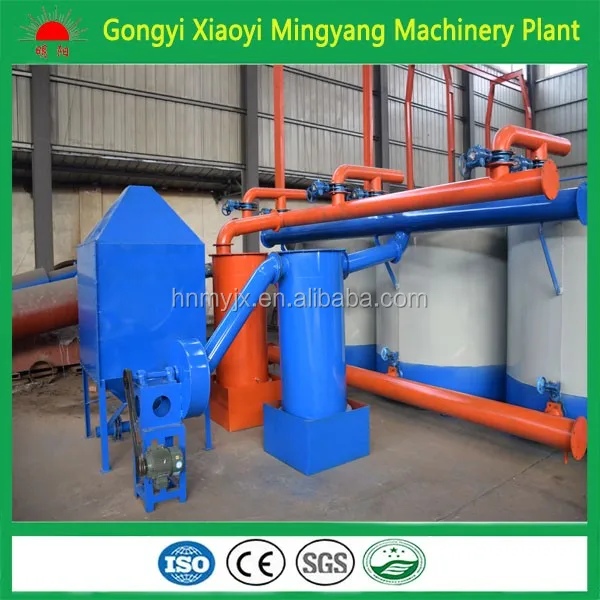

one stove :

two stove:

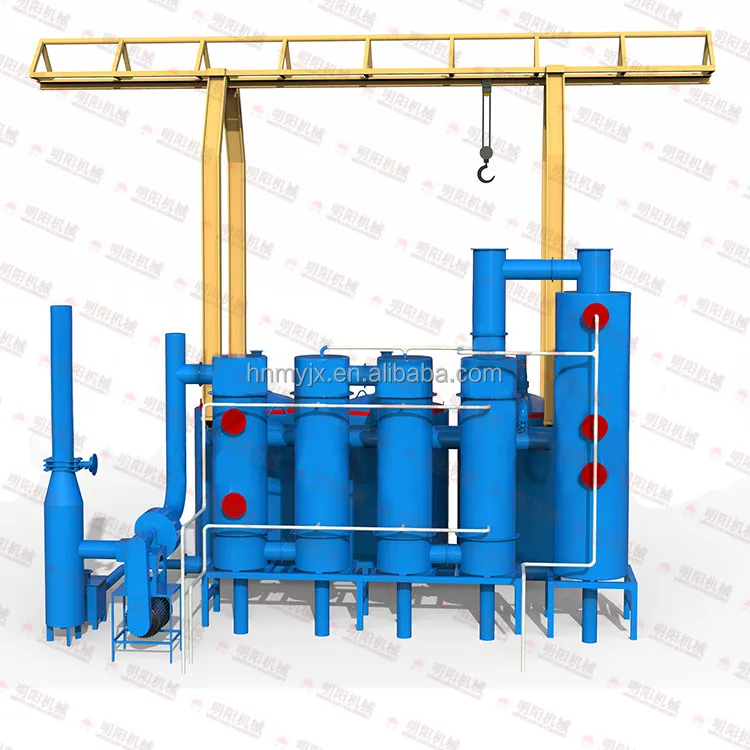

three stoves:



final products:



2.   The main parts ------ wood charcoal carbonization machine:

Inner stove:
Consist of the stove tank body and the sealed top cap. Both of them are made of the heat resistance thermal steel. , and the three carbonization basket can be stack together, easy for loading and transporting ,and it will save a lot of space and transport charge.

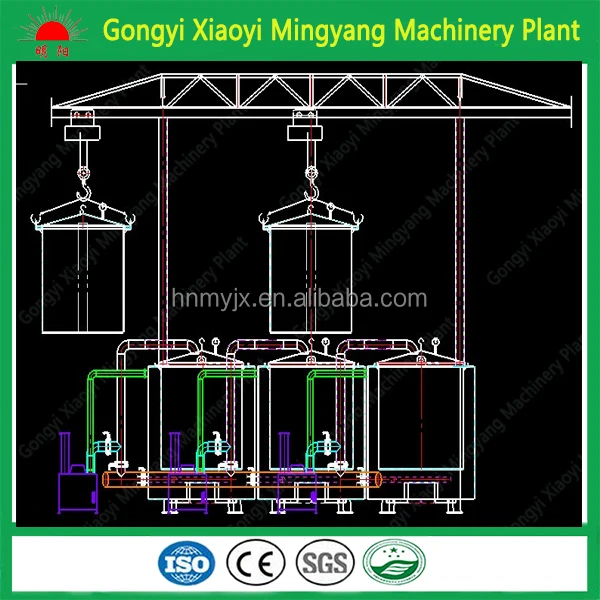

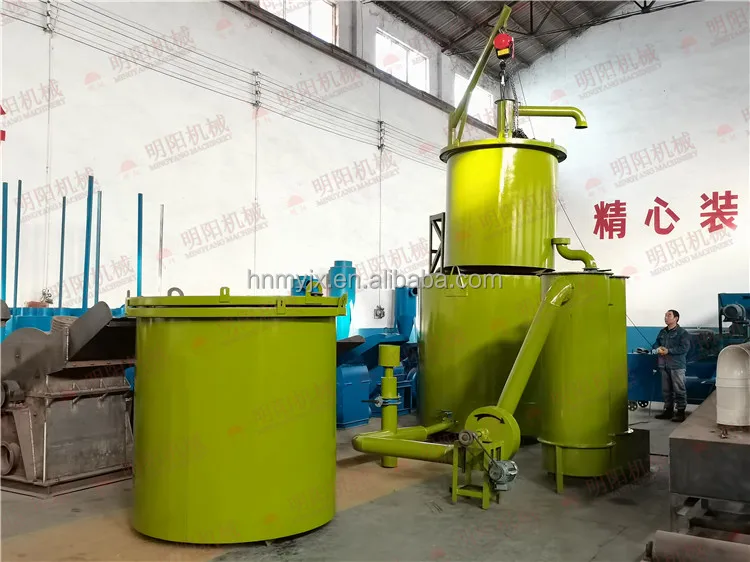

Hoisting equipment:
it include the steel hoisting frame and the E-hoist .And it is easy for loading and unloading the stove, and can reduce labor intensity, and it can be avoid the high-temperature burn when lift the carbonization basket.

Purification tank:
This system is consisting of purification tank and the exhaust-heated cycle pipe. And Smoking purification tank are used for purify the smoking (can not Burning) and filter thewood tar. The smoking through the purification tank will Become water vapor, and it will not pollute the air.

3.How to work----------- wood charcoal carbonization machine

When one inner stove have been finished carbonization, we will use the hoisting tools to hoist the inner stove out of the outer stove, then put down the inner stove on earth for natural cooling,  at the same time, we can put another inner stove into the outer stove for the second carbonization,which will save a lot of time, so the productivity increase a lot, it is the ideal choice for mass production of charcoal.

4.The advantage-----wood charcoal carbonization machine

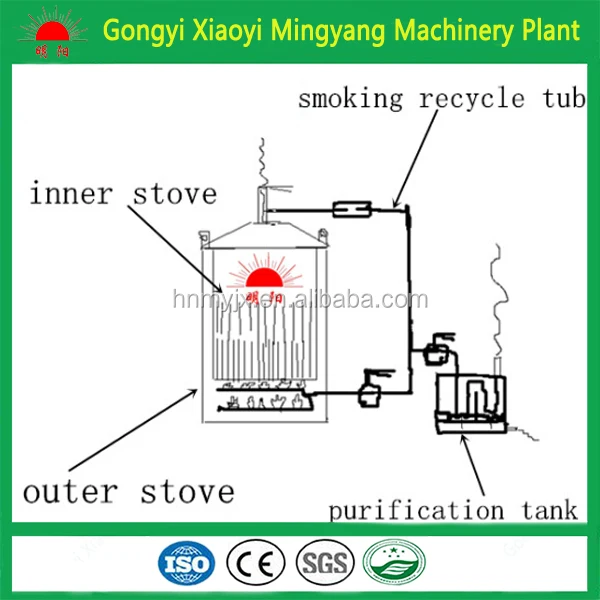

why there is no smoking no pollution ?
Smoking recycle tube: When during the process of carbonizing, there will be some smoke (can be burning) the smoke can return to the furnace through tube----no smopking .
Purification tank: It used for purify the smoking (can not Burning) and filter the wood tar. The smoking through the purification tank will Become water vapor, and it will not pollute the air.-----no pollution.
So it is very good for environment, energy saving,high carbonization rate.





The main parameter-------- wood charcoal carbonization machine :

We have two types of carbonizaiton stove,one is traditional type and the other one is air flow type.

The data of the air flow ones:

model	capacity	inner volume	temperature	machine include
QHL-1	1.5-2t/24h	2.75*3	400-600degree	1outer stove, 3inner stoves with 3 caps, one 3ton lifting device, 1smoking tank
QHL-2	3-4t/24h	2.75*6	400-600 degree	2 outer stove, 6 inner stoves with 6 caps, one 5-ton hoisting equipment with e-motor, 1smoking tank
QHL-3	4.5-6t/24h	2.75*9	400-600 degree	3 outer stove, 9 inner stoves with 9caps, one 5-ton hoisting  equipment with e-motor, 1smoking tank
QHL-4	6-8t/24h	2.75*12	400-600 degree	4 outer stove, 12 inner stoves with 12caps, one 5-ton hoisting  equipment with e-motor, 4smoking tank

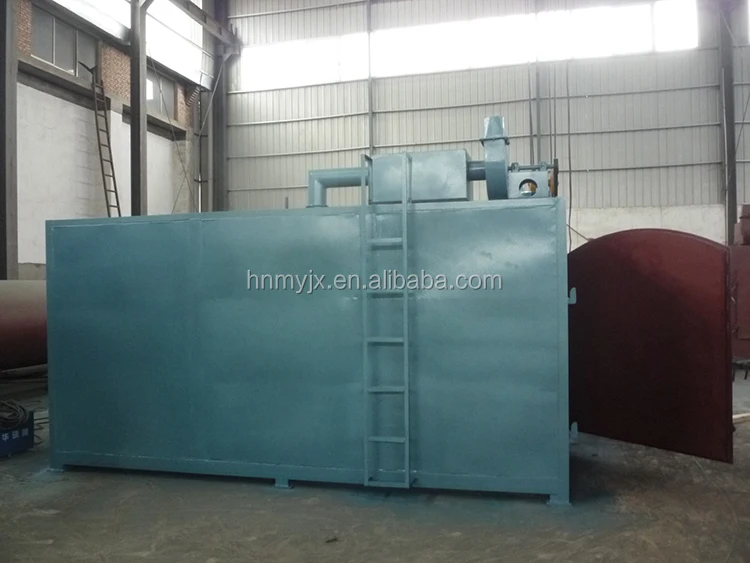

the data of the traditional ones:

Carbonization furnace	Size(m)	Volume,m3	Capacity,	Power   kw	Temperature  in the stove, ℃
THL--1	2.2x1.8x2.2	3	0.8-1ton/24hrs	1.5	420-480
THL-2	2.4x1.8x2.2	5	1.5-2.0ton/24hrs	1.5	420-480
THL-3	3x2.0x2.2	6	2-2.5ton/24hours	1.5	420-480





The pre-sales service:
To provide you with the project and process design, make suitable plan for you, or design and manufacture the products according to your special needs.
The sales of service:
To accompany you to complete the equipment inspection and acceptance, assists to draft the construction scheme an detailed process.
The after-sales service:
Our company could send the engineer to guide the installation of equipment and the commissioning of the machine.



Why should you choose us
1, Our factory has been set up for 26 years, and we have a lot of professional technological people to service for you at any time;
2, We can design and manufacture machine for you according to your special requirements;
3, You can find the best price from here, because we are the factory, and we are factory directly sales;
4, Our company will free of charge to arrange technical personnel to training you until you have no question about it;
5, We promise you timely and effective service once you need us.
