Neofibo MU DX communication fiber optic connector duoplex fiber patch cord connector optical fiber connector
- Category: >>>
- Supplier: Shenzhen Neofibo Technology Limited
Share on (60371827767):
Product Overview
Description

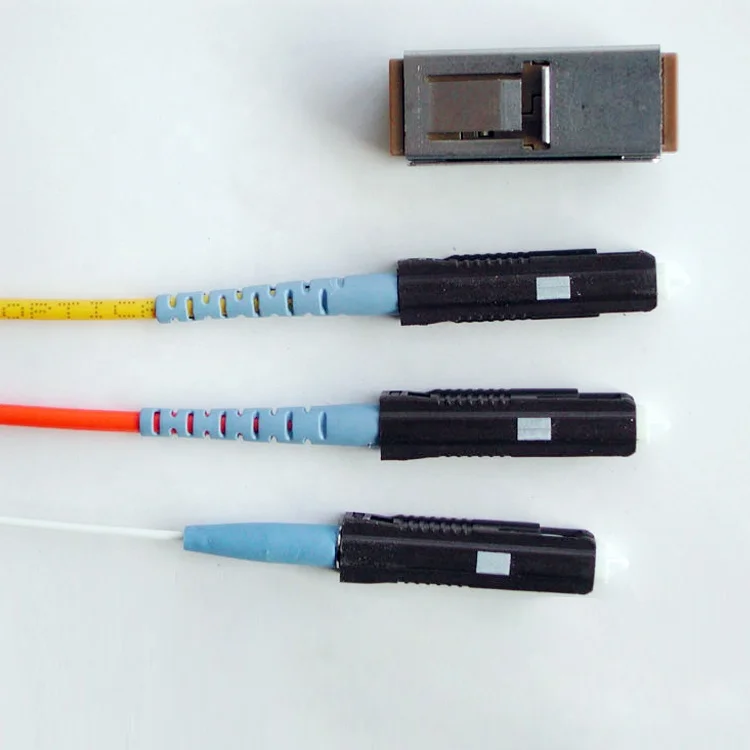

Neofibo MU DX Connector communication fiber patch cord connector optical fiber connector

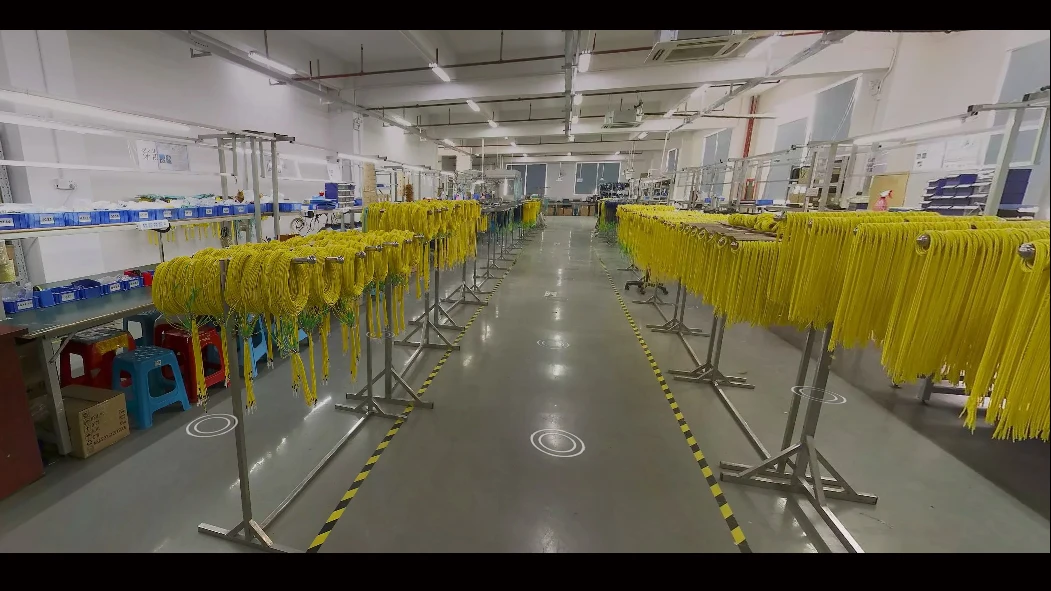

3D reality showroom of our factory↓
VR
Neofibo : Your Reliable Supplier
① Can provide you with reliable polishing solution；
② 15+ year Manufacturing Experience for OEM/ODM polishing program；
③ Independent research and development patent - Neoholder®；
④ Products have CE, ISO9001, ROHS certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,50 units in stock；
⑧ 30 days quality problems can be returned；
⑨ Free polishing film sample.
Products Description
Key Features:
> Low insertion loss and back reflection loss;
> Ferrule end surface predomed;
> Precision anti-rotation key and corrosion resistant body;
> UL-rated plastic housing;
> Boots in a variety of colors;
> Telcordia style boots;
> Free-floating ceramic ferrule
> Precision anti-rotation key and corrosion resistant body;
> UL-rated plastic housing;
> Boots in a variety of colors;
> Telcordia style boots;
> Free-floating ceramic ferrule
Applications:
*CATV
*Active device termination
*Telecommunication networks
*Metro
*Local Area Networks (LANs)
*Data processing networks
*Test equipment
*Premise installations
*Wide Area Networks (WANs
*Active device termination
*Telecommunication networks
*Metro
*Local Area Networks (LANs)
*Data processing networks
*Test equipment
*Premise installations
*Wide Area Networks (WANs
Availability:
The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Clips are available for duplex connectors.
Housing kits without ferrule are available.
Clips are available for duplex connectors.
Housing kits without ferrule are available.
Specification
Specification: | ||||||
Paramter | Singlemode(PC) | Singlemode(APC) | Multimode (PC) | |||
Insertion loss | ≤0.2 dB | ≤0.2dB | ≤0.2dB | |||
Return Loss | ≥50 dB | ≥65 dB | ≥35 dB | |||
Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ | |||
Order Information: | ||||||||
Part Number | Description | Color | Boot Dia (mm) | Type | ||||
MU-UPC-BL-DX | MU UPC Duplex Single Mode Connector | Blue | 0.9/2.0/3.0 | SM | ||||
MU-APC-GR-DX | MU APC Duplex Single Mode Connector | Green | 0.9/2.0/3.0 | SM | ||||
MU-UPC-BG-DX | MU UPC Duplex Multi Mode Connector | Beige | 0.9/2.0/3.0 | OM1/OM2 | ||||
MU-UPC-AQ-DX | MU UPC Duplex Multi Mode Connector | Aqua | 0.9/2.0/3.0 | OM3 | ||||
MU-UPC-MG-DX | MU UPC Duplex Multi Mode Connector | Magenta | 0.9/2.0/3.0 | OM4 | ||||
