Stainless Steel 304 316 Universal Coupling
Stainless Steel 304 316 Universal Coupling
Stainless Steel 304 316 Universal Coupling
Stainless Steel 304 316 Universal Coupling

Stainless Steel 304 316 Universal Coupling

Share on (60372190043):


Price:$6.00

Quantity:


Product Overview

Description

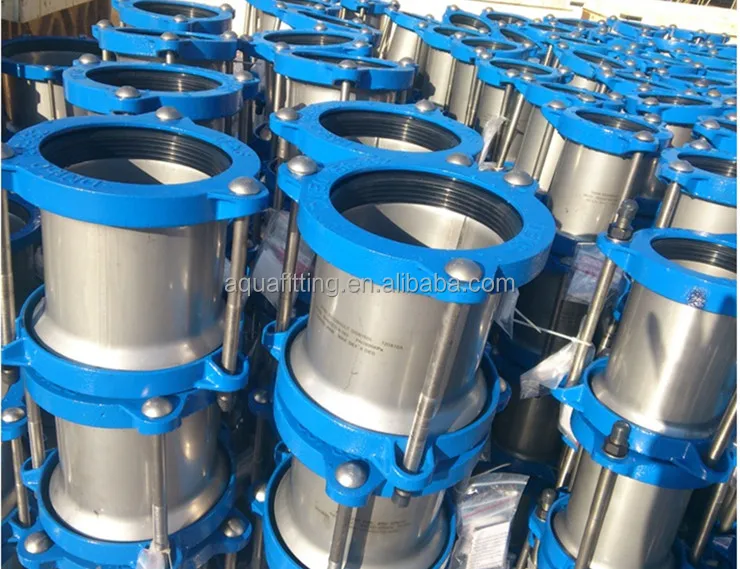

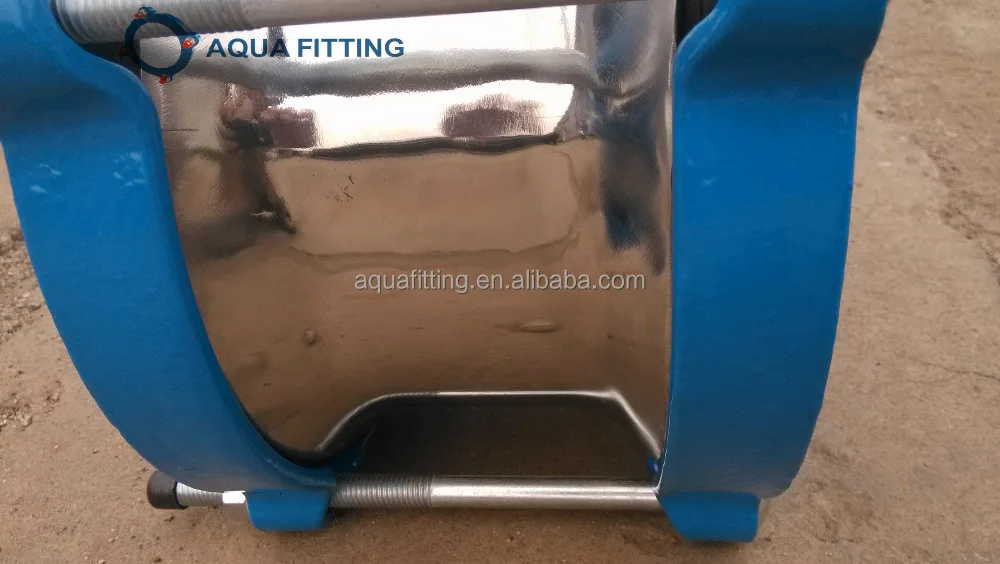

 STAINLESS STEEL UNIVERSAL COUPLING






  • APPLICATION


 Universal coupling is also called wide range coupling, tolerance range coupling .


 It can fit most standard pipe materials and therefore dramatically reduces the stocks of dedicated couplings


 It is suitable for steel , GRP, PVC, PE, Ductile Iron , Cast Iron and Asbestors Cement pipes.


 Size from DN40-DN600






  • PRESSURE


 PN10, PN16, PN25. Flange according to ISO2531/ EN545,/EN1092






  • MATERIAL





























Body





      Stainless Steel 316

Gland





      Ductile Iron  GGG50/40

 Gasket





      EPDM according to EN681-1

 Bolt &Nut





     Galvanized carbon steel / hot dip galvanized steel/dacromet coating steel 4.8/8.8 grade / stainless steel

 Coating





     Fusion boned epoxy more than 250 micron/ Rilsan Nylon





  • SPECIFICATION

  • coupling






MN(A9YB1P{}F(Q%8DM}ID










  • TEST STANDARD


1. Mechanical and  Chemical Test





















2. Pressure Test


Test pressure shoud be more than 1.5 times than the working pressure level.













3. Visual Test





The suface of product  should be smooth, no pores, no bears.


The thinkness of coating should be more than 250 micron.B%S2%BESMY)AD(4DK17$UO1.png









  • PLANT VIEW





















OUR MAIN PRODUCT LINE
















CONTACT DETAILES:


WEB:www.aquafitting.com


EMAIL: info "at"aquafititing.com


TEL: 86 41182710530


SKYPE: audrey19909
