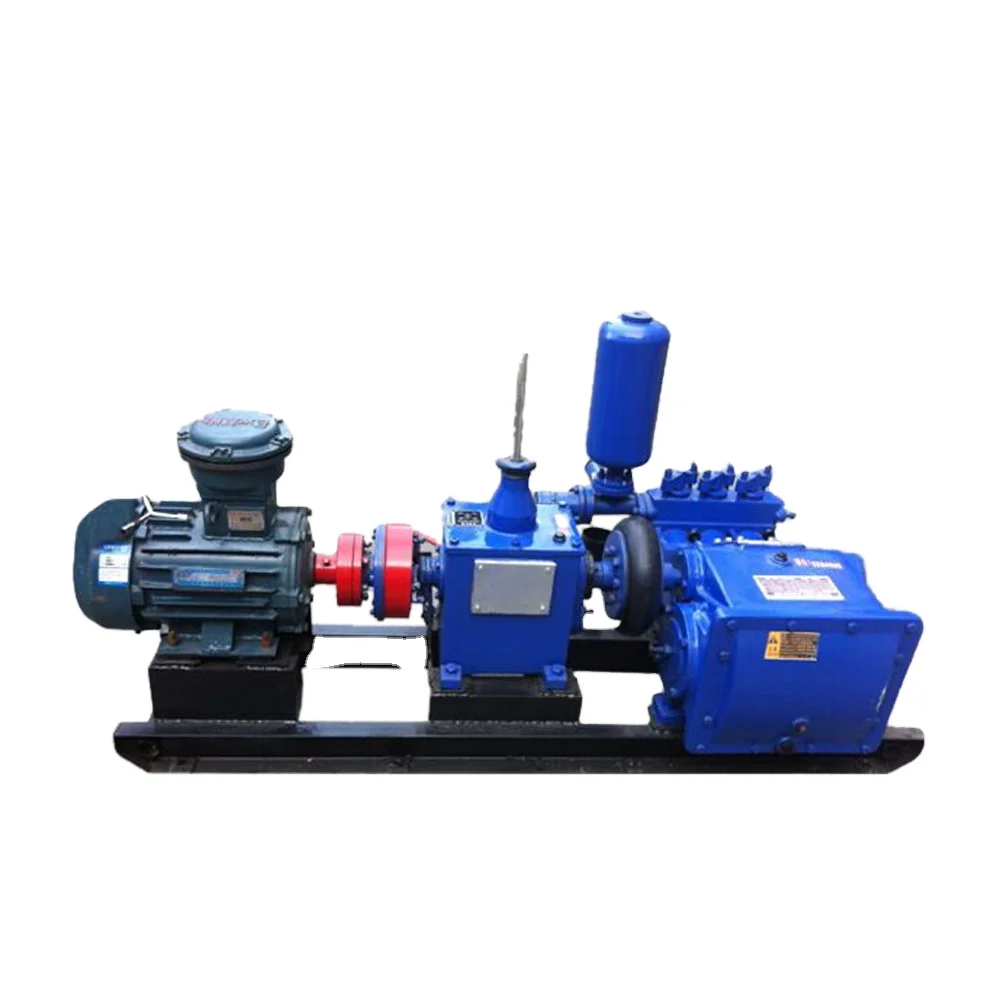

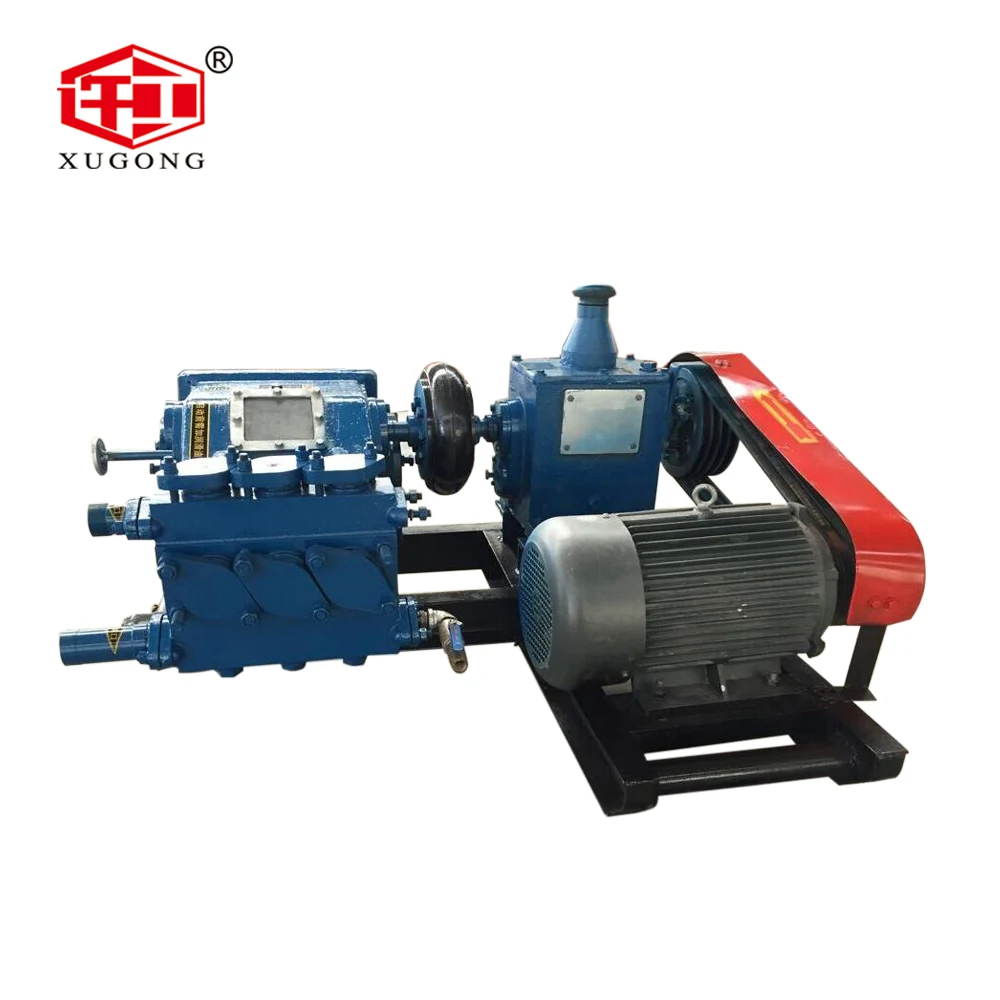

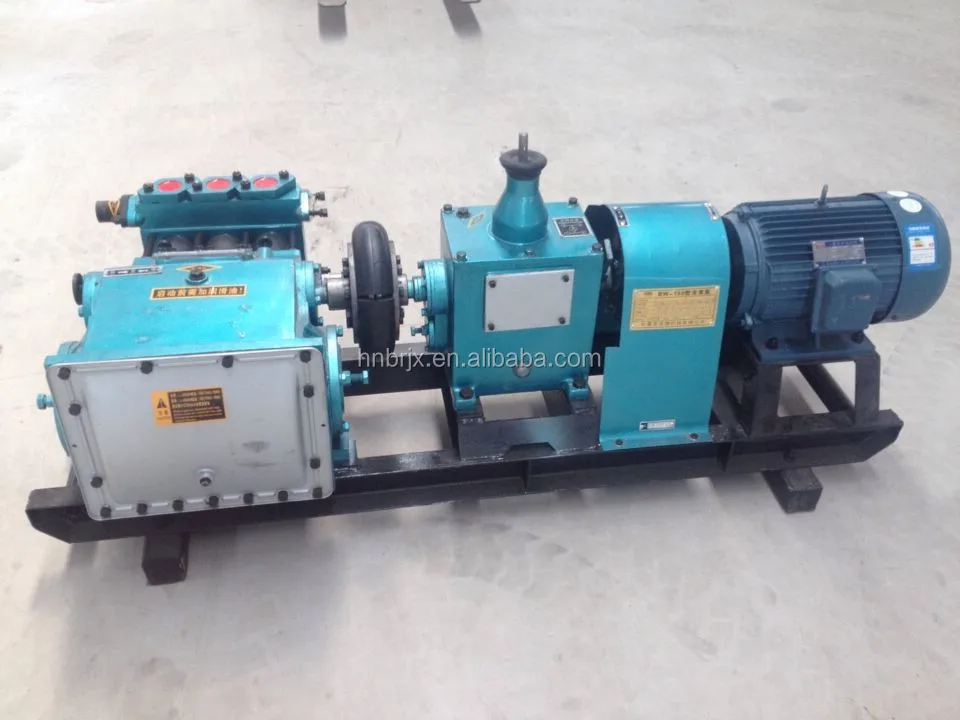

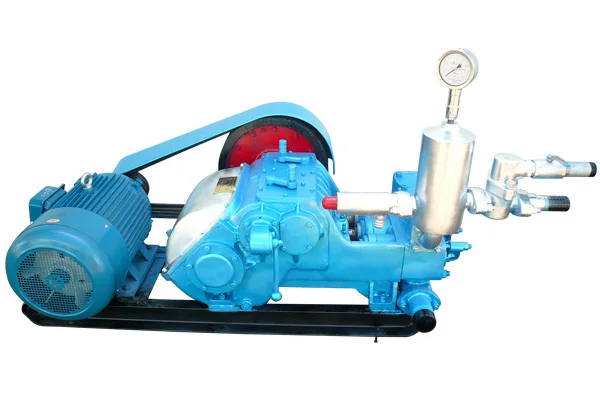

China Slurry BW150 BW250 BW320 High Pressure Mining Hydraulic Drilling Mud Pump

Product Overview

Description



Product Description:

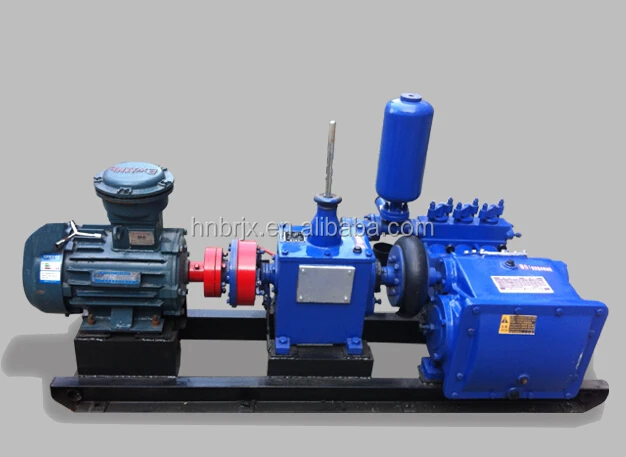

BW150 mud pump

BW150 mud pump is a horizontal triplex single acting reciprocating piston pump,it can be changed 8 different pressure and flow, the pump easy to operate, high quality and using life is longer, light weight,easy to move.
It is widely used in the geology,coal,construction,chemical industry,railway,oil and other industries.
1.it has four grades flow to meet large or small diameter drilling need,the adjustment scope is wide.
2.It is detachable and easy for maintenance and relocation.
3.It has a light weight and high efficient.

BW250 Mud Pump

It is used for conveying mud for drilling,emission of mine sewage and transporting water for long distance

1.it has four grades flow to meet large or small diameter drilling need,the adjustment scope is wide 2.pistons are bowl with nylon back,have a longer life
3.there are 5 antidust sealed rings to prevent mud entring machine.
4.Drain valve is made of steel ball
5.It is detachable and easy for maintenance and relocation .

BW320Mud Pump

BW320 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest

can be adjusted to the application,the deepest can be used with 1800meters drilling rig,it also can be used cement perfusion.

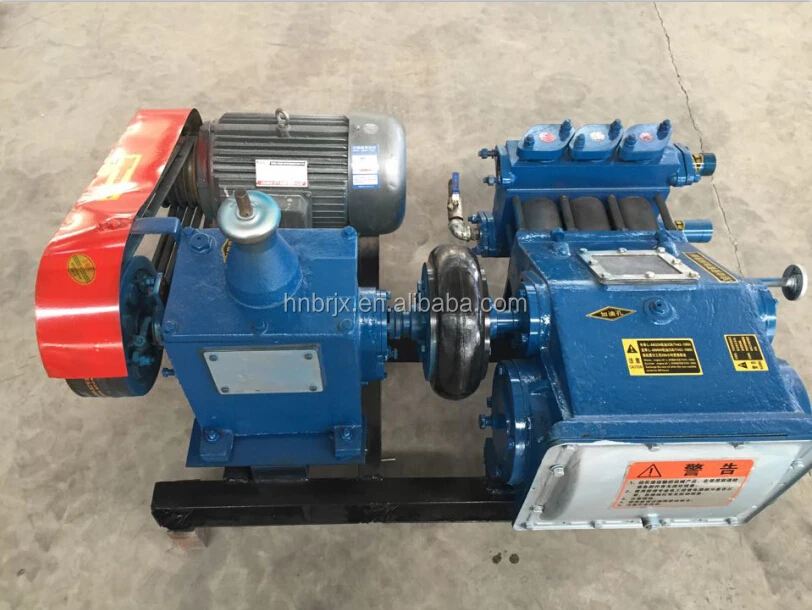

Product Show:

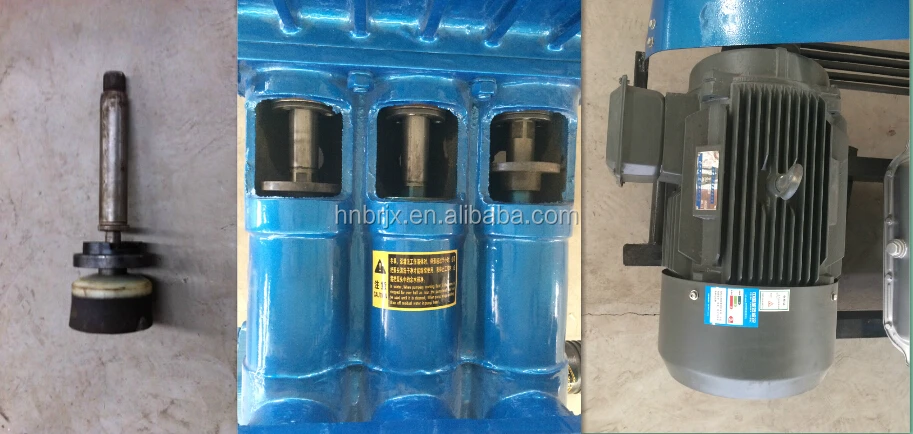

Detail:



Technical Parameters:





150:

Max Flow(L/min)	150
Max pressure(kg/cm3)	70
Power (KW)	7.5
Diameter of suction pipe(mm)	50
Diameter of discharge pipe(mm)	32
Weight(kg)	560
Stale	Triplex single role
Pump speed(chong/min)	47-232
Pressure (MPa)	1.8-7



250:

style	Triplex single role
Stroke	10 mm
Diameter of cylinder	80mm,65mm
Speed(chong/min)	200,116,72,42,200,116,72,42
Flow(I/min)	250,145,90,52,166,96,60,35
Pressure(MPa)	2.5,4.5,6.0,.0,64.0,6.0,7.
Volume rate%	85
Mechanical efficiency%	85
Total power%	70
Power(KW)	15
Input speed(r/min)	500
Max suction height	2.5m
Diameter of suction pipe	76mm
Diameter of discharge pipe	51mm
Dimension	1100mm*995mm*650mm
Weight	500kg



320:



max flow	320L/min
max pressure	100kg/cm2
power	30kw
Diameter Of Suction Pipe	75mm
Diameter Of Discharge Pipe	50mm
Depth Of The Hole(m)	Diamond<1800
	Alloy<1500
Weight	1000kg
Dimension(mm)	1280*855*750

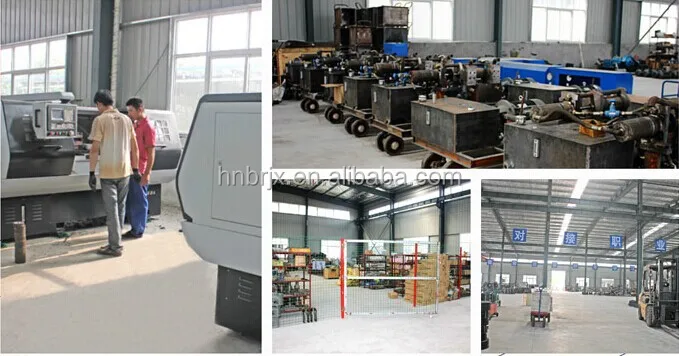

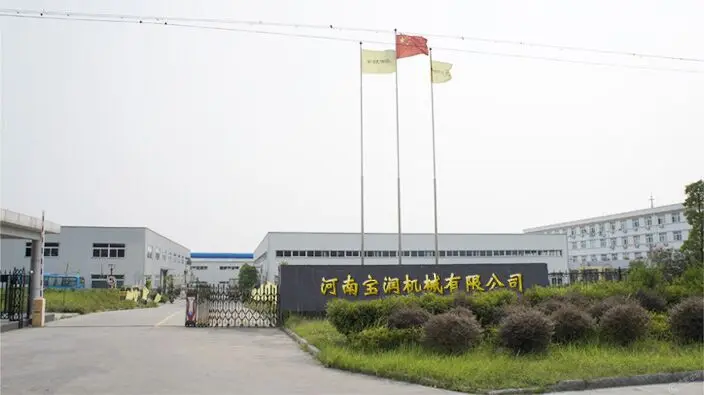

Factory Show:



QC


All machine accessories according to our 3 group to test the quliaty and inspect every finished
machine before go to our world agents and customers


Delivery time


In 5-8 days could get our standard machines.(motor:380v 50hz/60hz 3phases).If need supply our special

customised service,we could talk based on our trust and the quantity



Payment



100% T/T in advance according to our company rules.If we have the quesion we could talk,I also

could apply for u with best payment in special status.



Available shipment by



FOB Qingdao, Shanghai with world brand shippment cooperation company,for example Debon
Logistic



Our seivice



I. Normally the service life of our machines can be 1 years.

II. We offer 1 year Quality Warranty for our machines.



If you are free time ,welcome you visit our factory
