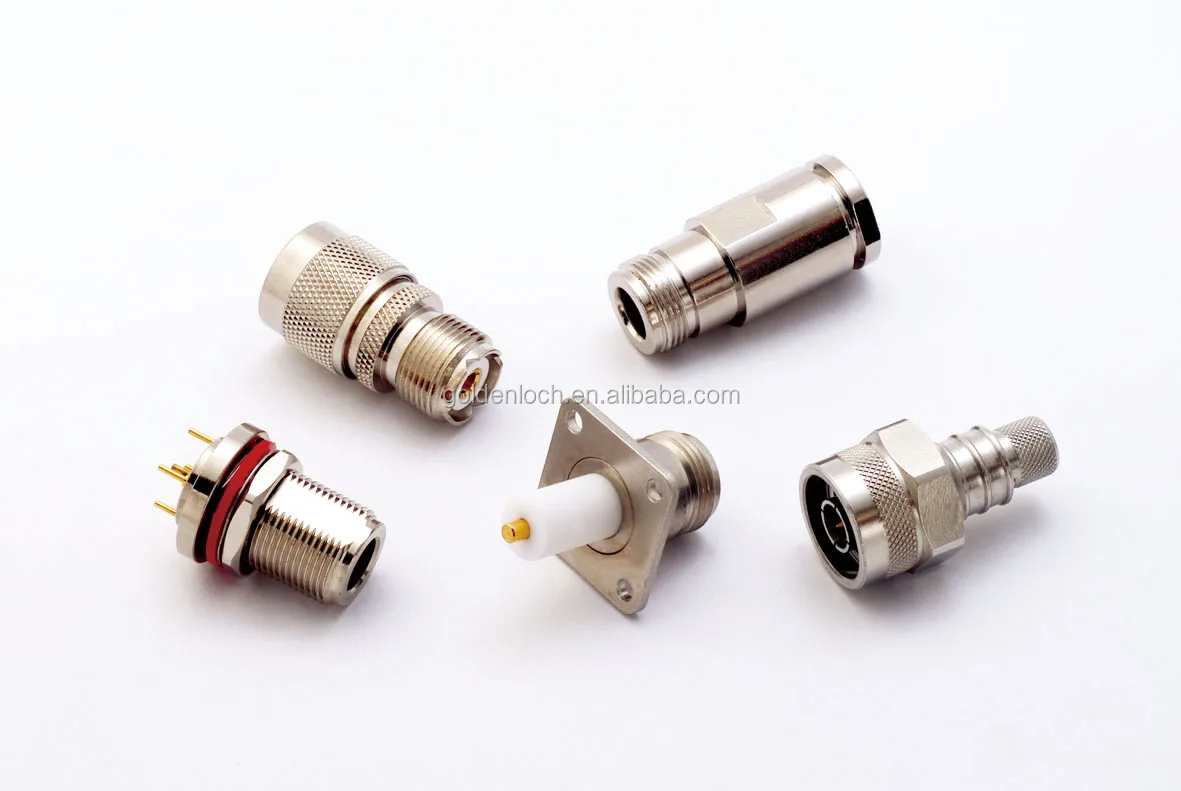

N Connector 4 Hole Flange Jack Exposed PTFE

Product Overview

Description

N Connector 4 Hole Flange Jack Exposed PTFE

1. ISO 9001 & IATF 16949 certified
2. RoHS & REACH compliant
3. Made in Taiwan





Features:

1. Accommodates a wide range of medium to miniature-sized RG coaxial cables
2. High mechanical strength, high durability with low VSWR
3. Threaded couplings ensures stability in vibration intensive applications

Applications:

1. Base Stations
2. WLAN
3. Instrumentation
4. Telecom
5. Radios

Electronical Specifications

Impedance	50Ω
Frequency Range	0-11 GHz
Working Voltage	1000 VRMS max. at sea level
Dielectric Withstanding Voltage	2500 VRMS min. at sea level
VSWR	Straight: 1.3 max.,  R/A: 1.5 max.
Contact Resistance	Center Contact: 3 milliohm Max.
	Outer Contact: 2 milliohm Max.
Insulator Resistance	5000 megaohms min.





Material Specifications

Parts Name		Material	Finish
Center Contact	Male	Brass	3u" Gold or Silver per requirement
	Female	BeCu	3u" Gold or Silver per requirement
Body, Metal Parts		Brass	Nickel or Silver per requirement
Insulators		PTFE	None
Clamp Gaskets		Silicone rubber	None
Crimp Ferrules		Annealed copper	Nickel or Silver per requirement



Note: Other Material/Finish is available on request
