Leroy Somer AVR R438 Automatic Voltage Regulator

Product Overview

Description



AVR Leroy Somer R438 Automatic Voltage Regulator (Replacement)



We provide good quality replacement model for Leroy Somer AVR R438 with very reasonable price!

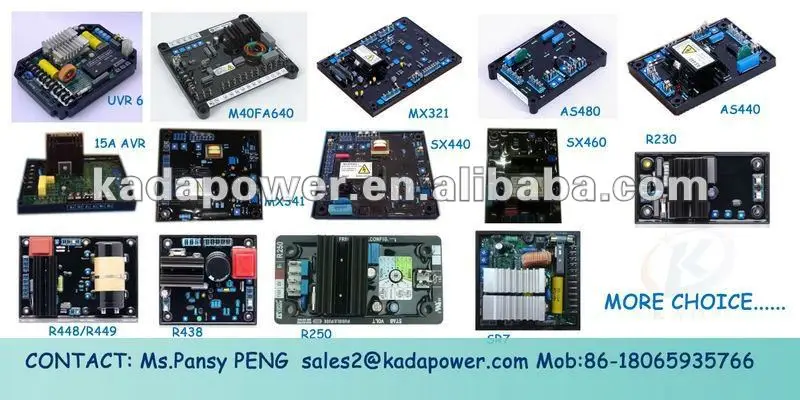

R230, R250, R438, R448, R449, R450



The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.



We not only provide products, but also special services:

²  One year Quality Warranty completely free( You even do not need to pay for freight charge);

²  Customer appointed Express Delivery: DHL/ UPS/ TNT/ FEDEX/ EMS/ SF/ ARMEX and etc.;

²  Customer appointed shipping value: saving customs taxes when making customs clearance;

²  On-line Service: Skype / Yahoo Messenger / WhatsApp / Wechat;

²  Other services: multitudinous customized services.



R438 FOR SHUNT, AREP or PMG ALTERNATORS



Leroy Somer R438 Voltage Regulator is an analog AVR. It is designed for alternators with a AREP or PMG excitation .

Leroy Somer R438 AVR controls the excitation current in order to maintain the output voltage of the alternator.

AVR R438 is performant in terms of voltage regulation, simple to set , to use and is reliable.

It can run without LAM (U/f), or with LAM, selection is done by strap ST5. It is in compliance with I.E.C. 60034-1 standard and U.L. 508 / C.S.A. approved



Operation mode: Standalone



Main feature and characteristics

- Voltage regulation : ± 0.5 %.

- U/F function (1).

- LAM function (2).

- Response time : 500 ms

- Nominal excitation current : 5A

- Maximum excitation current : 8A during 10 s.

- Provide range and voltage détection : 95 to 520 V.

- Protection : fuse 8A.



Operation conditions

- Operating temperature range : - 40° C à + 70° C.

- Storage temperature range : - 55° C à + 85° C.

- Hygrometry : 98%.

- Maximum choc : 9 g on 3 axis..

- Vibrations : less than 10 Hz , 2 mm peak magnitude.

From 10 Hz to 100 Hz : 100 mm/s, below 100 Hz : 8g.

Optional modules compatible

- R 731 : three phase voltage sensing.

- R 734 : 3-phase current and voltage sensing for parallel operation

- R 726 : regulation system changed to “4 - function”



Connexion and setting

Settings are done through the A.V.R.

- Potentiometer P1 : Quadrature droop setting.

- Potentiometer P2 : Voltage setting.

- Potentiometer P3 : Stability setting.

- Potentiometer P5 : Excitation ceiling setting.
