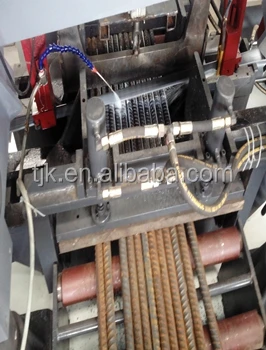

CNC REBAR SHEAR LINE NO.600

Product Overview

Description

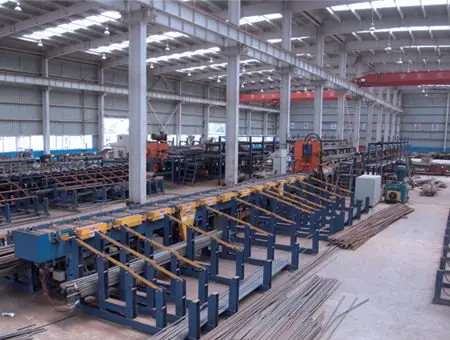

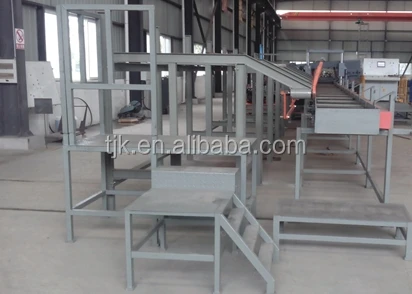

 Rebar Cutter/ Rebar shear line

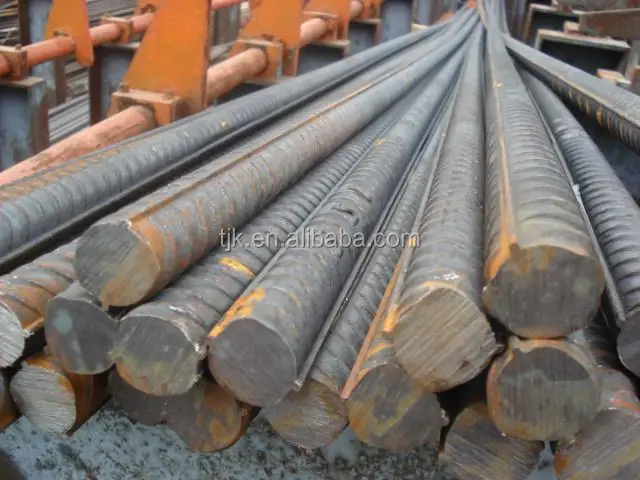

Products Introduction : This machine may cut both grade1,grade 2,grade 3 and grade 4 deformed steel bars, it`s a automatic processing and steel production line with high quality cutting, transportation, storage, processing together.Widely used in road, rail and nuclear power construction and other fields.



CHARACTERISTIC



1,CNC control, automatic cut, stock and distribute the bars (patent).

2,Germany PLC and CNC to ensure high cutting quality.

3,Hydraulic guillotine system.

4,Multiple baffle for quick positioning and high efficiency (patent).

5,Gradient guillotine with high capacity (patent).

6,Bi-side descharge (patent).

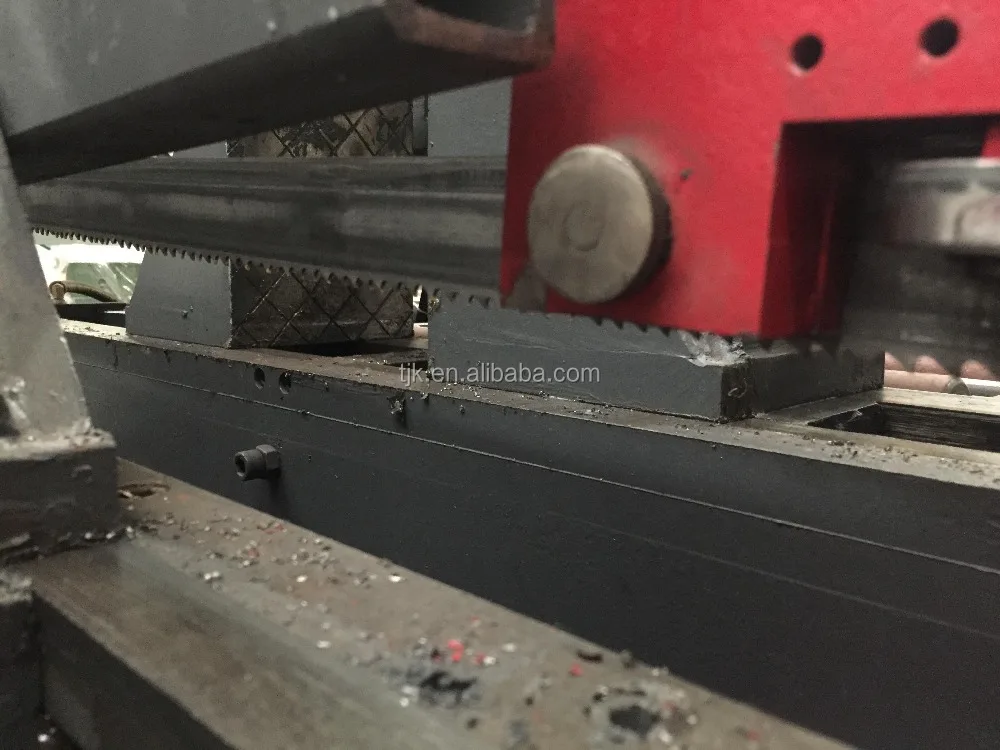

7,Groove blade.

8,6 in-feed units and safety monitors.

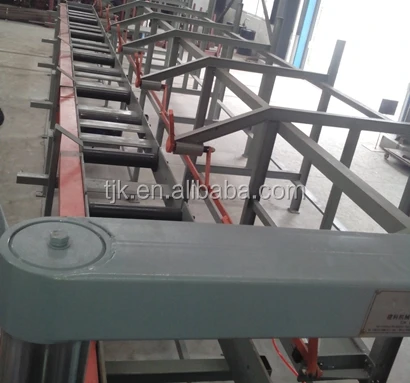

9,Variable frequency control on in-feed conveyor.

10,Control systems: SIEMENS, MITSUBISHI, PANASONIC.

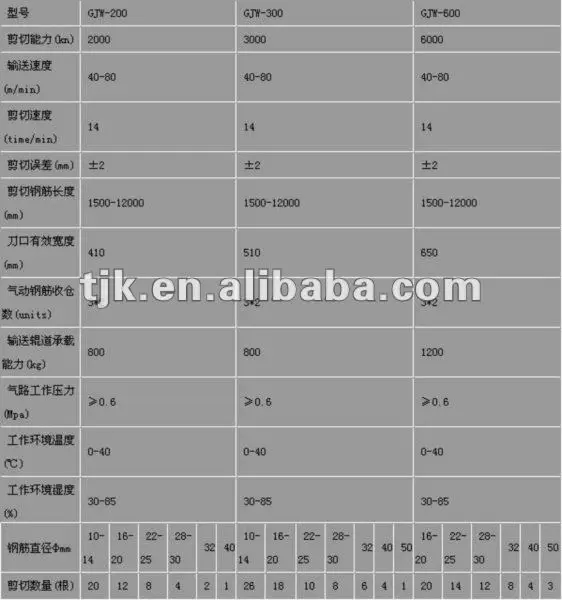

TECHNICAL DATA







Model	GJW-150	GJW-200	GJW-300	GJW-600
Shear capacity(T)	150	200	300	600
Installed power(kw)	40	54.3	94.3	120
Conveyor speed(m/min)	90	40-80	40-80	40-80
Cut to length accuracy	6-8	14	14	14
Cut to length	±2	±2	±2	±2
Cut to length accuracy	800-12000	1500-12000	1500-12000	1500-12000
Shear blade width	600	410	510	650
Collecting pockets nos.	8*2	6*2	8*2	8*2
Convery loading capacity	800	800	800	1200
Pressed air(mpa)	0.5	0.6	0.6	0.6
Operation temperature	0-40	0-40	0-40	0-40
Operation humidity	30-85	30-85	30-85	30-85
Bar size(mm)	10.12.16.20.40. 50.22.25.28.32	10.16.22.28.32. 40.14.20.25.30	10.16.22.28.32.40 50.14.20.25.30	16.22.28.32.40 50.20.25.30
Nos.to be sheared(pcs)	20.14.12.8.4.3	20.12.8.4.2.1	26.18.10.8.6.3.1	20.14.12.8.4.3
