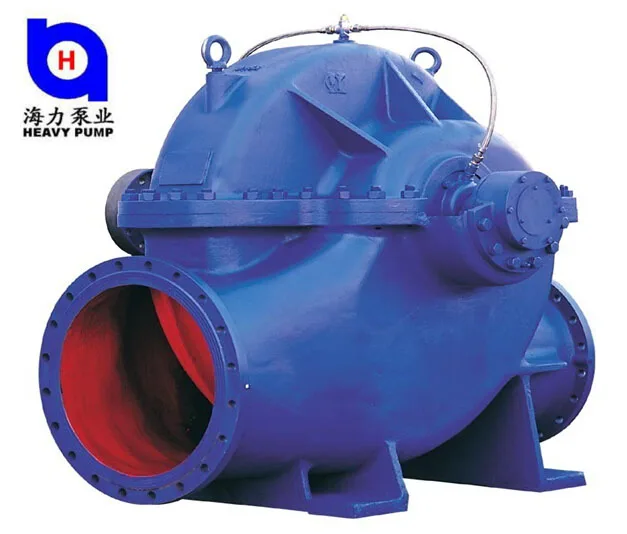

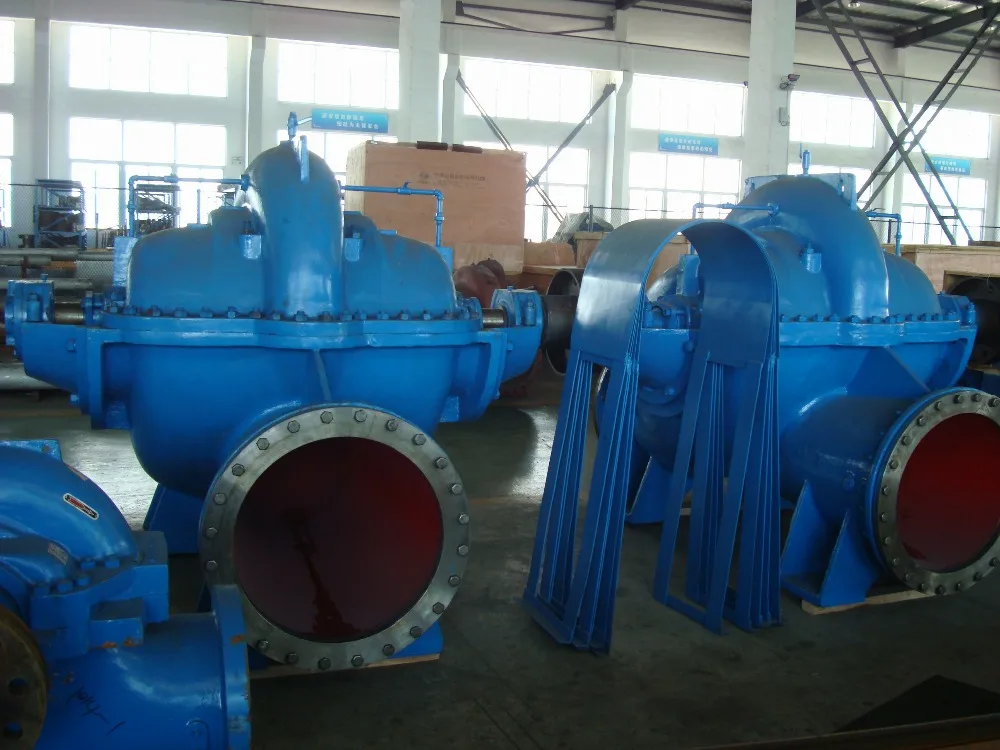

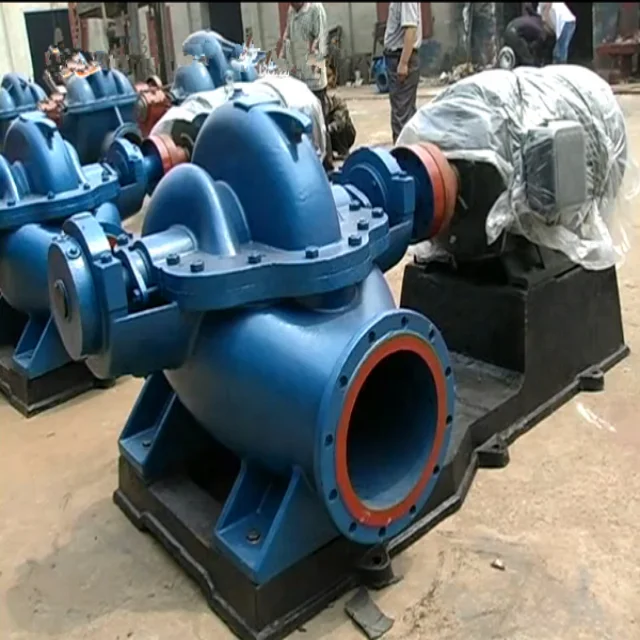

Heavy brand volute type horizontally split double suction centrifugal pump

    Sh series split case pump is one of single stage double suction centrifugal pump whose feature: long service life, high efficiency, low operation cost, friendly maintenance and service etc.

     It is mainly used for municipal water supply, central heating, air-conditioning, fire system, water treatment, drainage pump station, power plant, ship industry, chemical & oil industry and other industries.

  Pump suction diameter: 125mm-500mm.

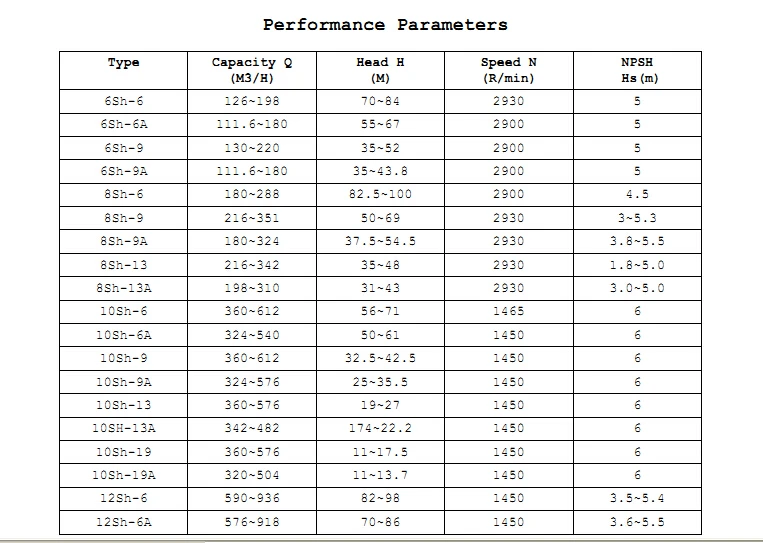

  Operating Condition

   a)Rotate speed: 2950r/min, 1480 r/min, 980 r/min, 730 r/min
   b)Flow range: 64.4~9810m3/h
   c)Delivery lift: ≤200m
   d)Medium temperature: ≤80 ,
   e)product adopting special materials: -20 ~120
   f)Ambient temperature: Lower than 40
   g)Operating pressure up to achieves 2.5MPa

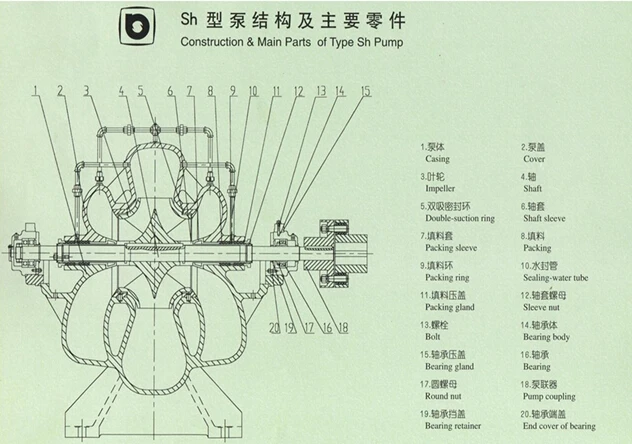

Pump Material:

  a)Pump casing: Cast iron or magnesium iron
  b)Pump cover: Cast iron or magnesium iron
  c)Impeller: Cast iron, magnesium iron or tin bronze
  d)Sealing ring: Cast iron or tin bronze
  e)Pump shaft: 45# steel plated with chrome
  f)Dynamic and static mechanical sea: Hard carbide, graphite
  g)Configuring other material according to requirement is allowable

Features:

  A) Single-stage double-suction horizontal split centrifugal pump

  B) Used to transport pure water and the liquid of both physical

  C) Chemical nature similar to those of water

  D) Maximum temperature of which must not be over 80 degrees Celsius.

Application:

  A) Suitable for water supply and drainage in factories

  B) Mines, cities and electric stations

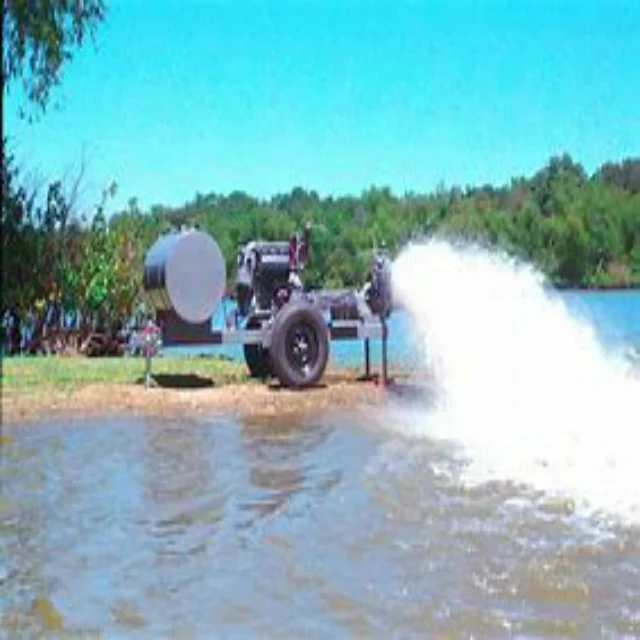

  C) Waterlogged land drainage and irrigation of farming land

  D) various hydraulic projects

     Bearing assembly – a large diameter shaft with short overhang minimizes deflection and contributes to long  bearing life.

     Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure  capabilities and an extra measure of safety.

     Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.Hard  metal and molded elastomer impellers are completely interchangeable.

    Throatbush – wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

   One-piece frame – a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An  external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of  impeller  clearance.

Packing:

our slurry pumps and parts will be packed into a wooden or plywood case

this is made high quality wood, they cases are exporting standard.

never broken in transportation.

Packaging Details:  packed in a standard exporting case

Delivery Detail:     normally in 2 weeks for this slurry pump

1.Our team is experienced in slurry pumps ,we are glad to help each client .

2.We trade client same no matter clients' order is 100US or 10000USD.

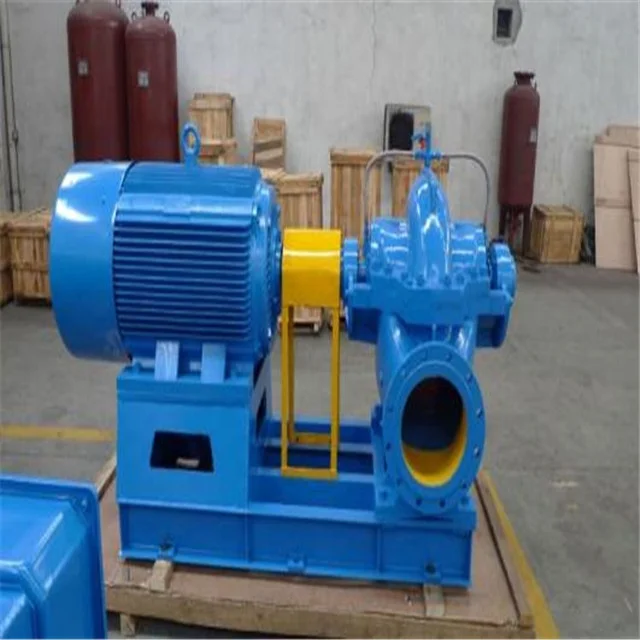

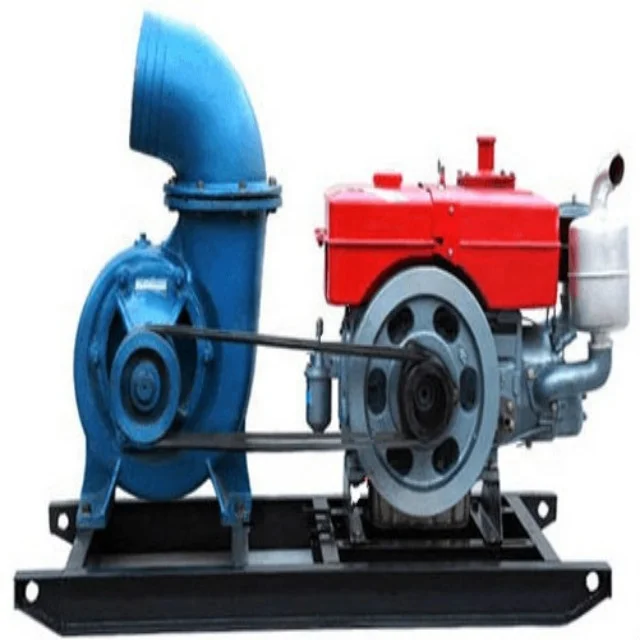

3.We can connect the pump with motor or diesel engine for clients, the pumpset is ready to use when clients receive them.

4.Our sales department online service time is 6:00 to 24:00

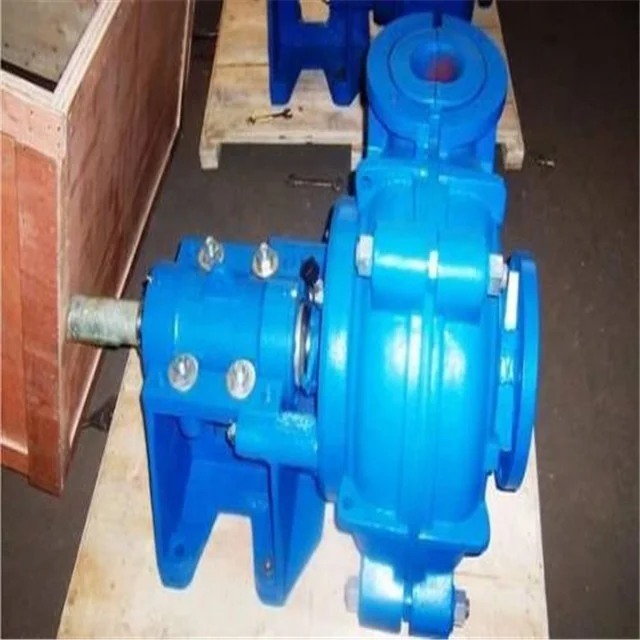

5.We make the slurry pump in very short delivery time because we have so many pump parts in stock, usually the pump delivery time is one week.please kindly check following slurry pump driving type and the slurry pump parts.

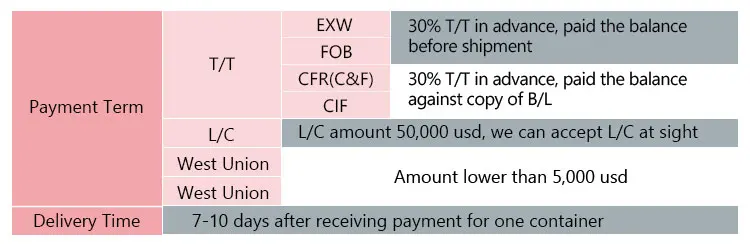

Payment Terms and Condition

    Shijiazhuang Heavy Pump Company Limited has mature experiences for many years on research & manufacture and application of slurry pump.Meanwhile based on technology intruduction,the perfect product series has been developed which covers full rage for application.Among them,series MS,HHS,HS,LS has wider usage especially.

     Through the apply in the industry such as mentallurgy,mine,electric factory and chemical industry etc,it has been proved that these products have advantages of reasonable construction,reliable operation and long service life etc which are welcome in consumers.

If you have any questions and want to know more informations about our products ,please contact us.
