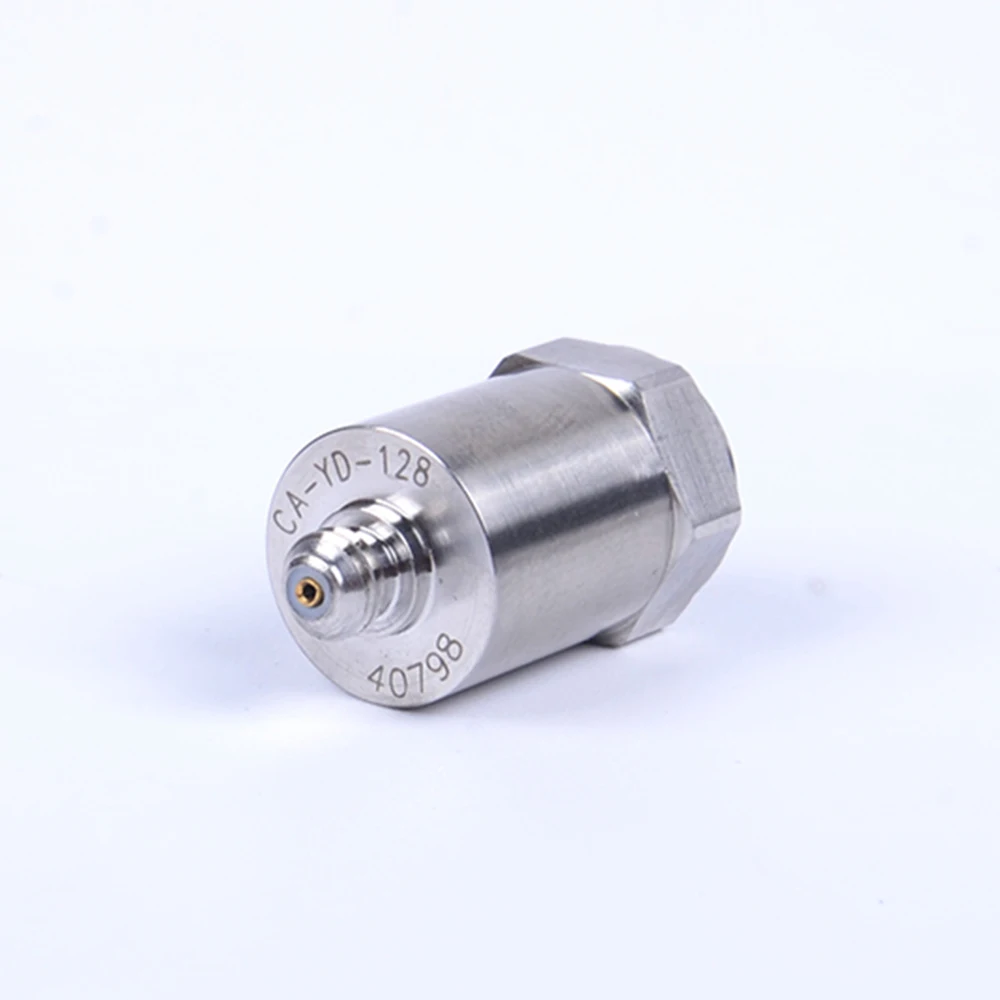

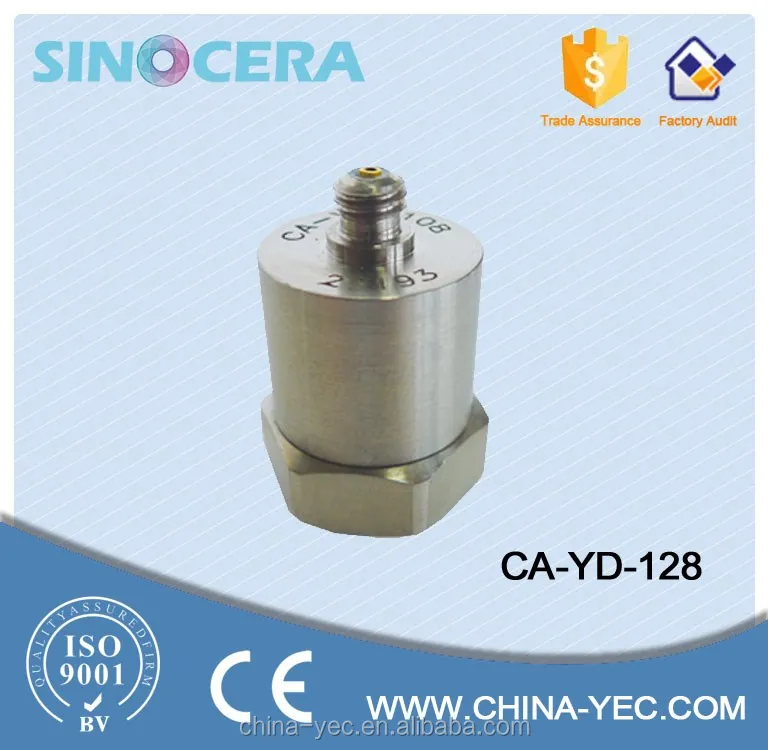

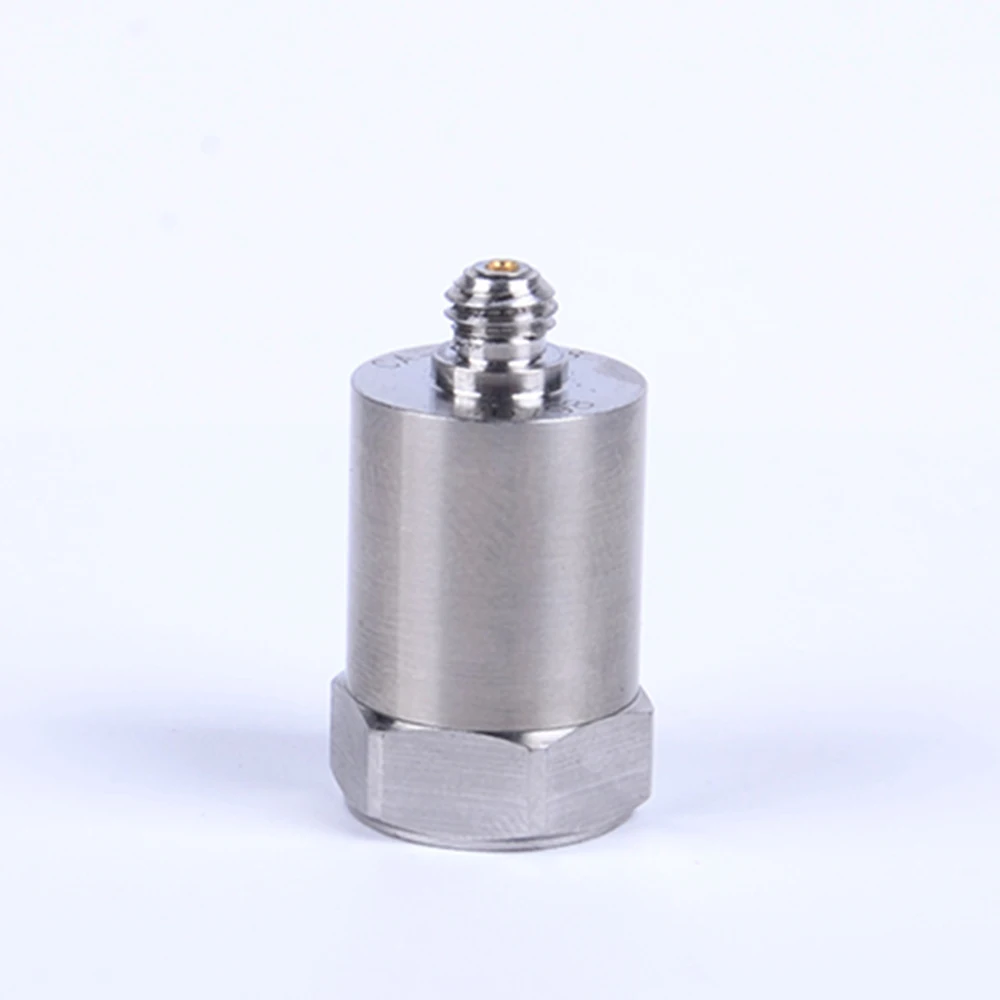

Piezoelectric accelerometer vibration sensor, PE type,CA YD 128
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (60372427385):
Product Overview
Description
Product Description
PE piezoelectric accelerometer sensors using the materials have the piezoelectric effect as the sensitive element such as quartz,piezoelectric ceramic.Their features are wide range of frequency response,the high sensitivity,the good dynamic performance,low transverse sensitivity,the strong anti-jamming capability and so on.
PE piezoelectric accelerometer sensors are widely used in dynamic testing situations,such as vibration and shock.
Features
♦ General vibration, shock testing
♦ Shear structure, good environmental characteristics
♦ Wide application
Specifications
| Sensitivity(20±5°c) | ~30pc/g |
| Measurement Range(pk) | 1000g |
| Max Transverse Sensitivity | ≤5% |
| Frequency Response( ±5%) | 1~6,000Hz |
| Mounting Resonant Frequency | 30,000Hz |
| Operating Temp. Range | -40~+150 °c |
| Temperature Response | see graph |
| Transient Temperature Response | 4mg/ °c(0.3Hz) |
| Magnetic Sensitivity | 3g/T |
| Base Strain Sensitivity | 0.2g/με |
| Case Isolation | >109Ω |
| Capacitance | ~1200pF |
| Mounting | M5 |
| Sensing Element | Piezoelectric Ceramics |
| Sensing Geometry | Shear |
| Case Material | Stainless steel |
| Weight | 18g |
| Output | Top L5 |
Detailed Images
| Dimensions |
|
| Temperature Response |
|
| Frequency Response |  |
Our factory:
Certifications
Accessories
Certificate | Calibration parameter, frequency response |
| M5 Stud,Protection cap | Each one |
| L5/L5 STYV-1(2m) | one(standard) |
| Remark | Imperial and special accessories can be customized |
OEM Service
We are the manufacturer. We can offer the OEM service.
