Product Overview

Description




 Rotary table shot blasting machine



Superior design, quality and rugged construction make the Rotoblast Tables more reliable and easier to maintain than other machines.

Joint offers a variety of different machines, designed for your specific needs.



• WildblastTM wheels for efficient cleaning and minimum maintenance.

• Extremely compact design,minimum floor space required.
• Totally self contained includes dust collector, separator, cartridge filtration system.
• No special foundations required, no extra ducting needed.
• Clam shell door design allows easy loading with truck or crane.
• Full safety interlocks.
• Automatic in operation.
• Low noise levels.
• Heavy duty construction for the most demanding environment.



Parameter



TypeQ356Q3510Q3516Q3518
Max Work Diameter400 mm1000 mm1500 mm2100 mm
Max Work Height400 mm1000 mm1400 mm1800 mm
Table Diameter600 mm1200 mm1800 mm2500 mm
Max Load Capacity500 kg1000 kg2000 kg3000 kg
Blast Wheel, kw1*7.51*112*152*22

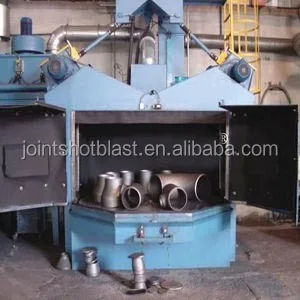

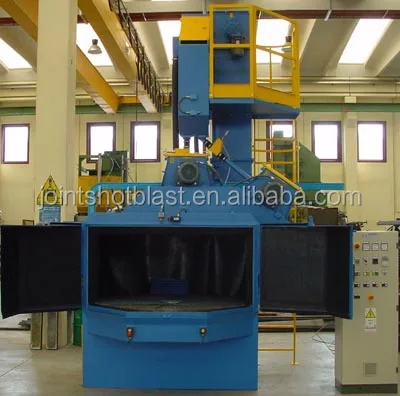

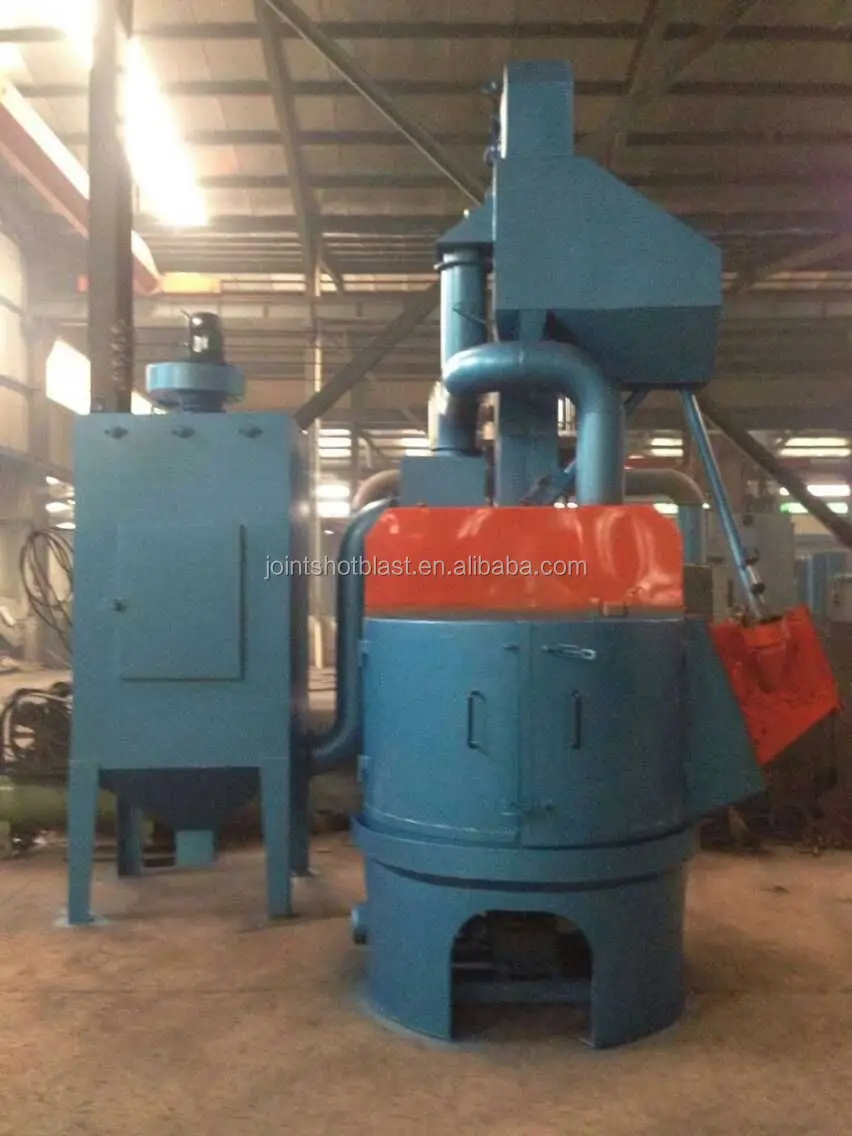

Detailed Images

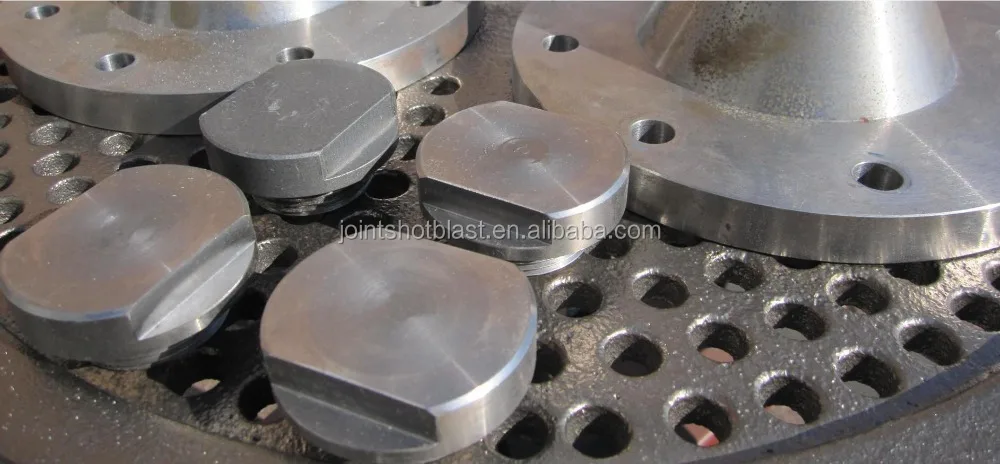

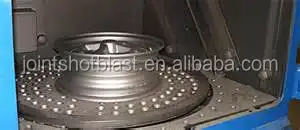

Key components



Packaging & Shipping



Seaworthy plastic bag+plywood box.

20' GP or 40' GP.







Company Information



As a leader in surface preparation technology, Joint Group designs, manufactures and sells worldwide a complete range of high quality shot/sand blasting machines for the foundry and forging industries.Located in China, Joint Group shot/sand blasting machines and parts are working in over 60 countries’ workshop.


Leading companies in the foundry, automotive, aerospace, energy, marine, rail, construction and many other industries have used Joint Group’s products and services to improve productivity and profitability for over 50 years.


Joint Group continues to use the experience of having the large installed base in the industry to deliver the best solution for the customer. Joint Group’s approach to solving customers’ operating challenges is unique in the industry. Using insight gained from thousands of different applications across a variety of different industries.
