F 63 Pneumatic Punching Machine 200KG Force

Product Overview

Description

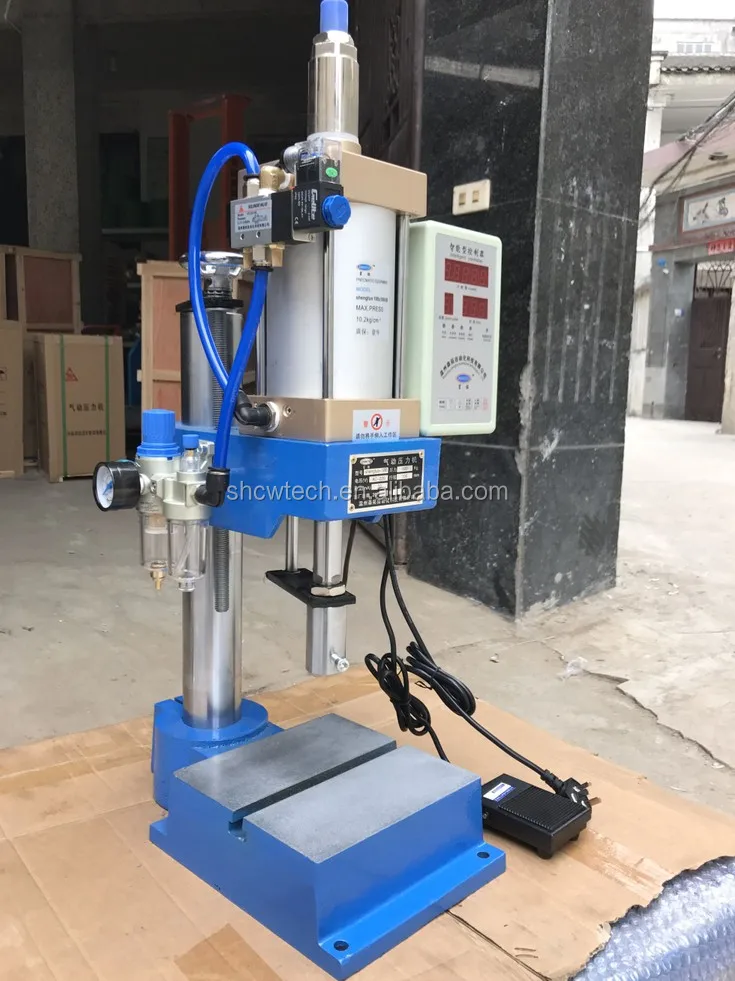

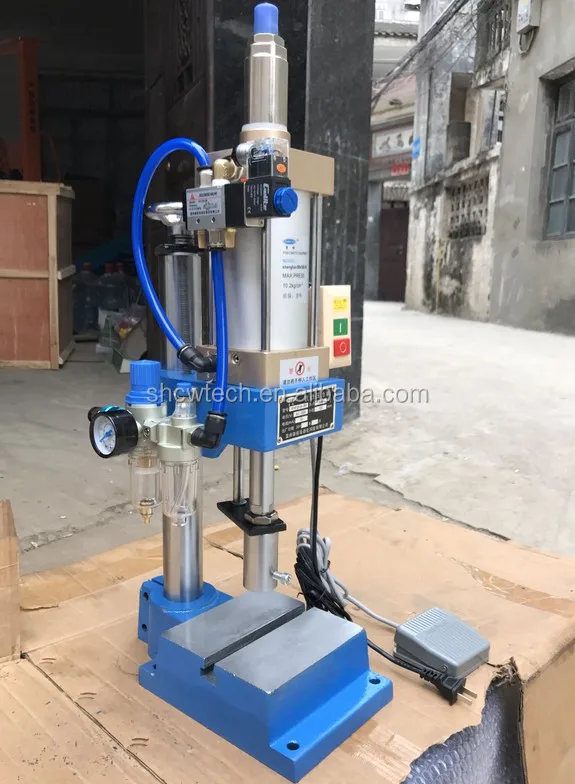

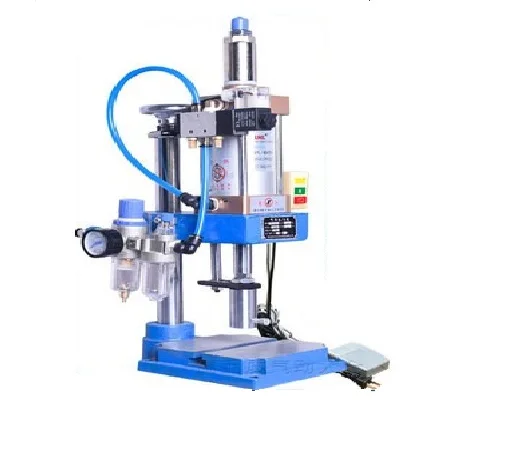

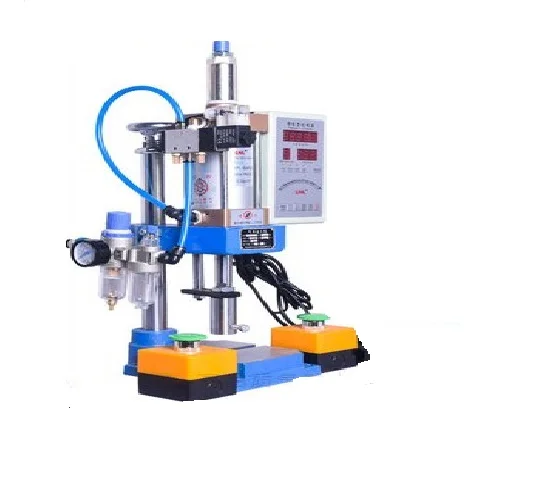

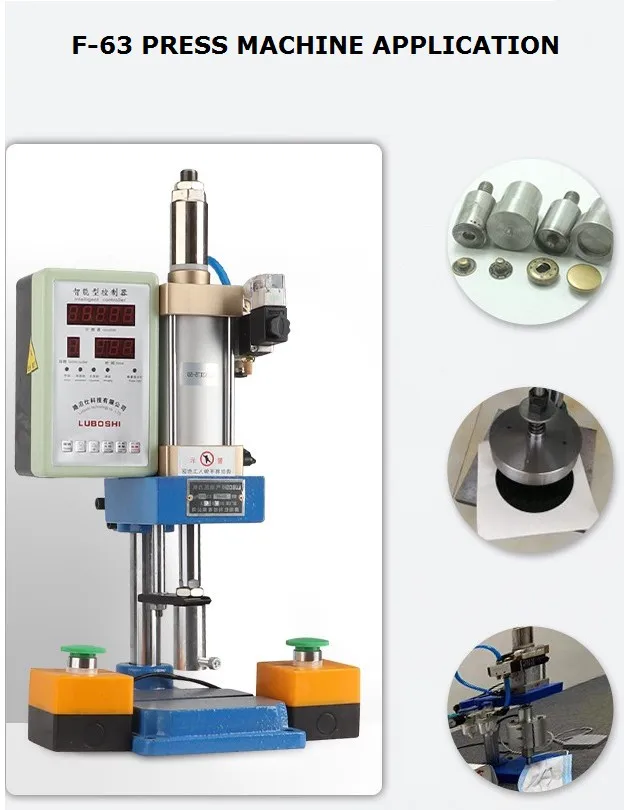

F-63 Pneumatic Punching Machine-200KG Force

Features:

1.Compressed air actuation, easy to operate;



2.Less noise, lower consumption of electrcity and low cost of production;



3.Adjustable cylinder stroke & customized cylinder stroke as per clients'request;



4.Easily adjustable output, can reach expected output only by adjusting the pneumatic pressure;



5.Special design concept aims at operation security, more convenient, stable and duralbe;



6.A heating plate, temperature controler could be fed into the machine as per customer request
to meet particular processing requirements;



7.Effective working platform at customers'options or as per customers'request.

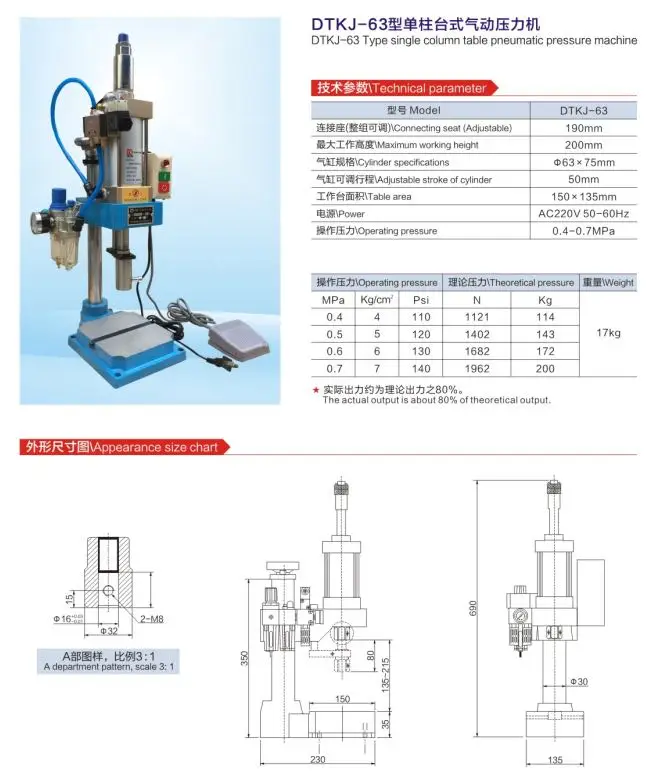

Specification:





Working table size:150X135MM

Pneumatic cylinder type: SCJ63X75-50

Height:220mm

Punching hole:16mm
