Сингазовый генератор 20 кВт
- Category: >>>
- Supplier: Weifang Ronsun Power Technology Co. Ltd.
Share on (60372815689):
Product Overview
Description
Product Description
20KW Syngas Generator
1.Certificate with ISO9001-2008, CE
2.Start quickly,be operated easily
3.Water cooling
20kw syngas generator has mainly following parts: engine, generator, common chassis, horizontal radiator, unit control panel, muffler and exhaust pipe and other operation required attachments.
20KW Syngas Generator
| Product Type | Syngas generator | |
| Genset Model | LH-20GFT | |
| Rated Power | 20KW/25KVA | |
| Rated Frequency | 50Hz | |
| Phases Arrangement | 3P4W | |
| Rated Voltage | 400V/230V | |
| Rated Current | 36A | |
| Rated Power Factor | 0.8 | |
| Engine | Engine Series | RONSUN |
| Engine Model | LH24-35G | |
| Engine Power | 24KW | |
| Rated Speed | 1500rpm/1800rpm | |
| Cylinde Qty | 4 | |
| Bore*Stroke | 98*155mm | |
| Displacement | 3.5L | |
| Air Intake Method | Natural Aspirated | |
| Speed Regulation | Electronic Governor | |
| Start Method | Electrical Starting | |
| 20KW Syngas Generatorernator | Brand | Stamford or Sunvim |
| Model | PI144E/SV184F | |
| Dimension(L*W*H) | 1820*780*1250mm | |
| Net Weight | 630kg | |
PS: 60Hz@1800 gas generator sets are available; Marathon, Leroy Somer, Mecc Alte, Siemens and other international brand alternator are available; Soundproof canopy, Container type canopy, CHP, synchronous system are options. | ||

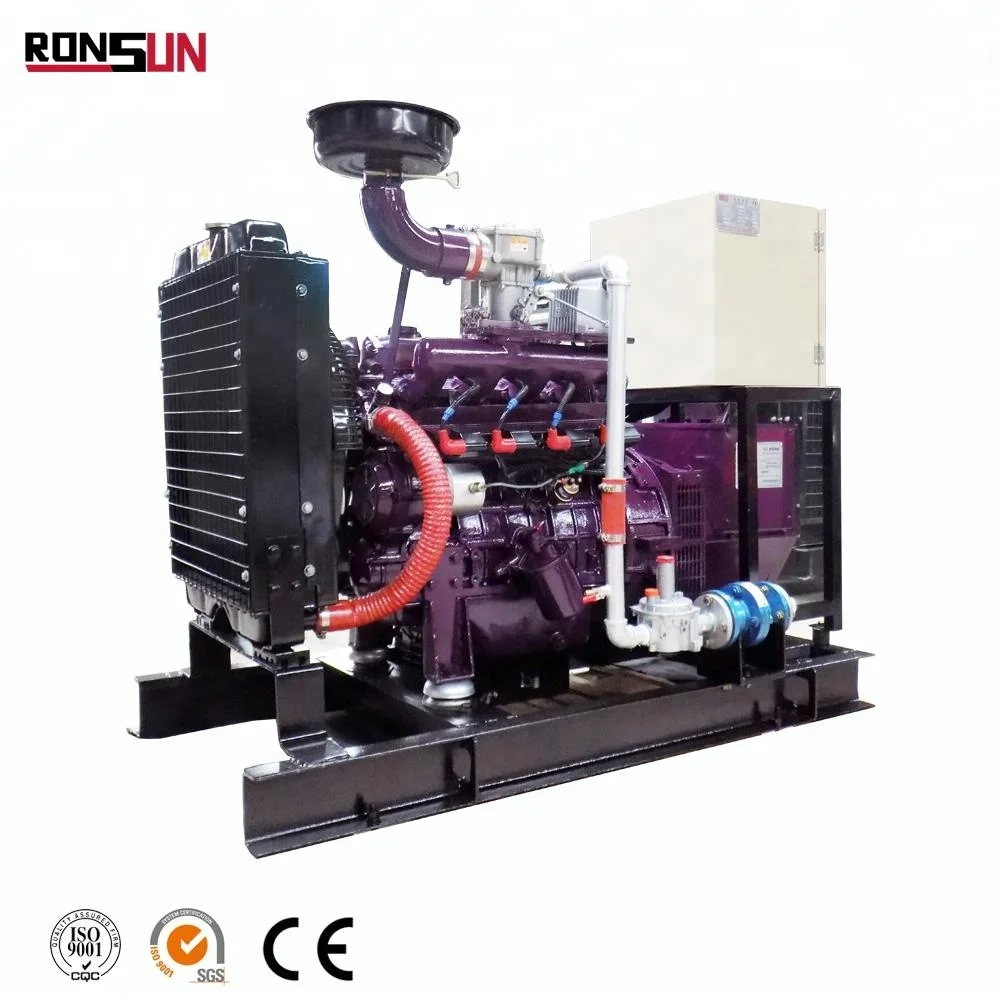

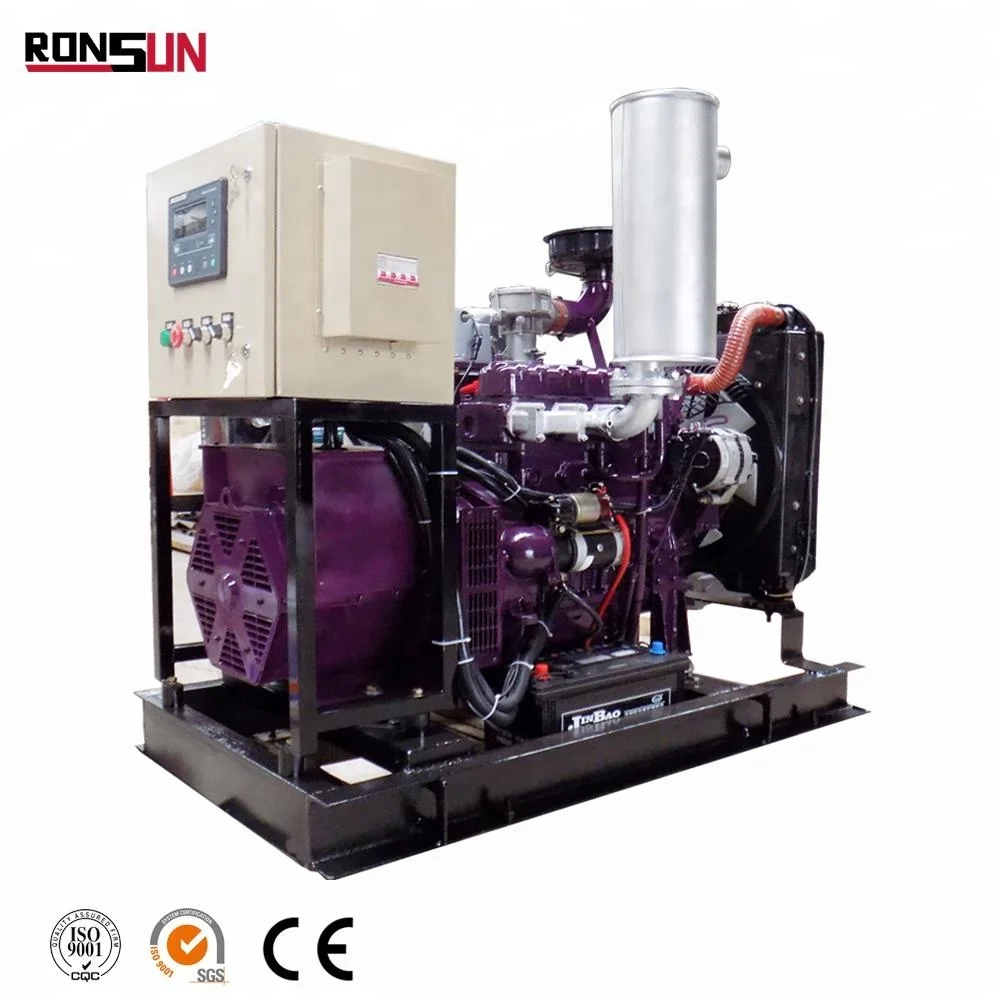

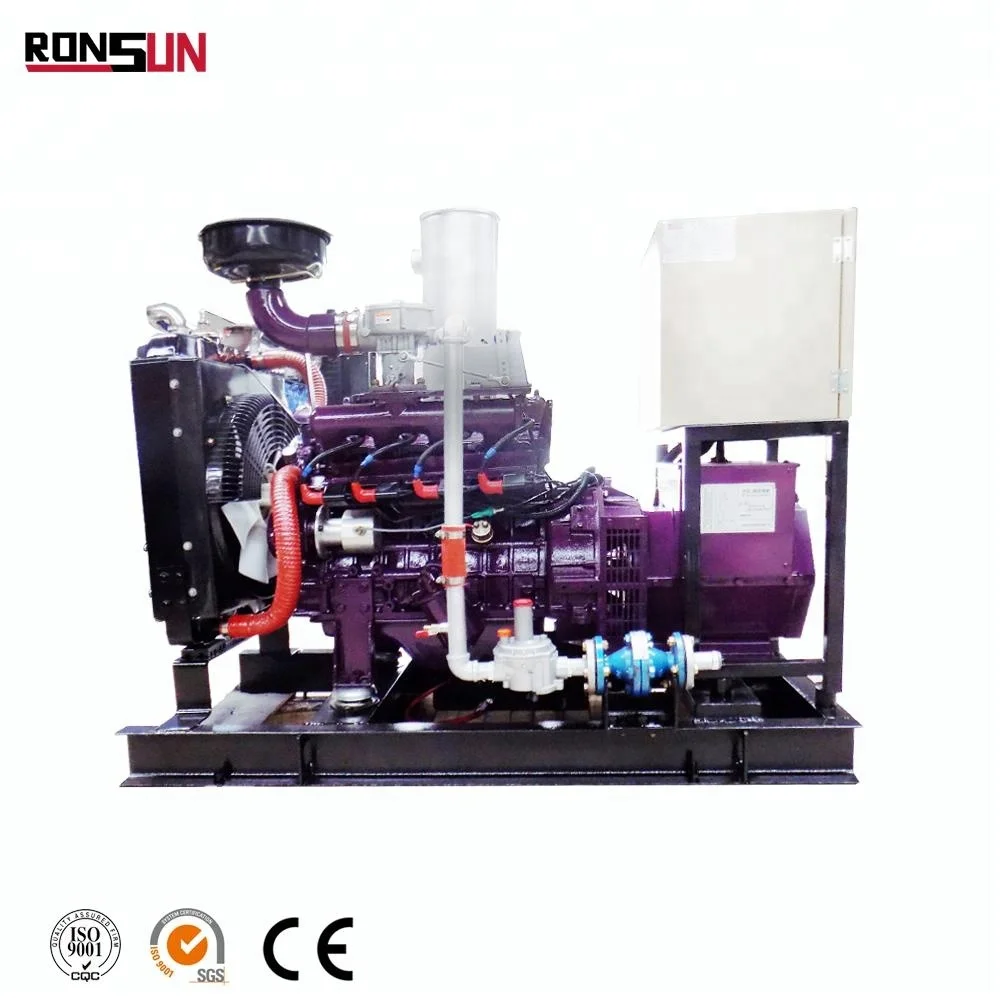

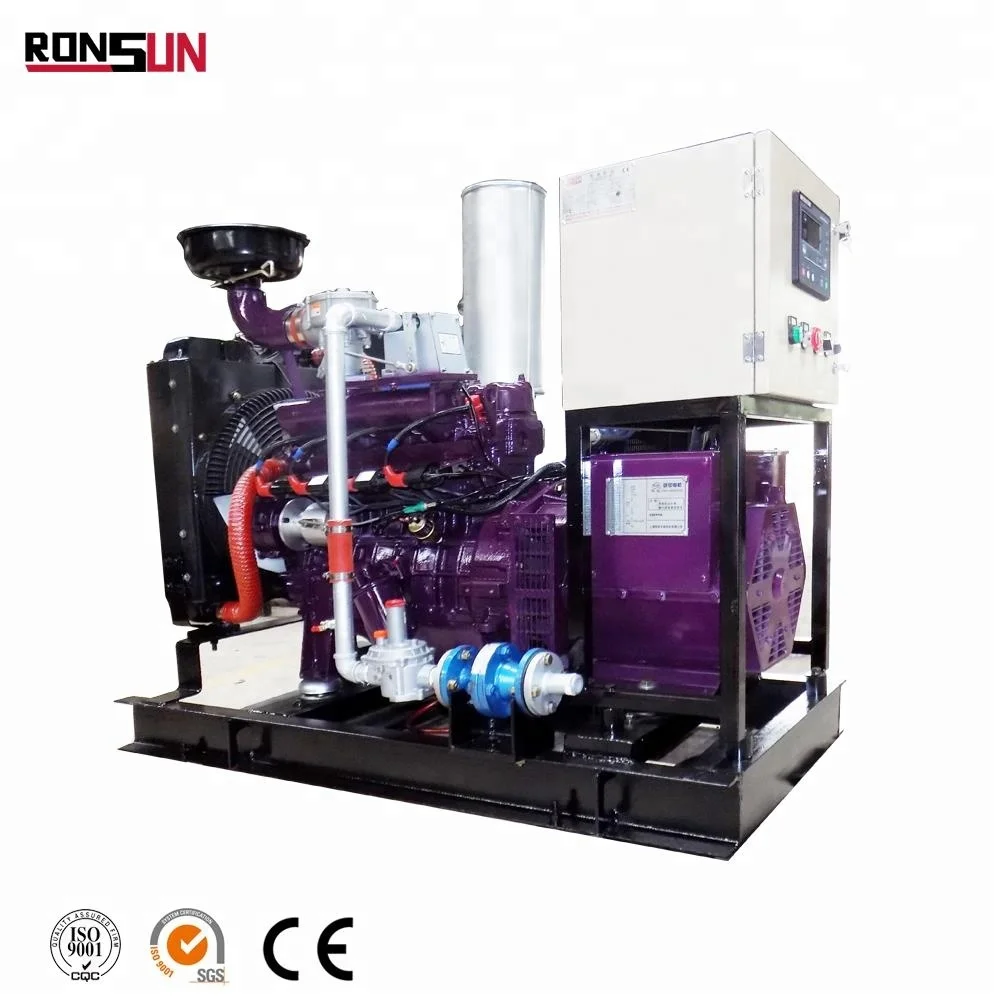

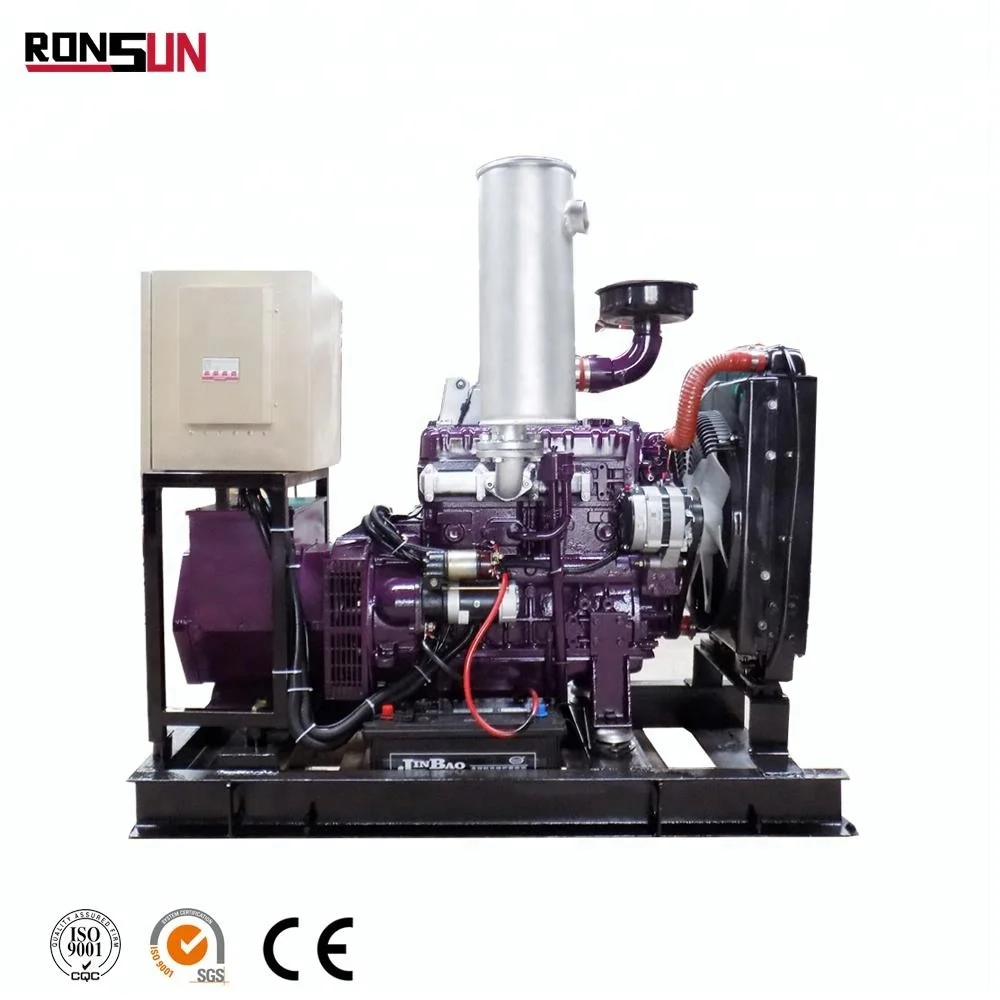

Detail Photos
Suply Scope
Standard supply scope of syngas generator set:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope of syngas generator set:
1.ATS
2.Synchronization System
3.External daily fuel tank
4.Silent Canopy
5. Trailer
6. Auto Fuel Pump
7. Fuel and Water Separator
8. Lub Oil Heater
9. Coolant Heater
10. Fuel Drain Pump
Packaging & Shipping
Packed with wrapped film as standard, plywood case for options. When we finished the test of gas generator set, our transportation department then will take charge of sending the generator to the container at port of loading,with help of our excellent forwarder, we send our gas generator set to our customers successfully without any damage.
FAQ
1. How to choose the right syngas generator set model?
To choose a right syngas generator set model, we need to know required continuous output power, local voltage and frequency and fuel (such as diesel, natural gas, biogas, biomass gas, coal gas, syngas, etc.). For biomass power plant and coal gas power plant, some clients may doesn’t have gasification system, then we need information about raw material.
2.Gas Generator Set Options
Natural gas generator set: 10kw to 1000kw
Biogas generator set: 10kw to 1000kw
LPG generator set: 10kw to 150kw
Syngas generator set: 10kw to 200kw
Biomass generator set: 10kw to 200kw
3. What’s about the installation and commissioning?
Installation and commissioning of the syngas generator set would be instructed assisted by our technicians on site.
