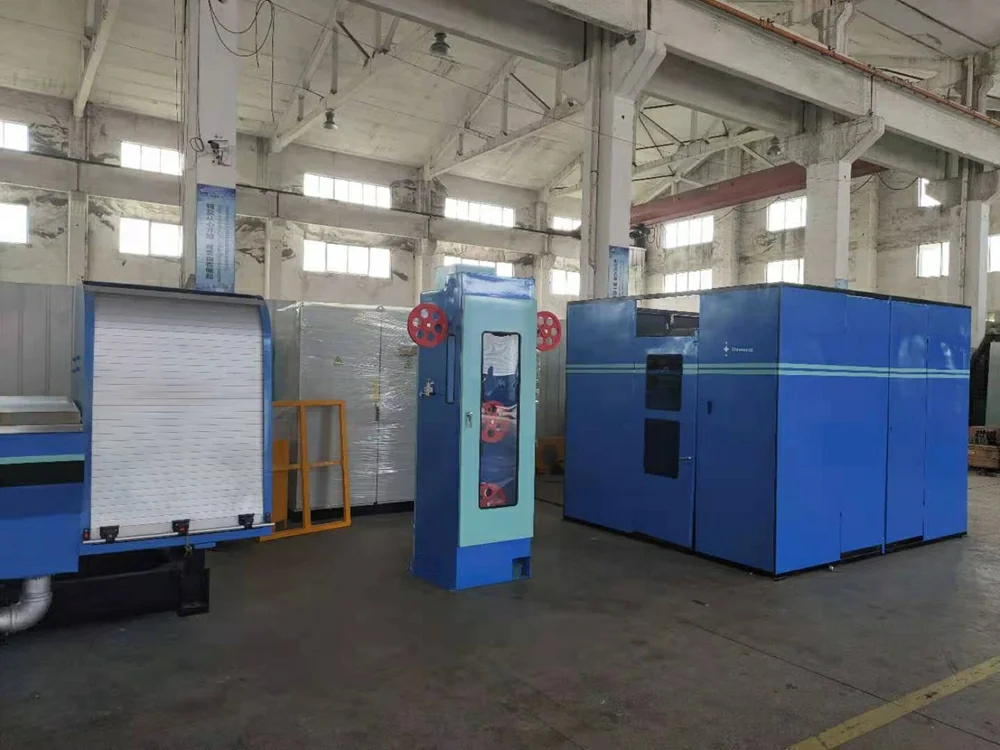

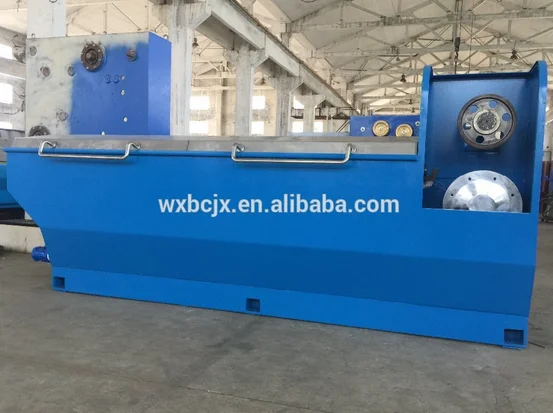

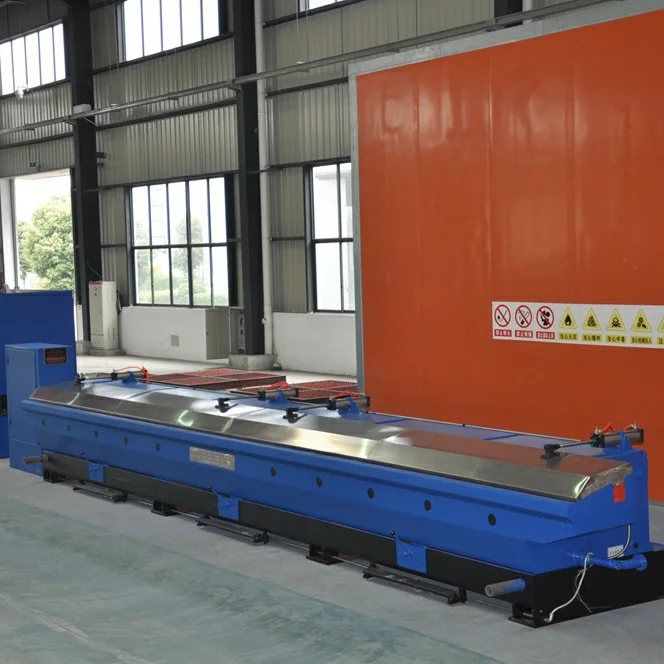

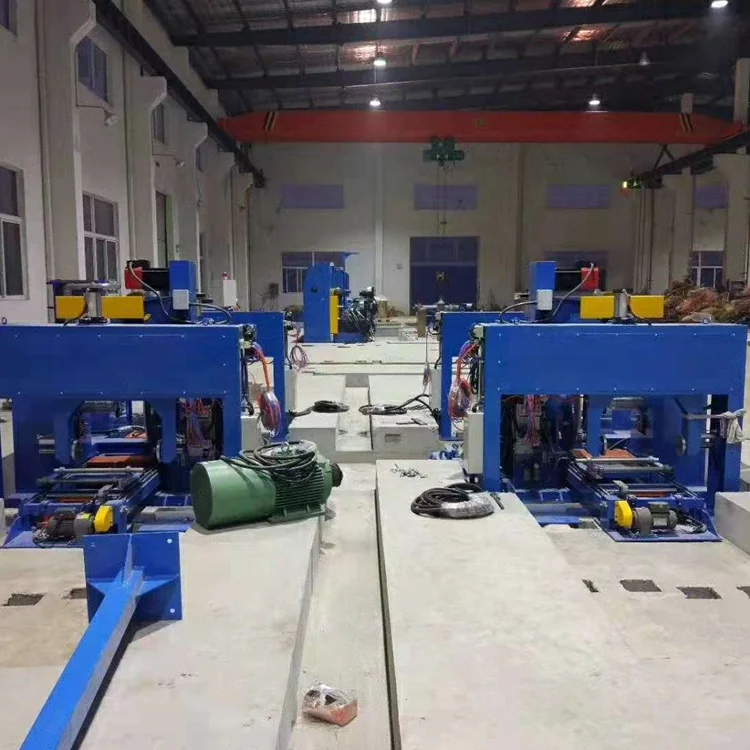

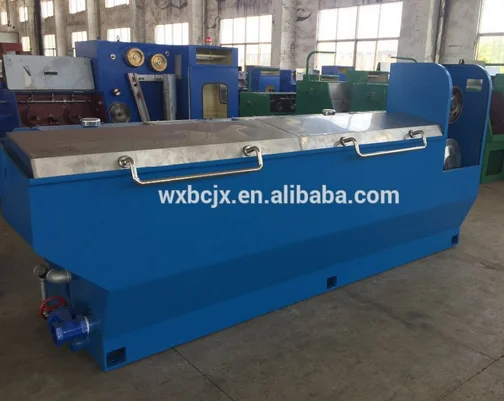

8.0 Copper wire drawing machine for electric wire production
Size Information
inlet size
φ8.0mm(copper)
outlet size
φ2.2-3.5mm
S
M
L
XL
drawing speed
500m/min(Outlet size 3.0mm, the drawing speed at 450-500meters/per minute)
drawing cone diameter
φ400mm
cone speed ratio
1.25
main motor
AC 132kw

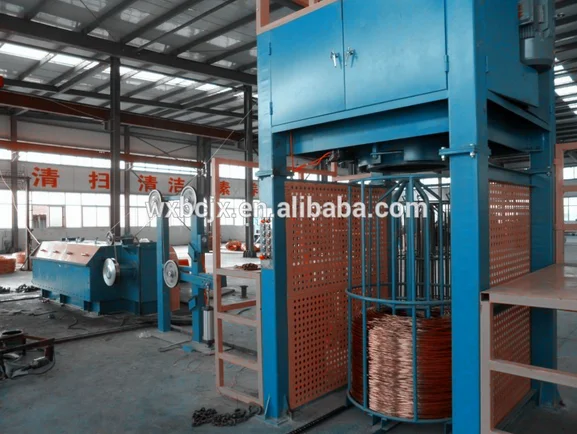

coiler m/c motor
AC 15KW
die size
φ45mm*25mm(thickness)
machine noise
≤85db
total installed capacity
125KVA
machine dimension(working area)
18000mmL*4500mmW*3900mmH
Related Products
Company Introduction
Wuxi Baochuan/Shuochuan Machinery Manufacture CO., Ltd was established in 2009. We always insist on the company ideology of “High quality, consistent improvement, conscientious service”,and spare no effort to build our brand and service. Wire and cables equipment researching, manufacturing and marketing is our main business, which contains Large/Medium/Fine Wire Drawing Machine series, Extruding Machine Series, Annealing Machine series, High-speed Auto Stranding Machine series, Take Up Machine series, Full Auto Coiling and Packing System, Caterpillar Machine series, Single Stranding Machine with microcomputer, taping Machine, and Accessories for Auxiliary Equipment, as well as the customization of related electromechanical equipment.
FAQ
Q: Could you please arrange the installation?
A: Yes, we could and the buyer pay the charge.
Q: Could you arrange the production education?
A: Yes, we could do it on line. The buyer pay the charge if we fly to your country.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment.
Q:Can you produce according to the samples or designs?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
