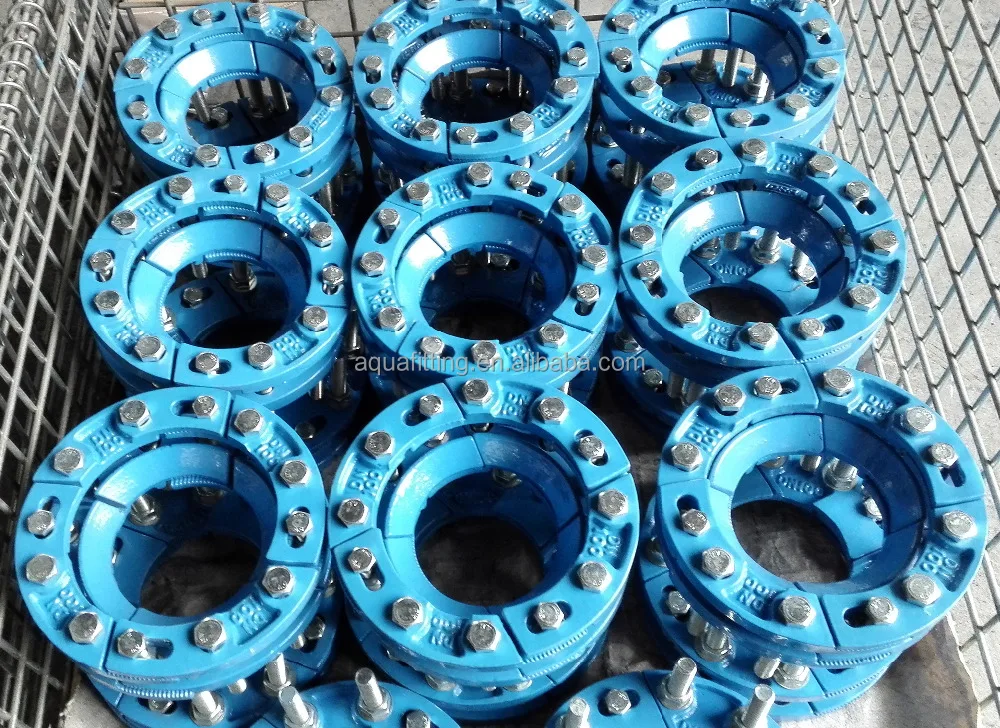

Bell Joint Repair Leak Clamp
Bell Joint Repair Leak Clamp
Bell Joint Repair Leak Clamp

Bell Joint Repair Leak Clamp

Share on (60372995408):


Price:$6.00

Quantity:


Product Overview

Description


BELL JOINT REPAIR LEAK CLAMP



  • APPLICATION
Bell joint is used for repair leakage of ductile iron pipes.

 Size from DN50-DN600



  • PRESSURE

 PN10, PN16, PN25. Flange according to ISO2531/ EN545,/EN1092



  • MATERIAL



Body



      Ductile Iron  GGG50/40

 Gasket



      EPDM according to EN681-1

 Bolt &Nut



     Galvanized carbon steel / hot dip galvanized steel/dacromet coating steel 4.8/8.8 grade or customized

 Coating



     Fusion boned epoxy more than 250 micron/ Rilsan Nylon



  • SPECIFICATION

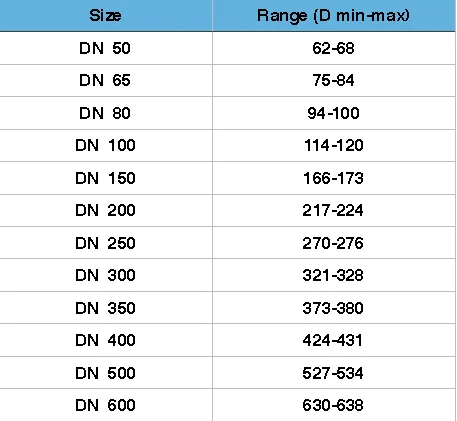

  • bell joint.pngbell joint (2).png

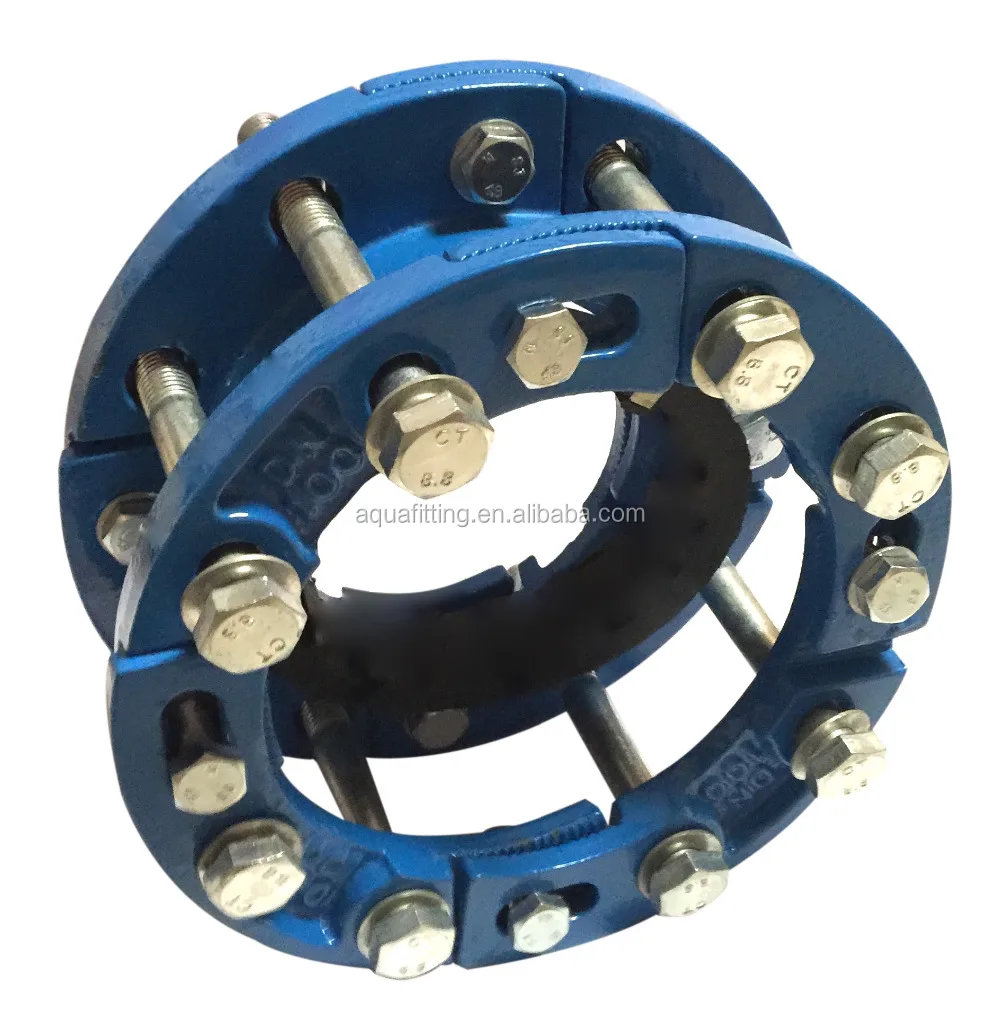

spigot joint.jpg
 spigot joint_.jpg





  • TEST STANDARD

1. Mechanical and  Chemical Test













2. Pressure Test

Test pressure shoud be more than 1.5 times than the working pressure level.








3. Visual Test



The suface of product  should be smooth, no pores, no bears.

The thinkness of coating should be more than 250 micron.B%S2%BESMY)AD(4DK17$UO1.png
